Rexroth Type 3WE Solenoid Valve | 3WE6 | 3WE10 | 3WE6A-6X | 3WE10A | 24V DC Hydraulic Directional Valve

Model Number

3WE6, 3WE10

Inquiry

Product Description

3WE Series Solenoid Directional Valves (3-Way / 2-Position)

Product Overview: The 3WE series consists of direct-operated solenoid directional valves engineered for controlling the start, stop, and direction of fluid flow. As a signature 3-Way 2-position valve, this series is widely used for controlling single-acting hydraulic actuators, pilot circuit switching, and logic control of pressure ports. Compliant with ISO 4401 standards, it is available in NG6 (Size 6) and NG10 (Size 10) sizes. Utilizing wet-armature technology, the spool shifts smoothly within the fluid, ensuring silent operation and an exceptionally long mechanical service life.

Featured models: 3WE10A10/AG24NZ5L/B1 and 3WE6A-6X/EG24N9K4.

Key Technical Advantages:

  • Precise 3-Way Control: Designed with “A” spool functionality (Normally Closed or Open logic), ideal for compact hydraulic logics and pilot systems.

  • Wet-Pin DC Solenoids: Powered by EG24 (24V DC), offering superior heat dissipation and supporting a 100% Duty Cycle while dampening mechanical switching shocks.

  • Enhanced Configuration Options: * NZ5L (Lighted Connector): Provides real-time visual status of power, simplifying troubleshooting.

    • B1 (Cushioned Orifice): Reduces pressure peaks during shifting to protect downstream components.

  • Rugged High-Pressure Build: Rated for operating pressures up to 31.5 MPa (315 bar) with IP65-rated electrical protection.

Detailed Specifications & Parameters:

  • Featured Model Matrix:

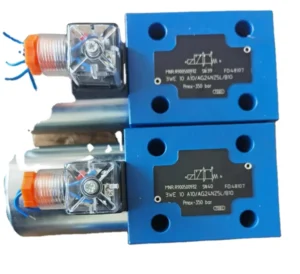

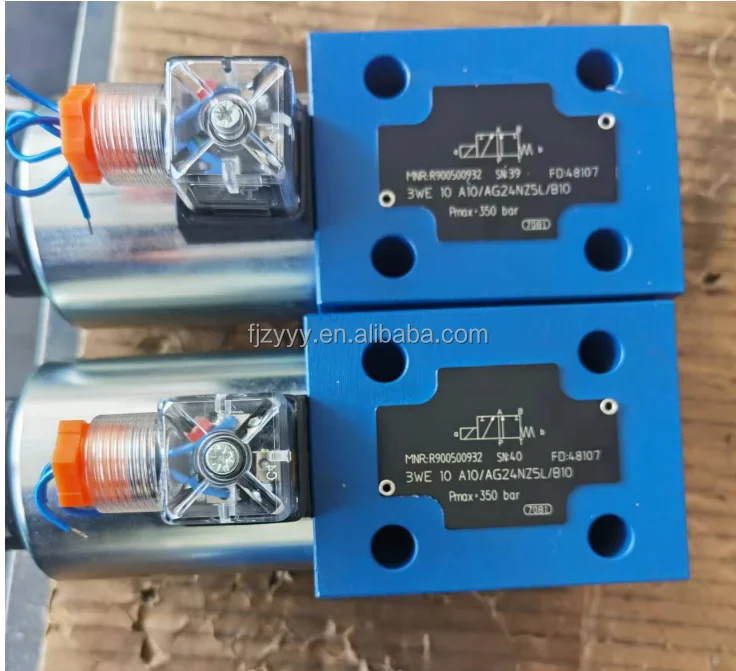

    • 3WE10A10/AG24NZ5L/B1: Size 10 (NG10), A-spool (3-way), 10 design series, 24V DC, including LED connector and cushion feature.

    • 3WE6A-6X/EG24N9K4: Size 6 (NG6), A-spool, 6X design series, 24V DC, with standard DIN 43650 connector.

  • Core Technical Specs:

    • Max Operating Pressure: Ports P, A, B at 31.5 MPa (315 bar); Port T at 16 MPa.

    • Max Flow Capacity: Up to 60 L/min (NG6); Up to 100 L/min (NG10).

    • Electrical Interface: 24V DC (G24), N9K4 standard connector.
