Rexroth 2FRM Flow Control Valve | 2FRM6 2FRM10 2FRM16 | Pressure & Temperature Compensated | 10L-160L/min

2FRM Series 2-Way Flow Control Valves (Pressure & Temp. Compensated)

Product Overview: The 2FRM series is a high-precision solution for regulating the speed of hydraulic actuators (cylinders or motors). As a premier 2-way flow control valve, it integrates a pressure compensator to ensure that the flow rate remains constant regardless of system pressure fluctuations. Additionally, the series features temperature compensation, significantly reducing flow drift caused by oil viscosity changes as temperatures rise. From precision machine tool feed controls to heavy-duty synchronized machinery, the 2FRM series delivers exceptional linear regulation.

Featured models: 2FRM10-21B/25L, 2FRM10-21B/50L, 2FRM10-21B/35L, 2FRM16-22/160L, and 2FRM6B/76-20B/10QM.

Key Technical Advantages:

• Dual Compensation Mechanism: Built-in pressure compensation and precision orifice design effectively counteract flow drift caused by pressure and temperature variations.

• High Regulation Accuracy: The adjustment handwheel features a scale and optional locking mechanism to prevent setting shifts in high-vibration environments.

• Comprehensive Range: Available in Size 6 (NG6), Size 10 (NG10), and Size 16 (NG16), covering flow rates from micro-metering to 160 L/min.

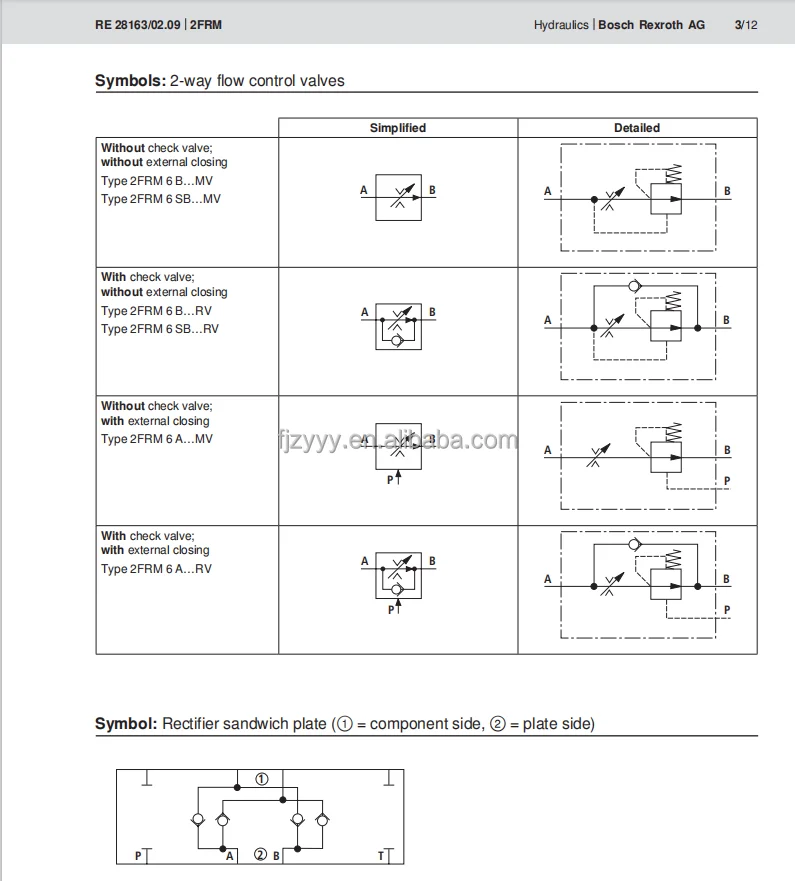

• Optional Reverse Free Flow: Can be equipped with an integrated check valve for controlled flow in one direction and free flow in the reverse.

• Smooth Low-Speed Performance: Extremely low minimum stable flow rate, ideal for applications requiring ultra-slow, steady movement.

Detailed Specifications & Parameters:

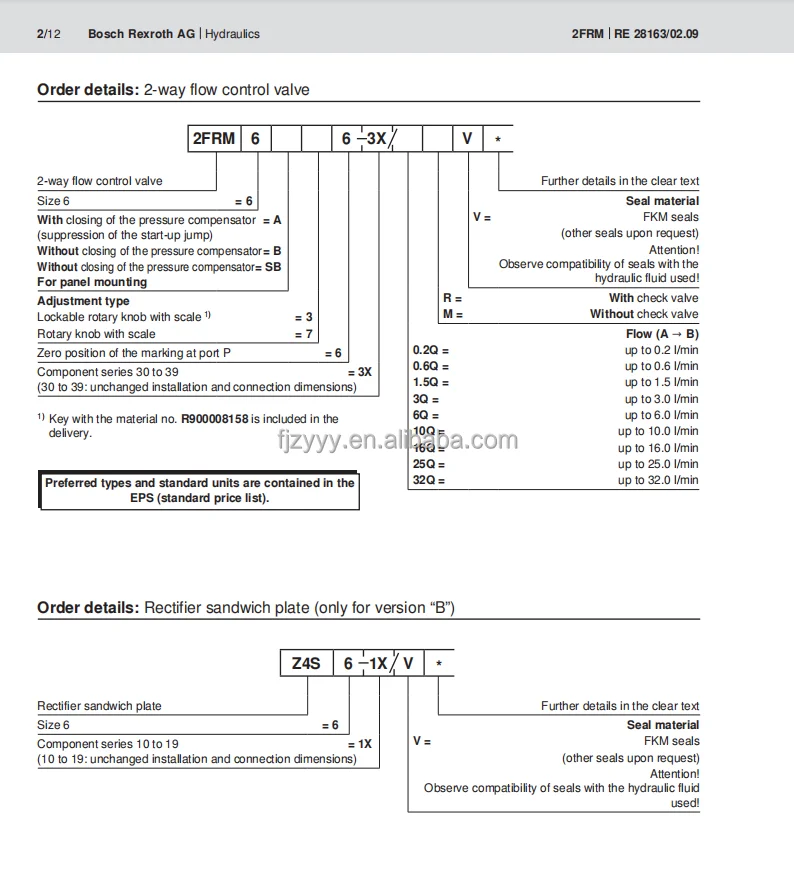

• Featured Model Matrix:

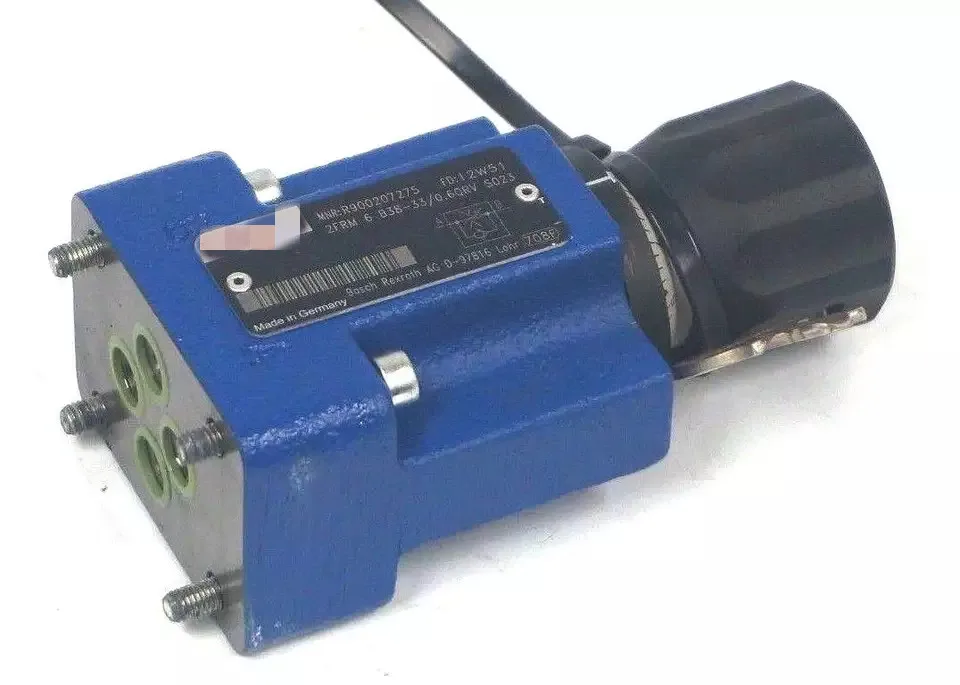

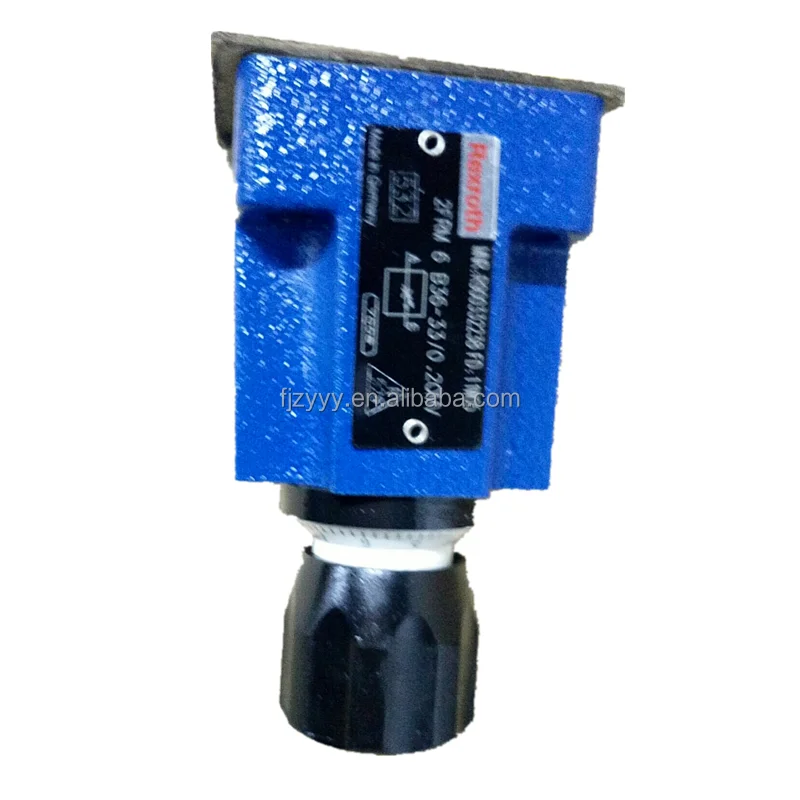

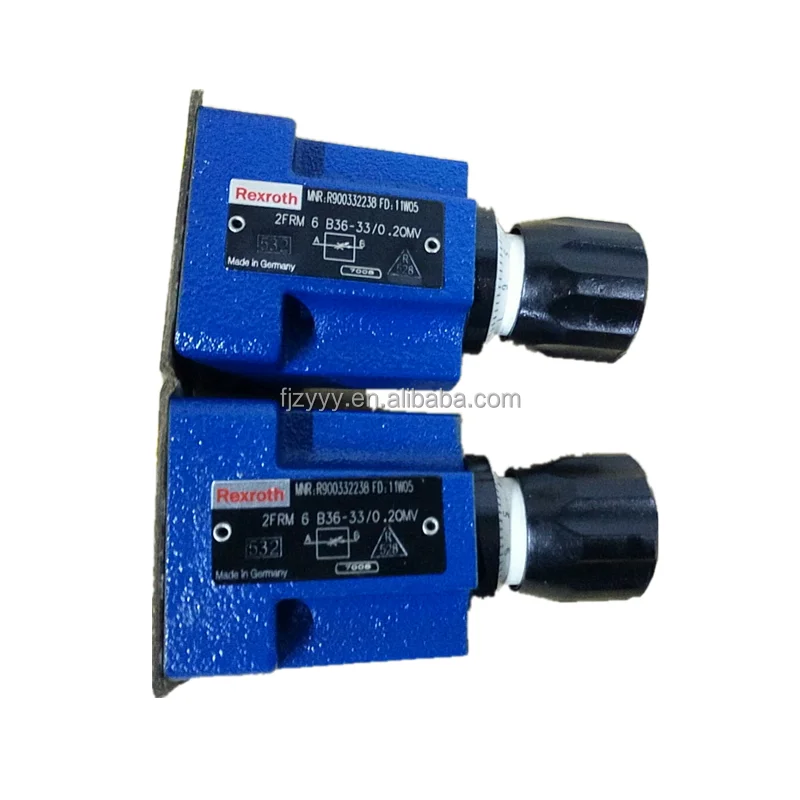

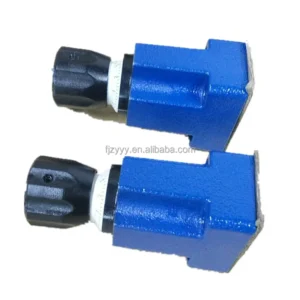

  • 2FRM6B: Size 06, compact design, rated for 10L/min class flow.

  • 2FRM10: Size 10, featuring multiple flow ratings including 25L, 35L, and 50L.

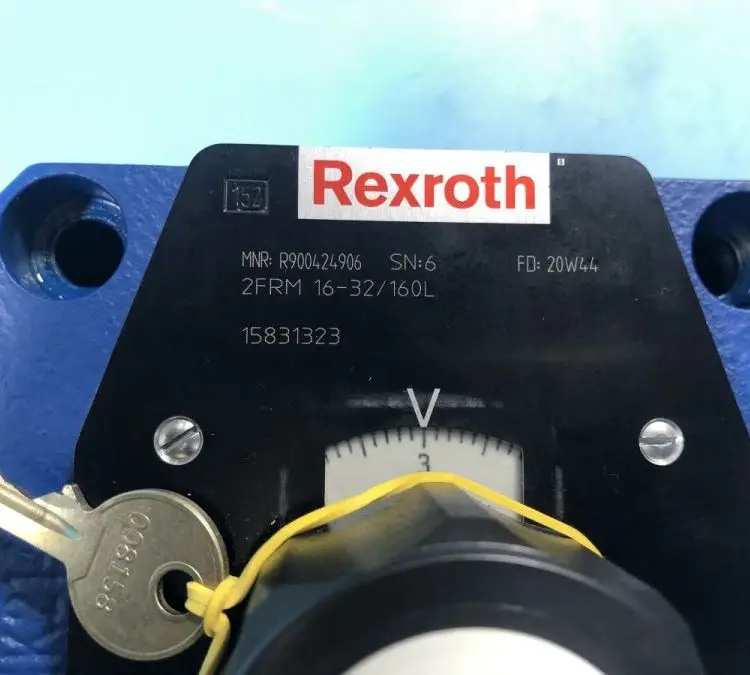

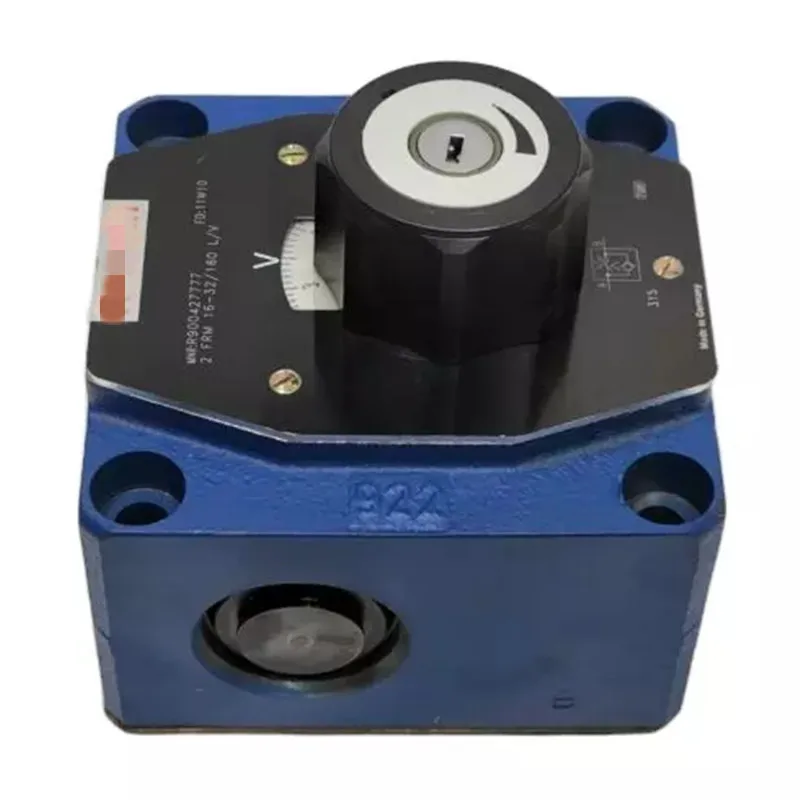

  • 2FRM16: Size 16, engineered for high-power systems with capacities up to 160L/min.

• Core Technical Specs:

  • Max Operating Pressure: 31.5 MPa (315 bar).

  • Flow Stability: Typical flow fluctuation is less than ±2% – 5% across the full pressure range.

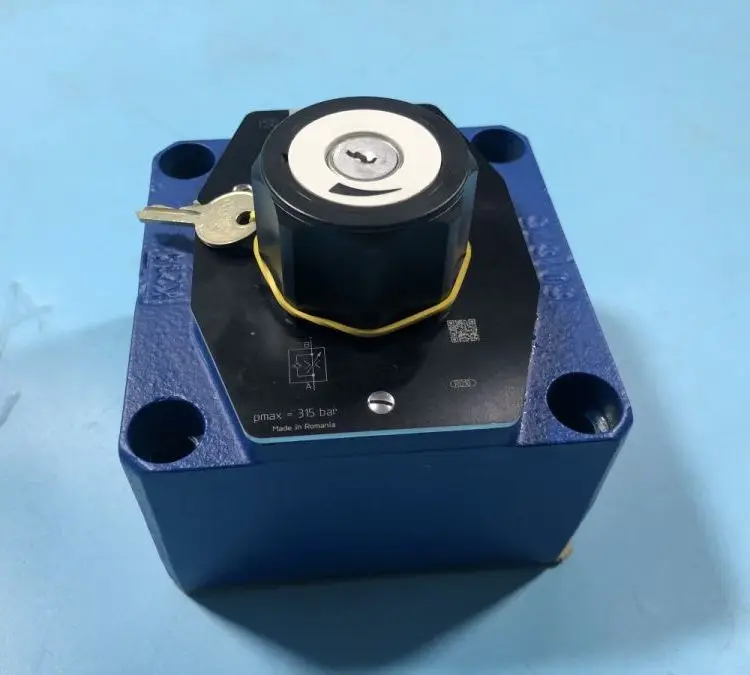

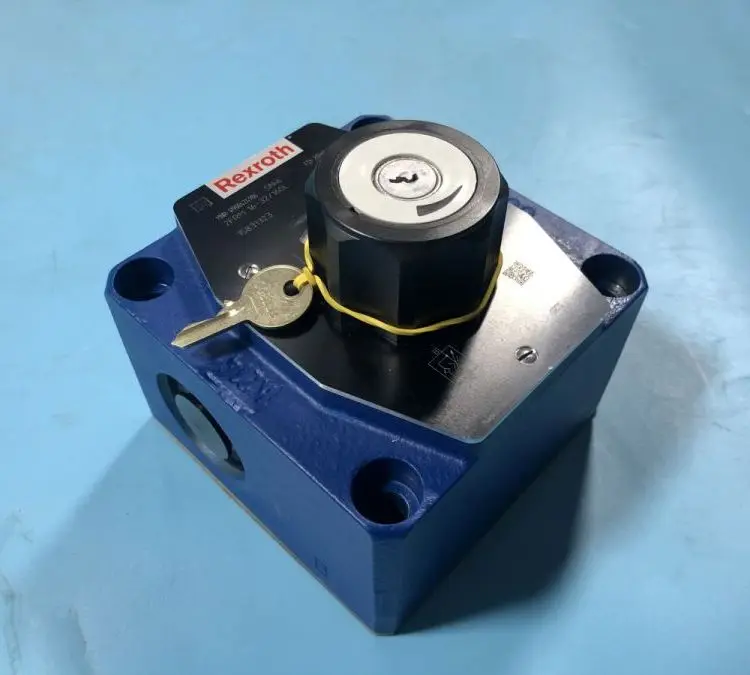

  • Adjustment Method: Scaled knob with lock (S) or standard knob adjustment.

  • Mounting Interface: Compliant with DIN 24340 and ISO 4401 standards.
