Air Compressor Filter | 0950R010ON | 0240R100W/HC | PI3145PS10 | Replacement Hydraulic Element

High-Performance Replacement Filter Elements for Air Compressors & Hydraulics

Product Overview:

This series of filter elements is specifically engineered for industrial air compressor systems, hydraulic power units, and lubrication circuits. It serves as a precision replacement for Hydac and MAHLE (Filtration Group) OEM parts. In 2026, for high-efficiency compressed air stations and automated production lines, these elements (such as 0950R010ON and PI3145PS10) utilize advanced multi-layer media to effectively intercept oil aerosols, wear debris, and carbon deposits, protecting downstream pneumatic components and hydraulic proportional valves.

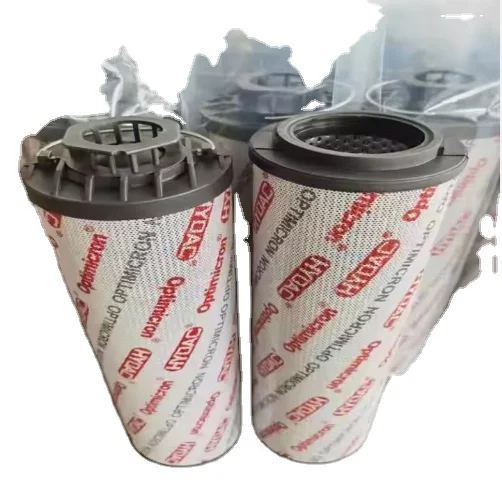

Featured models: 0950R010ON, 0240R100W/HC, and PI3145PS10 (7691695).

Key Technical Advantages:

• ON (Betamicron®) Grade Media: The 0950R010ON features next-generation microfiber glass with an outstanding $\beta_{10}(c) \ge 1000$ efficiency, maintaining high dust-retention capacity even under heavy flow fluctuations.

• PS (Sm-x) High-Performance Media: The PI3145PS10 utilizes a specialized Sm-x composite structure. This media provides a $10\mu\text{m}$ rating while offering an ultra-low initial pressure drop, significantly reducing the energy consumption of the compressor unit.

• W/HC Stainless Steel Mesh: The 0240R100W/HC employs high-strength stainless steel wire mesh, which is erosion-resistant and washable for reuse. Designed for coarse filtration or high-viscosity return lines, it shields the system from large particle damage.

• Precision Physical Interchangeability: Manufactured strictly to industrial dimensional standards, ensuring end caps and seal sizes are a $100\%$ match for original housings, allowing for “zero-leakage” and rapid installation.

• Reinforced Structural Support: Tailored for the frequent start-stop cycles of air compressors, the internal cores are corrosion-resistant and strengthened to prevent media deformation under pulse pressure.

Detailed Specifications & Parameters:

• Featured Model Matrix:

  • 0950R010ON: Return/Circulation size, $10\mu\text{m}$ rating, High-performance Microglass.

  • 0240R100W/HC: Size 0240R, $100\mu\text{m}$ rating, W/HC Stainless Mesh media.

  • PI3145PS10: MAHLE specification, $10\mu\text{m}$ rating, high-performance PS composite media.

• Technical Specifications:

  • Filtration Ratings: $10\mu\text{m}, 100\mu\text{m}$.

  • Max Operating Temperature: $120^\circ\text{C}$.

  • Sealing Material: Standard high-grade NBR (Nitrile).
