High Pressure Radial Piston Pump | R8.3, R9.8 Series | Multi-Section Hydraulic Pump

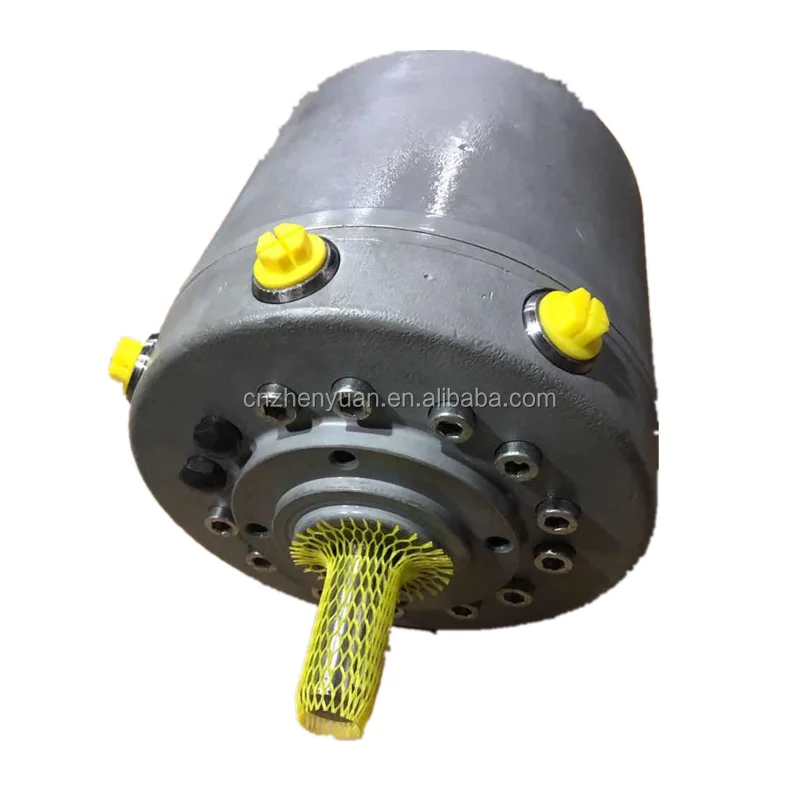

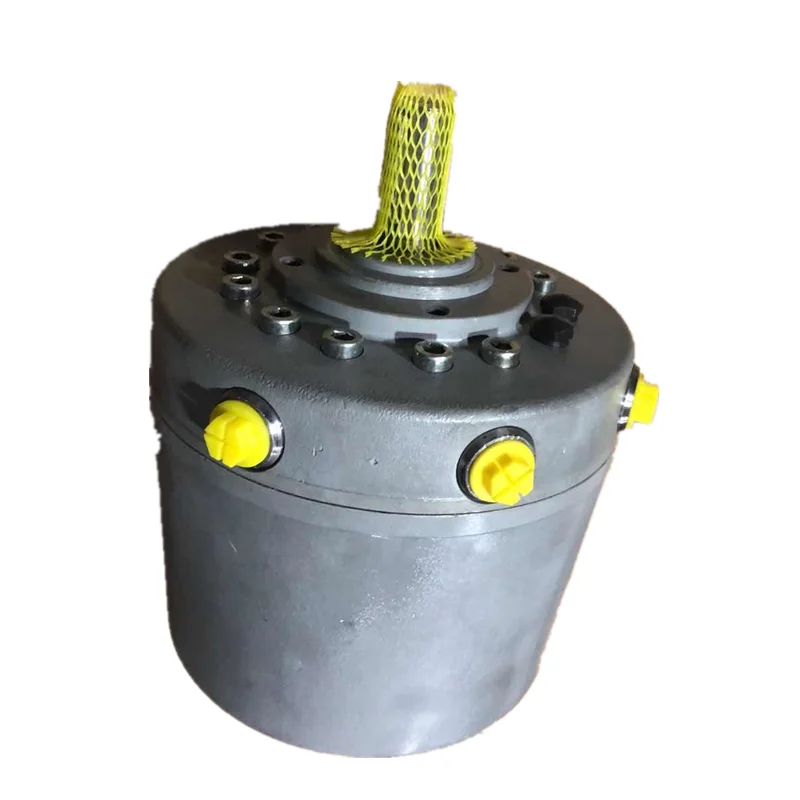

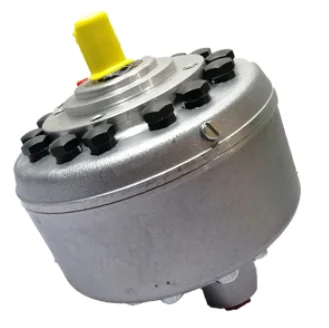

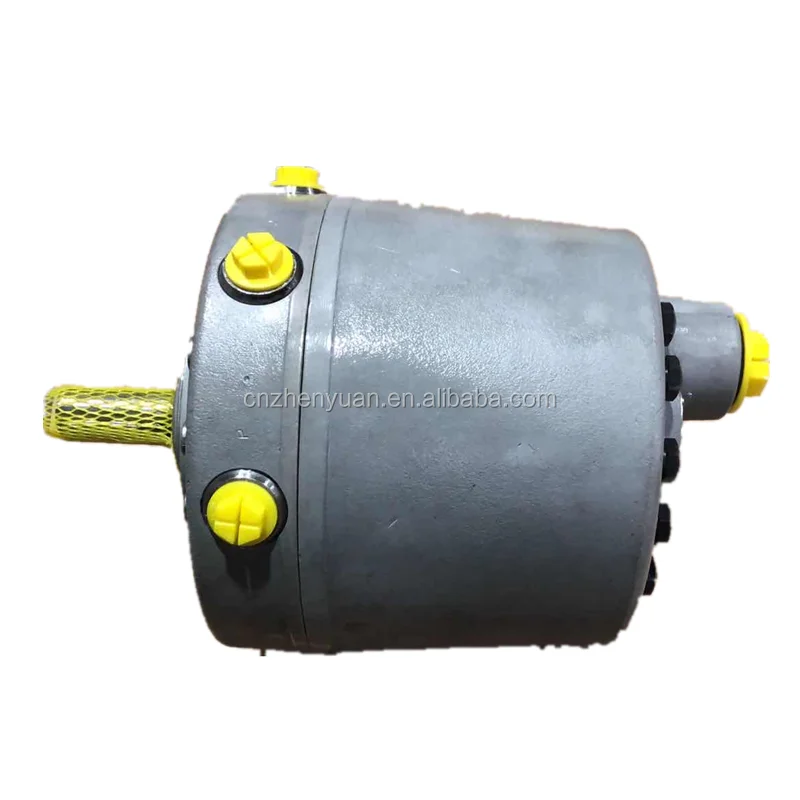

Industrial High Pressure Multi-Section Radial Piston Pump

Product Overview: This series of high-pressure radial piston pumps is a core power unit engineered for heavy-duty industrial environments, excelling in high-frequency pressure cycling. Its unique multi-section design (e.g., R9.8-9.8-9.8-9.8) allows for multiple independent flow outputs from a single drive shaft, drastically simplifying complex hydraulic circuit layouts. Whether featuring standard seals or high-performance BABSL seals, these pumps maintain peak volumetric efficiency under the most grueling operational conditions.

Key Technical Advantages:

• Synchronized Multi-Section Output: Utilizing a modular stacking design, such as the R9.8-9.8-9.8-9.8A. This configuration supports synchronized oil supply for multiple circuits, making it ideal for multi-actuator synchronization in large hydraulic presses and injection molding machines.

• Heavy-Duty High-Pressure Performance: Built for continuous high-pressure cycles. Supports a rated pressure of 350 Bar with even higher peak capabilities. The radial piston arrangement effectively offsets axial loads, significantly extending bearing service life.

• Advanced BABSL Sealing System: Models with the BABSL suffix (e.g., R8.3-8.3-8.3-8.3-BABSL) feature specialized reinforced seals capable of handling frictional heat at higher speeds while preventing external contaminants, ensuring system fluid integrity.

• Low Noise & Operational Stability: The inherent radial distribution and hydrostatic balance design allow these pumps to maintain exceptionally low decibel levels during high-pressure operation, ideal for noise-sensitive indoor factory environments.

Detailed Models & Parameters:

• Core Series: R Series Radial Piston Pump.

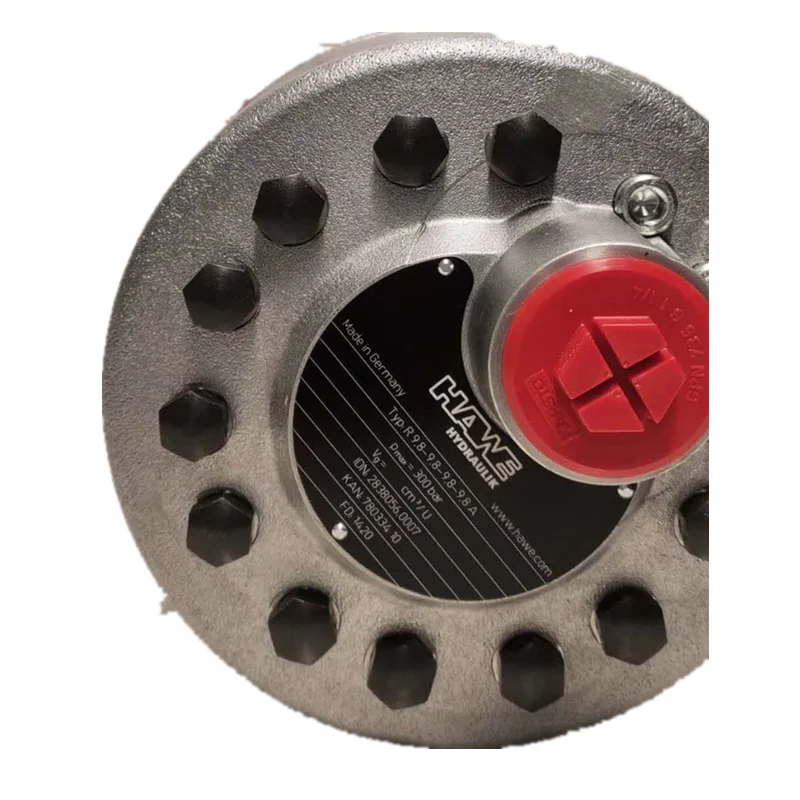

• Multi-Section Keywords: R9.8-9.8-9.8-9.8A, R9.8-9.8-9.8-9.8, R8.3-8.3-8.3-8.3-BABSL, R8.3-8.3-8.3-8.3A, R8.3-8.3-8.3-8.3.

• Displacement: 8.3 cm³/rev / 9.8 cm³/rev (Per section).

• Seal Type: Standard / BABSL High-Pressure Reinforced Seals.

• Primary Applications: Plastic injection molding, metal forging equipment, heavy-duty HPUs, and marine deck machinery.
