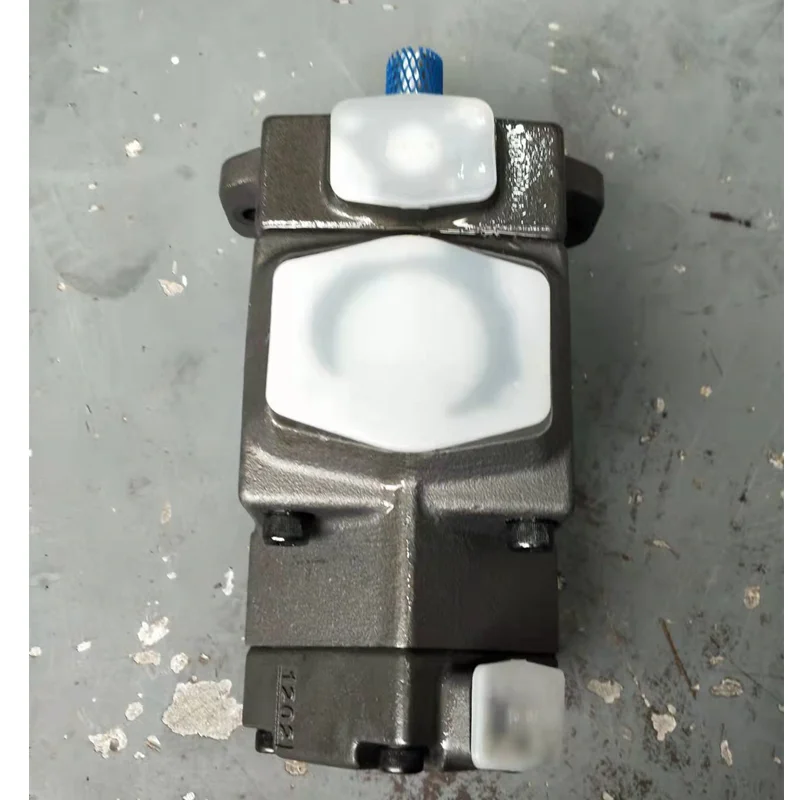

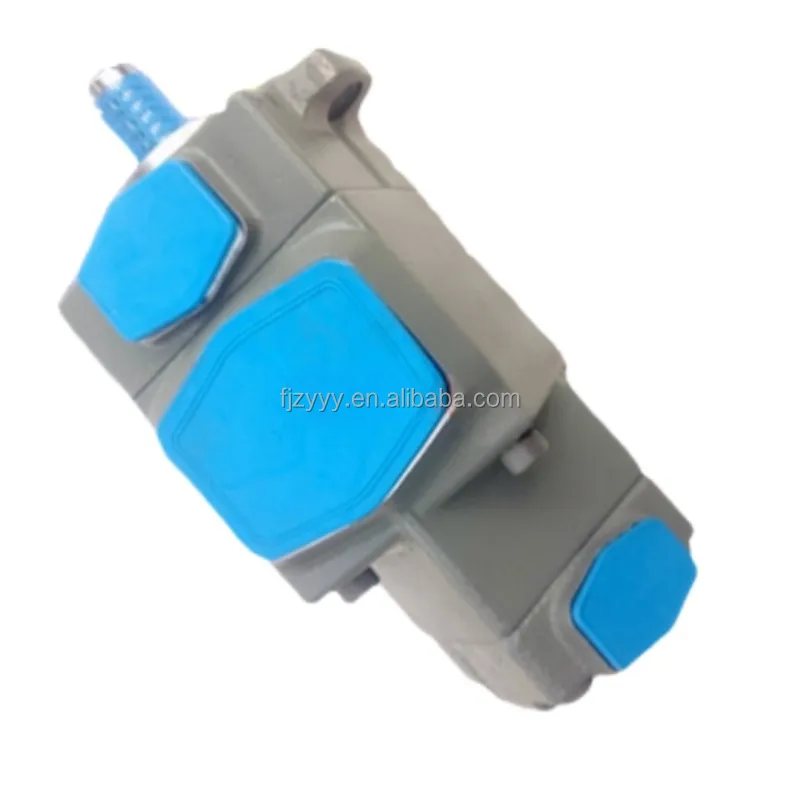

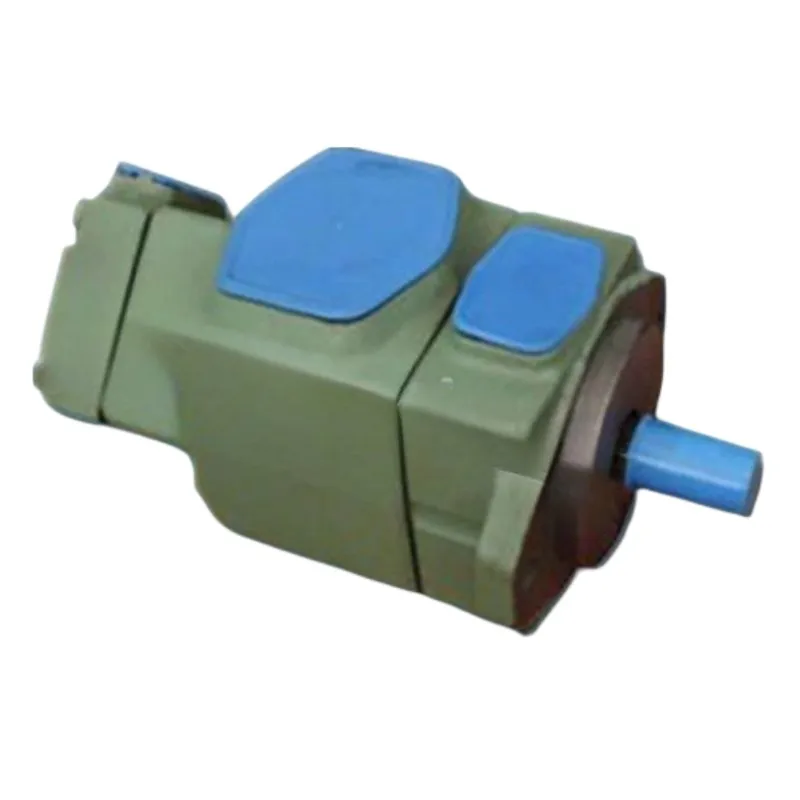

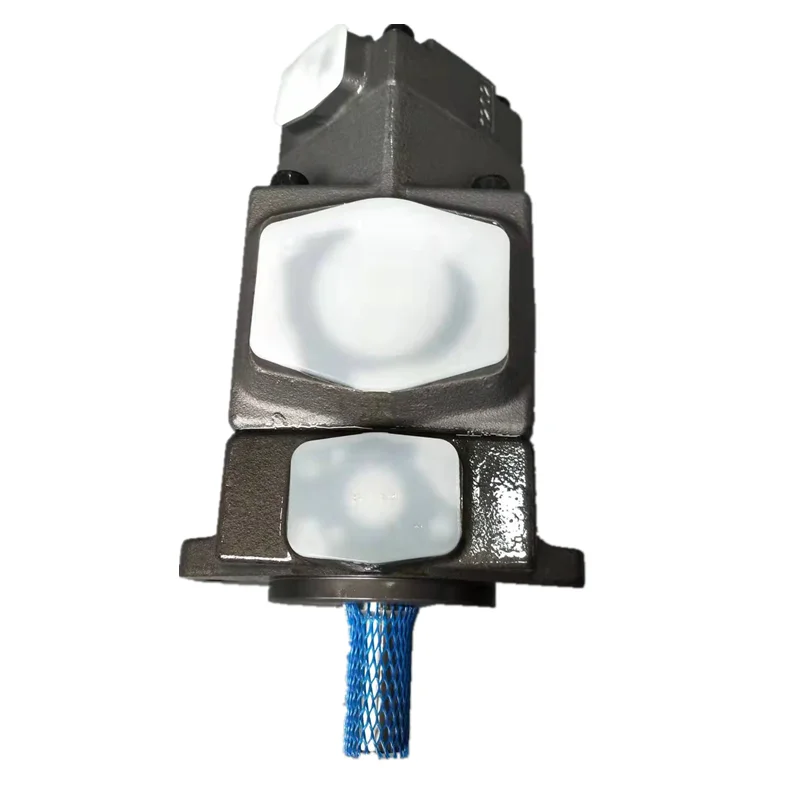

PVF24 Series High-Performance High-Pressure Double Vane Pumps

Product Overview: The PVF24 Series is recognized as the benchmark for high efficiency and low pulsation in the double vane pump sector. Specifically engineered for heavy-duty applications requiring independent dual-flow outputs or high-low pressure automatic switching, this series utilizes a classic pressure-balanced construction. This range features the complete specification lineup including PVF24-5-53/13-F-R and various combinations across 33/41/47/53/59 and 136/153/184/200/237. Utilizing superior intra-vane technology, the PVF24 series effectively cancels out radial bearing loads at rated pressures, ensuring an exceptional service life—serving as the definitive power source for precision industrial equipment.

Key Technical Advantages:

• Independent Dual-Output Structure: Drives two cartridge sets with different displacements on a single shaft, enabling actuator fast-forward/fast-reverse and pressure-holding switching, significantly reducing motor power and saving space.

• Ultimate Silent & Low Pulsation: The optimized 12-vane rotor geometry provides highly smooth flow output, drastically reducing hydraulic vibration and noise to meet modern environmental standards.

• High Pressure Balanced Construction: Symmetrical internal pressure chambers cancel out radial loads on the rotor, minimizing bearing wear and ensuring stability under continuous 21 MPa operation.

• Modular Rapid Maintenance: Features a replaceable cartridge design. Maintenance is simplified—restore pump performance within minutes without removing the housing from the machine, drastically reducing downtime.

• Target Applications: Plastic injection molding machines, rubber machinery, hydraulic brick presses, metal forming presses, and leather machinery.

Detailed Models & Parameters:

• Core Series: PVF24 Series High Pressure Double Vane Pump.

• Model Keywords: PVF24-5-53/13-F-R, PVF24-26, PVF24-33, PVF24-41, PVF24-47, PVF24-53, PVF24-59.

• Flow Codes (GPM/Lpm Combinations): Key specifications including 26, 33, 41, 47, 53, 59 (Front Pump) and 136, 153, 184, 200, 237 (Rear Pump).

• Pressure Ratings: Rated working pressures up to 17.2 – 21 MPa (172 – 210 Bar).

• Technical Specs: F (Flange Mounting); R (Right-hand/Clockwise rotation); 5 (Design sequence/Pressure class).
