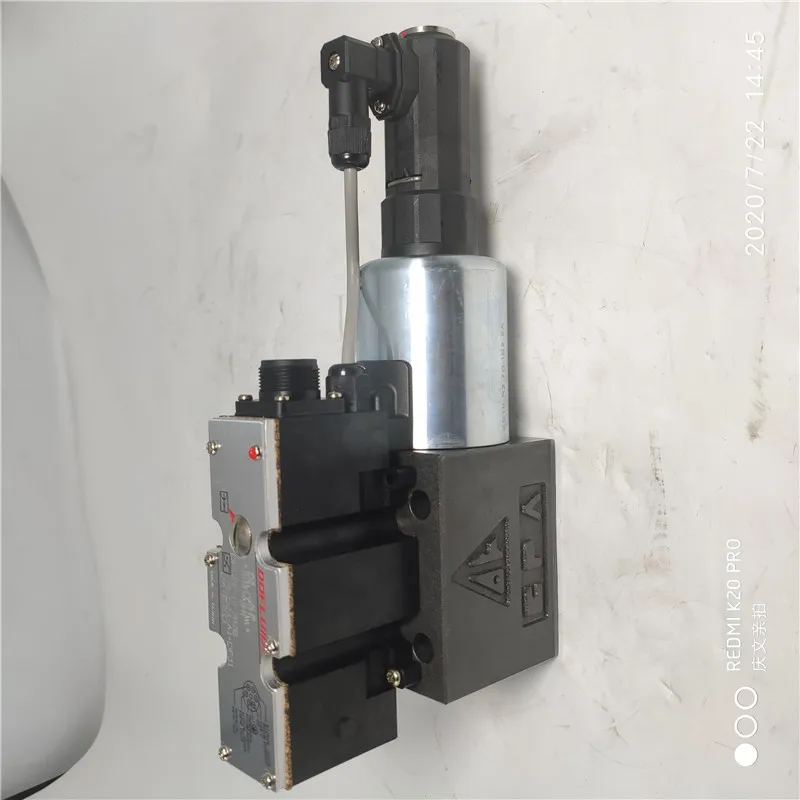

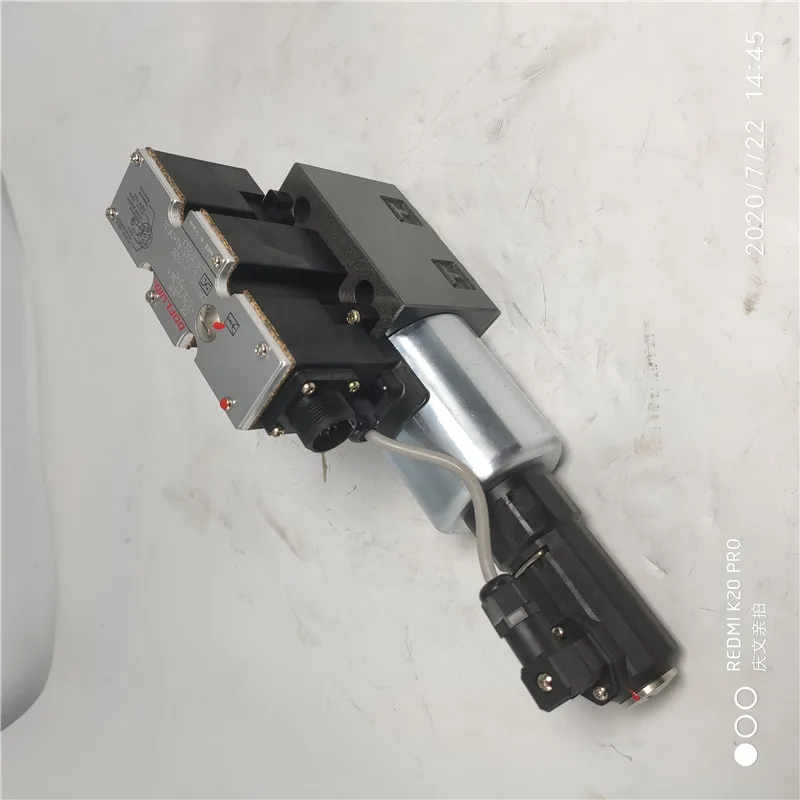

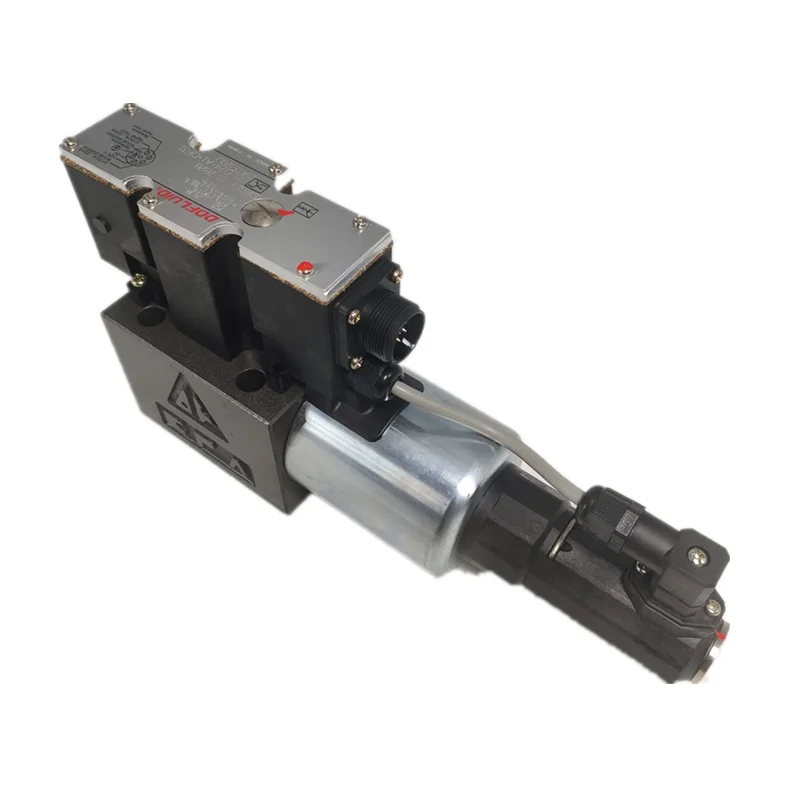

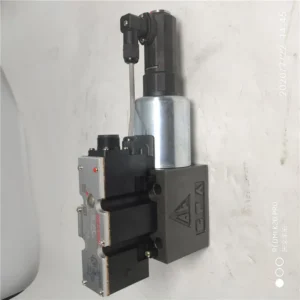

High-Precision Proportional Valve | DPGEE-6 DPGEE-10 PPGEE-6 | Integrated OBE Electronics | DC24V Hydraulic Control
| Model Number | DPGEE-10-3C2-75-D24-A1+DF31, DPGEE-6-3C3-32-D24-A1 |
|---|
Product Description
DPGEE & PPGEE Series Integrated Proportional Valves
Product Overview: The DPGEE and PPGEE series represent the pinnacle of high-performance proportional hydraulic technology. These valves feature Integrated On-Board Electronics (OBE), simplifying complex hydraulic regulation into precise electrical commands through digital closed-loop logic. The DPGEE series serves as proportional directional valves for combined direction and flow control, while the PPGEE series acts as proportional pressure valves for constant and linear pressure regulation. Paired with high-performance D24 (24V DC) coils and LVDT displacement sensors, this series is widely used in plastic machinery, high-performance presses, and automated production lines requiring precision trajectory control.

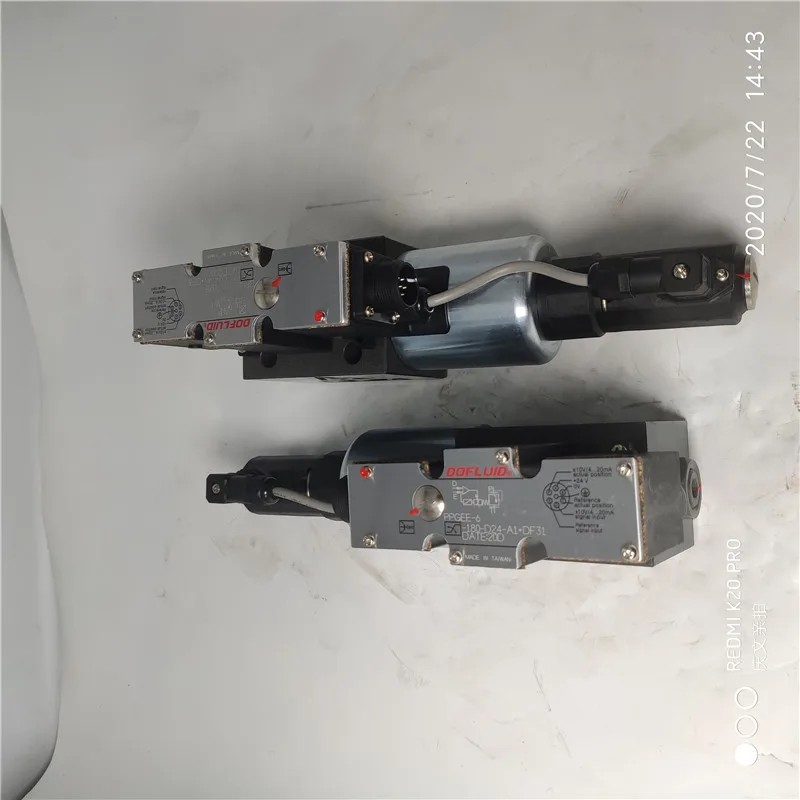

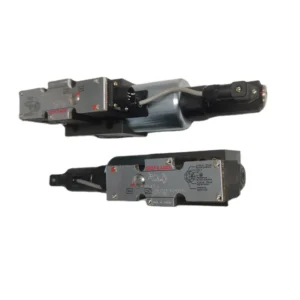

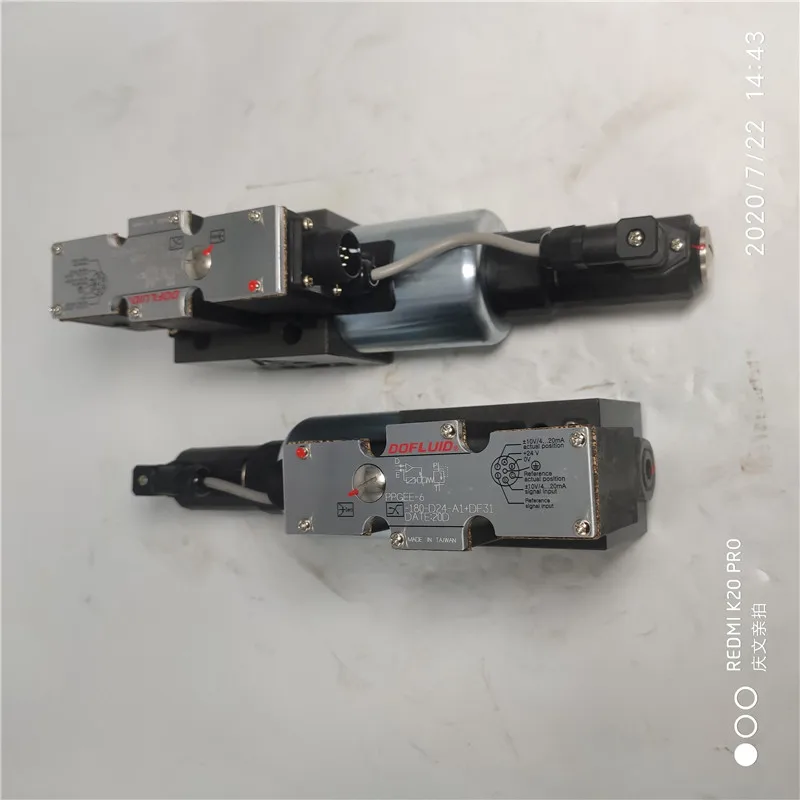

Featured models: DPGEE-6-3C3-32-D24-A1, PPGEE-6-180-D24-A1, and DPGEE-10-2B2B-75-D24-A1+DF31.
Key Technical Advantages:
Integrated OBE Electronics: Control signals are fed directly into the valve-mounted amplifier, eliminating the need for external cabinet-mounted cards, reducing interference, and simplifying wiring.
High Dynamic Closed-Loop Control: Built-in high-sensitivity LVDT sensors monitor spool position in real-time, delivering extremely low hysteresis and exceptional repeatability.
Comprehensive Bore Sizes: Covers Size 06 (NG6) and Size 10 (NG10), meeting needs from laboratory precision control to heavy-duty industrial high-flow applications.
Rugged Industrial Protection: Housing meets IP65/IP67 ratings, ensuring resistance against metal coolants, dust, and intense mechanical vibrations.
Detailed Specifications & Parameters:
Featured Model Matrix:
DPGEE-6-3C3: Size 06, 3-position 4-way proportional directional valve, 3C3 spool, with OBE.

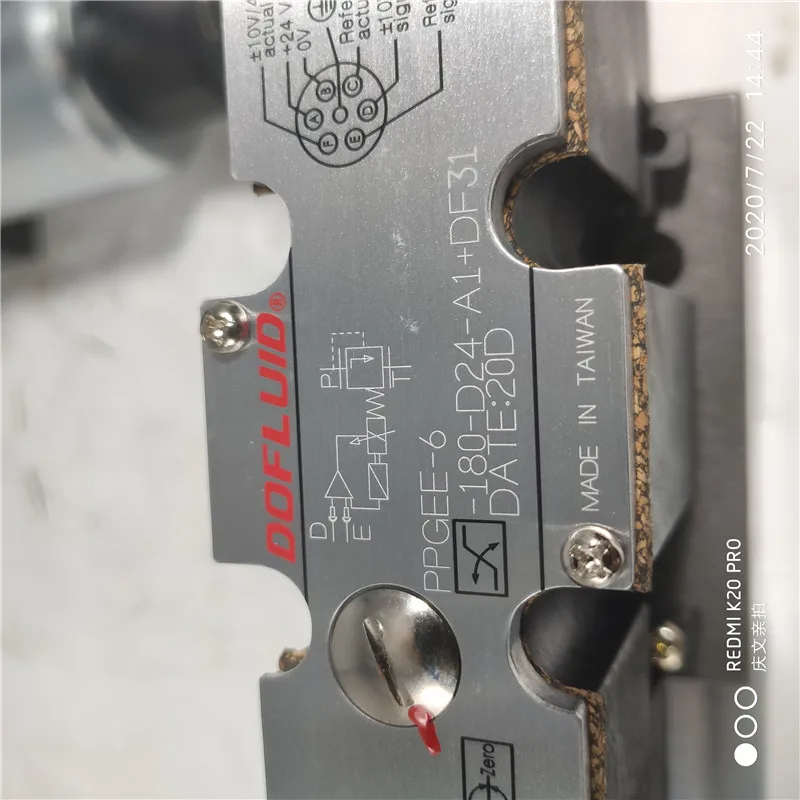

PPGEE-6-180: Size 06 proportional pressure valve, max setting 180 bar.

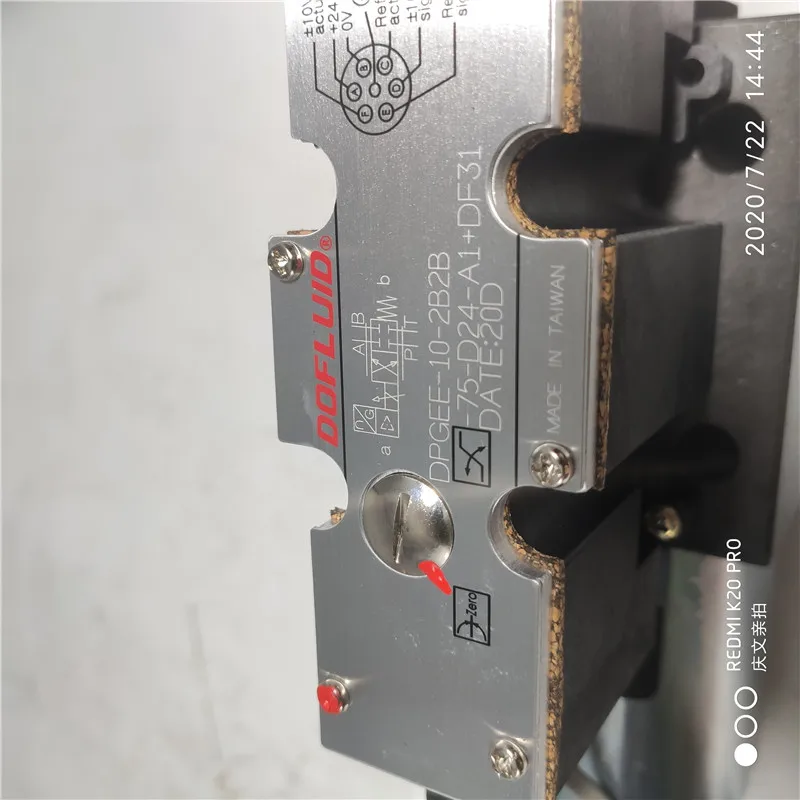

DPGEE-10-2B2B: Size 10 high-flow proportional valve, with DF31 specialized control option.
Core Technical Specs:
Supply Voltage: 24V DC (D24).
Input Signal: Analog 0-10V or 4-20mA (A1 series).
Max Operating Pressure: Ports P, A, and B up to 31.5 MPa (315 bar).
Linearity Error: Typical values < 1%.
Frequency Response: High-frequency response characteristics suitable for closed-loop servo control circuits.
