Poclain MSE18 & MK04 Motor | 05818252 05815231 05817095 | Radial Piston Wheel Motor | MSE18-2-124 | MK04-2-114
| Model Number | MSE18, 05818252, 05815231, 05817095, MK04 |
|---|
Product Description

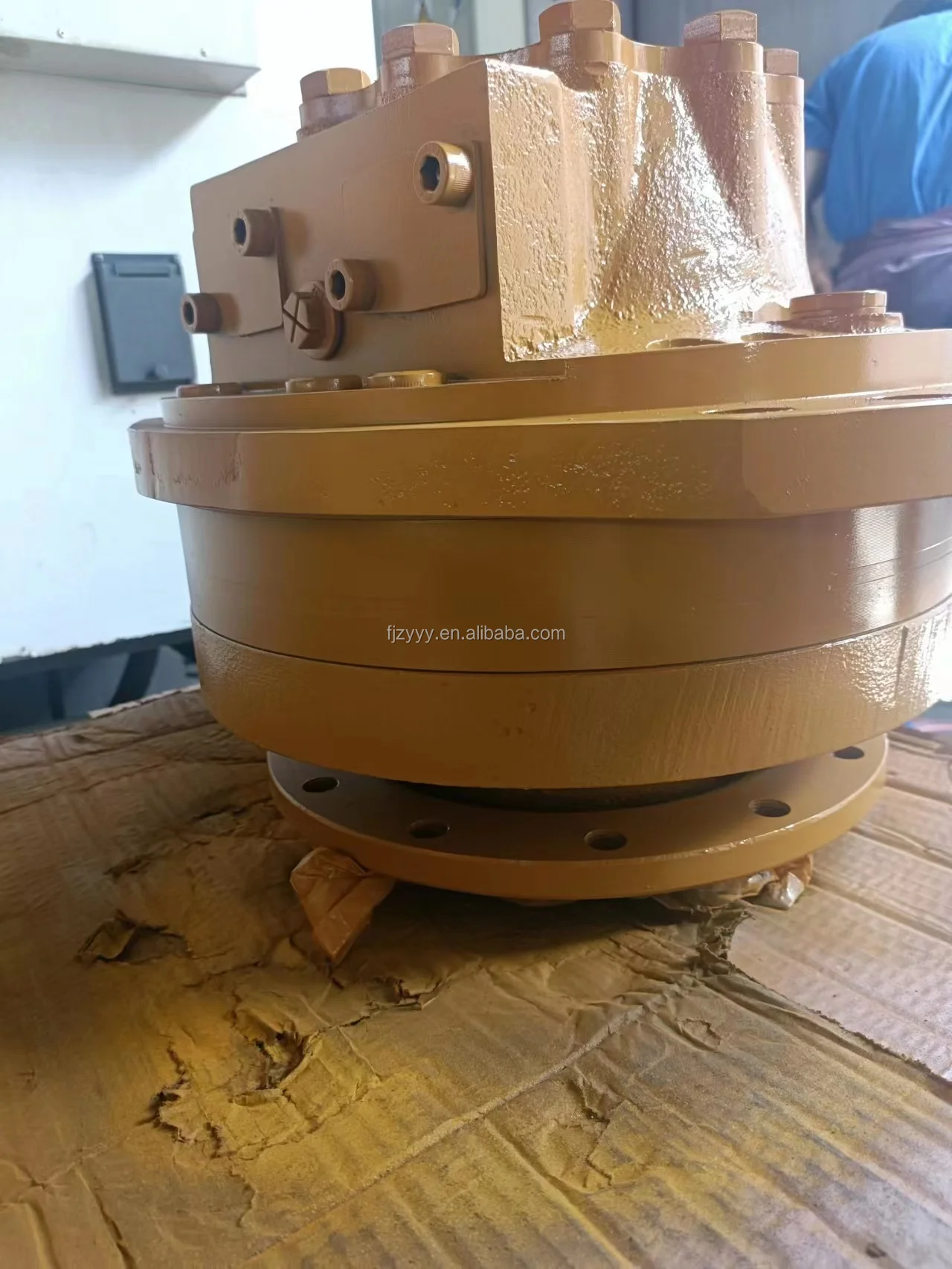

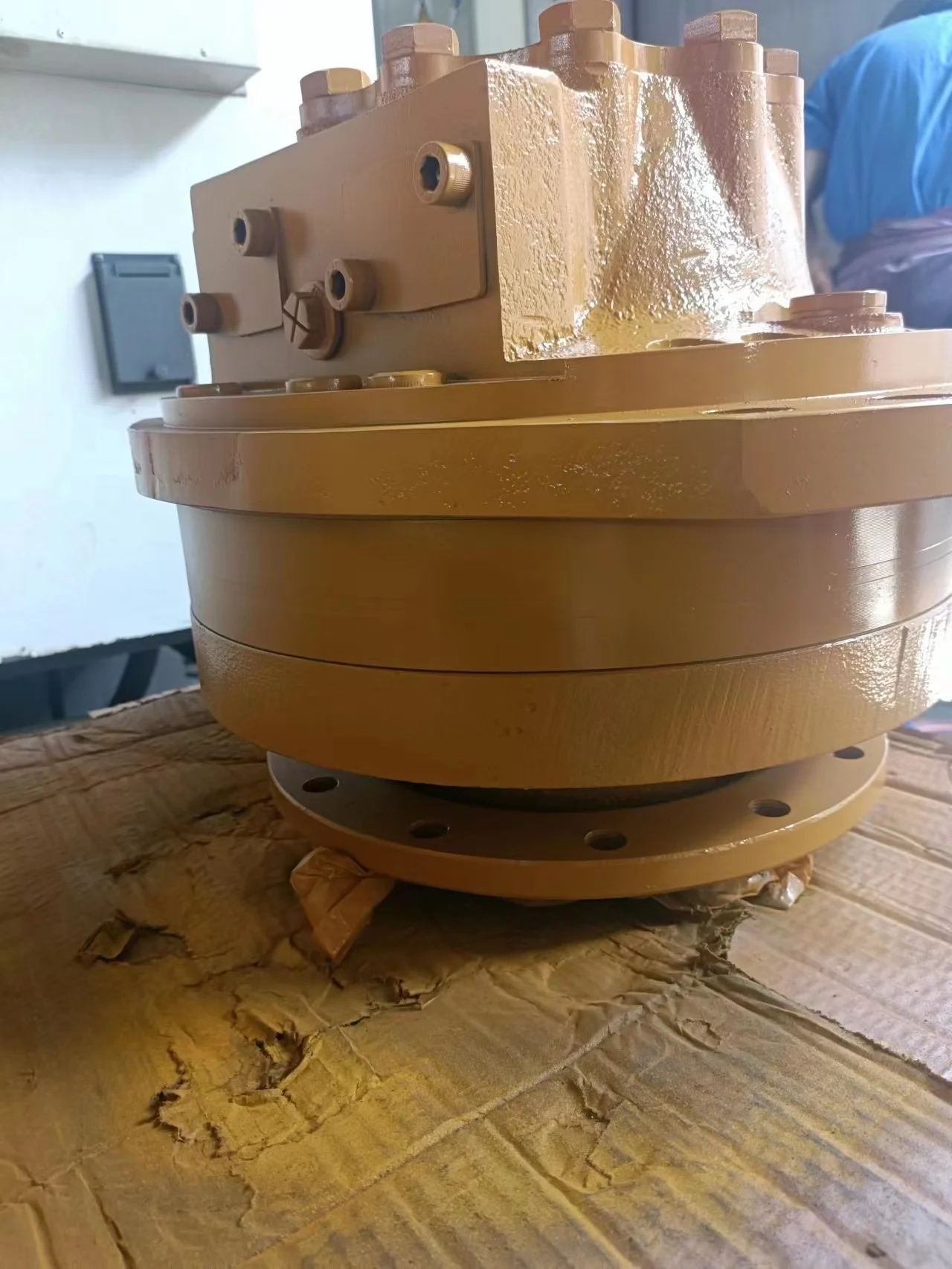

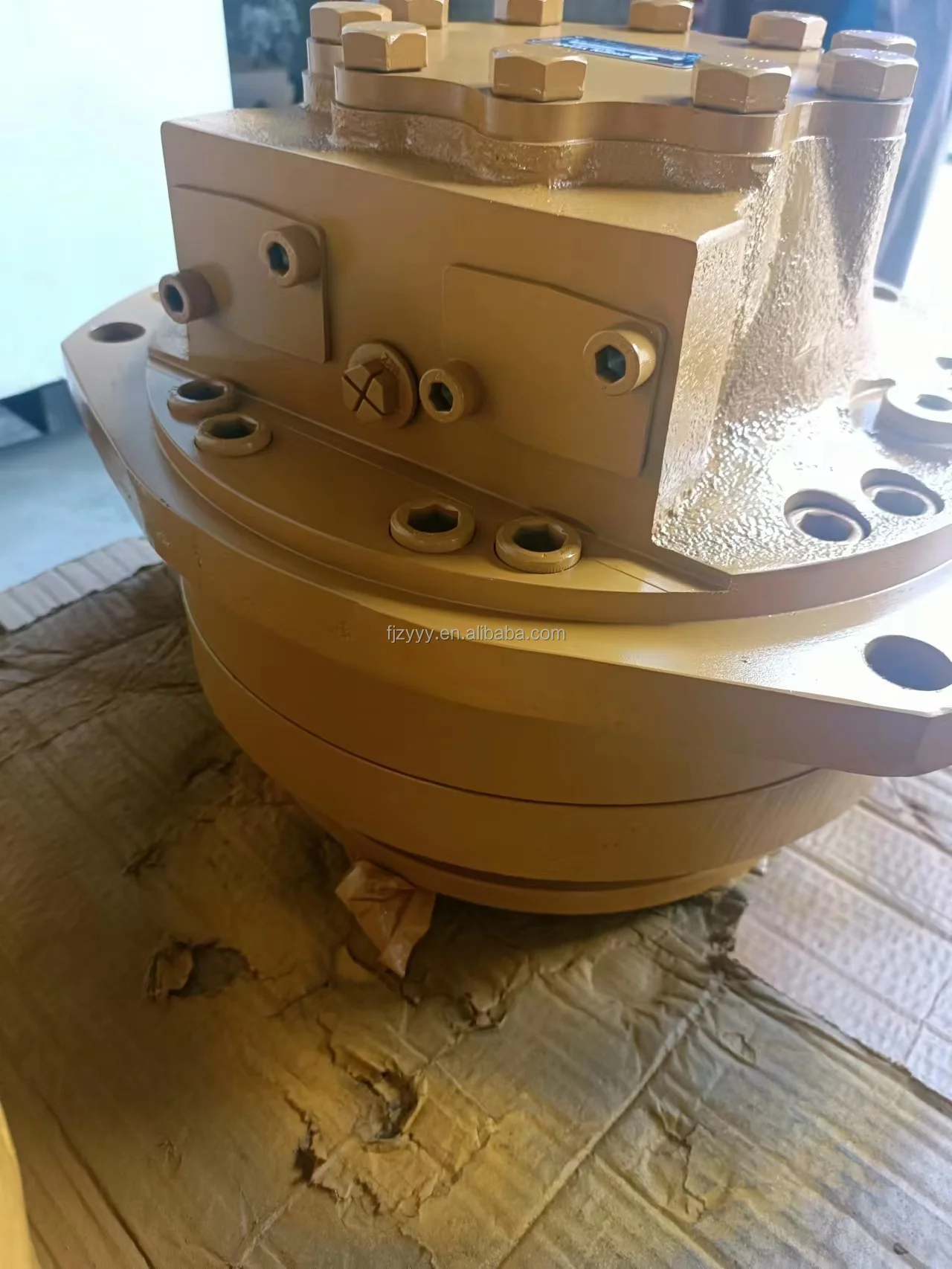

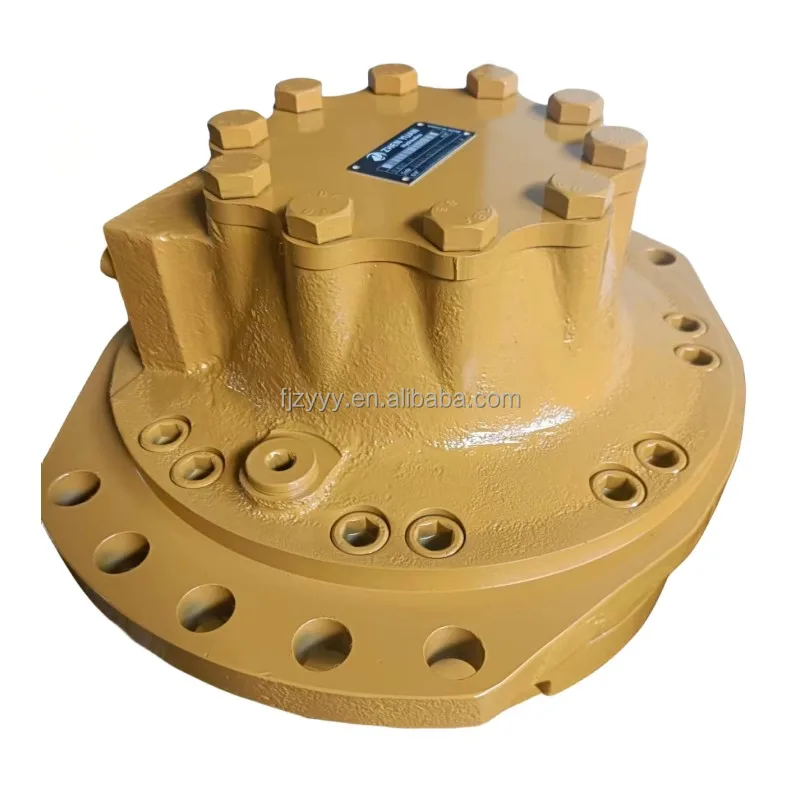

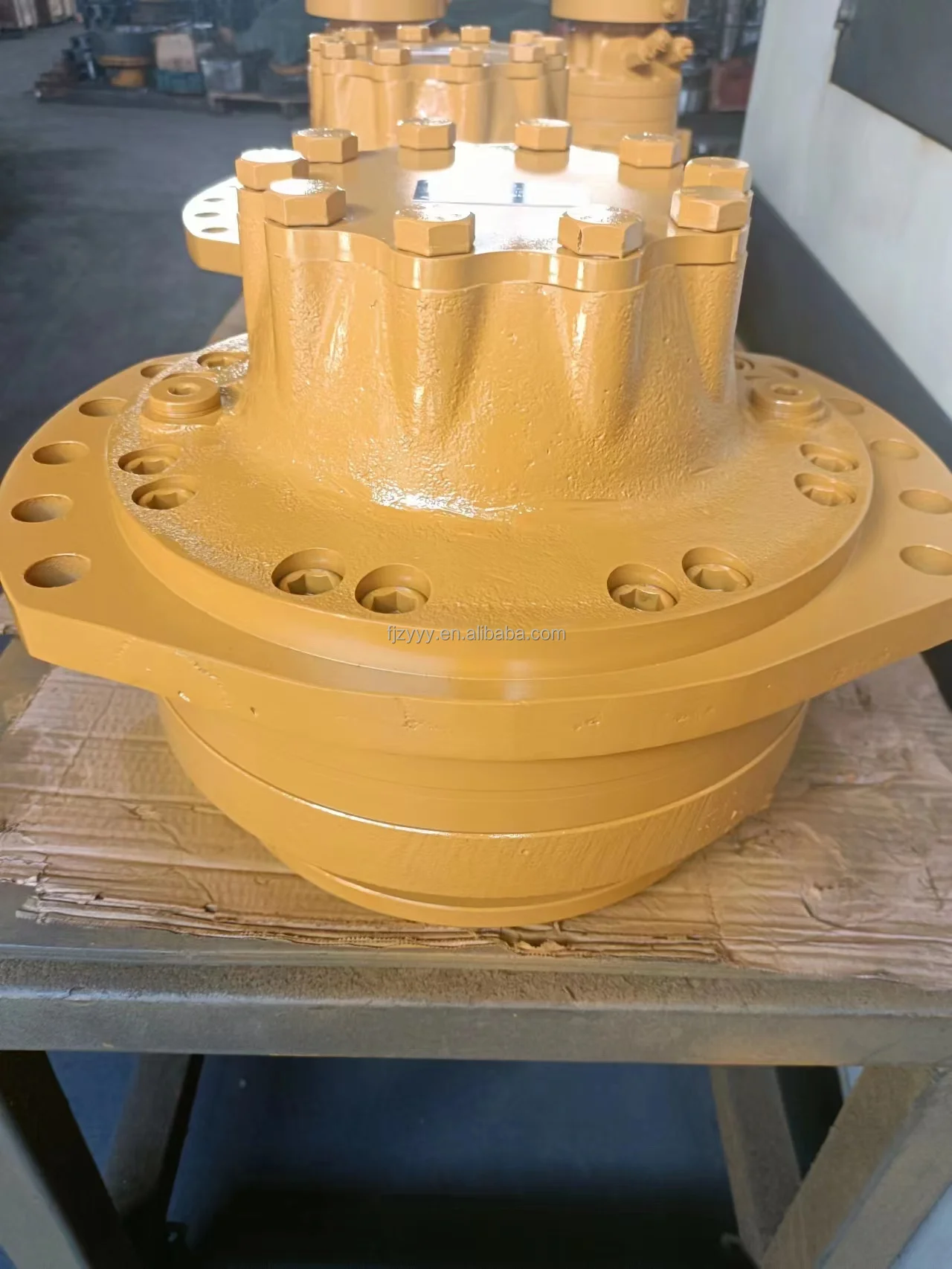

Poclain MSE18 & MK04 Series Heavy-Duty Radial Piston Wheel Motors
Product Overview: The Poclain MSE18 and MK04 Series are pivotal components for high-performance hydrostatic drive systems. As radial piston LSHT (Low Speed High Torque) motors, they are specifically engineered for direct wheel-end driving. The MSE18 Series is renowned for its compact envelope and elite power density, while the MK04 Series is optimized for maximum efficiency and extended service life. This category covers essential part numbers: 05818252, 05815231, and 05817095. These motors are the definitive choice for skid steer loaders, rollers, professional mowers, grape harvesters, and municipal sweepers.
Key Technical Advantages:
Superior Startup Performance: Radial piston technology ensures full rated torque delivery from zero RPM, providing smooth and explosive starts.
High Load Capacity: Reinforced hub bearing designs sustain massive radial axial loads, allowing the motor to function as a direct load-bearing component.
Modular Configuration:
Supports 1-speed / 2-speed (Dual Displacement) shifting to balance working torque and transport speeds.
Compatible with integrated multi-disc parking brakes and advanced speed sensors.
Extreme Durability: Built to withstand peak pressures up to 450 Bar (6500 PSI), ensuring reliability under frequent directional reversals and heavy shock loads.
Target Applications: Mini-excavator travel drives, wheeled loader drives, material handling equipment, and forestry machinery.
Detailed Models & Parameters:
Core Series: Poclain MSE & MK Series (Radial Piston).
Technical Spec Decoding:

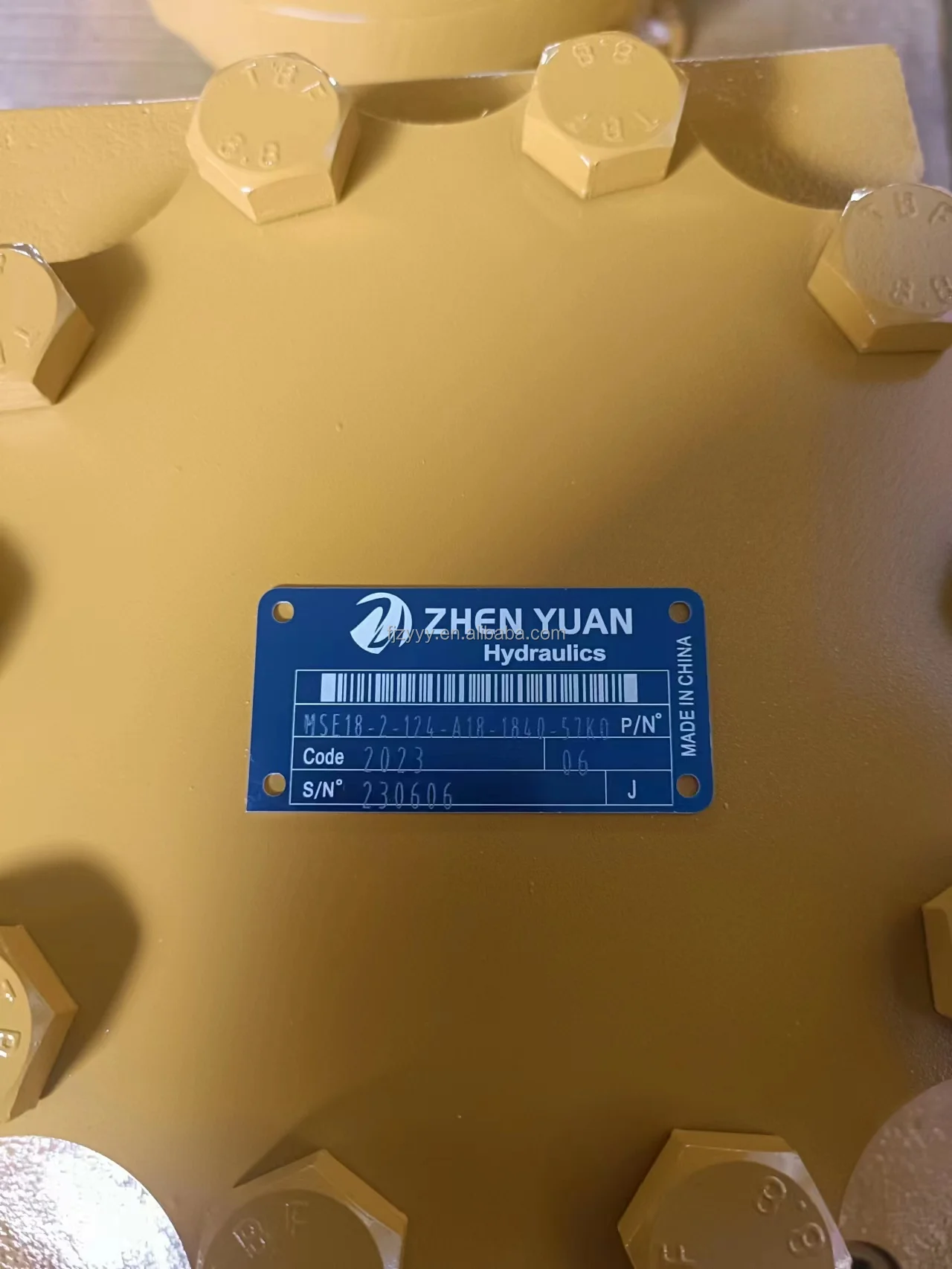

MSE18-2-124-A18-1840-57K0: Size 18, Series 2 evolution, 1840cc displacement, with A18 standard interface.
MK04-2-114-K04-3340-3000: Size 04, Series 2, 3340cc class displacement, with K04 wheel flange.
Associated Part Numbers:
05818252 / 05815231 / 05817095.
Core Performance Specs:
Max Pressure: 400 Bar (Continuous) / 450 Bar (Peak).
Torque Capability: High specific torque output for extreme tractive effort.
