Poclain MSE02 Motor | MSE02-2-12A-R02 | MSE02-2-11A-F03 | Compact Radial Piston Motor

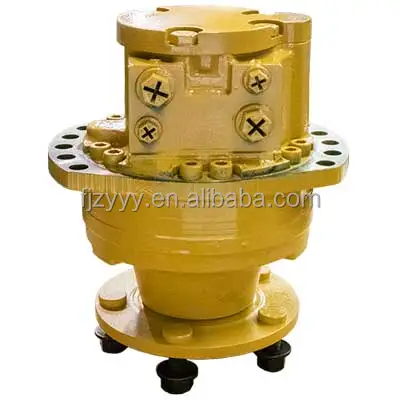

Poclain MSE02 Series Ultra-Compact High-Torque Radial Piston Motors

Product Overview: The Poclain MSE02 Series represents the pinnacle of miniaturization in hydrostatic drive technology. As a high-performance, High Torque Low Speed (HTLS) motor, it is specifically engineered for small-scale machinery where installation space is at a premium. Utilizing the inherent advantages of radial piston technology, the MSE02 delivers massive power directly to the load without the need for gearboxes. This page features core configurations: MSE02-2-12A-R02 and MSE02-2-11A-F03. This series is widely used in mini-excavators, orchard mowers, compact construction robots, industrial tuggers, and automated conveyor systems.

Key Technical Advantages:

• Ultra-Compact Architecture: The MSE02 series is designed to offer the smallest physical footprint for its displacement class, significantly simplifying chassis design for compact machinery.

• Smooth Low-Speed Operation: Optimized internal distribution ensures ripple-free rotation even at ultra-low speeds, which is vital for precision control applications.

• Dual-Displacement (2-Speed) Functionality: The MSE02-2 designation identifies the ability to switch displacements, allowing vehicles to balance high-torque work modes with high-speed travel.

• Integrated Braking Solutions: Supports optional integrated multi-disc parking brakes (e.g., Y8JM/FM00 sequences), enhancing safety while saving critical envelope space.

• Target Applications: Micro-tracked vehicles, self-propelled agricultural machines, professional robotic sweepers, indoor towing equipment, and light-duty winches.

Detailed Models & Parameters:

• Core Series: Poclain Hydraulics MSE02 Series (Radial Piston).

• Technical Specs Decoding:

  • MSE02-2-12A-R02-1120-Y8JM: Size 02, 2-speed configuration, 12A internal core, featuring Y8JM integrated braking and specialized sealing logic.

  • MSE02-2-11A-F03-3AC0-FM00: Size 02, 2-speed configuration, F03 wheel-end flange interface, equipped with FM00 high-performance distribution components.

• Performance Specs:

  • Rated Pressure: Up to 400 Bar (5800 PSI).

  • Peak Pressure: 450 Bar.
