Poclain MSE02 Motor | MSE02-2-1LA-F03 | MSE02-1-113-R02 | Compact Radial Piston Motor

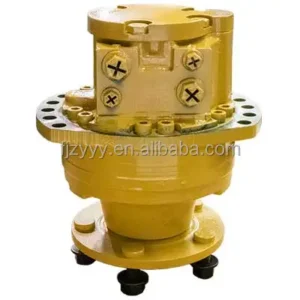

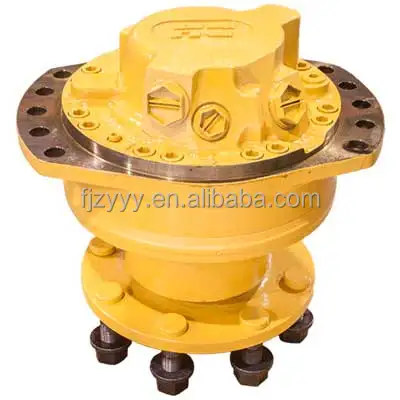

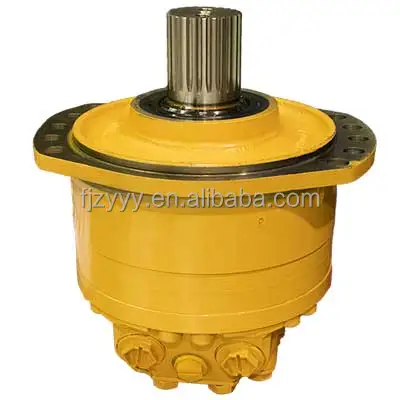

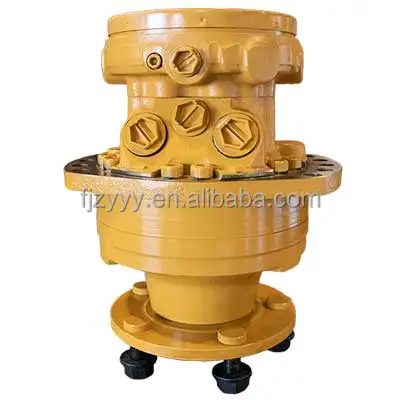

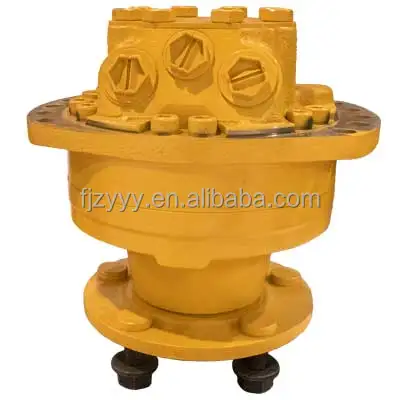

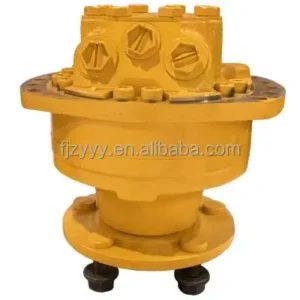

Poclain MSE02 Series Ultra-Compact High-Torque Radial Piston Motors

Product Overview: The Poclain MSE02 Series is the premier solution for miniaturized hydraulic drive technology. As a high-performance High Torque Low Speed (HTLS) motor, it delivers exceptional power density within a remarkably small footprint. The MSE02 series is specifically engineered to overcome installation constraints in micro-machinery chassis, providing direct torque output without the need for mechanical gearboxes. This page highlights core configurations: MSE02-2-1LA-F03 and MSE02-1-113-R02. These motors serve as the vital power heart for mini-excavators, self-propelled agricultural mowers, indoor logistics robots (AGVs), professional orchard platforms, and light-duty winches.

Key Technical Advantages:

• Ultra-Compact Architecture: The ultra-short frame design of the MSE02 allows for seamless integration into wheel hubs or track drives of micro-scale equipment.

• Precision Control Capability: The radial piston design ensures smooth, ripple-free rotation even at ultra-low speeds, providing superior maneuverability for precision tasks.

• Versatile Displacement Modes:

  • MSE02-2 (Dual Displacement): Features 2-speed functionality, allowing vehicles to balance high-torque work modes with high-speed travel.

  • MSE02-1 (Single Displacement): Delivers constant, reliable torque for simplified system architectures.

• Integrated Multi-Functionality: Supports integrated multi-disc parking brakes (e.g., Y3JKM/YJ00 sequences), ensuring secure braking while significantly reducing axial dimensions.

• Target Applications: Micro-tracked machines, vineyard service vehicles, material handling hoists, automated warehouse drives, and compact municipal sweepers.

Detailed Models & Parameters:

• Core Series: Poclain Hydraulics MSE02 Series (Radial Piston).

• Technical Specs Decoding:

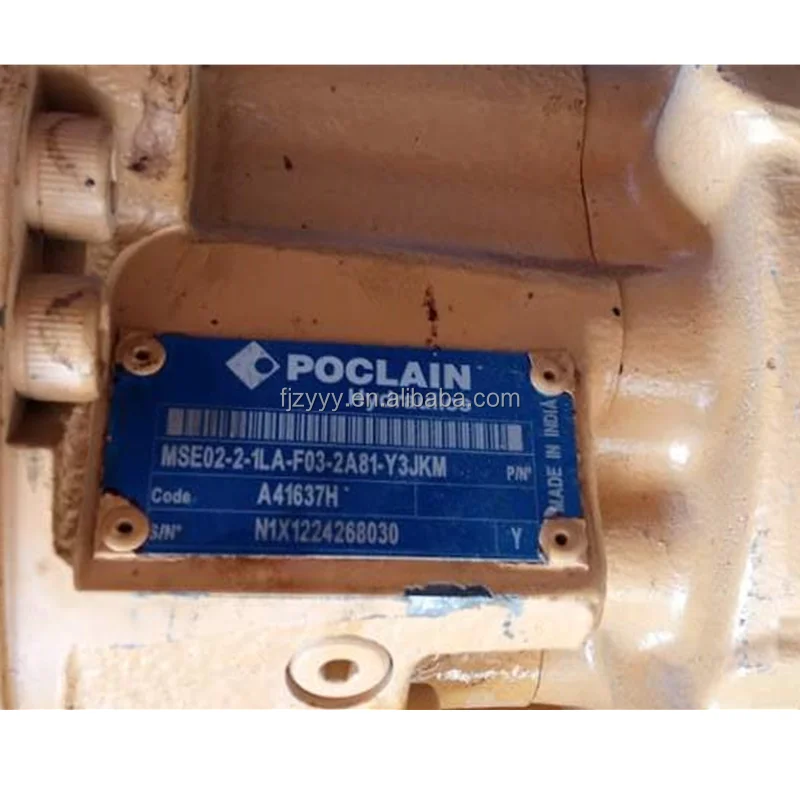

  • MSE02-2-1LA-F03-2A81-Y3JKM: Frame size 02, 2-speed configuration, F03 wheel flange interface, featuring Y3JKM integrated sealing and braking logic.

  • MSE02-1-113-R02-2A50-YJ00: Frame size 02, single (fixed) displacement, R02 compact interface, equipped with YJ00 high-grade seal kits.

• Performance Specifications:

  • Pressure Rating: Continuous 400 Bar (5800 PSI) / Peak 450 Bar.

  • Efficiency: High mechanical and volumetric efficiency from a standstill.
