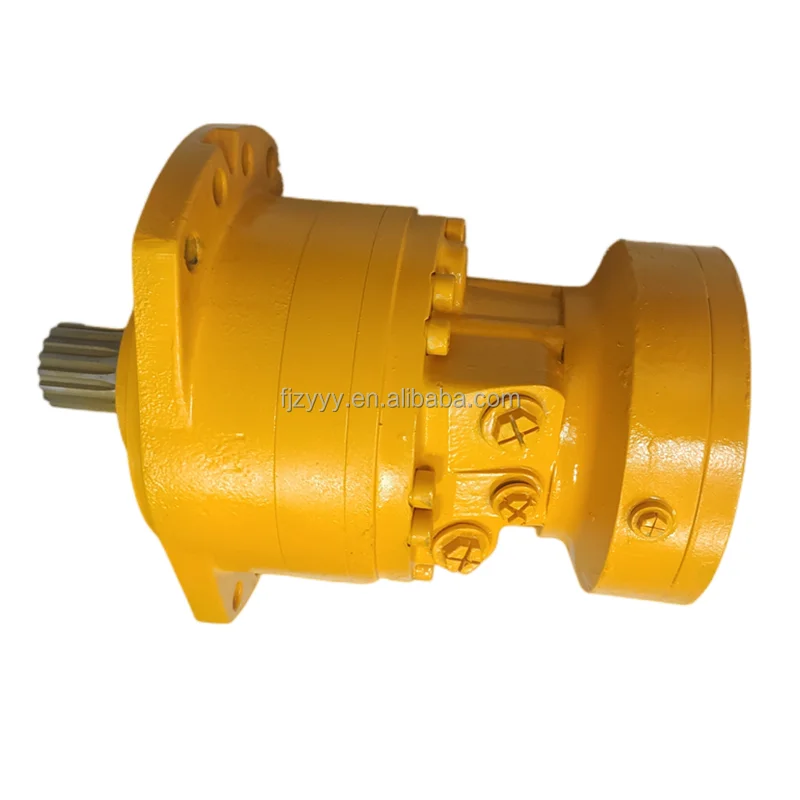

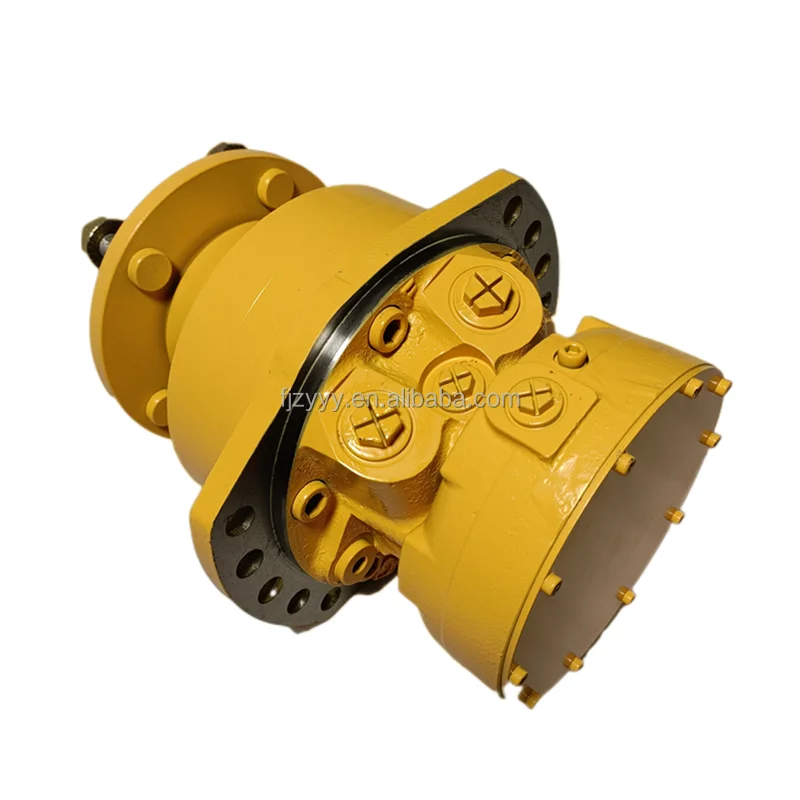

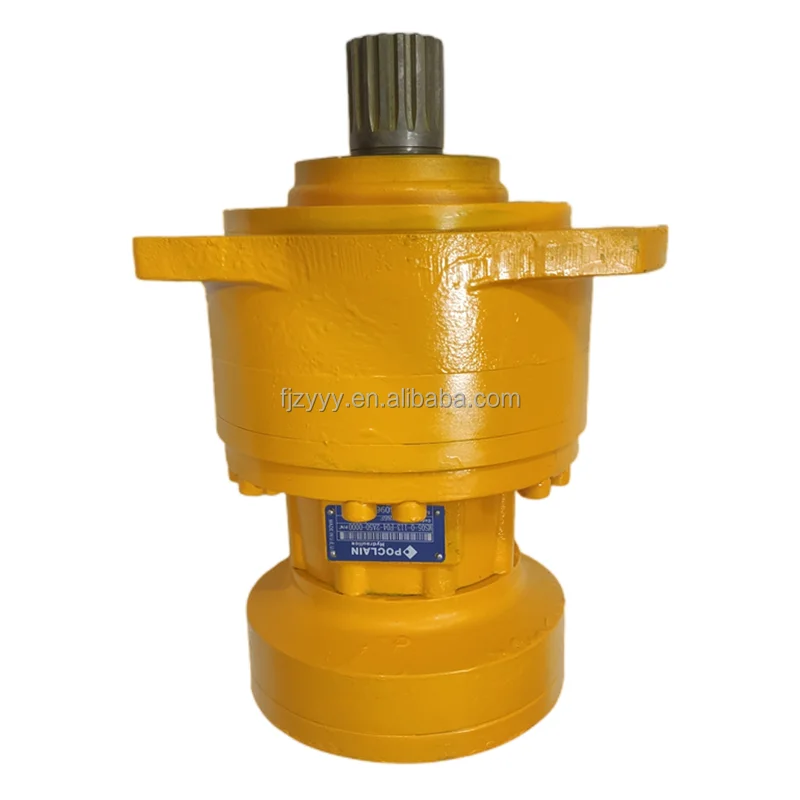

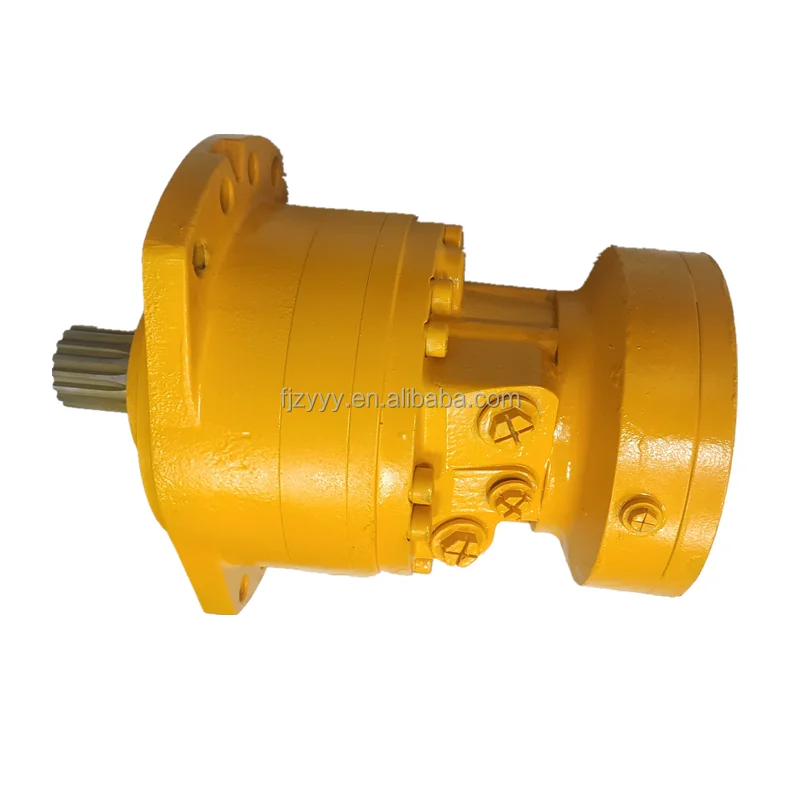

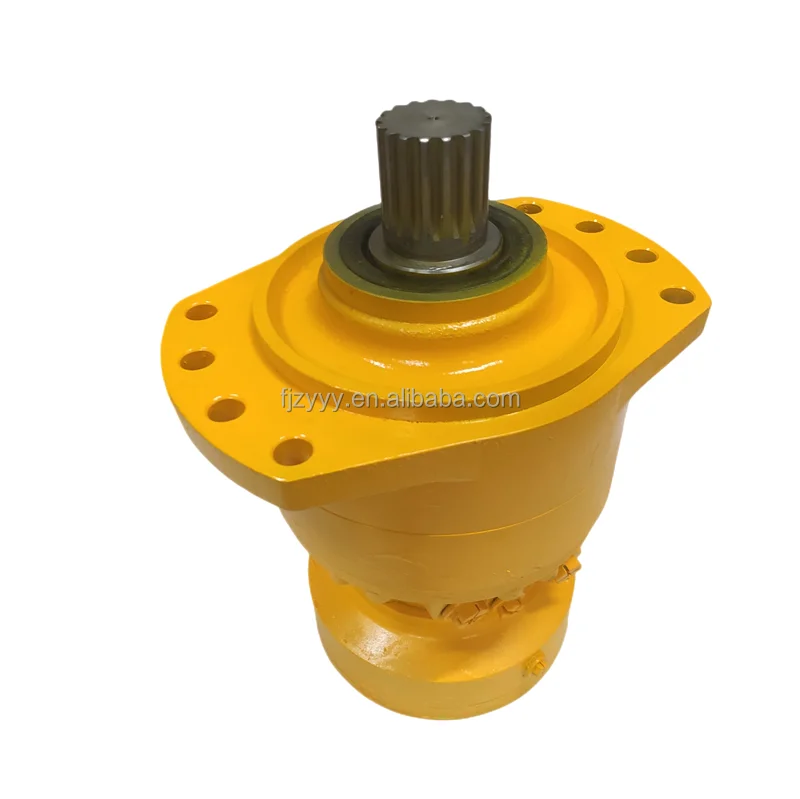

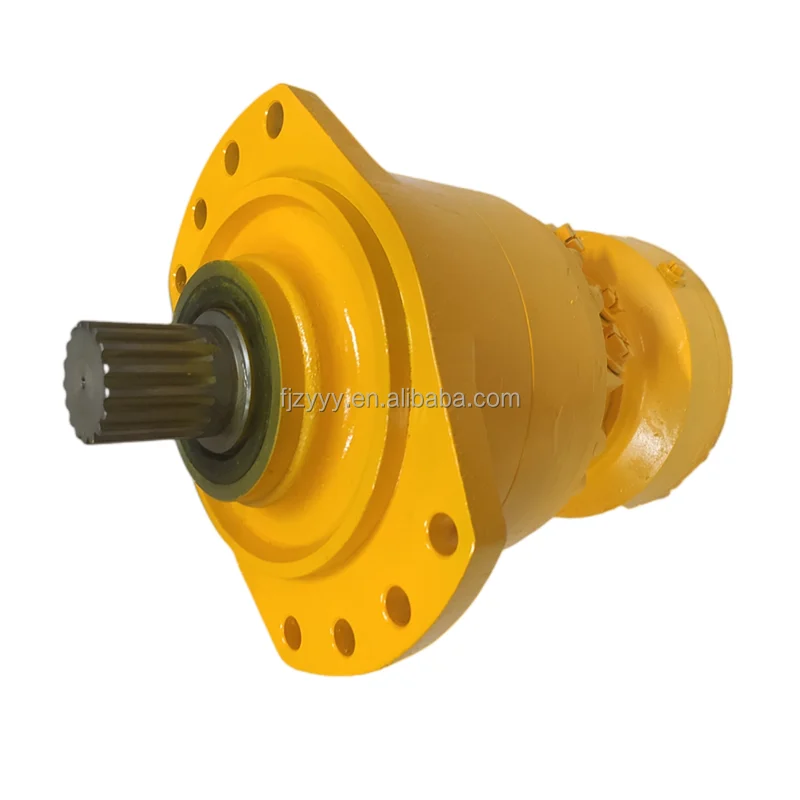

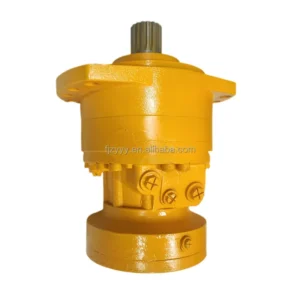

Poclain MS05 Series High-Torque Radial Piston Hydraulic Motors (1330cc)

Product Overview: The Poclain MS05 Series is a premier example of radial piston hydraulic technology, engineered for mobile machinery requiring extreme startup torque and smooth operation at low speeds. Due to its unique modular architecture, the MS05 series allows for direct integration into vehicle wheel hubs, eliminating the need for complex gear reduction. This page features core 1330cc displacement models: MS05-6-133-F05, MS05-0-133-R05, and MS05-2-133-R05. These motors serve as the vital power heart for skid steer loaders, municipal sweepers, orchard tractor wheel drives, and industrial auxiliary drives.

Key Technical Advantages:

• Elite HTLS Performance: The radial piston design ensures the motor delivers full torque even at zero or ultra-low speeds, meeting the demands of heavy-load starts.

• Advanced Modular Configuration: * F05/R05: Multiple wheel-end flange and bearing support options are available to fit various rim specifications.

  • 2-Speed Capability: The MS05-2 designation identifies dual-displacement functionality, allowing vehicles to switch between high-speed travel and high-torque work modes.

• Integrated Braking Solutions: Features optional integrated multi-disc parking brakes (e.g., BE/EF sequences), significantly simplifying chassis space and hydraulic routing.

• Ultimate Reliability: Optimized cam lobe profiles minimize mechanical noise and heat generation, ensuring durability under a continuous pressure of 400 Bar (5800 PSI).

• Target Applications: Compact loader travel drives, specialized municipal vehicles, landscaping equipment wheel drives, and industrial mixers.

Detailed Models & Parameters:

• Core Series: Poclain Hydraulics MS05 Series.

• Model Keywords:

  • MS05-6-133-F05-1230-DJ00: 1330cc frame, F05 wheel interface, internal design optimized for specific torque profiles.

  • MS05-0-133-R05-1220-BE00: 1330cc frame, R05 interface, equipped with BE integrated braking component.

  • MS05-2-133-R05-1220-EFJM: 1330cc frame, 2-Speed (Dual Displacement), featuring EF specialized seals and control logic.

• Performance Specifications: * Rated Pressure: 400 Bar (5800 PSI).

  • Peak Pressure: 450 Bar.
