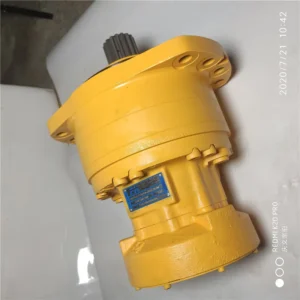

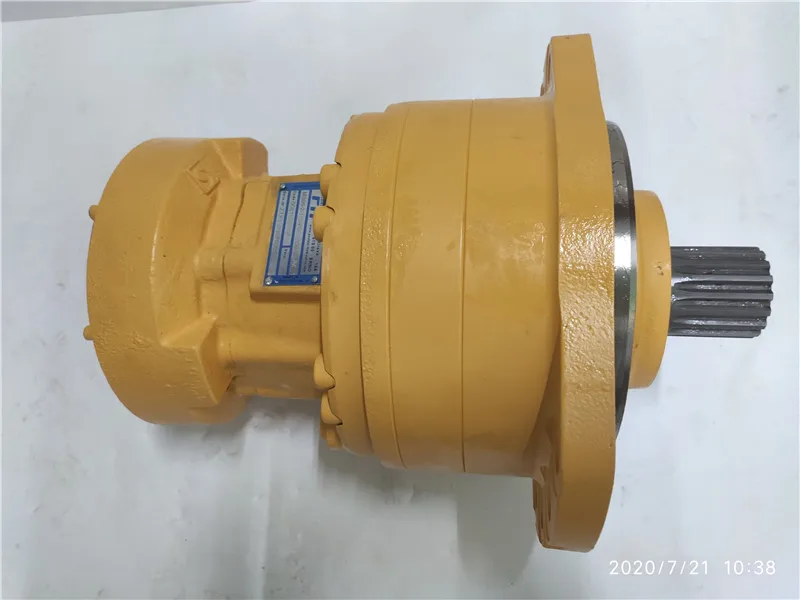

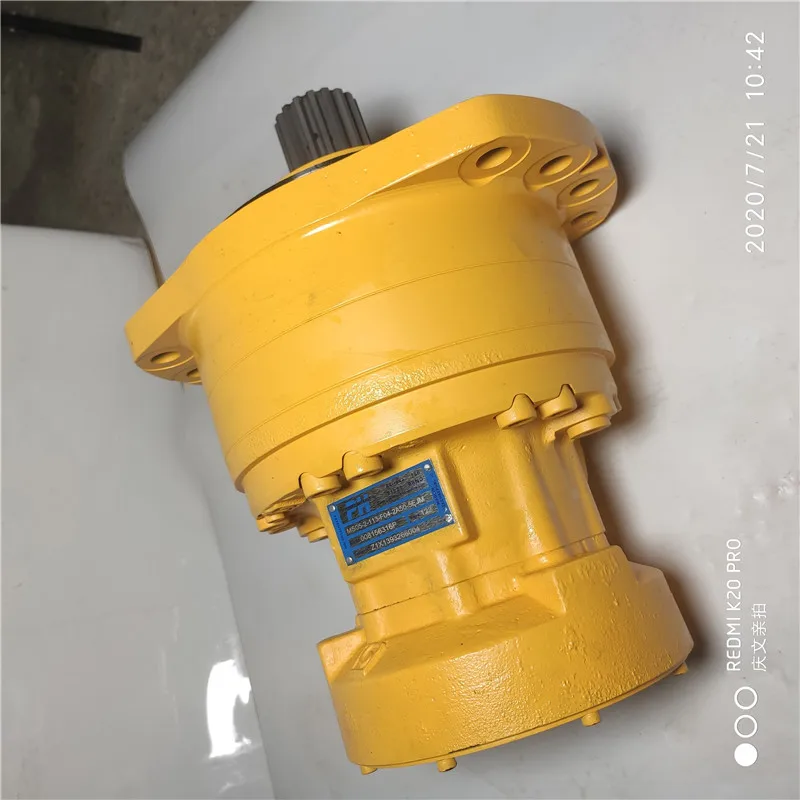

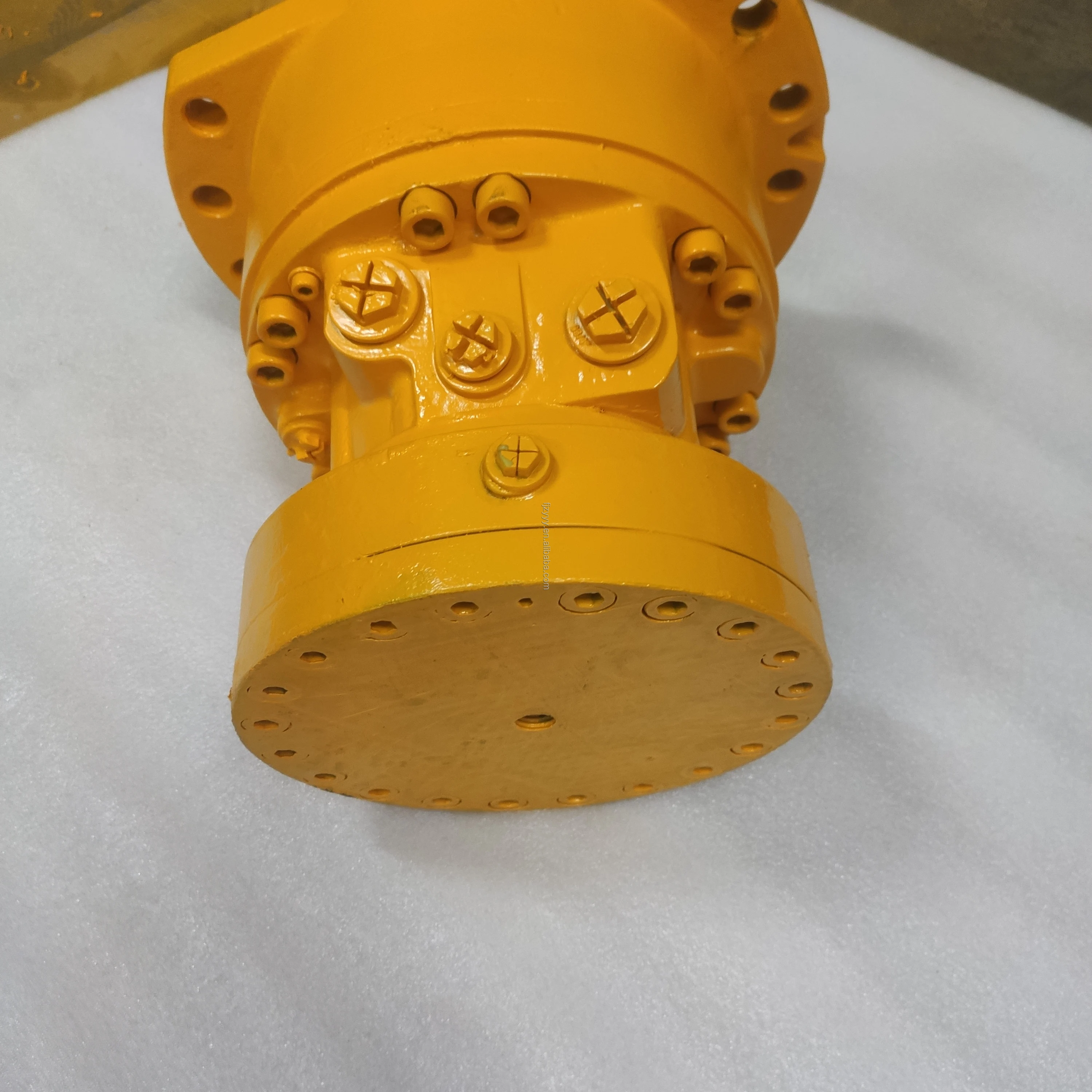

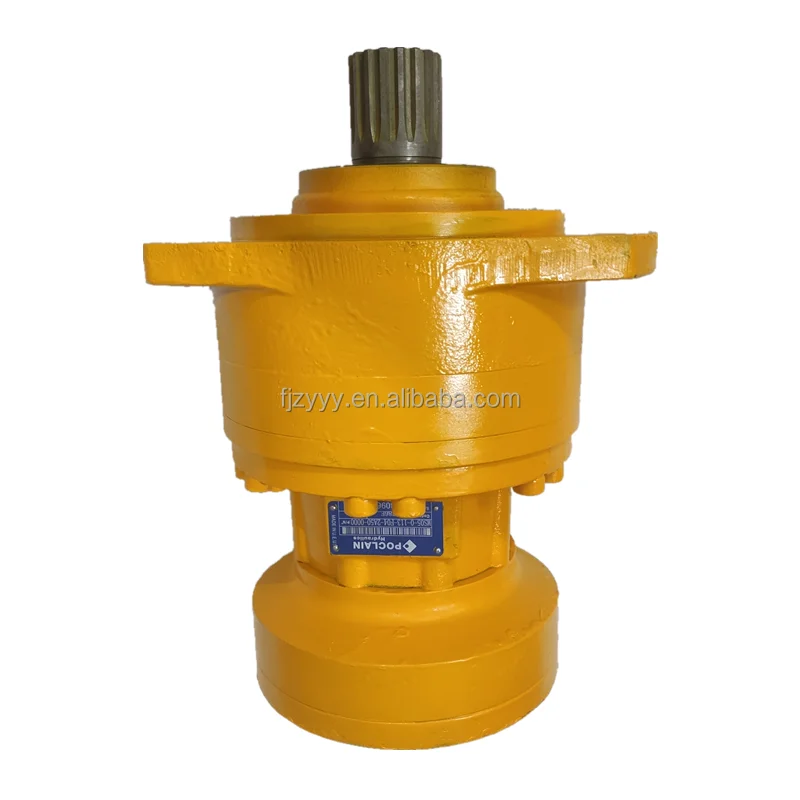

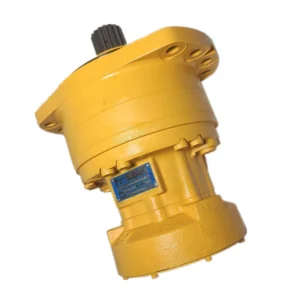

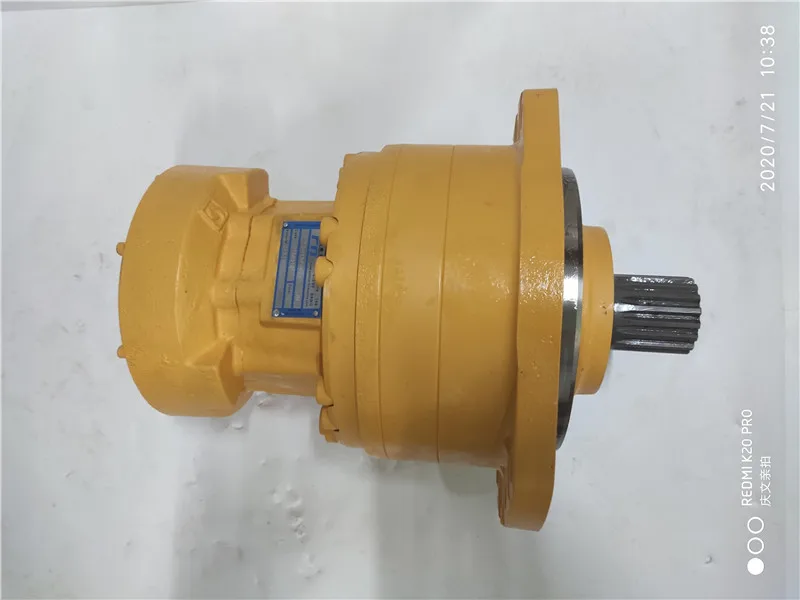

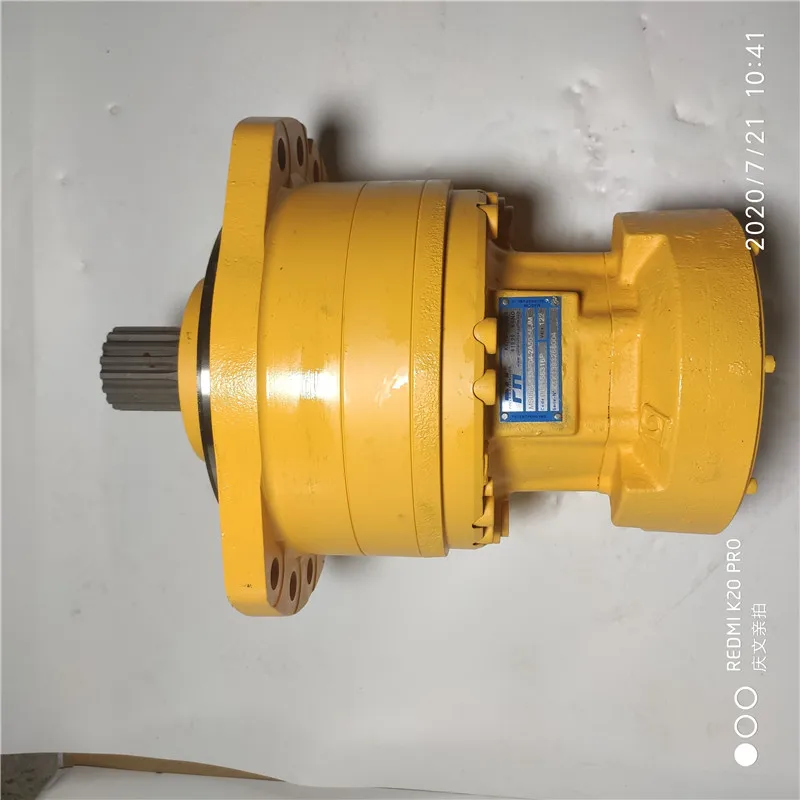

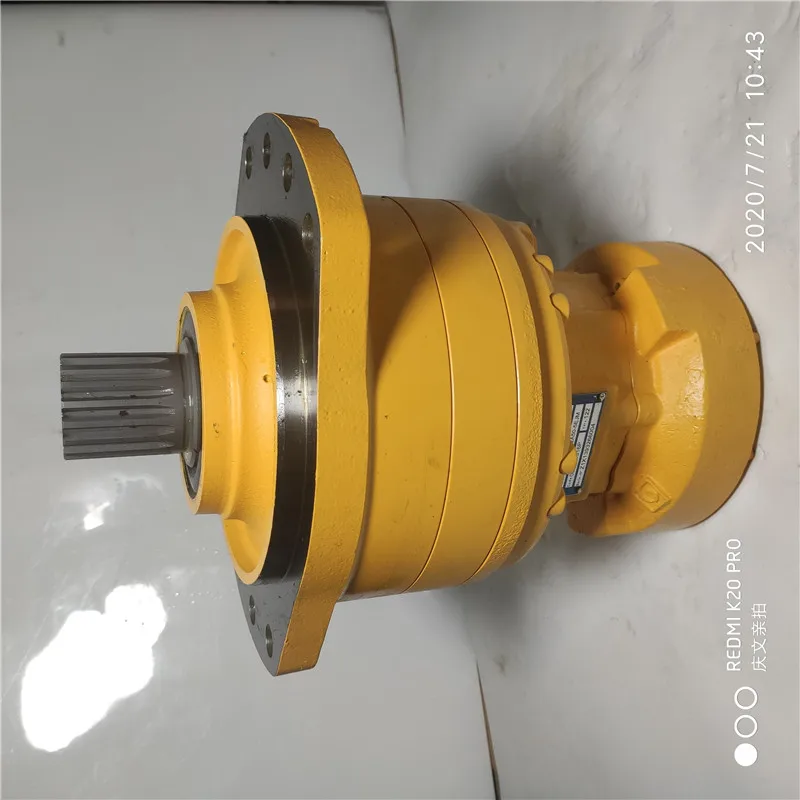

Poclain MS Series Heavy-Duty Radial Piston Wheel Motors

Product Overview: The Poclain MS Series is the definitive standard for high-performance wheel drives in hydrostatic transmissions. Covering a displacement range from the versatile MS05/MS08 to the heavy-duty MS11/MS18, these LSHT (Low Speed High Torque) radial piston motors utilize legendary cam-lobe technology to deliver massive, pulse-free torque at ultra-low speeds. This featured selection highlights core configurations: MS05-0-133-F05-1510-00-MR (Single-displacement standard) and MS05-2-133-F05-1H2A-0000 (Dual-displacement high-performance). The MS series is the premier choice for the travel drives of combine harvesters, skid steer loaders, municipal sweepers, rotary drilling rigs, and forestry machinery.

Key Technical Advantages:

• Superior Power Density: The compact radial piston architecture allows direct integration into wheel hubs, significantly streamlining vehicle chassis design and reducing overall system weight.

• Heavy-Duty Bearing Engineering: Optimized specifically for wheel-end mounting, these motors handle massive radial loads directly, allowing the motor to act as a structural load-bearing axle.

• Multi-Displacement Options (1C/2C): Features dual-displacement control, enabling operators to switch seamlessly between “High-Torque Mode” for working/climbing and “High-Speed Mode” for on-road relocation.

• Integrated Braking Solutions: Available with optional multi-disc parking or dynamic braking systems, offering a highly compact and secure propulsion solution.

• Extreme Condition Resilience: Rated for continuous operation at 400 Bar (5800 PSI) with peak pressures up to 450 Bar, alongside exceptional thermal shock resistance.

• Target Applications: Agricultural machine drives, construction equipment propulsion, waste compactors, aircraft tugs, and port machinery.

Detailed Models & Parameters:

• Core Series: Poclain Hydraulics MS05, MS08, MS11, MS18 Series.

• Model Keywords: MS05-0-133-F05-1510-00-MR, MS05-2-133-F05-1H2A-0000.

• Technical Specs Decoding:

  • MS05 Frame: Cost-effective power solution for mid-sized mobile equipment.

  • F05 Flange: Standard wheel-end mounting interface specification.

  • 133/1510/1H2A: Refers to specific cam-lobe displacement settings, shaft standards, and control valve codes.

• Pressure Specs: Continuous pressure up to 400 Bar (40 MPa), with peak pressure reaching 450 Bar (6500 PSI).
