Poclain MK Series Motor | MK18-2-621, MK18-1-021, MK35-2-121 | LSHT Radial Piston Motor

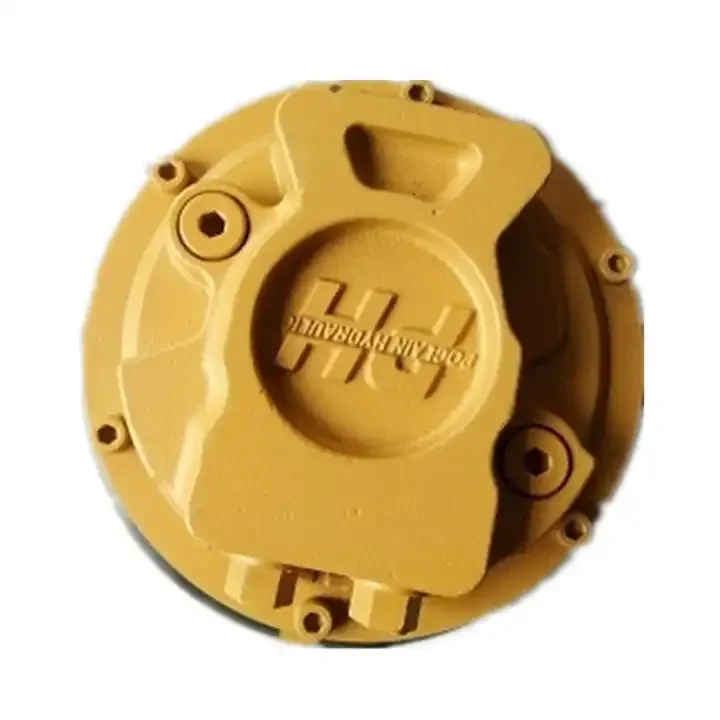

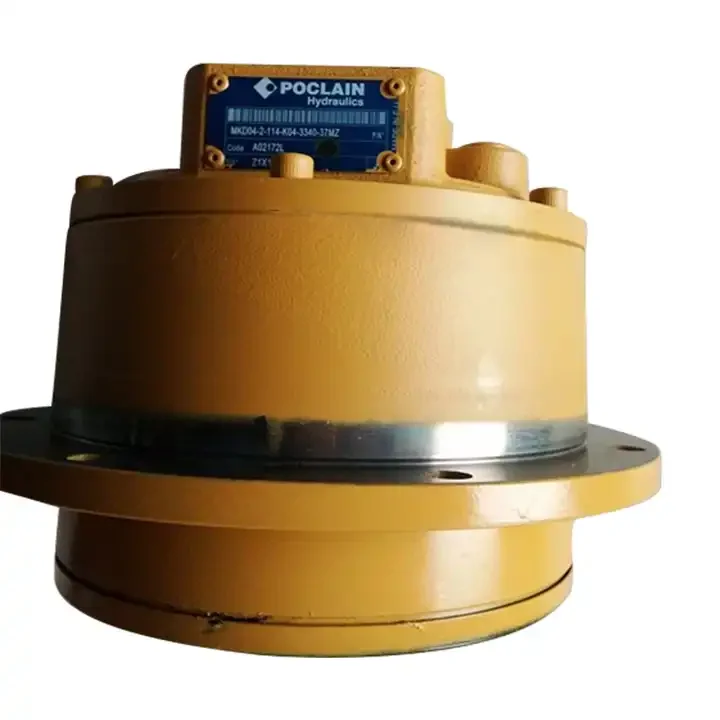

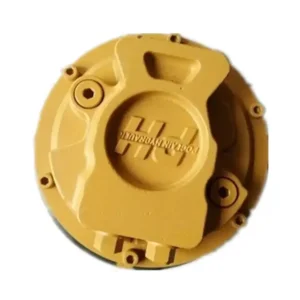

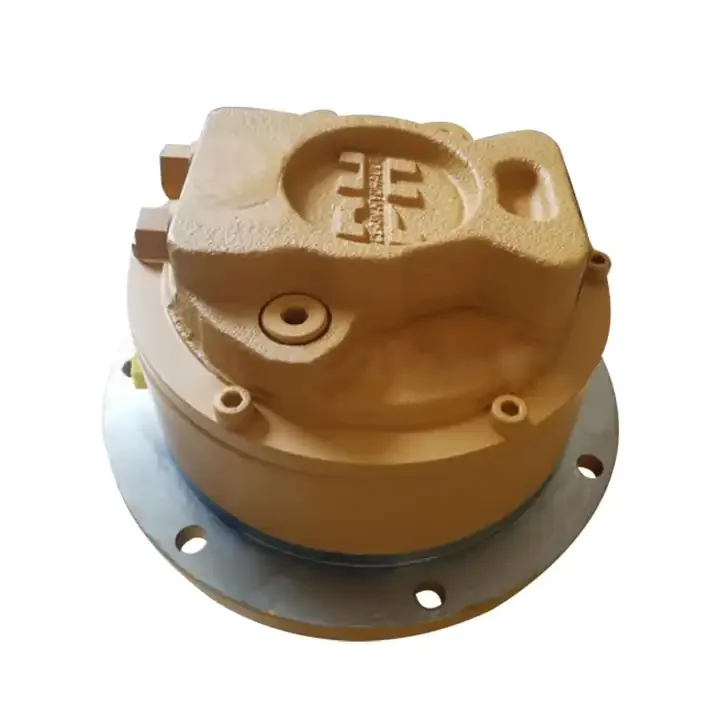

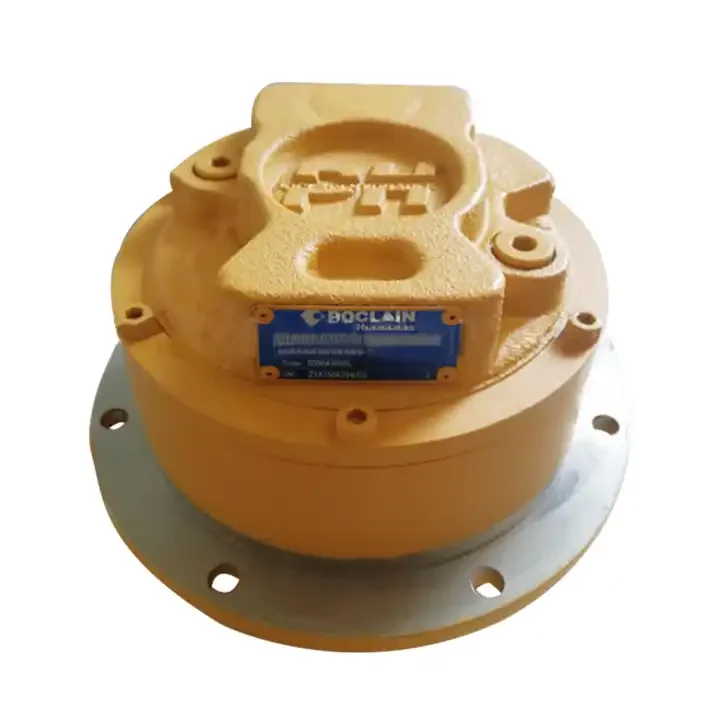

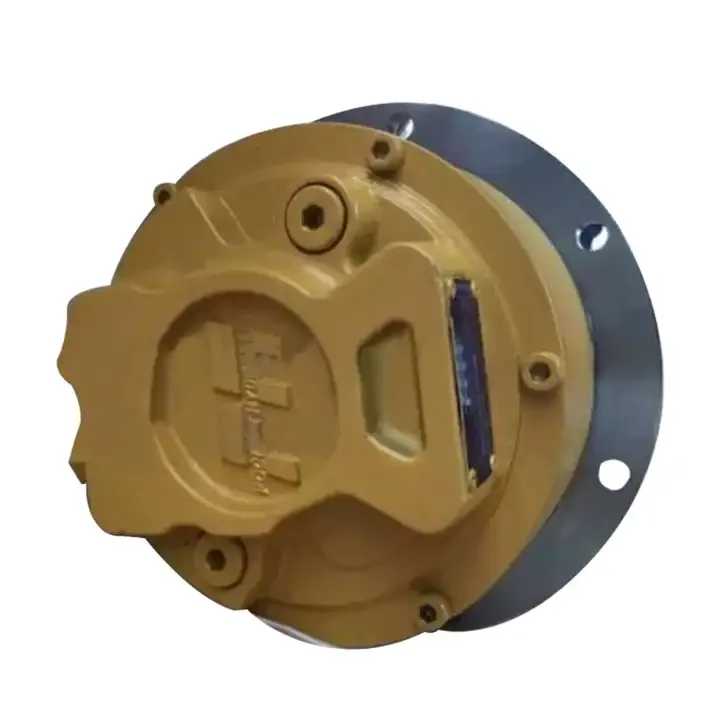

Poclain MK Series Heavy-Duty LSHT Radial Piston Motors

Product Overview: The Poclain MK Series is the global gold standard for power and precision in hydraulic drives. As a definitive Radial Piston LSHT (Low Speed High Torque) motor, the MK series is specifically engineered for applications demanding massive torque at ultra-low speeds while withstanding extreme external radial loads. This selection highlights three core high-performance specs: MK18-2-621-F19-1340-0000, MK18-1-021-F12-1340-5800, and the heavy-duty MK35-2-121-A18-1140-7000. Utilizing Poclain’s legendary cam-lobe technology, these motors are the premier choice for rotary drilling heads, harvester wheel drives, heavy construction propulsion, and marine winches.

Key Technical Advantages:

• Ultimate Torque Delivery: The radial piston architecture ensures industry-leading mechanical efficiency during start-up and operation, delivering stable full-load torque even at 1 RPM.

• Extreme Radial Load Capacity: Reinforced housings and bearings designed for wheel-end mounting allow the motor to act as a direct structural axle, significantly simplifying machine chassis design.

• Multi-Displacement Control: Supports 2-speed (1C/2C) functionality, enabling a seamless transition between high-torque working mode and high-speed travel mode.

• Highly Integrated Features: Available with integrated multi-disc parking brakes and dynamic braking options, enhancing safety and compactness for mobile drive systems.

• Target Applications: Combine harvester propulsion, skid steer loaders, waste compactors, forestry harvesters, and TBM cutter head drives.

Detailed Models & Parameters:

• Core Series: Poclain Hydraulics MK Series (Radial Piston).

• Model Keywords: MK18, MK35, MK18-2-621, MK18-1-021, MK35-2-121.

• Technical Specs Decoding:

  • MK18-2-621-F19-1340-0000: MK18 frame, 2-speed displacement, with F19 flange interface.

  • MK18-1-021-F12-1340-5800: MK18 frame, single fixed displacement, F12 wheel-end porting.

  • MK35-2-121-A18-1140-7000: MK35 large frame, 2-speed design, high-pressure 450 Bar platform.

• Pressure Specs: Rated continuous pressure up to 400 Bar (5800 PSI) with intermittent peaks reaching 450 Bar (6500 PSI).
