PLP & PLM Series Gear Pump | PLP20.25, PLP30.43, PLP20.15.5 | High Pressure Oil Pump

Model Number

PLP, PLM, PLP20.25 S054 B2-LBE/BGN, PLP30.43D0-83E3-LED/EB-LFS, PLP20.15.5-03T3-L0

Inquiry

Product Description

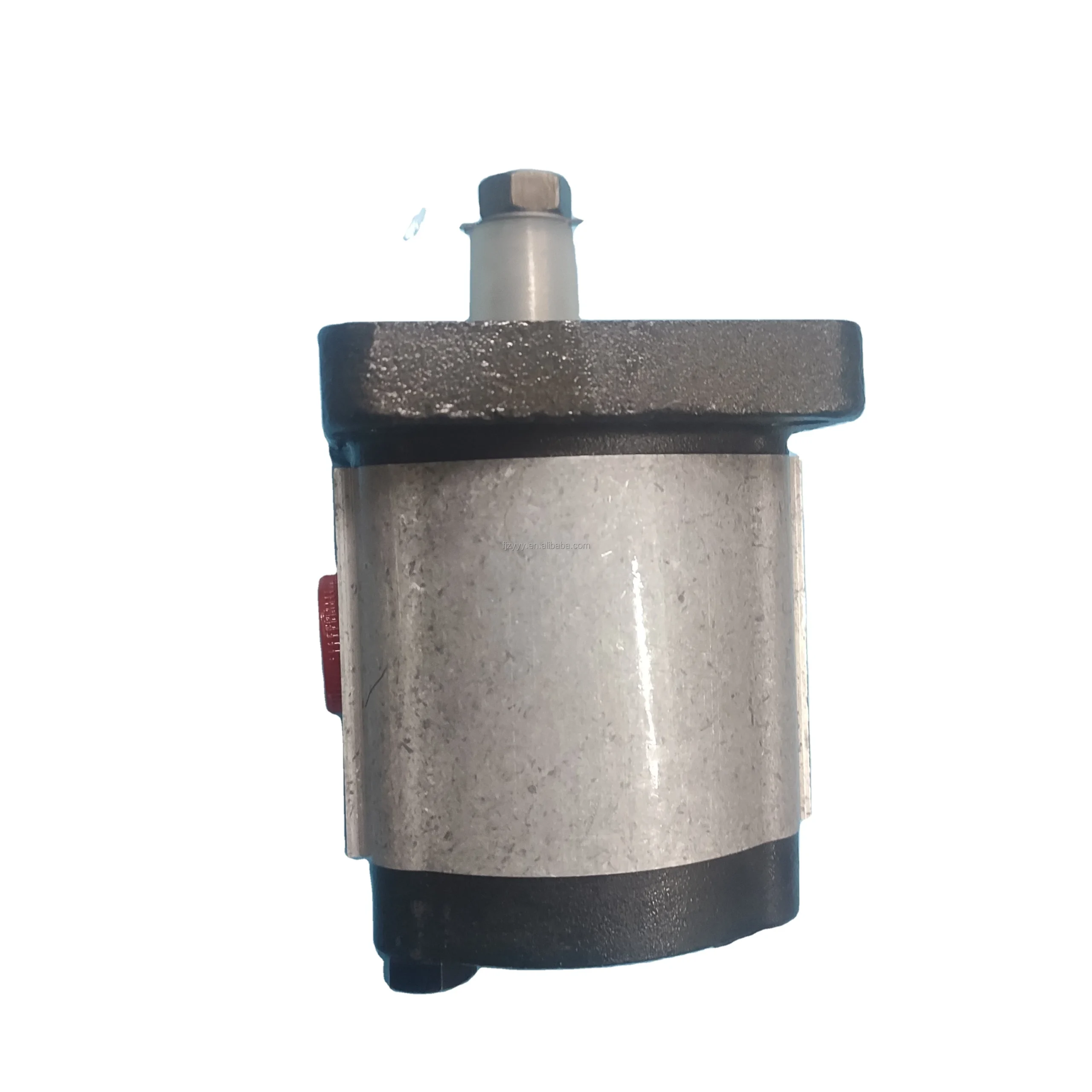

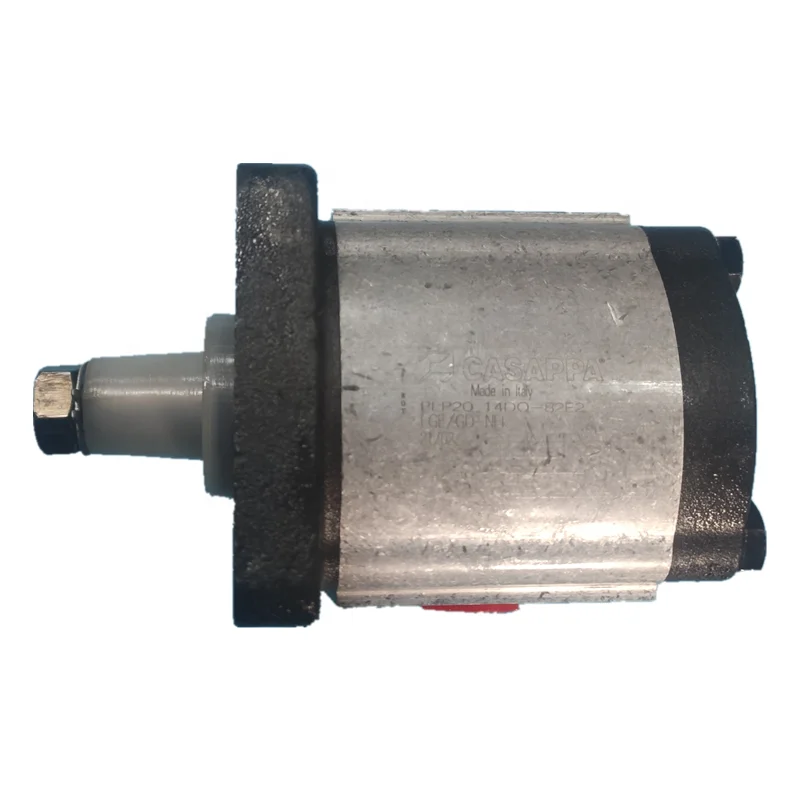

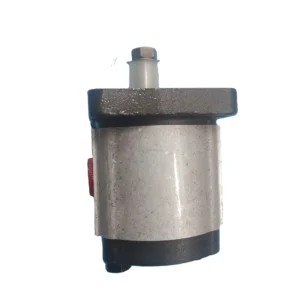

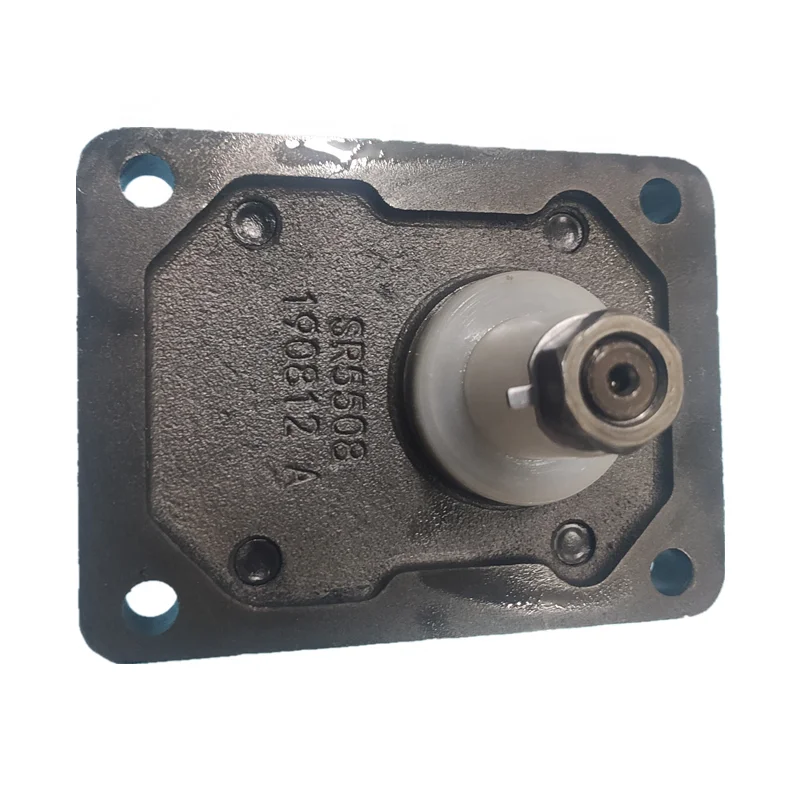

PLP & PLM Series High-Performance Hydraulic Gear Pumps

Product Overview: The PLP and PLM Series serve as the essential power core for mobile machinery and industrial hydraulic systems. This featured selection covers precision models optimized for complex duty cycles, including PLP20.25 S054 B2-LBE/BGN, the heavy-duty tandem specification PLP30.43D0-83E3-LED/EB-LFS, and the compact model PLP20.15.5-03T3-L0. Engineered with a three-piece high-strength aluminum or cast iron construction combined with advanced pressure compensation, these pumps are specifically designed to meet the rigorous demands for high efficiency and extended service life under extreme pressures (up to 28 MPa).

Key Technical Advantages:

  • 100% Plug-and-Play Replacement: Strictly adheres to international specifications. Suffix codes like S054 and 03T3 guarantee that mounting flanges (SAE or European standards), splined/keyed drive shafts, and port positions are 100% identical for a seamless installation.

  • Superior Pressure Resilience: Rated for a continuous operating pressure of 25 MPa with peaks reaching 28 MPa (4060 PSI), built to absorb instantaneous load shocks during demanding cycles.

  • High Volumetric Efficiency: Featuring automatic axial gap-compensated wear plates to minimize internal leakage, maintaining efficiencies over 93% throughout the pump’s service life and reducing system heat generation.

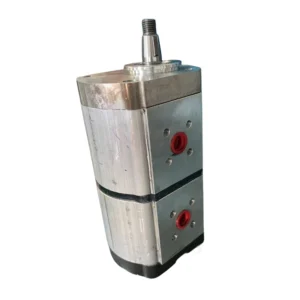

  • Multi-Stage Tandem Integration: Multi-stage models like the PLP30.43D0 allow a single drive shaft to simultaneously power independent circuits, streamlining machine space and piping layouts.

  • Ultra-Low Operating Noise: Precision-ground gear sets drastically reduce pressure ripples under high-pressure cycles, protecting downstream control valves and enhancing operator comfort.

Detailed Models & Parameters:

  • Core Series: PLM & PLP High Pressure Series.

  • Model Keywords: PLP20.25 S054 B2-LBE/BGN, PLP30.43D0-83E3-LED/EB-LFS, PLP20.15.5-03T3-L0.

  • Pressure Ratings: Rated at 25 MPa (250 Bar); Peak pressure up to 28 MPa (280 Bar).

  • Rotation: Available in Left-hand (L) and Right-hand (R) configurations.

  • Target Applications: Forklift main lift pumps, loader auxiliary pumps, refuse compactor systems, and industrial hydraulic power units (HPU).
