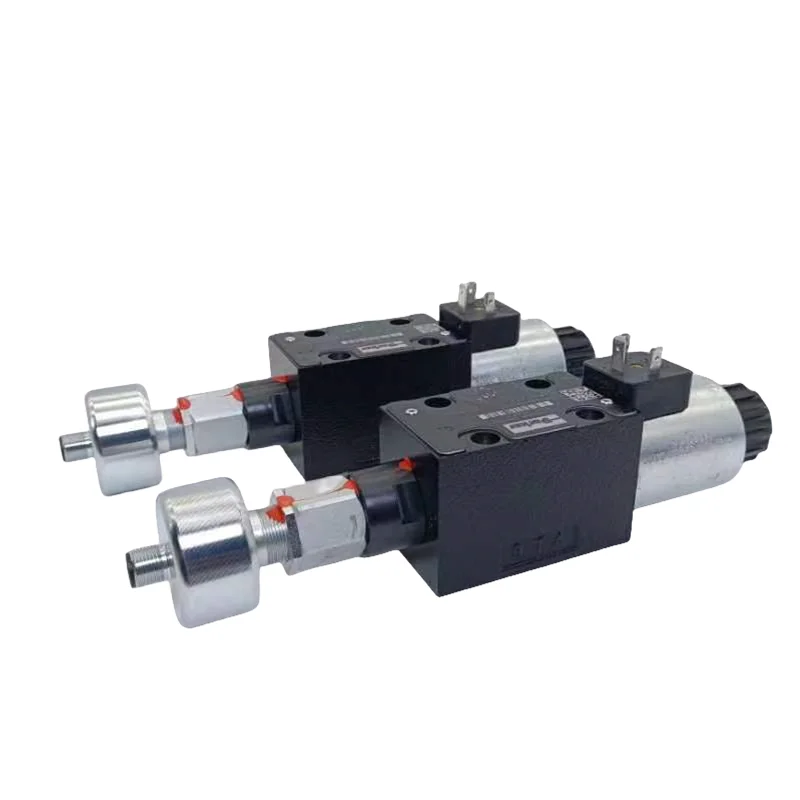

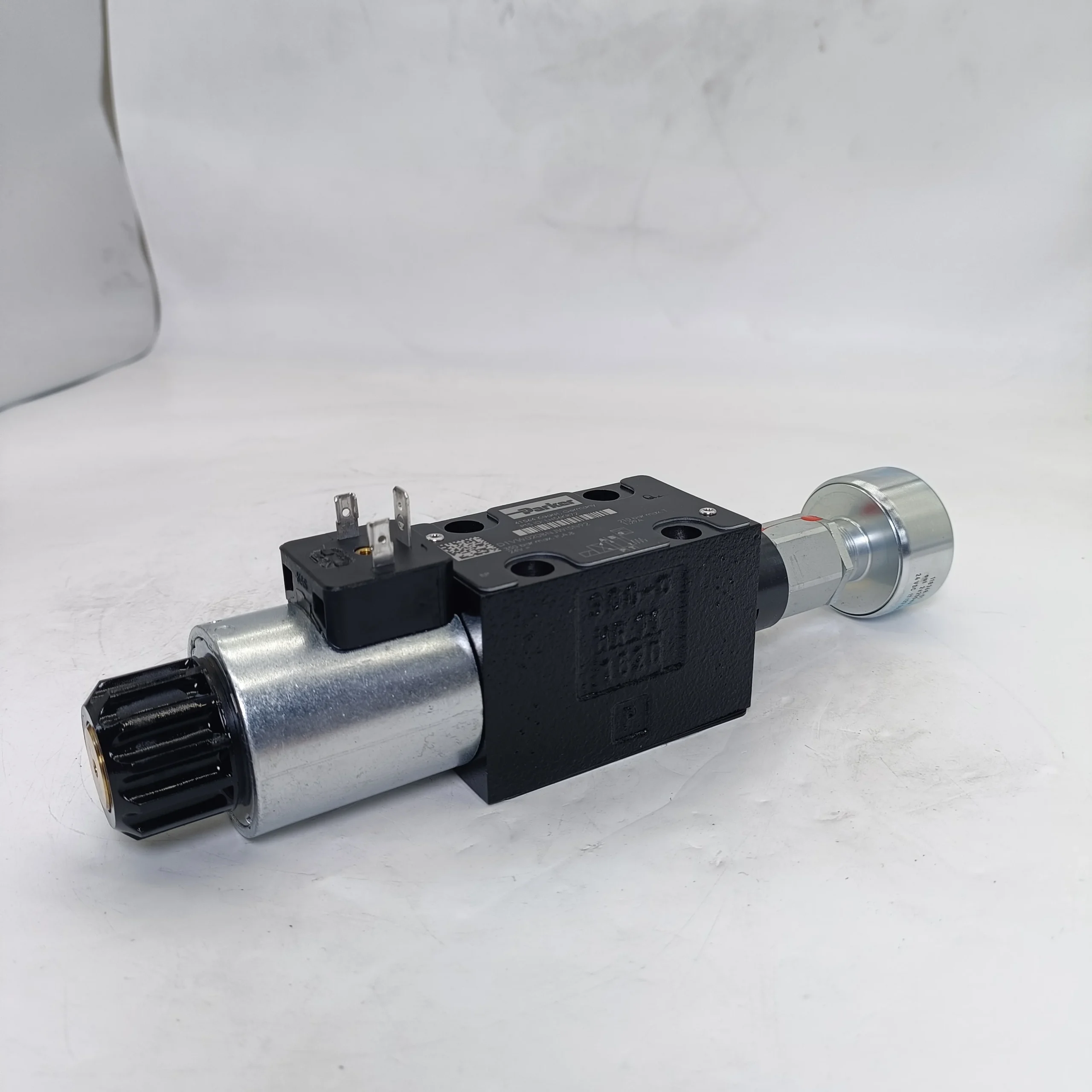

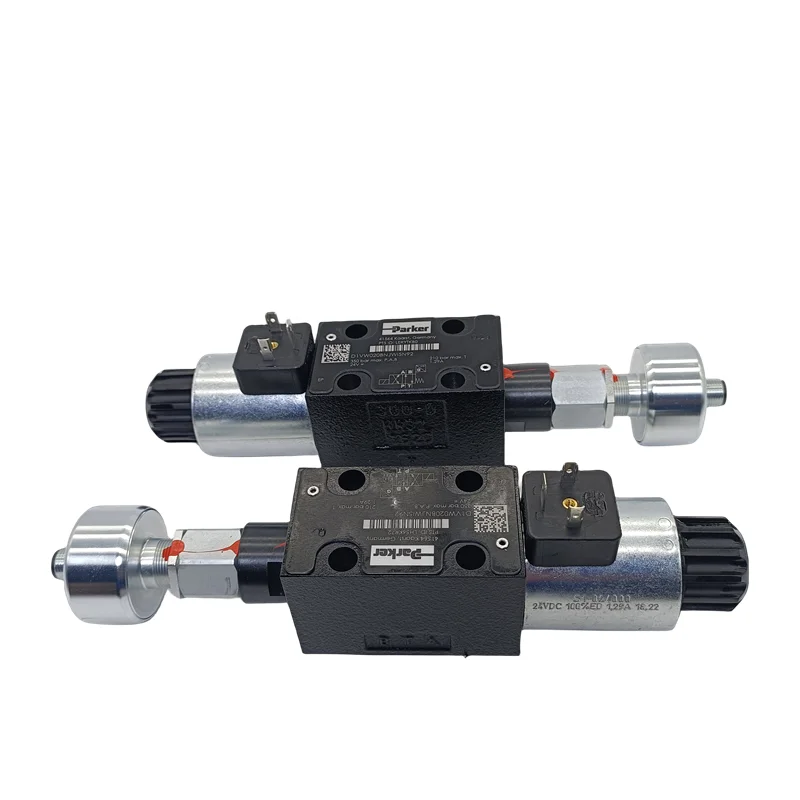

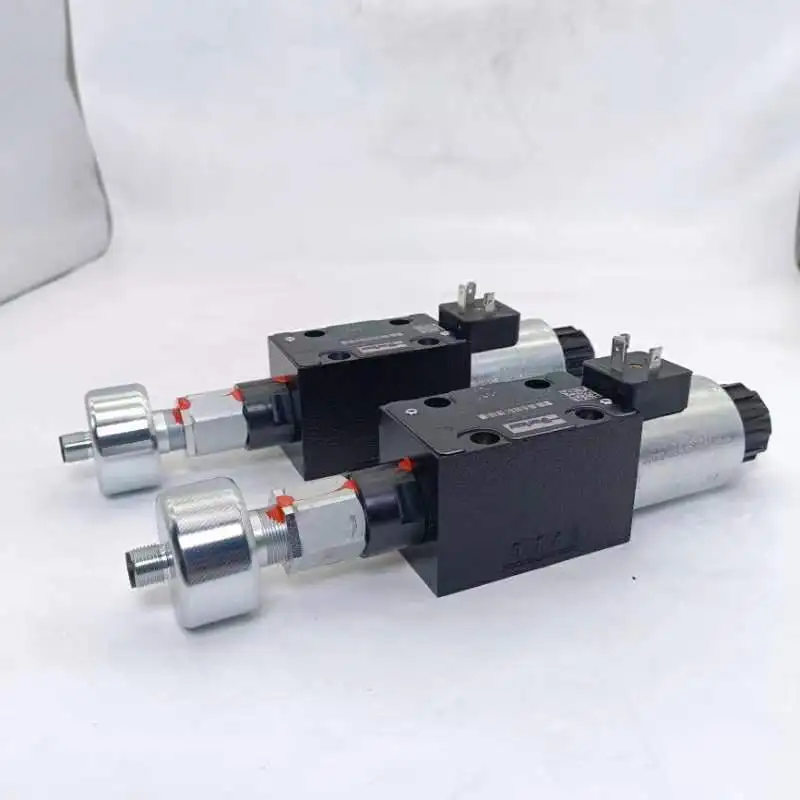

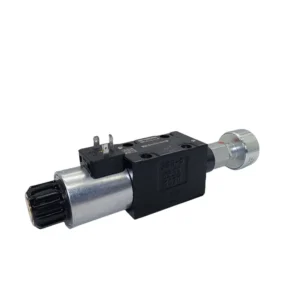

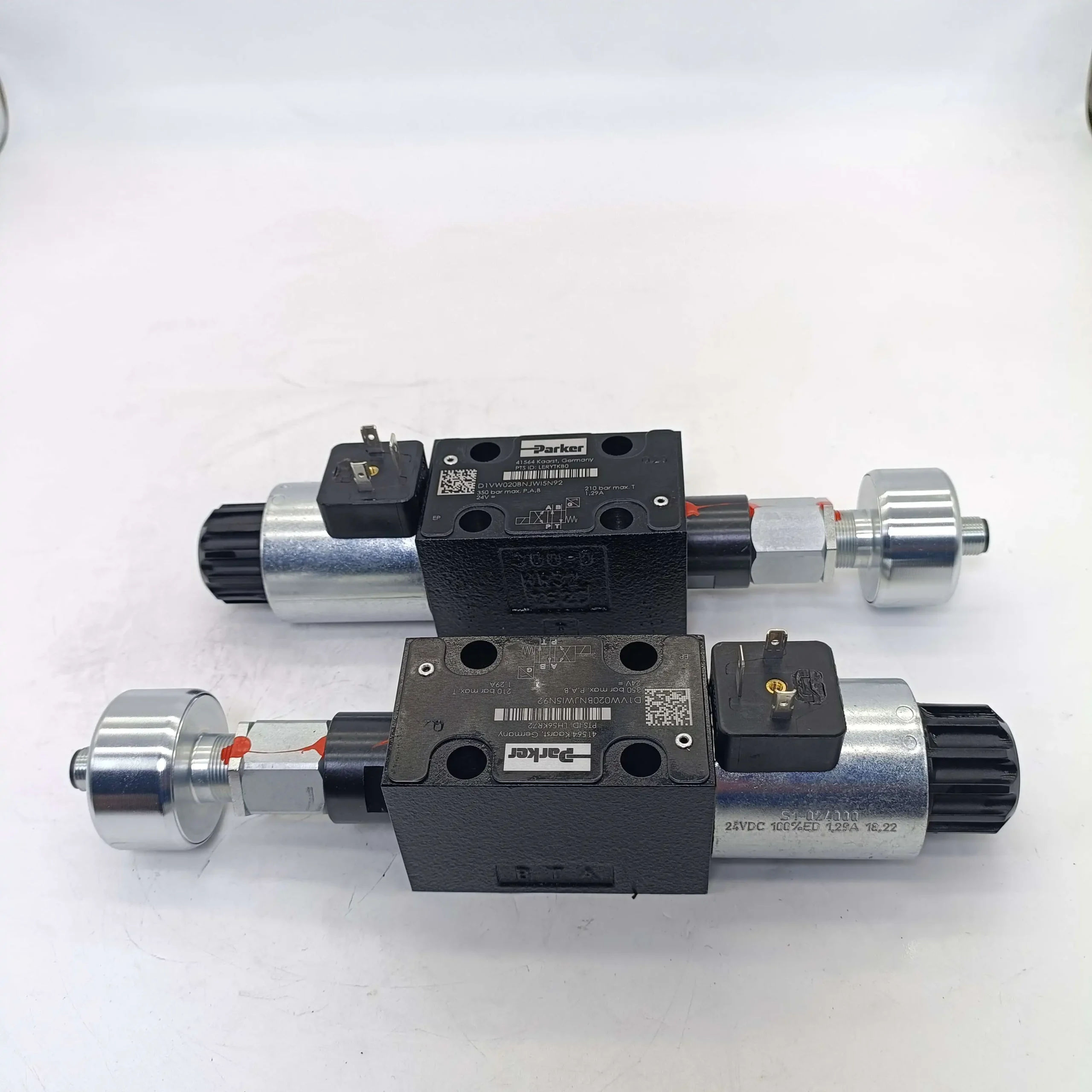

Parker Type D1VW Series Solenoid Directional Control Valves

Product Overview: The D1VW Series represents the industry benchmark for directional hydraulic control. As a direct-acting solenoid valve, it is fully compliant with NG06 (CETOP 03) mounting standards. Featuring an optimized housing design, the D1VW series provides extremely low pressure drops, which significantly enhances energy efficiency and minimizes heat generation within the hydraulic circuit.

This category features the essential D1VW portfolio, including versatile spool functions like D1VW001, 002, 004, and 006, alongside specialized configurations such as the D1VW020BNJWI5N92. Whether you require the standard NJW junction box or the LED-equipped JWI5 specification, these valves deliver smooth and reliable switching at pressures up to 350 Bar, making them the premier choice for automated production lines, injection molding machines, and metalworking tools.

Key Technical Advantages:

• Low Pressure Drop: The fluid-dynamically optimized flow paths minimize energy loss, leading to a more efficient hydraulic system.

• Wet-Pin Solenoid Design: Armatures operate immersed in oil for superior cooling and lubrication, ensuring an extended mechanical life even in high-frequency duty cycles.

• Versatile Wiring Options: Available with NJW (Junction Box), JWI5 (Integrated connectors with indicators), and other configurations to meet global electrical integration standards.

• High-Precision Spools: Hardened and precision-ground spools ensure minimal internal leakage and consistent centering accuracy over time.

Detailed Specifications & Parameters:

• Core Series: Parker Type D1VW Solenoid Directional Valve.

• Featured Model Matrix: D1VW001ENJW91, D1VW002, D1VW004, D1VW006, D1VW020BNJWI5N92, D1VW001CNJW-91.

• Core Performance Specs:

  • Nominal Size: NG06 / CETOP 03 / Size 6.

  • Max Operating Pressure: Ports P/A/B up to 350 Bar (5,076 PSI); Port T up to 210 Bar (DC).

  • Max Flow Capacity: Up to 80 L/min (depending on spool type and pressure).

  • Spool Symbols: 001 (All ports open), 004 (All ports closed), 002 (P blocked), 020 (2-position).

  • Protection Class: IP65 rated protection.
