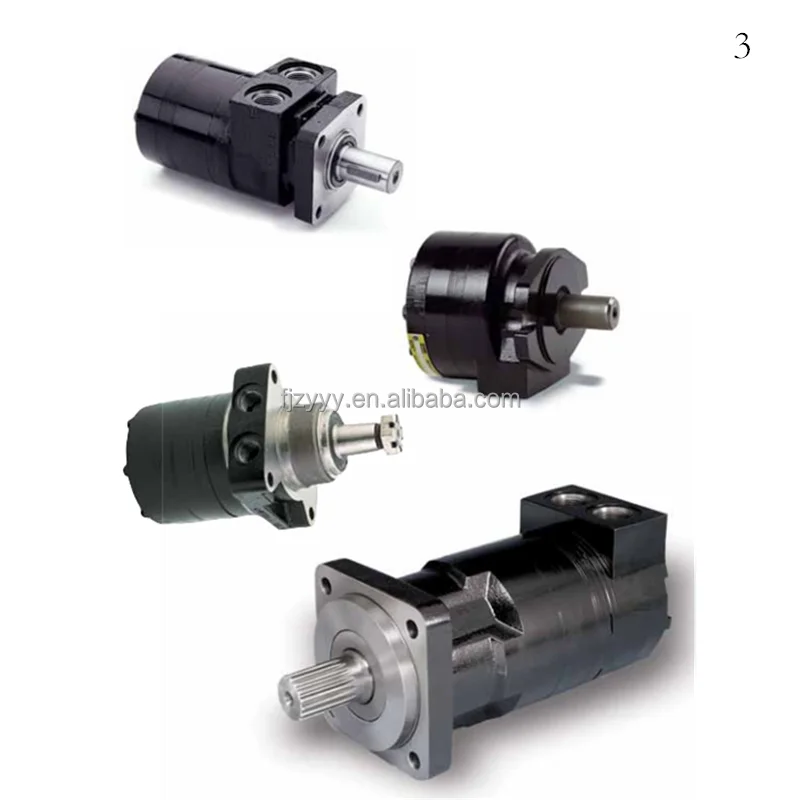

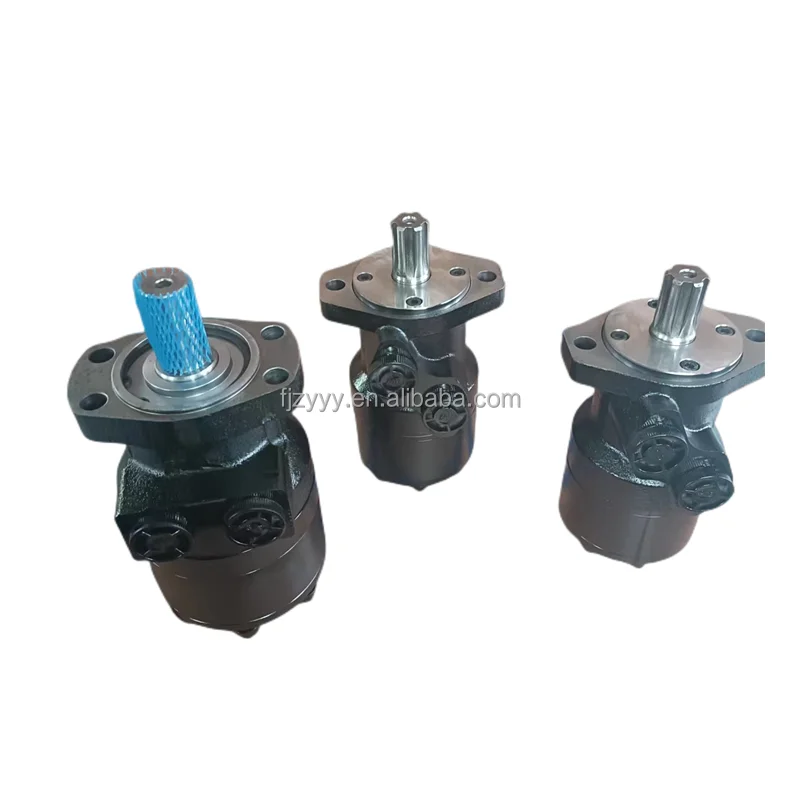

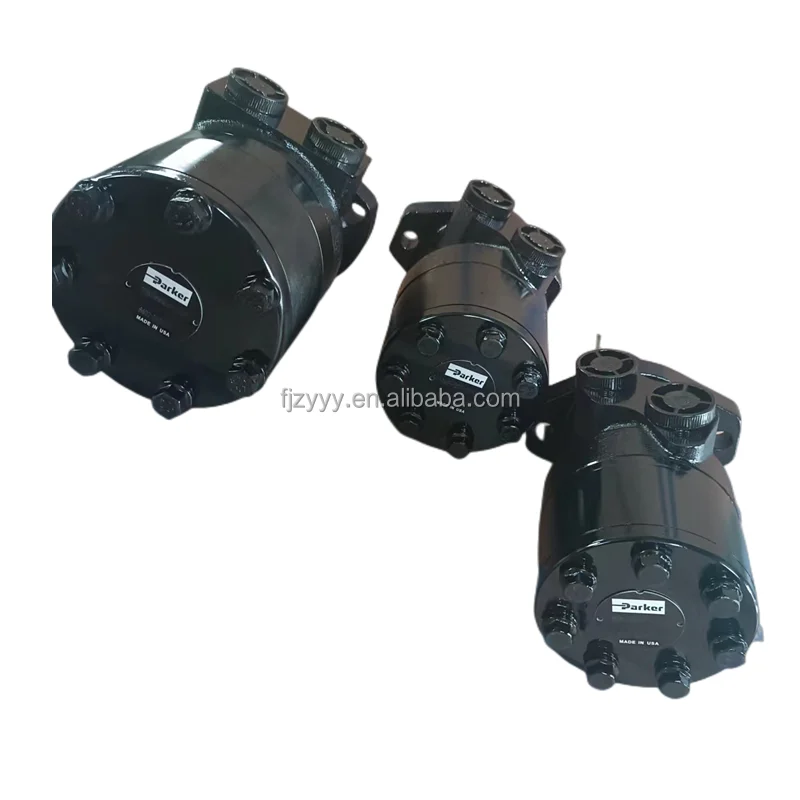

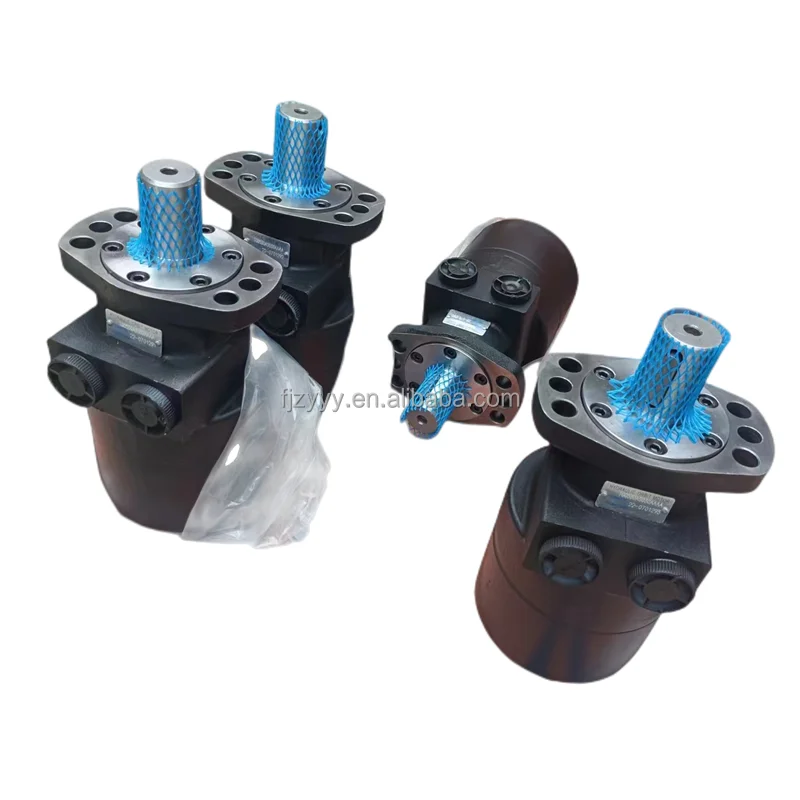

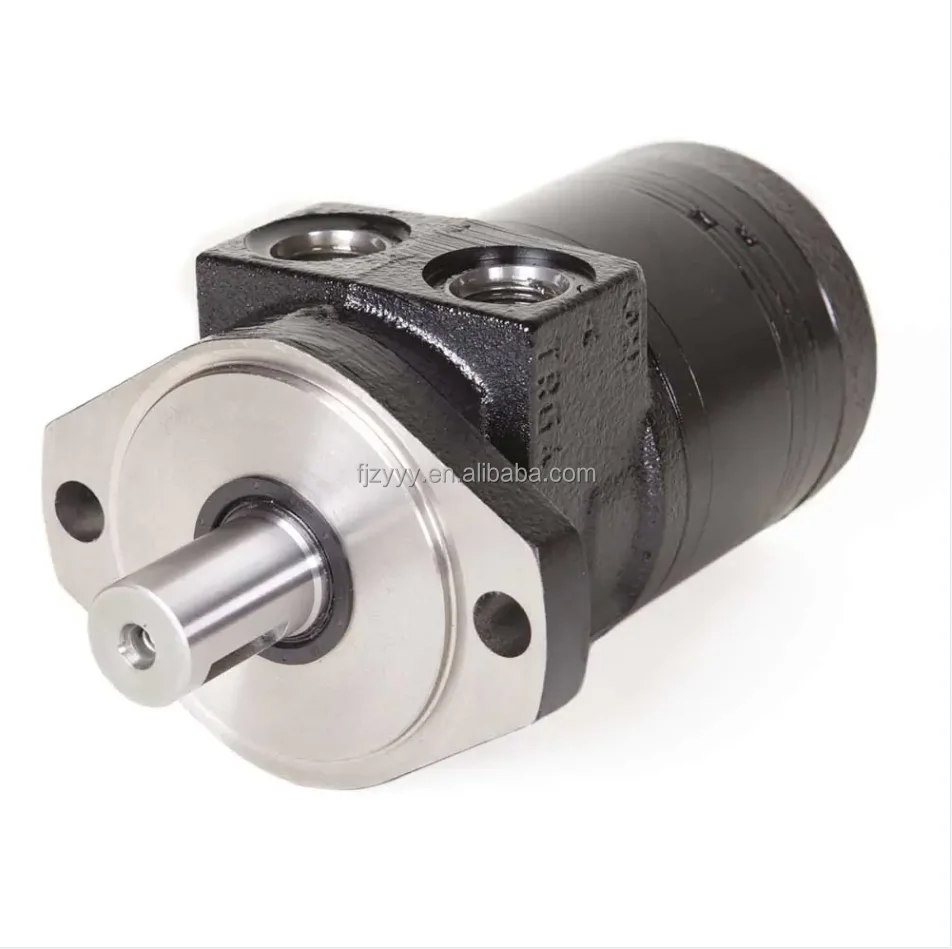

Parker TE Series LSHT Gerotor Hydraulic Motors

Product Overview: The Parker TE Series (Torqmotor™) is a highly durable and compact axial distribution gerotor motor designed for diverse drive applications. Leveraging advanced Gerotor gear set technology, the TE series delivers smooth torque output even at extremely low rotational speeds. This category features core models: TE0100, TE0130, TE0165, TE0195, and the high-capacity TE0390. Equipped with heavy-duty tapered roller bearings, these motors handle significant radial loads directly, making them the premier choice for industrial conveyors, agricultural mowers, street sweeper drives, and food processing machinery.

Key Technical Advantages:

• Superior Radial Load Tolerance: The integrated high-performance tapered roller bearings allow the motor to be mounted directly to wheels or sprockets without auxiliary bearing supports.

• Advanced Shaft Seal Technology: Features Parker’s patented high-pressure shaft seals, capable of handling significant back pressure even without a case drain line.

• Smooth Low-Speed Performance: Optimized Gerotor geometry minimizes internal friction, ensuring consistent, pulse-free operation during startup and at minimal RPMs.

• High-Level Configuration (AAAB): Includes standard porting, high-quality seals, and factory-tuned performance settings for seamless integration into existing hydraulic circuits.

• Technical Spec Decoding:

  • TE0100 – TE0195: Medium displacement range, offering an ideal balance of power and footprint for general-purpose drives.

  • TE0390LW: Large displacement (390cc) for applications requiring maximum torque output.

  • CW260 / LW120: Denotes specific port sizes, mounting flanges (e.g., 4-bolt or 2-bolt), and shaft end details.

Detailed Models & Parameters:

• Core Series: Parker TE Series (Torqmotor™).

• Model Range Specifics:

  • TE0100CW260AAAB: Displacement approx. 100 cc/rev (6.1 in³/rev).

  • TE0130CW260AAAB: Displacement approx. 130 cc/rev (8.0 in³/rev).

  • TE0165CW260AAAB: Displacement approx. 165 cc/rev (10.1 in³/rev).

  • TE0195CW260AAAB: Displacement approx. 195 cc/rev (11.9 in³/rev).

  • TE0390LW120AAAB: Large displacement approx. 390 cc/rev (23.8 in³/rev).

• Core Performance Specs:

  • Rated Pressure: Continuous up to 140 Bar (2000 PSI); peak intermittent up to 190 Bar.

  • Max Torque: Capable of outputting from 200 N·m to over 700 N·m depending on displacement.
