Parker Torqmotor TB Series | TB0100 TB0130 TB0295 | TB0130AS100LAAY TB0295AS130AAAG

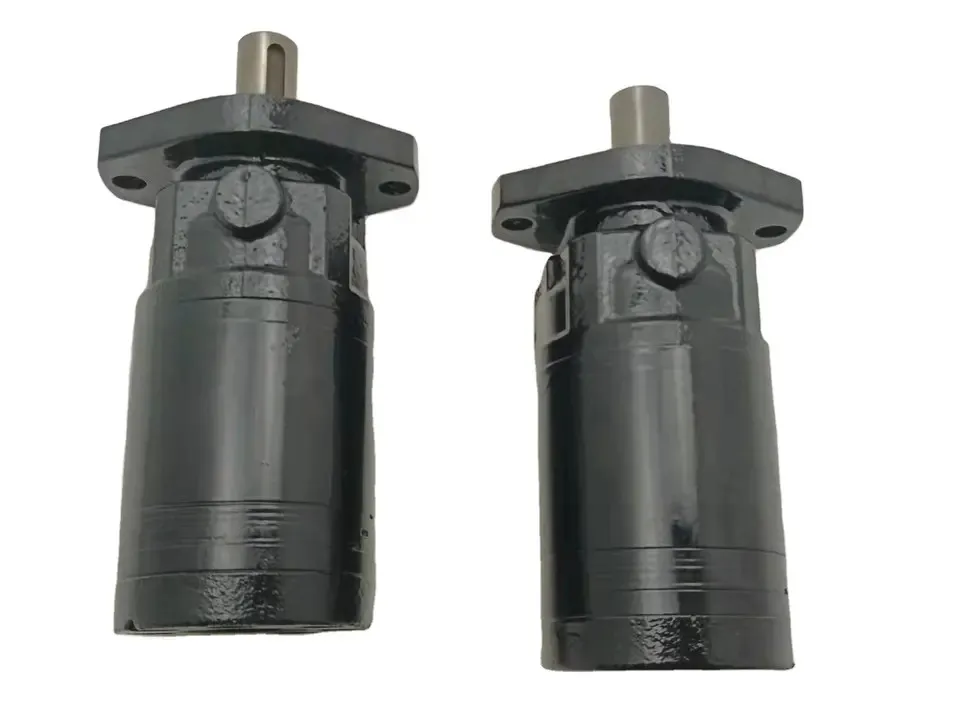

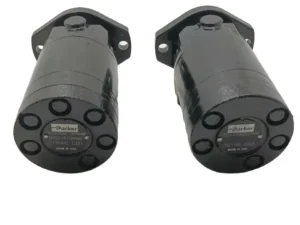

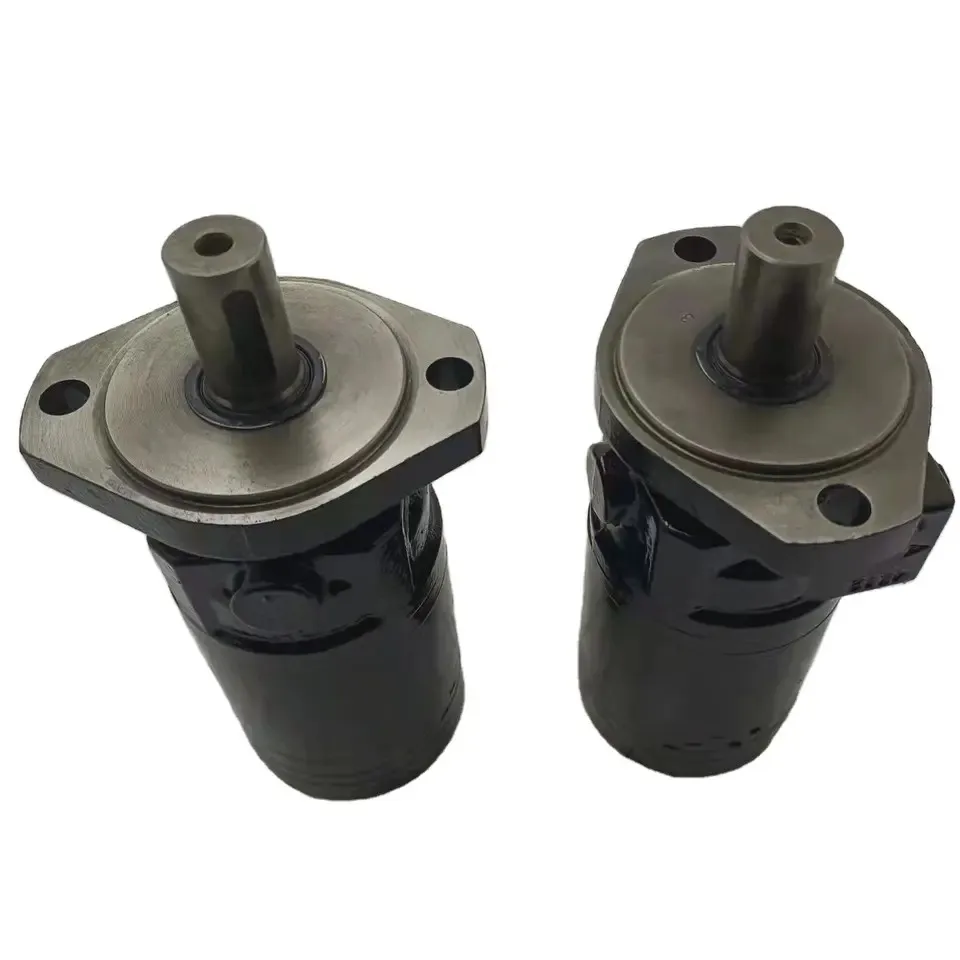

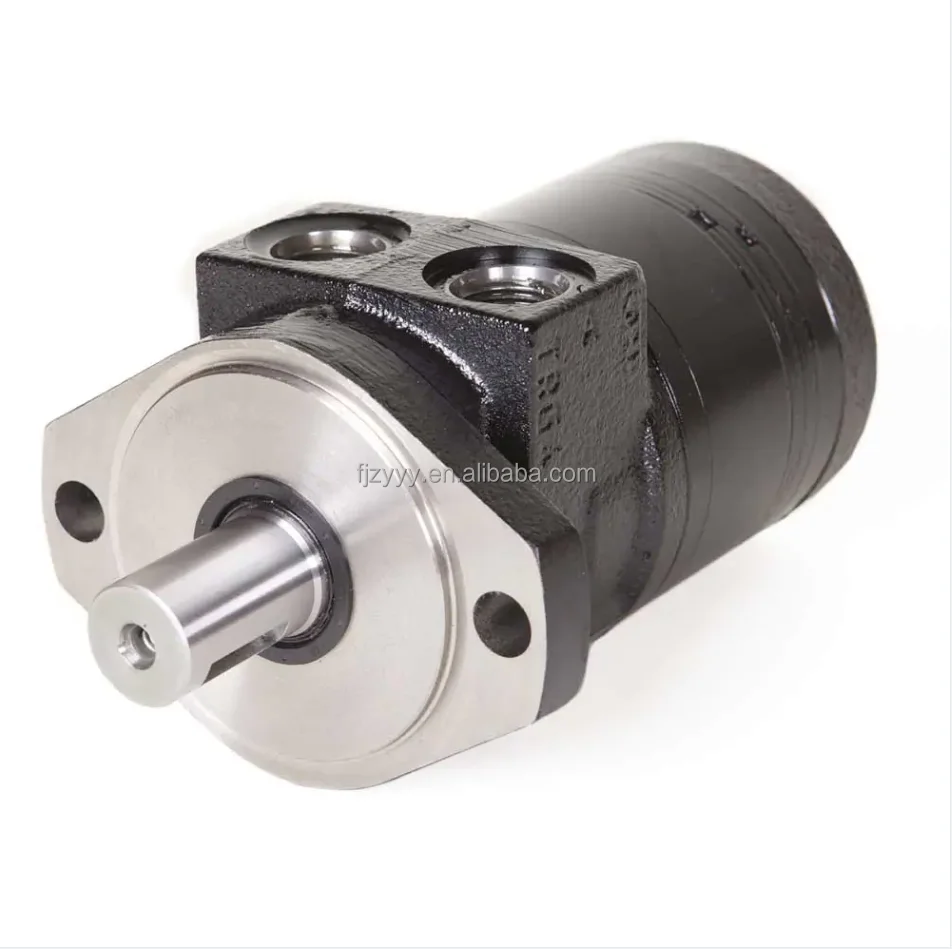

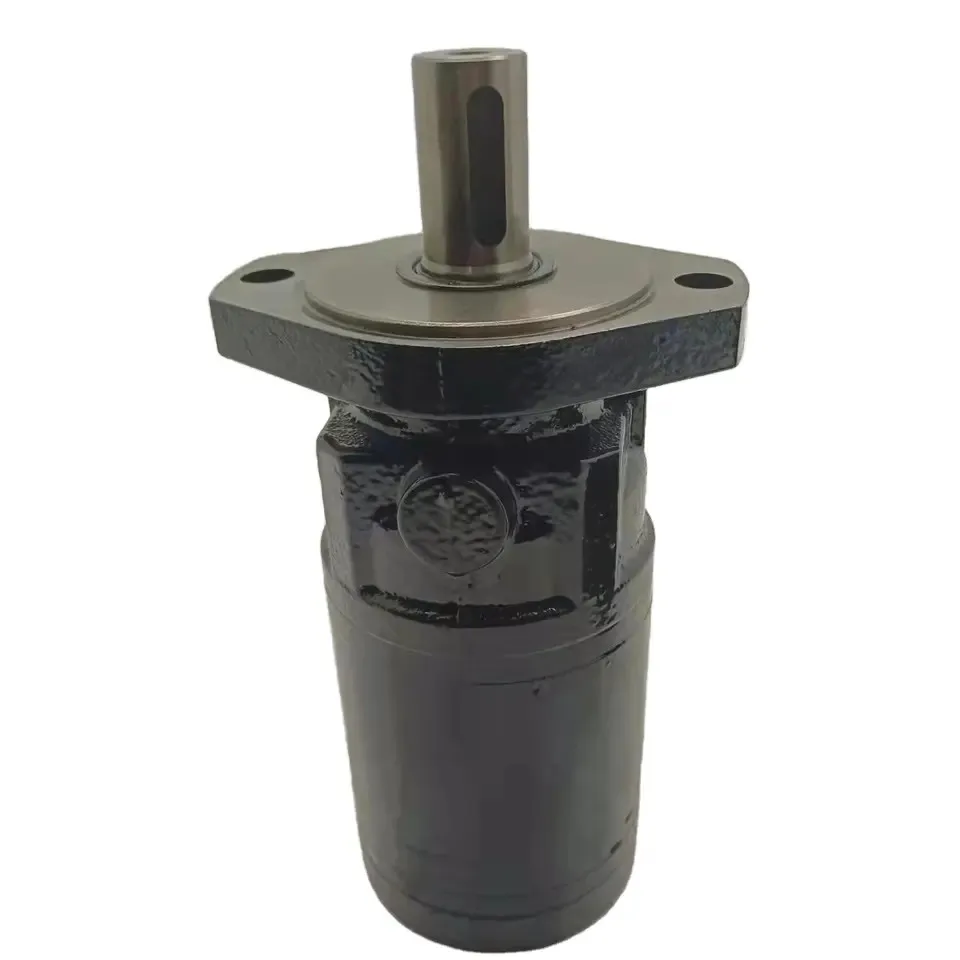

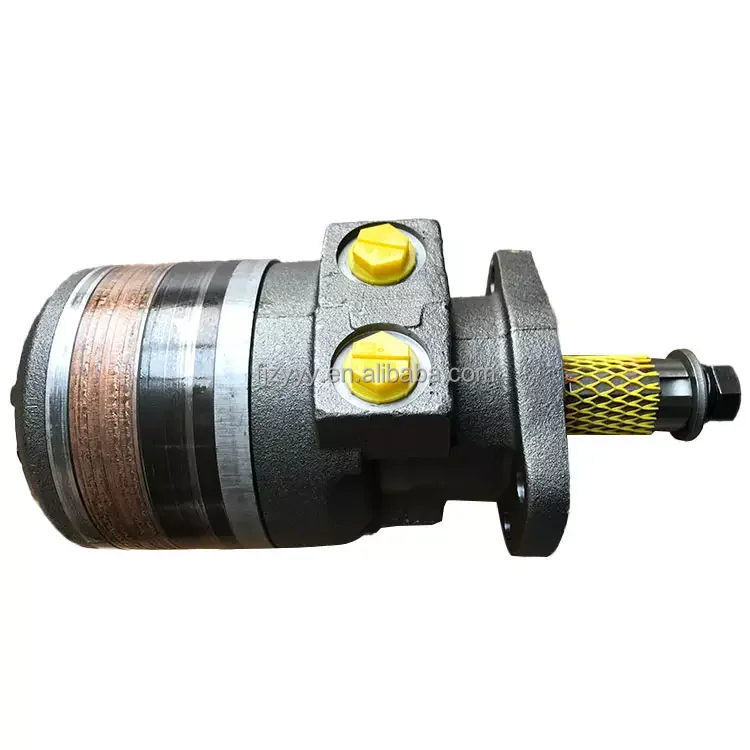

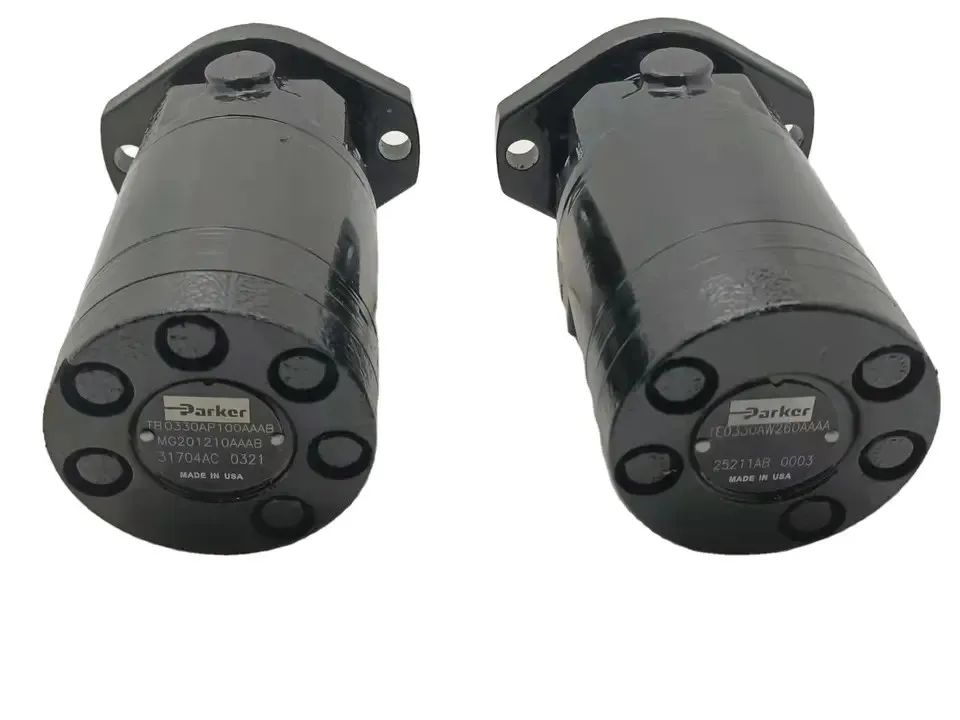

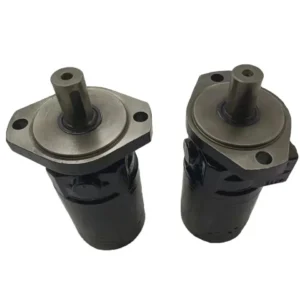

Parker Torqmotor™ TB Series General-Purpose Orbit Motors

Product Overview: The Parker Torqmotor™ TB Series is a globally recognized, cost-effective power solution for industrial and agricultural sectors. This category features the core industrial configurations: TB0130AS100LAAY, TB0295AS130AAAG, and TB0100AM100LAAY. As a flagship member of the Torqmotor family, the TB Series perfectly balances compact physical dimensions with superior Low Speed High Torque (LSHT) performance. Utilizing Parker’s patented High-Pressure Shaft Seal technology, these motors handle significant back-pressure without requiring a case drain, making them ideal for conveyor drives, sweeper brushes, food processing equipment, agricultural sprayers, and light-duty winches.

Key Technical Advantages:

• Patented Seal Reliability: Parker’s proprietary shaft seal allows the motor to withstand pressure spikes in both closed and open-loop circuits, reducing leak potential.

• Precision Gerotor Geometry: High-precision gear sets ensure agile response during start-stops and deliver smooth, pulse-free power across the entire RPM range.

• Maximum Power Density: Delivers robust torque output within a minimal footprint, ideal for space-constrained machinery.

• Industrial-Grade Durability: Constructed with heavy-duty cast iron and high-capacity bearings to resist vibration and environmental degradation in harsh conditions.

• Technical Decoding:

  • TB0100 / TB0130 / TB0295: Represents the displacement frame size (100cc, 130cc, and 295cc).

  • AS100 / AM100 / AS130: Denotes specific mounting flanges (e.g., SAE A) and output shaft types (e.g., Keyed or Splined).

Detailed Specifications & Parameters:

• Core Series: Parker Torqmotor™ TB Series.

• Featured Model Matrix: TB0130AS100LAAY, TB0295AS130AAAG, TB0100AM100LAAY.

• Core Performance Specs:

  • Displacement Range: 45 cc/rev to 390 cc/rev (Featured: 100-295cc).

  • Rated Pressure: Continuous up to 100-140 Bar (1450-2030 PSI); Intermittent peaks up to 175 Bar.

  • Torque Capability: Continuous torque ranging from 150 Nm up to over 450 Nm.

  • Mounting Standards: Standard 2-Bolt SAE A or 4-Bolt Square flange with Keyed or 6B/13T Splined shaft options.
