Parker TG Series Heavy-Duty Low Speed High Torque (LSHT) Orbit Motors

Product Overview: The Parker TG Series is a powerhouse of orbital drive technology, specifically engineered for the most demanding heavy-duty applications. This category highlights precision-engineered models: TG0280US081AAWB, TG0530TB190AALY, TG0405MW460AAAB, TG0335EW460AAAB, TG0405US080BBDL, and TG0530AS030AAAA. Powered by Parker’s patented Roller Stator technology, TG series motors provide pulse-free, massive torque even at ultra-low speeds. Their robust drive link and high-load bearing systems make them the premier choice for wheel drives, winches, forestry machinery, municipal service vehicles, and large agricultural equipment.

Key Technical Advantages:

• Roller Stator Technology: Incorporates precision roller contacts to minimize friction, ensuring exceptionally high mechanical efficiency at startup and pulse-free operation during Low Speed High Torque (LSHT) tasks.

• Integrated Wheel Drive Solutions: Models like the TG0405MW and TG0335EW feature wheel mount flanges that position the load over the motor’s heavy-duty bearings, allowing for direct-drive wheel integration.

• Superior Side-Load Resilience: Equipped with oversized tapered roller bearings, the motor shaft handles immense radial loads directly, eliminating the need for expensive external bearing supports.

• High-Pressure Seal Integrity: Standard high-pressure seals enhance volumetric efficiency and provide maximum reliability in harsh outdoor environments, including mud, dust, and moisture.

• Technical Spec Decoding:

  • TG0280 – TG0530: Displacement range (280cc to 530cc) covering diverse power and speed requirements.

  • US / TB / MW / EW / AS: Relates to specific flange types (SAE A/B, Wheel Mount, etc.) and shaft configurations.

Detailed Models & Specifications:

• Core Series: Parker TG Series (Torque Link Motor).

• Featured Model Matrix:

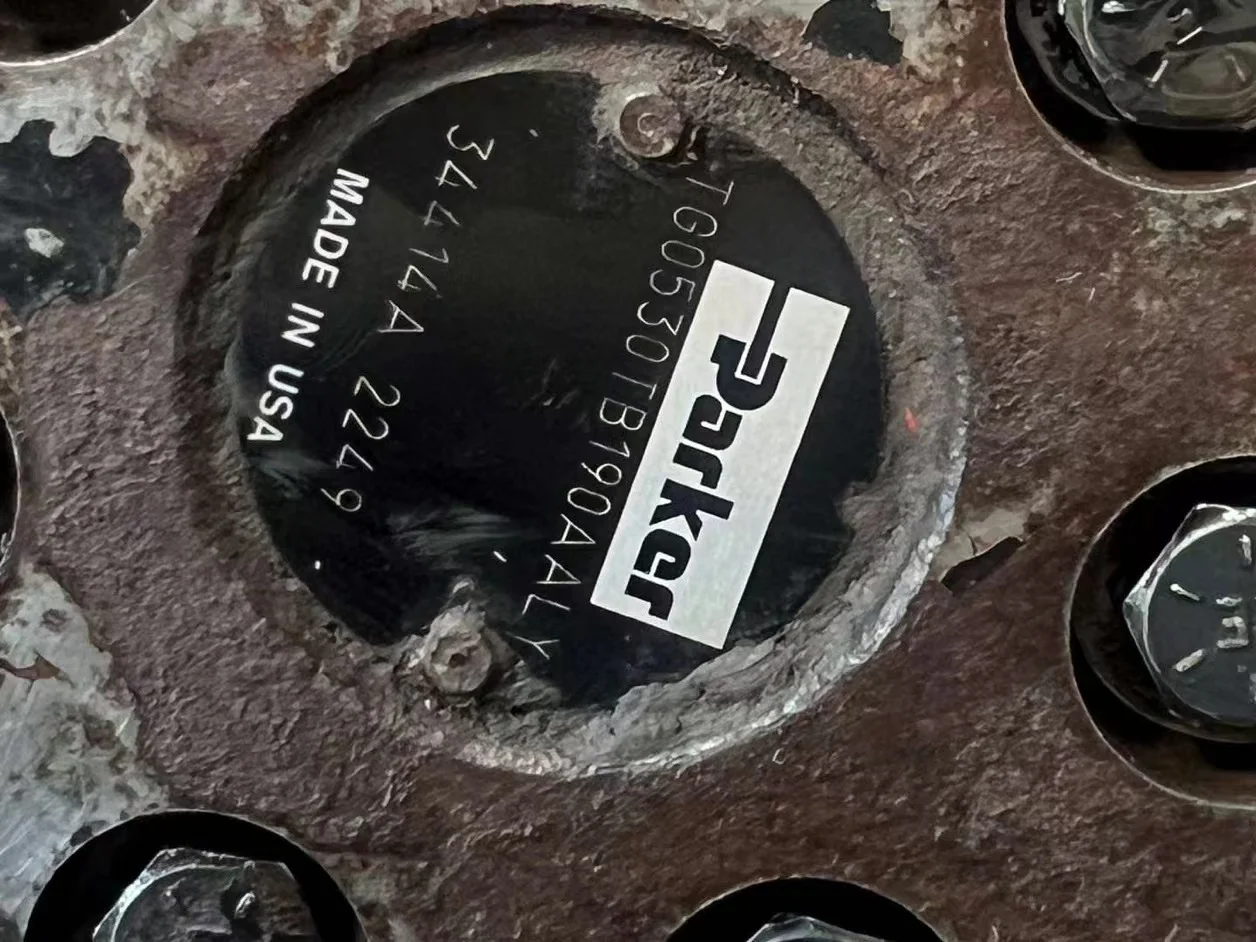

  • TG0530AS030AAAA / TG0530TB190AALY: The 530cc displacement frame for maximum torque delivery.

  • TG0405MW460AAAB / TG0405US080BBDL: The versatile 405cc frame, a favorite for wheel-based drive systems.

  • TG0280US081AAWB / TG0335EW460AAAB: High-speed, high-torque frames for rapid cycle demands.

• Core Performance Specs:

  • Continuous Pressure: Up to 200 Bar (3000 PSI).

  • Torque Capability: Continuous torque output ranging from 600 Nm to over 1200 Nm.

  • Max Flow Capacity: Supports flow rates from 75 L/min up to 115 L/min.
