Parker Torqmotor™ TG Series Heavy-Duty LSHT Hydraulic Motors

Product Overview: The Parker Torqmotor™ TG Series is the global benchmark for durability in the LSHT (Low-Speed High-Torque) drive industry. Incorporating Parker’s patented Geroler® roller stator technology, these motors are engineered for industrial and mobile machinery that demand extreme radial load capacity and high-impact torque resilience. This featured selection highlights core configurations: TG0335HW080AAAF (Standard heavy-duty porting) and TG0280HW460BBCG (Enhanced functional modules). Thanks to its high-strength bearing system, the TG series delivers massive torque while directly driving wheels or heavy sprockets without the need for auxiliary support.

Key Technical Advantages:

• Elite Geroler® Engineering: Precision rollers at the stator-rotor contact points minimize friction, enhancing mechanical efficiency and ensuring pulse-free, smooth torque delivery at start-up and ultra-low speeds.

• Exceptional Radial Load Capacity: The specialized heavy-duty bearing arrangement handles intense side loads directly, streamlining drive designs for agricultural and construction equipment.

• High-Efficiency Distribution: Optimized valve plate design ensures minimal internal leakage, maintaining stable power delivery even under continuous 200 Bar high-pressure conditions.

• High-Pressure Shaft Seals: Standard high-performance seals handle significant back pressures, extending seal life in demanding bidirectional and high-cycle applications.

• Target Applications: Combine harvester propulsion, skid steer loaders, port winches, forestry harvesting heads, and industrial shredders.

Detailed Models & Parameters:

• Core Series: Parker Torqmotor™ TG Series (Large Frame LSHT).

• Model Keywords: TG0335, TG0280, TG0335HW080AAAF, TG0280HW460BBCG.

• Technical Specs Decoding:

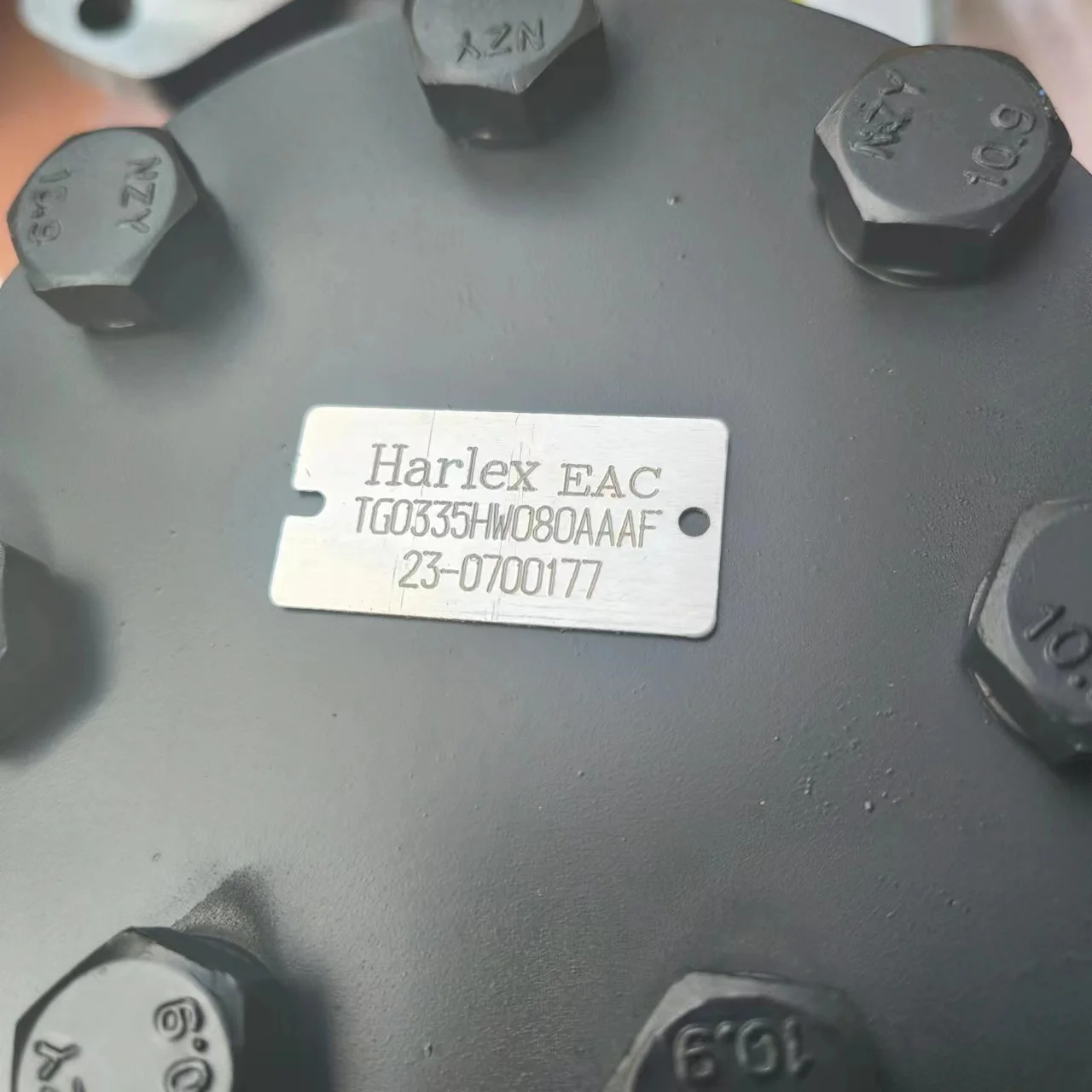

  • TG0335HW080AAAF: 335cc displacement spec, featuring HW080 standard interface and specific AAAF functional configuration.

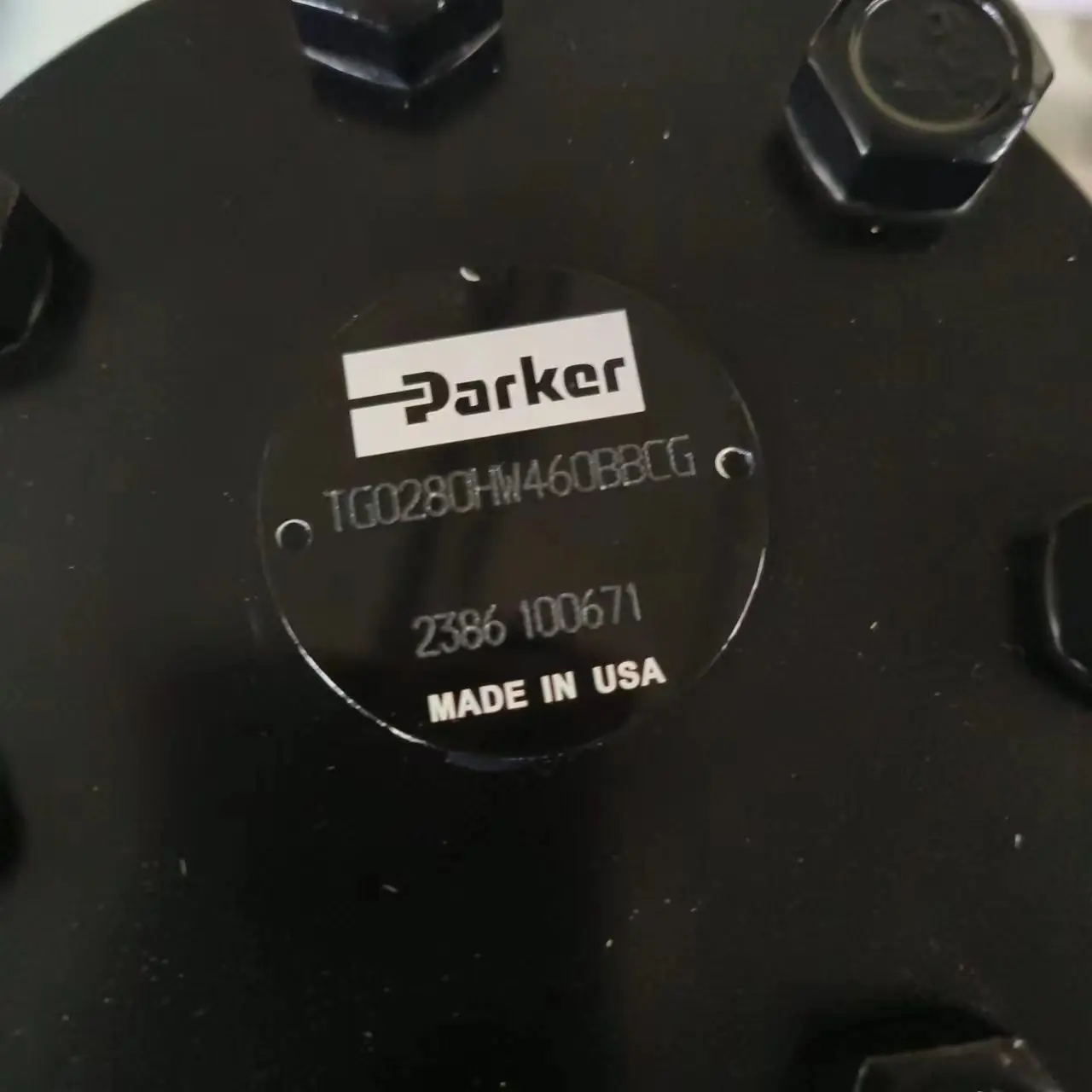

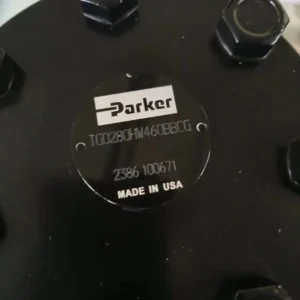

  • TG0280HW460BBCG: 280cc displacement spec, equipped with HW460 reinforced interface and BBCG automatic compensation components.

• Pressure Specs: Continuous pressure up to 200 Bar (3000 PSI), with peak pressures reaching 280 Bar (4000 PSI).

• Displacement Scope: Covering a precise power spectrum from 280 cm³/rev to 335 cm³/rev.
