Parker TF0195 Motor | TF0195HW410BBBN | TF0195US080AAA | LSHT Hydraulic Motor
| Model Number | TF0195 |
|---|
Product Description
Parker TF0195 Series Heavy-Duty LSHT Hydraulic Motors

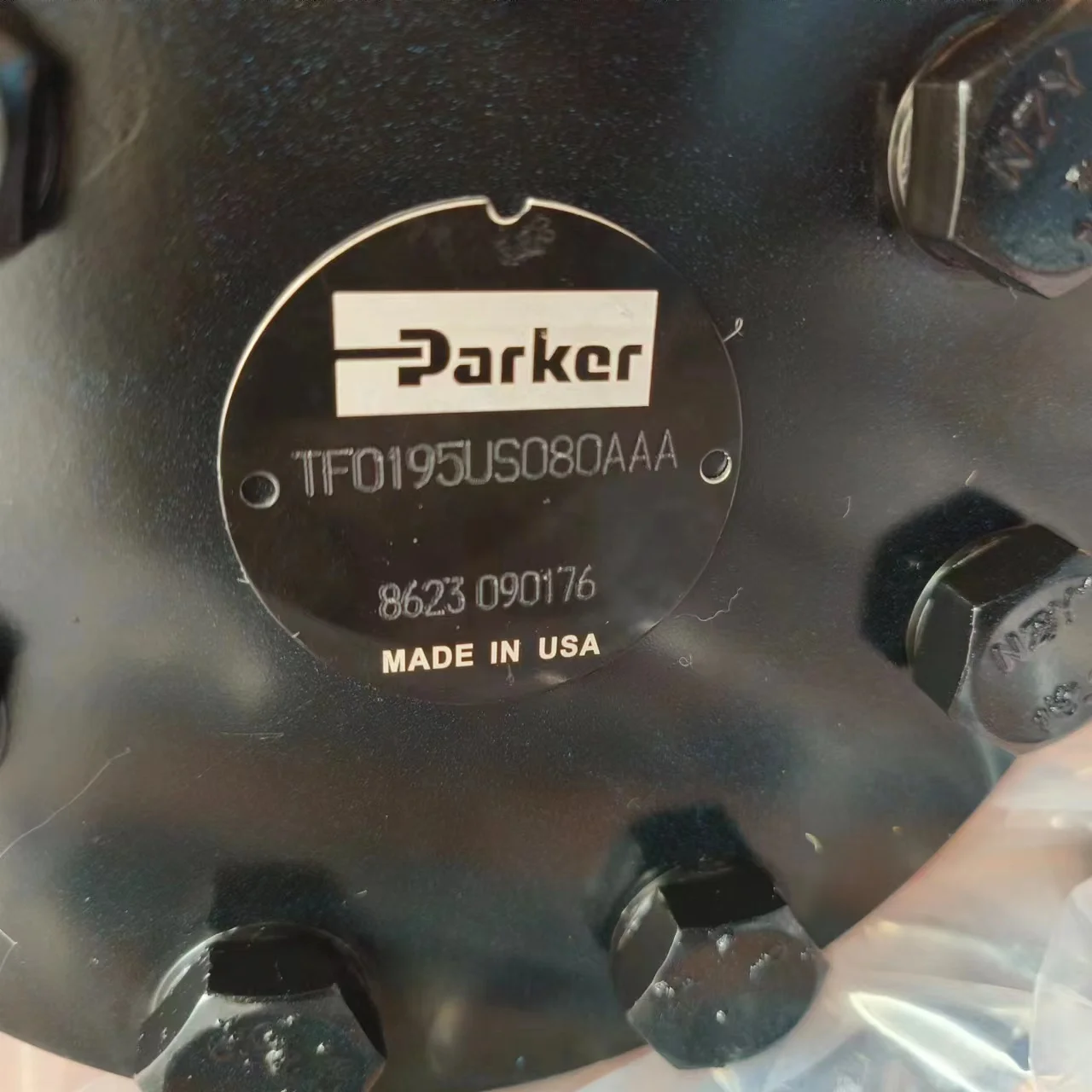

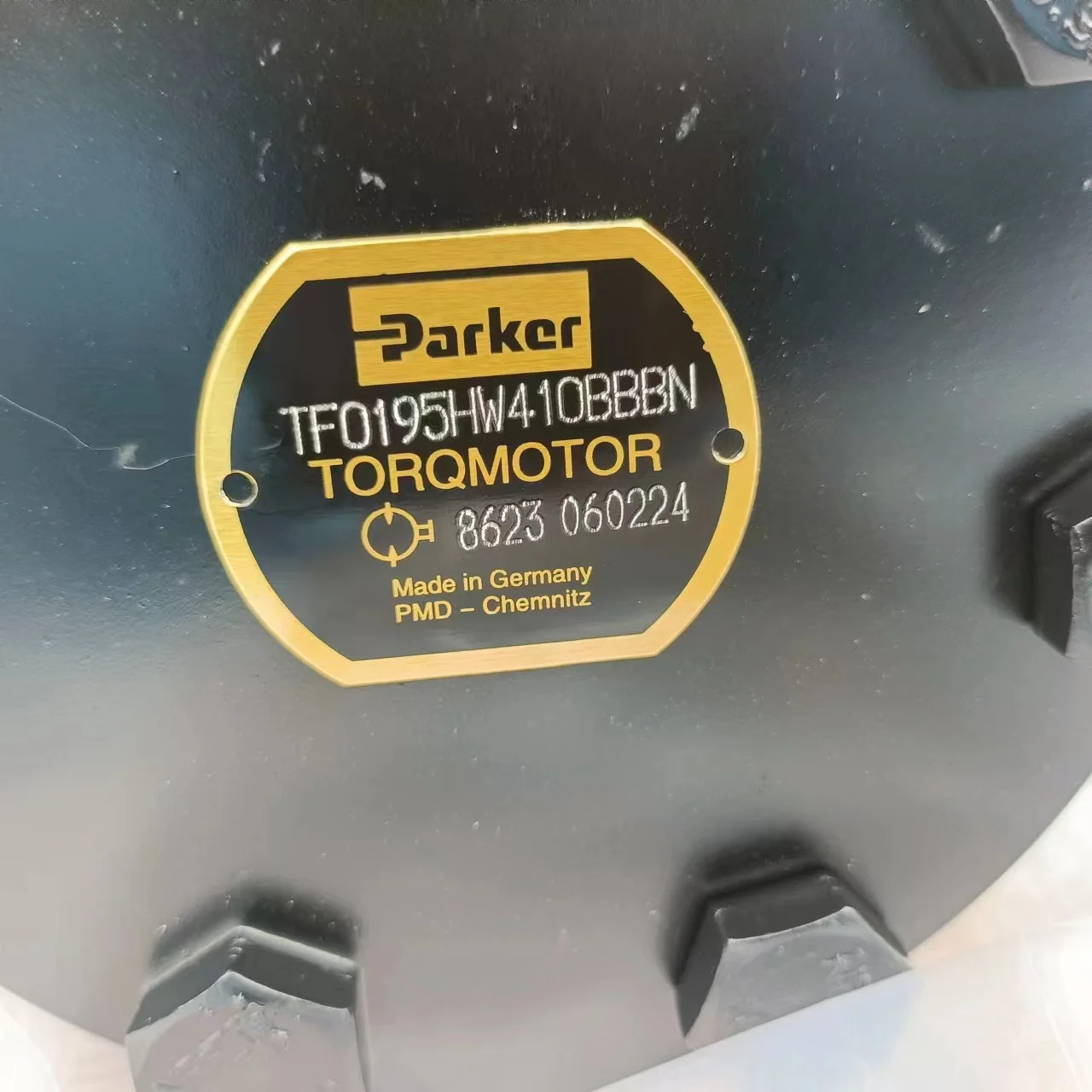

Product Overview: The Parker TF Series Torqmotor™ combines durability, versatility, and high efficiency, making it the premier power unit for medium-to-heavy-duty applications. Utilizing advanced Geroler technology, the TF0195 provides exceptional starting torque and superior side-load capacity. This page features precision configurations: the performance-coated TF0195HW410BBBN and the industry-standard TF0195US080AAA. These motors are ideally suited for conveyor drives, augers, industrial sweepers, and agricultural propulsion systems.
Key Technical Advantages:
Geroler Technology: The roller-vane rotor design minimizes internal friction, ensuring smooth operation at ultra-low speeds and delivering up to 95% mechanical efficiency.
Heavy-Duty Bearing System: Oversized tapered roller bearings handle significant radial loads directly, making them perfect for belt or chain-driven applications.
High-Pressure Shaft Seal: Equipped with high-capacity seals that withstand back pressures up to 200 Bar (3000 PSI), simplifying hydraulic plumbing by eliminating the need for a case drain.
Robust Construction: High-strength cast iron housings are engineered to endure frequent shock loads and extreme operating environments.
Target Applications: Sweeper brush rotation, compact winches, forestry equipment, paving machinery, and industrial lifts.
Detailed Models & Parameters:
Core Series: Parker Hannifin Torqmotor™ TF Series.
Model Keywords: TF0195, TF0195HW410, TF0195US080.
Technical Specs Decoding:
TF0195: 195cc/rev (11.9 in³/rev) displacement, offering a perfect balance between output torque and velocity.
HW410 / US080: Denotes specific shaft configurations (e.g., 1-1/4″ Keyed or 6B Spline) and mounting flange standards (e.g., 2-Bolt SAE A or 4-Bolt Flange).
Pressure Specs: Continuous operating pressure up to 140 Bar (2000 PSI), with peak capabilities reaching 200 Bar (3000 PSI).
