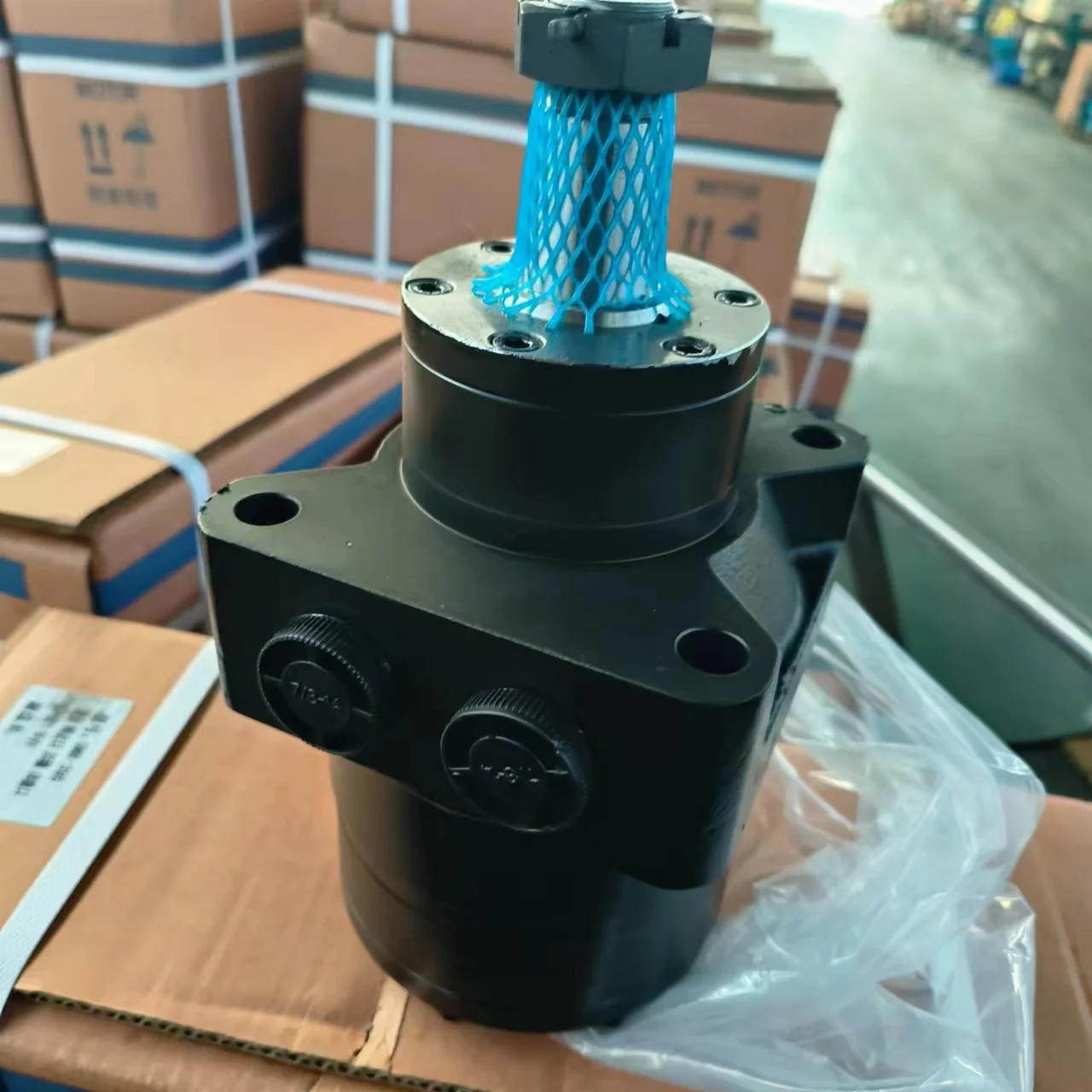

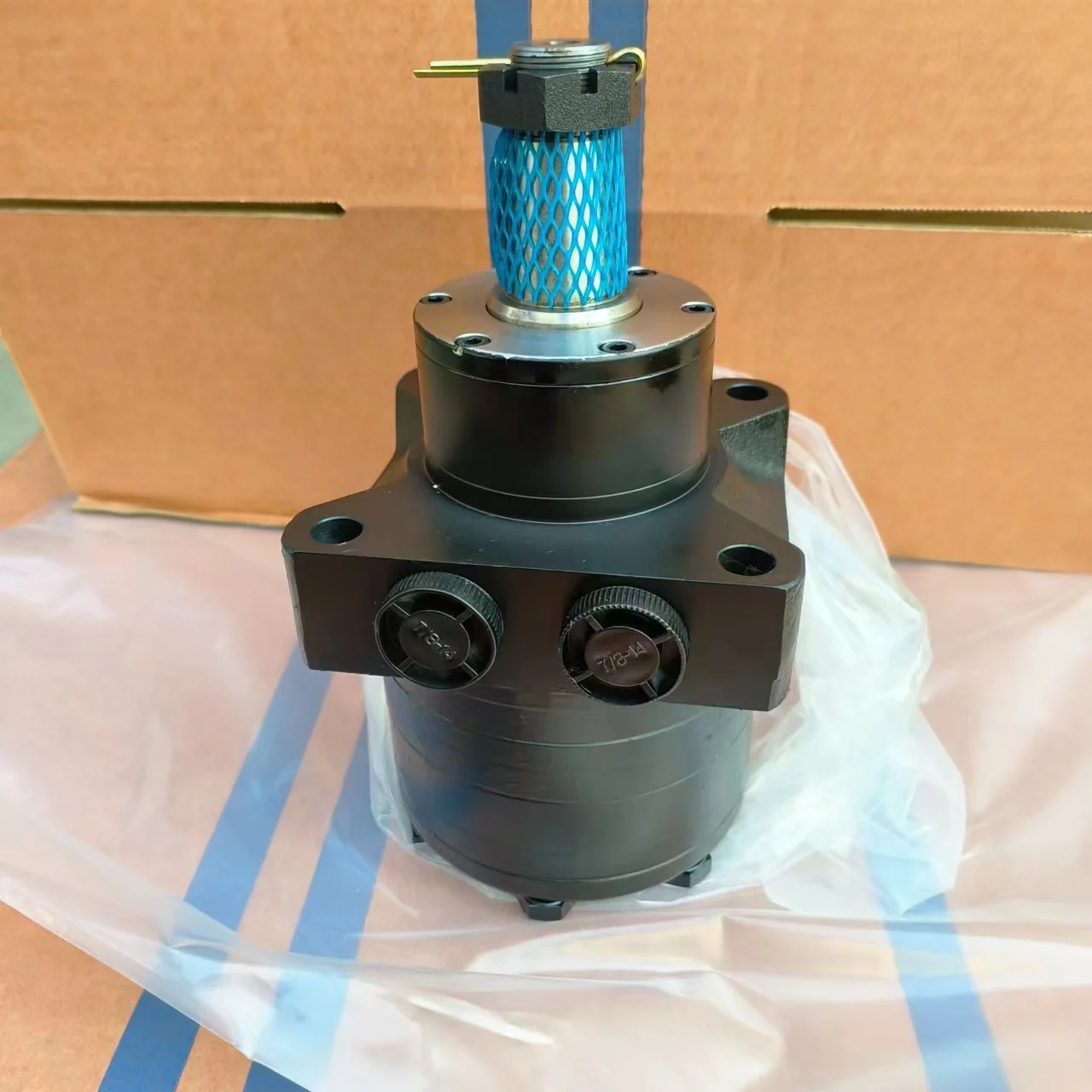

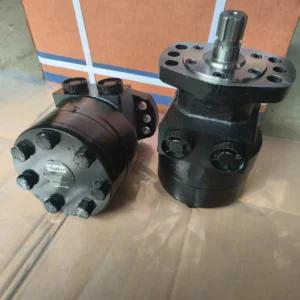

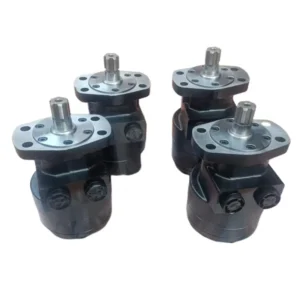

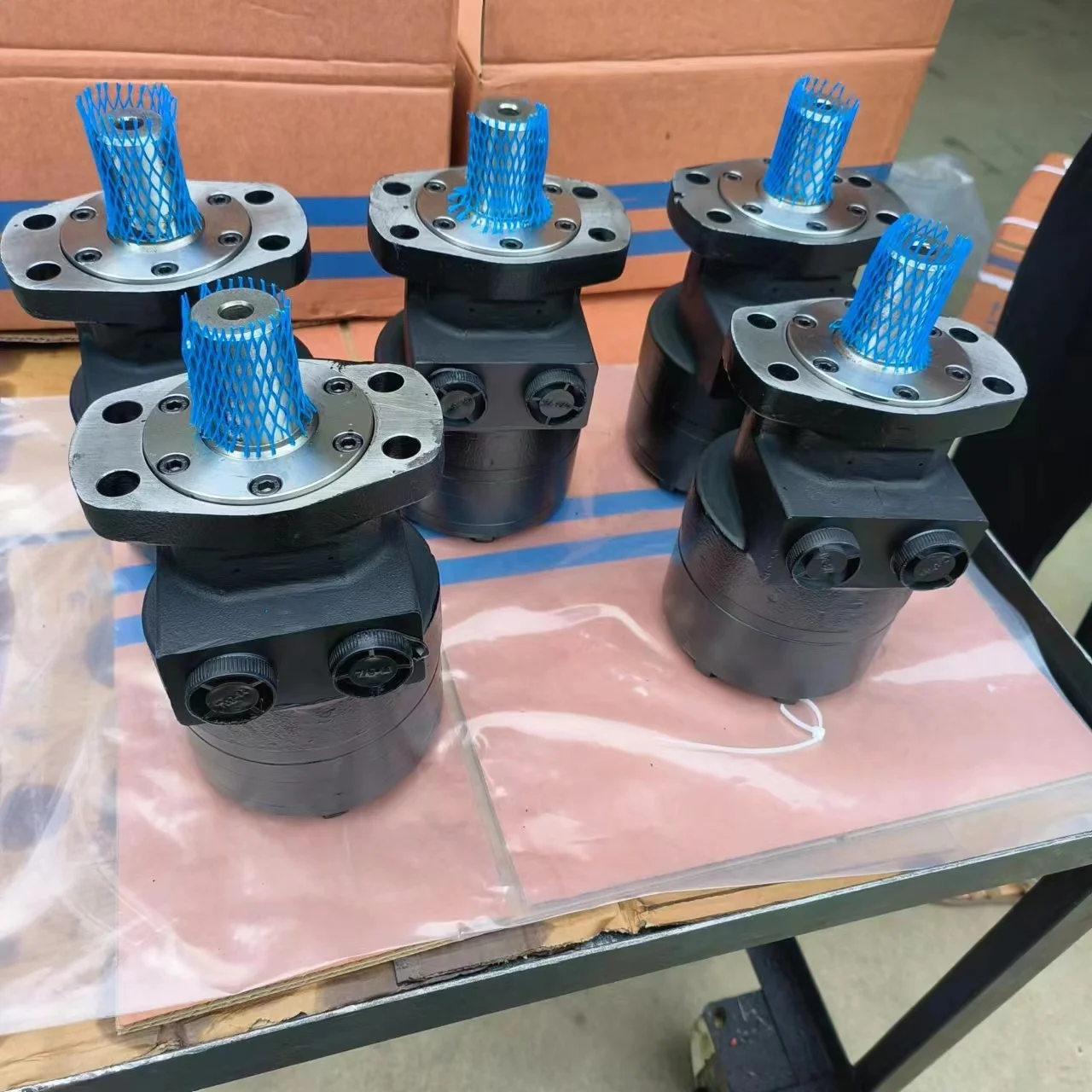

Parker TF0195 Heavy-Duty LSHT Hydraulic Orbit Motors

Product Overview: The Parker TF0195 Series (formerly Torqmotor™) is the performance benchmark for medium-to-heavy-duty hydraulic drives. Engineered with advanced Geroler technology, the TF0195 is designed to deliver consistent, smooth, and massive torque in the most demanding environments. This page highlights two precision-configured models: the specialized TF0195US081AAHM and the standard industrial TF0195US080AAA. Renowned for their high-strength cast iron housings and heavy-duty tapered roller bearings, these motors are the premier choice for conveyor drives, augers, sweepers, winches, and agricultural/construction machinery.

Key Technical Advantages:

• Elite Side-Load Capacity: The TF0195 features oversized heavy-duty bearings designed to handle significant radial loads (side loads) directly, making it ideal for belt or chain-driven applications without external supports.

• Advanced Geroler Technology: The roller-vane rotor design minimizes internal friction, ensuring exceptionally smooth operation at ultra-low speeds and maintaining maximum mechanical efficiency.

• High-Pressure Shaft Seal: Equipped with high-capacity seals that withstand substantial back pressure, simplifying hydraulic plumbing by eliminating the need for a case drain in most systems.

• US080 vs. US081 Configuration: The US080 denotes the standard 1-1/4″ Keyed shaft, while the US081 (e.g., AAHM) includes optimizations for specific shaft details, sealing materials, or specialized finishes.

• Target Applications: Industrial augers, paver attachments, forestry heads, winch systems, and municipal sweeping equipment drives.

Detailed Models & Parameters:

• Core Series: Parker Hannifin Torqmotor™ TF Series.

• Model Keywords: TF0195, TF0195US080, TF0195US081, TF0195AAHM.

• Technical Specs Decoding:

  • Displacement: Approx. 195cc/rev (11.9 in³/rev), offering an optimal balance between speed and torque.

  • Shaft Options: 1-1/4″ Straight Keyed or specific Splined shaft configurations (depending on US080/US081 suffixes).

  • Mounting: Standard 2-Bolt SAE A Flange.

• Pressure Specs: Continuous operating pressure up to 140 Bar (2000 PSI), with peak capabilities reaching 200 Bar (3000 PSI).
