Parker TF Series Torqmotor™ Heavy-Duty Hydraulic Orbit Motors

Product Overview: The Parker TF Series represents the pinnacle of industrial-grade Low Speed High Torque (LSHT) orbital drive technology. This featured lineup includes core models: TF0360MS030AAA, TF0280MS1V0AAAB, TF0280EW450AAAB, TF0240MW410AAAB, TF0240EW410AAAB, and TF0195MM260AAAB. Engineered with a reinforced drive link, the TF Series is specifically designed to withstand frequent reversals and extreme side loads. Its high-efficiency gerotor set ensures smooth, reliable power delivery across the entire pressure range. These motors are the premier choice for municipal vocational trucks, agricultural sprayers, material handling equipment, forestry machinery, and heavy-duty industrial conveyors.

Key Technical Advantages:

• Reinforced Drive Link: The internal drive link is heat-treated for superior fatigue resistance, allowing the motor to handle massive instantaneous torque shocks.

• Superior Side Load Resilience: Equipped with a robust bearing system, the output shaft can handle significant radial loads—ideal for direct-drive wheel or heavy chain-driven applications.

• High Volumetric Efficiency: Precision-matched gerotor geometry ensures peak performance even at ultra-low speeds, reducing total system heat generation.

• Technical Decoding:

  • TF0360 / TF0280 / TF0240: Represents various displacement frames to suit everything from heavy traction to mid-range drive requirements.

  • MW / EW / MS Suffixes: Denotes specific mounting flanges (e.g., 4-Bolt or 2-Bolt), seal kits, and shaft configurations.

Detailed Specifications & Parameters:

• Core Series: Parker Torqmotor™ TF Series.

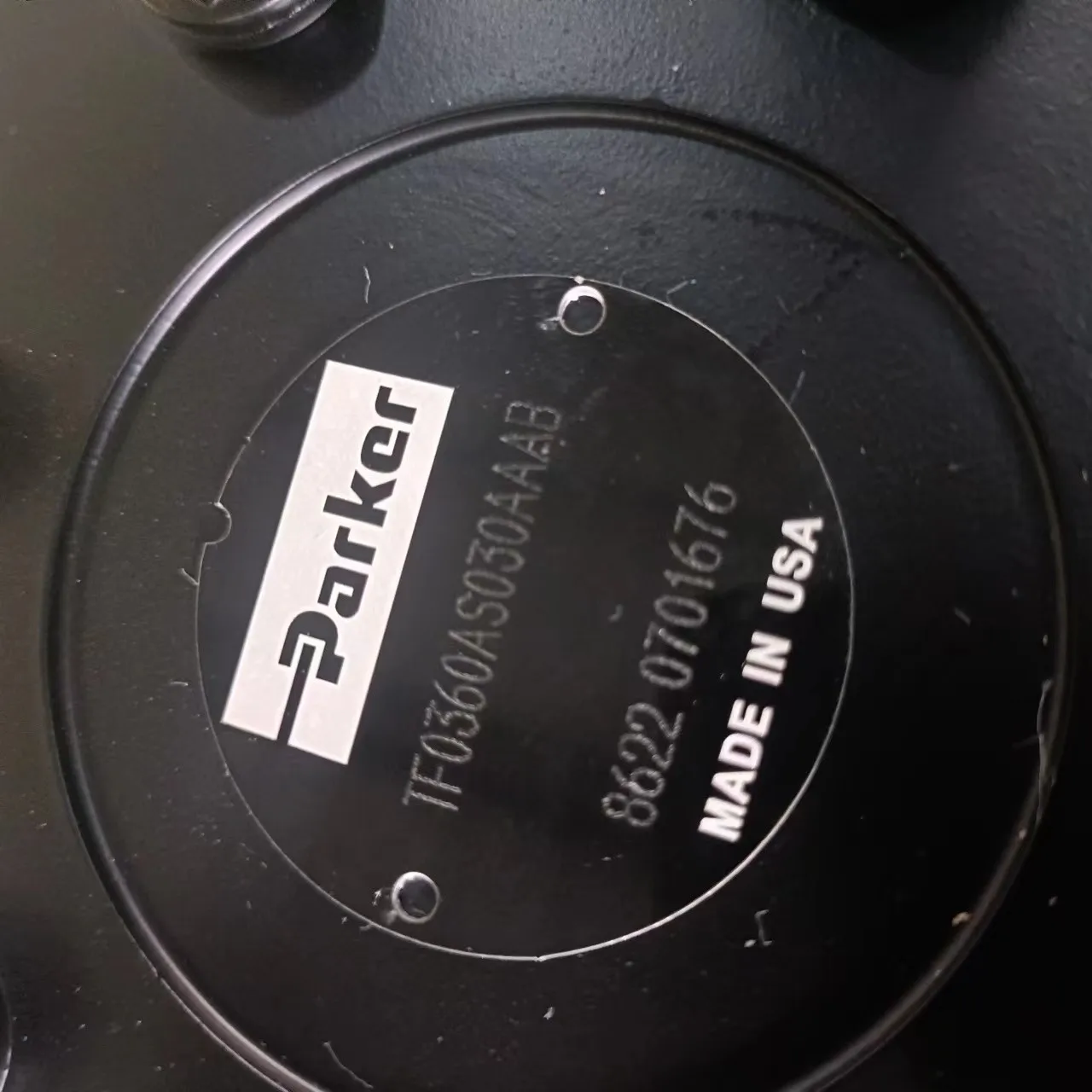

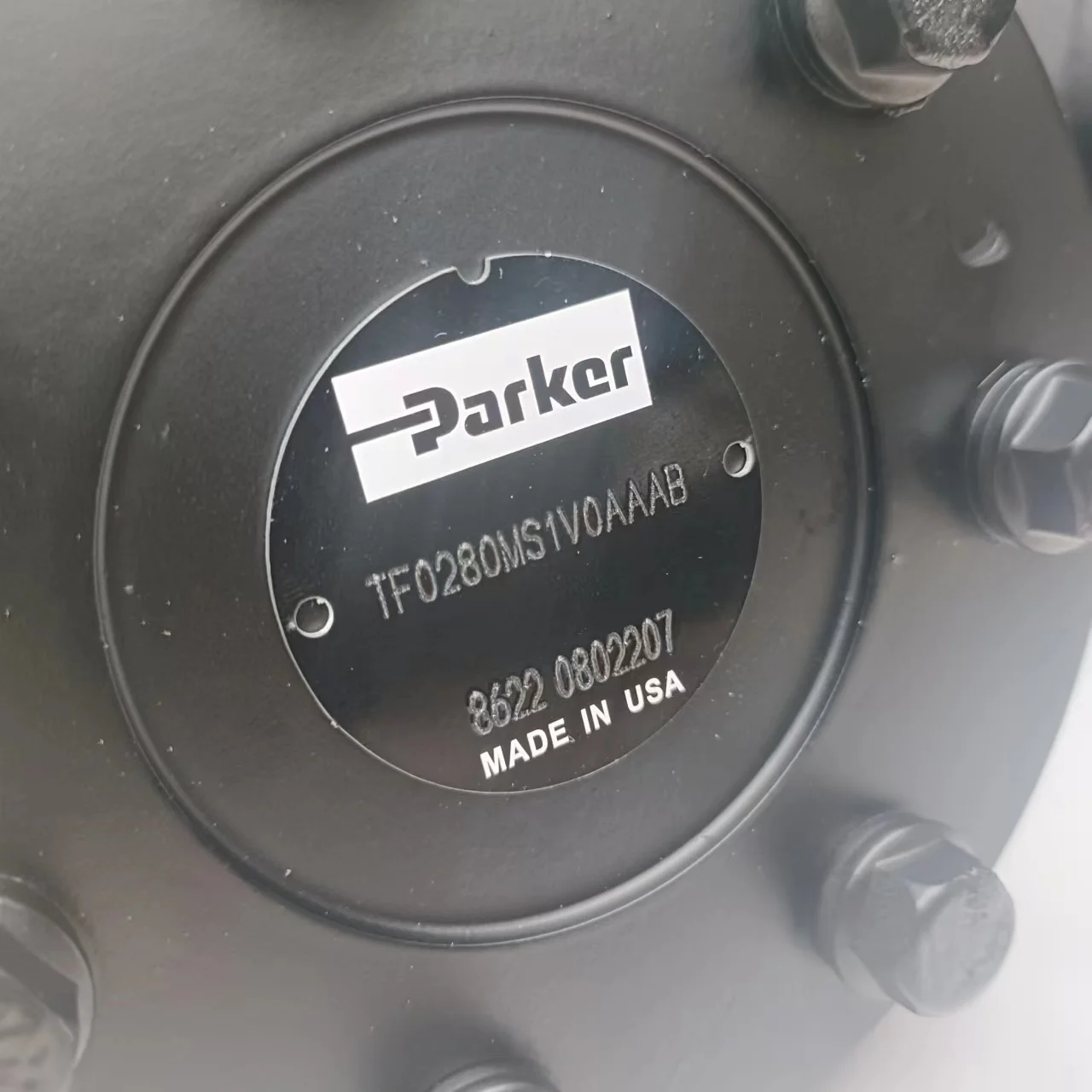

• Featured Model Matrix: TF0360MS030AAA, TF0280MS1V0AAAB, TF0280EW450AAAB, TF0240MW410AAAB, TF0240EW410AAAB, TF0195MM260AAAB.

• Core Performance Specs:

  • Displacement Range: 195 cc/rev (11.9 cu in) to 360 cc/rev (22.2 cu in).

  • Rated Pressure: Continuous up to 200 Bar (2900 PSI); Intermittent peaks up to 280 Bar (4000 PSI).

  • Torque Capability: Continuous torque ranging from 450 Nm to 750 Nm, with peaks exceeding 900 Nm.

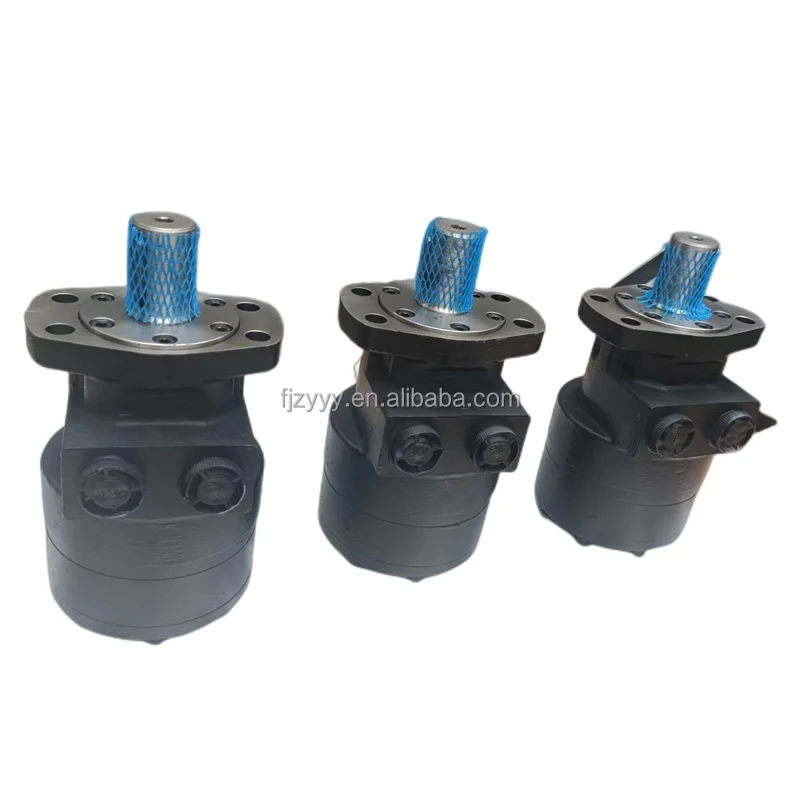

  • Mounting Standards: Options include SAE A 2-Bolt, Magneto, or 4-Bolt Square flanges.

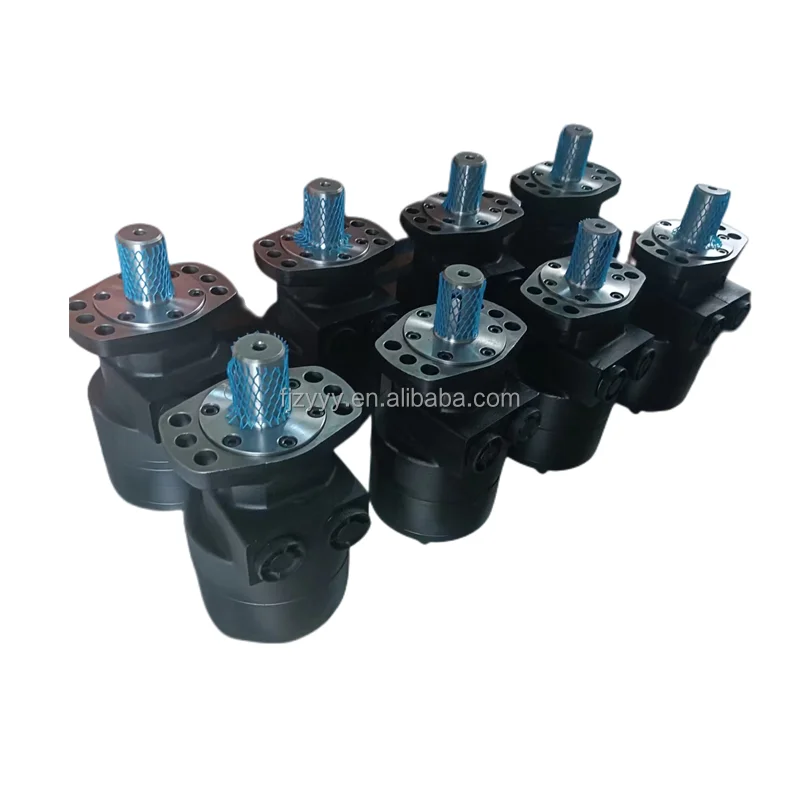

  • Shaft Options: 1-1/4″ Keyed, Splined, or 1-1/4″ Tapered shafts.
