Parker TF Series Motor | TF0280 TF0195 TF0240 TF0475 | Heavy Duty LSHT Motor

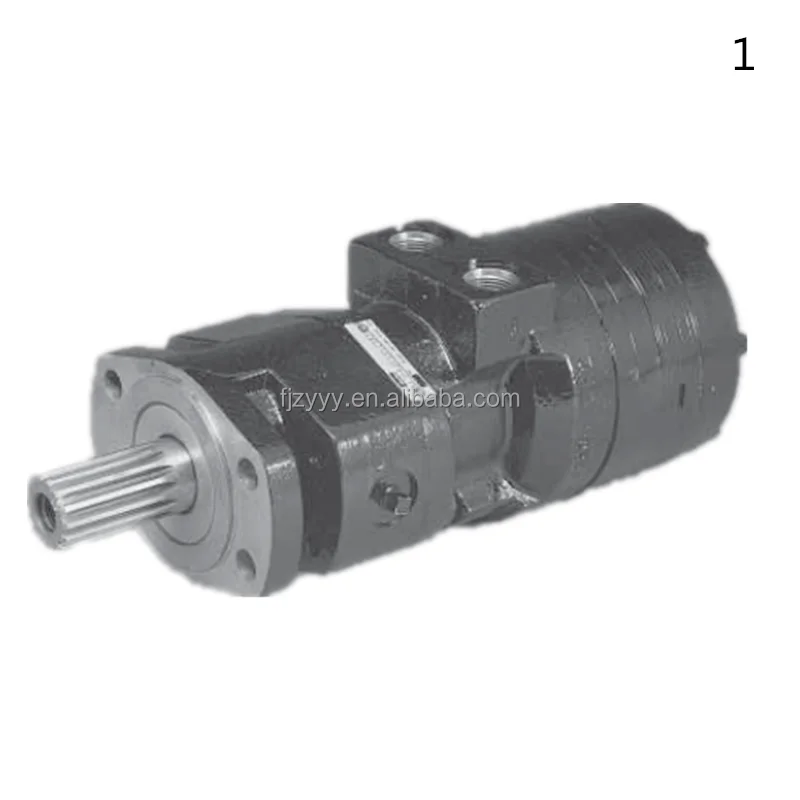

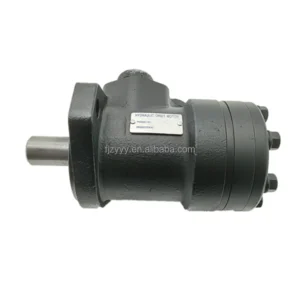

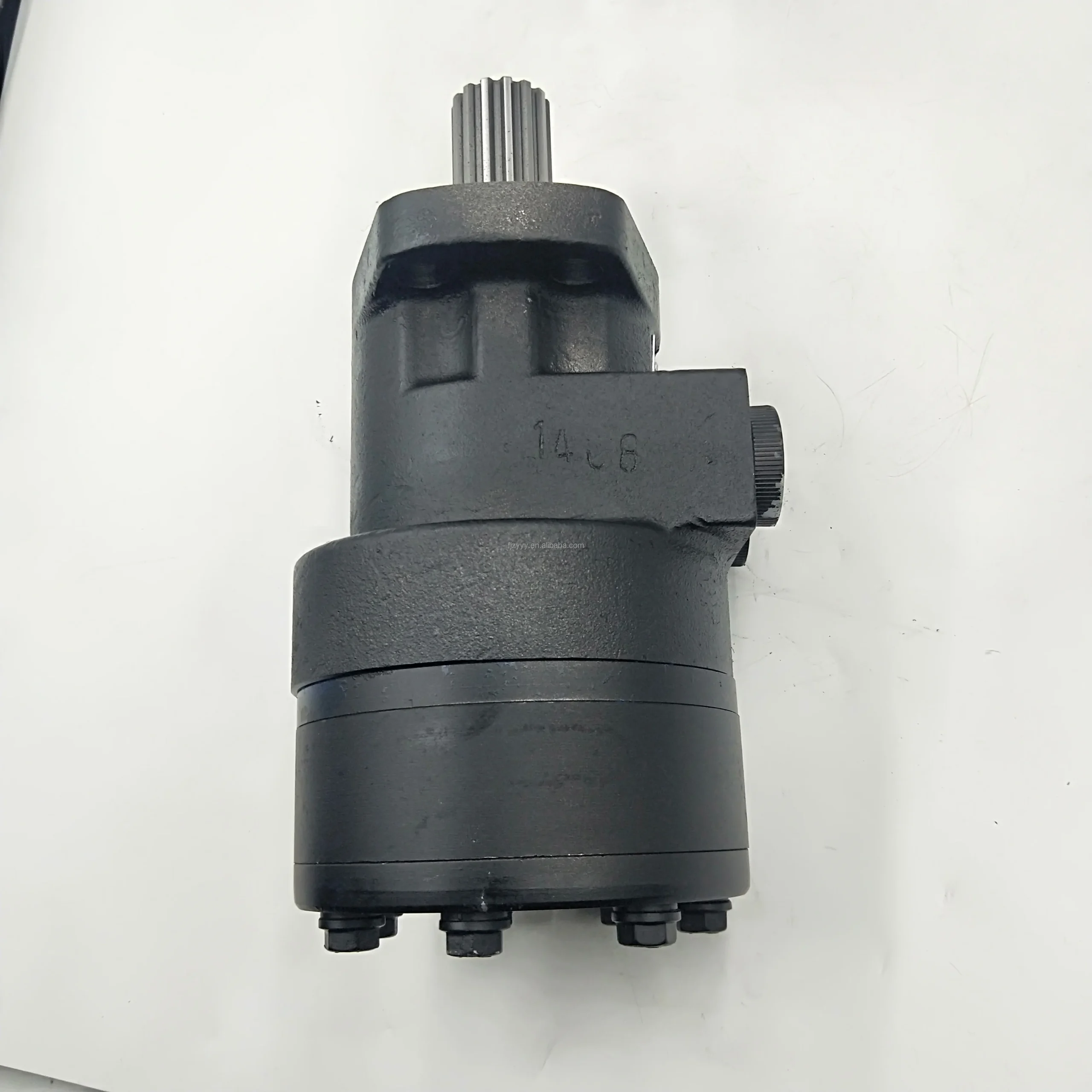

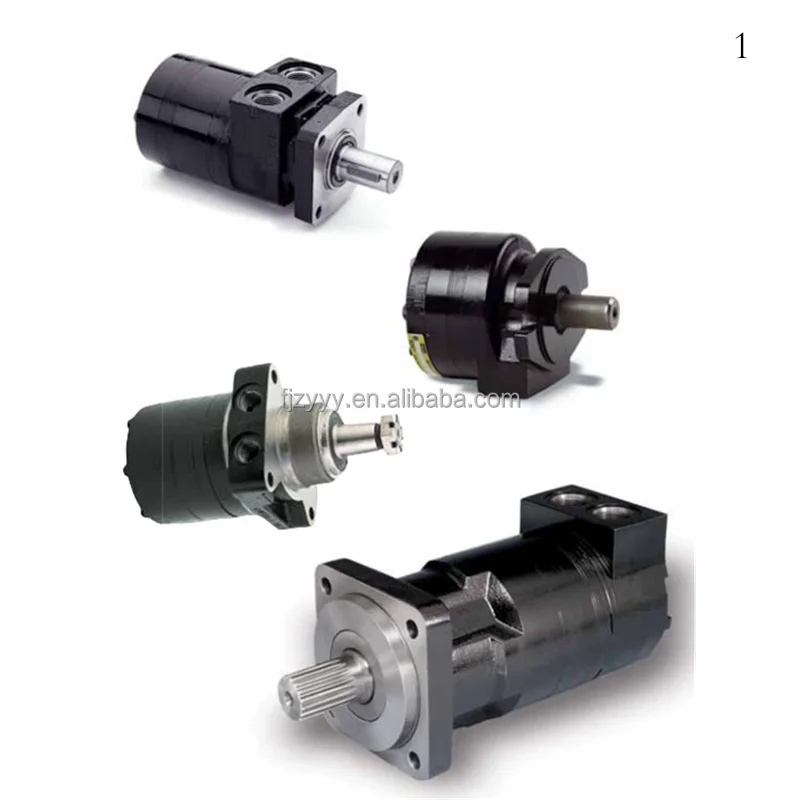

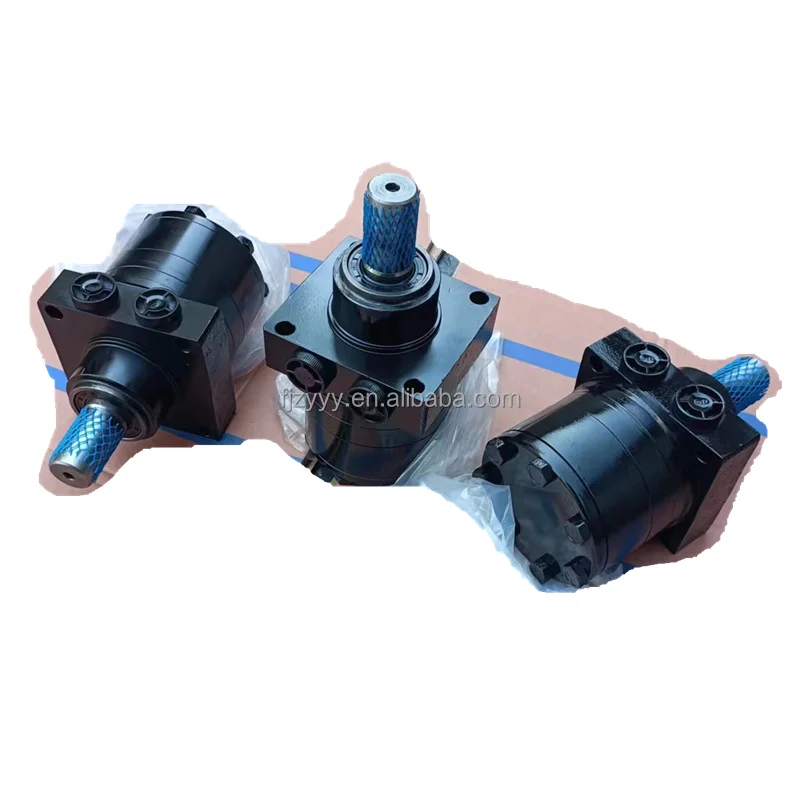

Parker TF Series Heavy-Duty Low Speed High Torque (LSHT) Orbit Motors

Product Overview: The Parker TF Series represents the gold standard for heavy-duty hydraulic drives, specifically engineered to manage extreme radial loads and high-pressure duty cycles. This category highlights essential models: TF0280US080AABP, TF0195HW410BBBN (Wheel Mount), TF0240US080AAG, TF0475AS030AAAP, TF0195MS030AAAB, and TF0280BS590AAAB. Utilizing Parker’s signature Roller Stator technology, these motors deliver smooth, consistent torque even at ultra-low RPMs. They are the premier choice for combine harvesters, large winches, municipal brushes, heavy conveyors, and versatile propel systems.

Key Technical Advantages:

• Wheel Mount Optimization: Models like the TF0195HW feature a hub-oriented flange design, positioning the load directly over the heavy-duty bearings to maximize radial load capacity for vehicle wheels.

• Roller Stator Technology: Incorporates roller contacts to minimize friction, enhancing mechanical efficiency at startup and ensuring pulse-free operation in Low Speed High Torque (LSHT) tasks.

• Superior Side-Load Resilience: Equipped with oversized tapered roller bearings, the shaft handles immense radial forces directly—allowing for direct mounting of sprockets or wheels without external bearing supports.

• High-Pressure Shaft Seals: Advanced seal technology manages high back-pressures, reducing the risk of leakage and simplifying overall hydraulic system plumbing.

• Technical Spec Decoding:

  • TF0195 – TF0475: Displacement codes (195cc to 475cc) covering a wide range of power requirements.

  • US / HW / MS / BS / AS: Relates to specific flange types (SAE A/B or Wheel), shaft configurations (Keyed or Splined), and porting details.

Detailed Models & Specifications:

• Core Series: Parker TF Series (High Torque Orbit Motor).

• Featured Model Matrix:

  • TF0280US080AABP / TF0280BS590AAAB: 280cc displacement, the versatile standard for mid-to-heavy duty.

  • TF0195HW410BBBN / TF0195MS030AAAB: 195cc displacement in both Wheel and Standard mounts.

  • TF0240US080AAG: 240cc frame for consistent, high-efficiency performance.

  • TF0475AS030AAAP: 475cc large-displacement frame for maximum torque delivery.

• Core Performance Specs:

  • Rated Pressure: Continuous operating pressure up to 200 Bar (3000 PSI).

  • Torque Capability: Peak torque outputs ranging from 400 Nm to over 1000 Nm.

  • Mounting Standards: Compliant with SAE 2-Bolt / 4-Bolt and specialized Wheel Mount interfaces.
