Parker TF Series Motor | TF0100EW460AAAB TF0240MB050AAA TF0170HW410BBBN | LSHT Orbit Motor

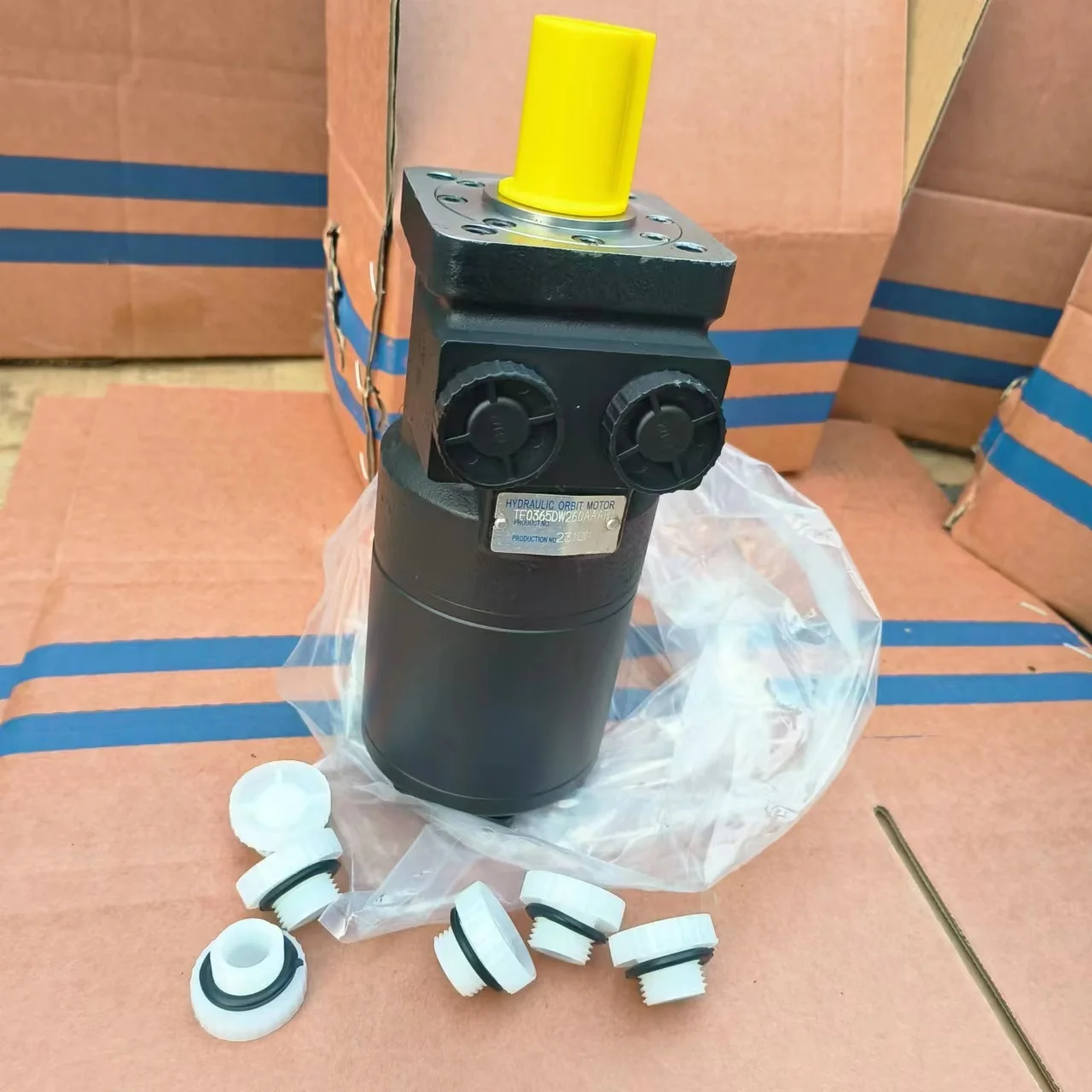

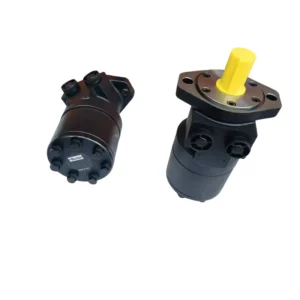

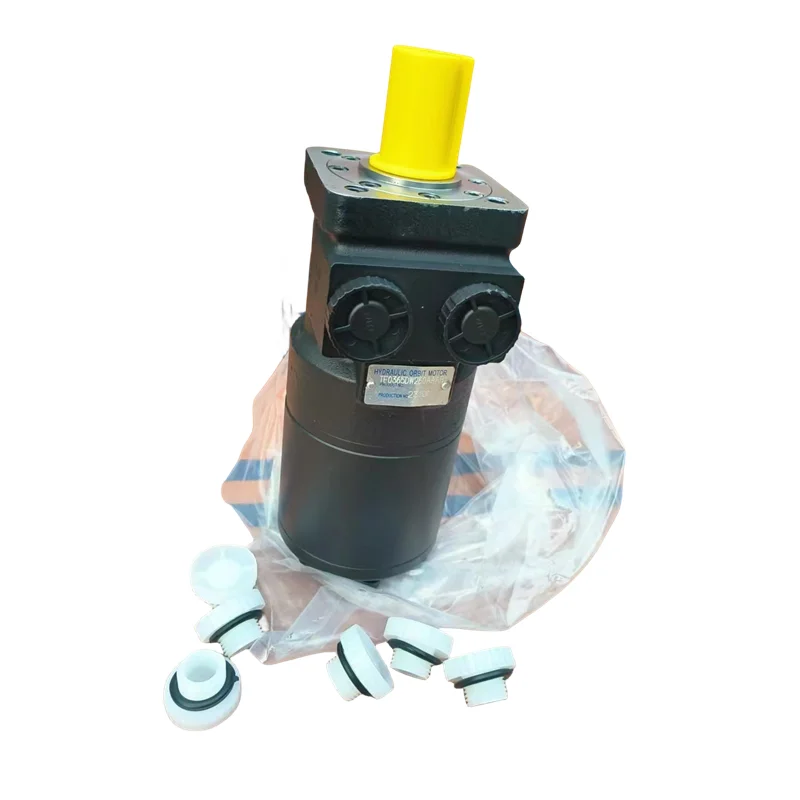

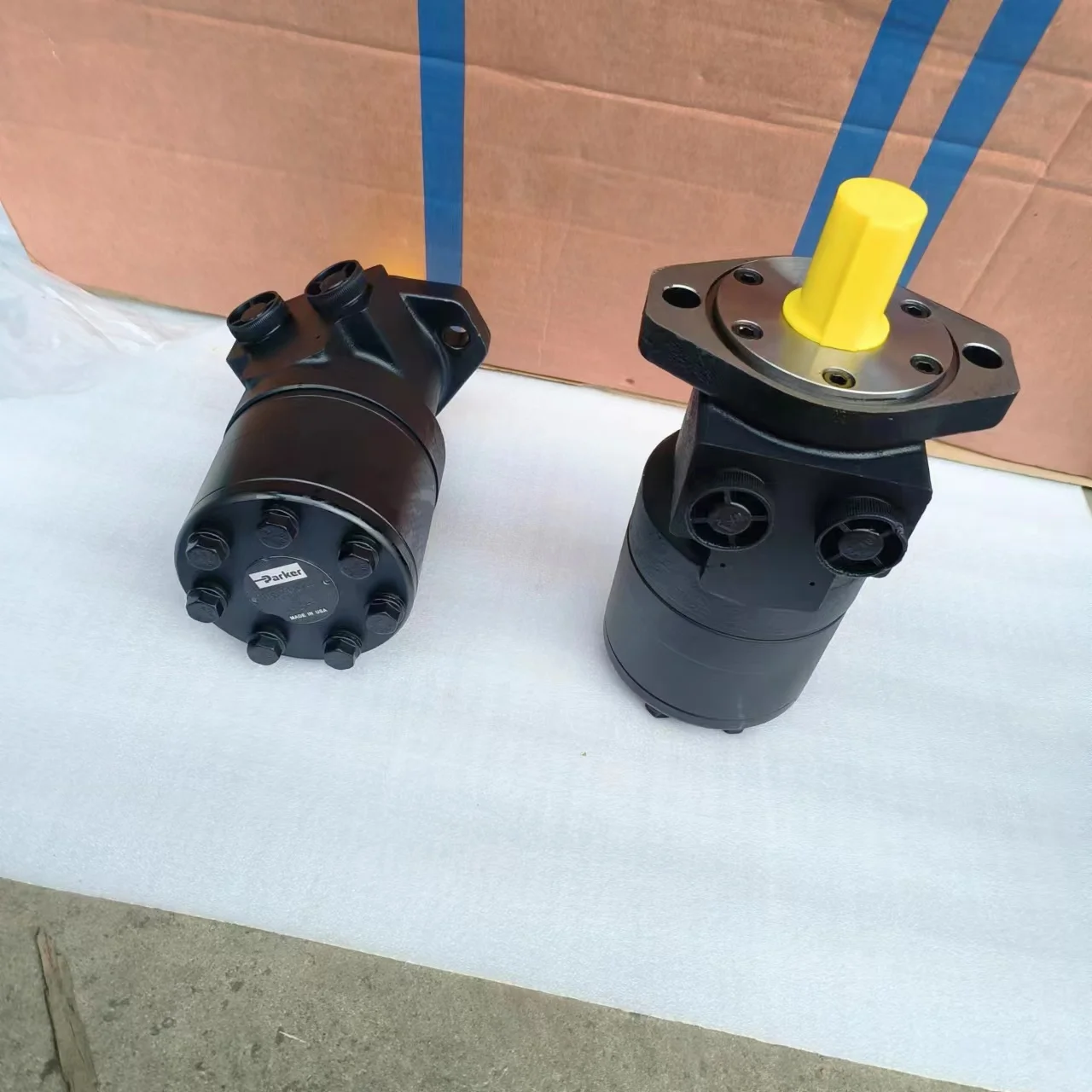

Parker Torqmotor™ TF Series Heavy-Duty LSHT Hydraulic Motors

Product Overview: The Parker TF Series is a high-performance benchmark in the field of heavy-duty industrial drives. This page showcases the series’ core models: TF0100EW460AAAB, TF0240MB050AAA, TF0170HW410BBBN, and TF0195HW410BBBN. TF Series motors feature a reinforced drive link and oversized roller bearings, allowing them to handle immense side loads directly without the need for external bearing supports. Their exceptional volumetric efficiency and starting torque make them the preferred power source for agricultural wheel drives, industrial winches, forestry shredders, municipal road equipment, and heavy-duty conveyors.

Key Technical Advantages:

• Heavy-Duty Bearing System: Equipped with oversized roller bearings specifically designed to withstand high radial loads, ensuring extended service life when driving sprockets or wheels directly.

• High-Pressure Shaft Seal: Parker’s patented sealing system enables the motor to handle significant back-pressure, reducing the need for external case drain lines and simplifying hydraulic circuit design.

• High-Density Gerotors: Precision-machined gerotor geometry ensures smooth power delivery even at ultra-low speeds, eliminating “crawling” or pulse sensations.

• Extreme Durability: A rugged cast-iron housing and reinforced internal drive components allow the motor to withstand frequent start/stops, reversals, and pressure spikes with ease.

• Technical Decoding:

  • TF0100 / TF0170 / TF0195 / TF0240: Represents displacement specs (ranging from 100cc to 240cc).

  • EW / MB / HW: Denotes specific mounting flanges and shaft configurations (e.g., Wheel Mount or Magneto interfaces).

Detailed Specifications & Parameters:

• Core Series: Parker Torqmotor™ TF Series.

• Featured Model Matrix: TF0100EW460AAAB, TF0240MB050AAA, TF0170HW410BBBN, TF0195HW410BBBN.

• Core Performance Specs:

  • Displacement Range: 81cc to 477cc (TF Series span); Featured: 100cc – 240cc.

  • Max Operating Pressure: Continuous up to 200 Bar (3000 PSI); Intermittent peaks up to 280 Bar (4000 PSI).

  • Torque Capability: Continuous torque up to 800 Nm, with peak torque exceeding 1000 Nm.

  • Mounting Standards: Compatible with SAE A 2-Bolt, 4-Bolt, and specialized Wheel Mount options.
