Parker TF0080 TF0130 Motor | TF0080AS020AAAA | TF0130LS030AAAA | LSHT Interchange Motor

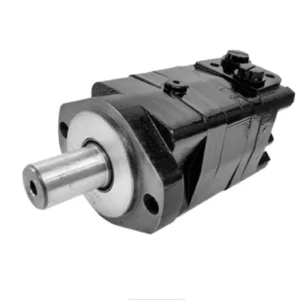

Parker TF Series Heavy-Duty LSHT Hydraulic Interchange Motors

Product Overview: The Parker TF Series (formerly Torqmotor™) is a globally recognized standard for efficient and robust orbital hydraulic motors. Engineered with advanced Geroler technology, the TF series delivers smooth, massive torque at low speeds. This page highlights precision-configured models: TF0080AS020AAAA and the long-life TF0130LS030AAAA. As a high-performance Interchange solution, these motors are designed for direct replacement in conveyor drives, augers, heavy-duty sweepers, winches, and agricultural machinery.

Key Technical Advantages:

• Elite Side-Load Capacity: Features oversized, heavy-duty bearings designed to handle significant radial loads (side loads) directly, eliminating the need for external supports in belt or chain-driven applications.

• Advanced Geroler Technology: The roller-vane rotor design minimizes internal friction, ensuring maximum torque at startup and exceptionally smooth operation at ultra-low speeds with superior volumetric efficiency.

• High-Pressure Shaft Seal: Equipped with high-capacity seals that withstand substantial back pressure, simplifying hydraulic plumbing by eliminating the need for a case drain in most systems.

• Seamless Interchangeability: Built to standard SAE mounting and shaft specifications, ensuring a perfect fit with existing equipment to minimize downtime during replacement.

• Target Applications: Heavy agricultural harvesters, paver propulsion, industrial material handling, marine winches, and municipal sweeping equipment.

Detailed Models & Parameters:

• Core Series: Parker Hannifin Torqmotor™ TF Series.

• Model Keywords: TF0080, TF0130, TF0080AS020, TF0130LS030.

• Technical Specs Decoding:

  • TF0080: Approx. 80cc/rev (4.9 in³/rev) displacement, optimized for high speed and compact drive requirements.

  • TF0130: Approx. 130cc/rev (7.9 in³/rev) displacement, providing enhanced startup traction and torque balance.

  • AS020 / LS030: Denotes specific shaft configurations (e.g., 1-1/4″ Keyed or Splined shaft), flange standards (e.g., 2-Bolt SAE A), and porting options.

• Pressure Specs: Continuous operating pressure up to 140 Bar (2000 PSI), with peak capabilities reaching 200 Bar (3000 PSI).
