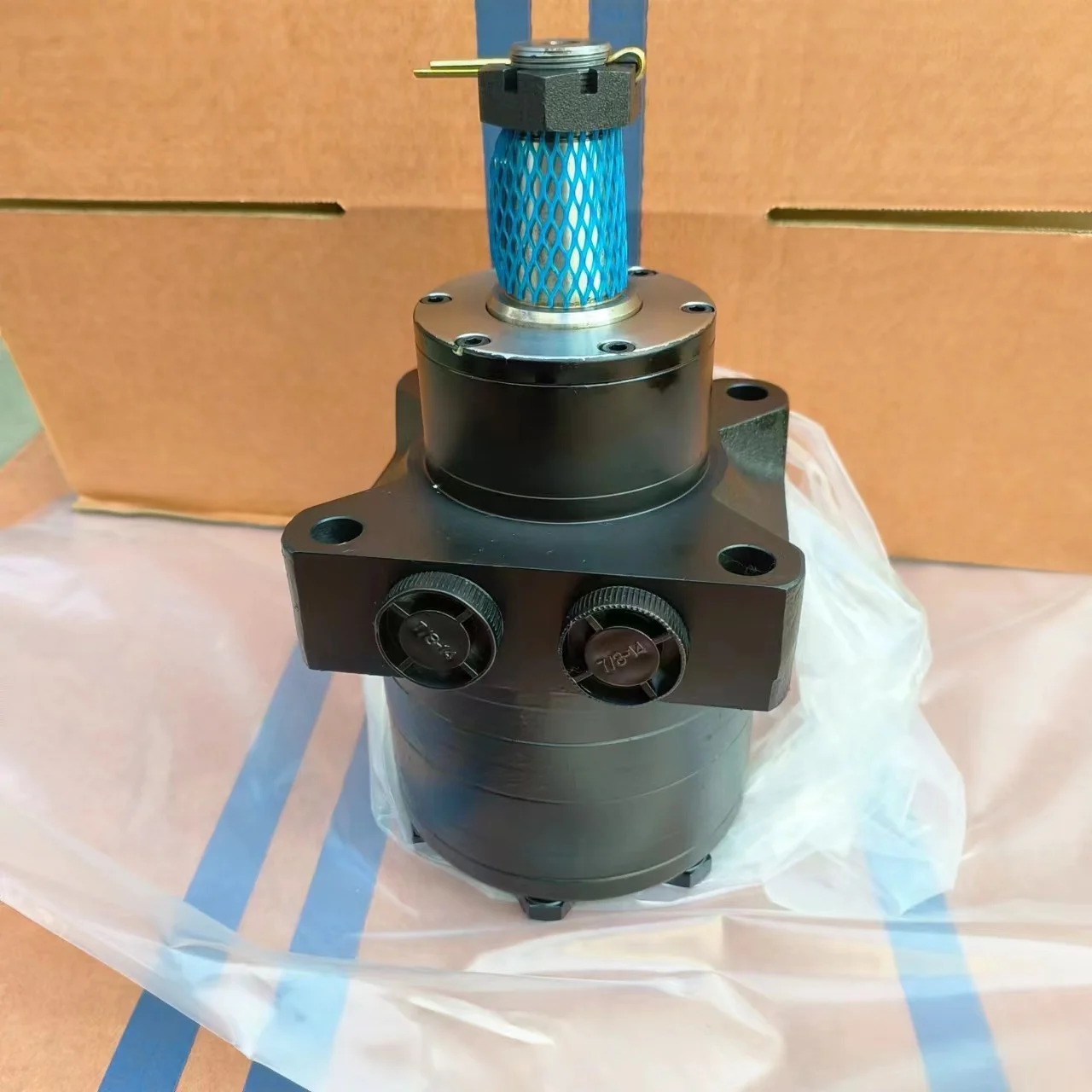

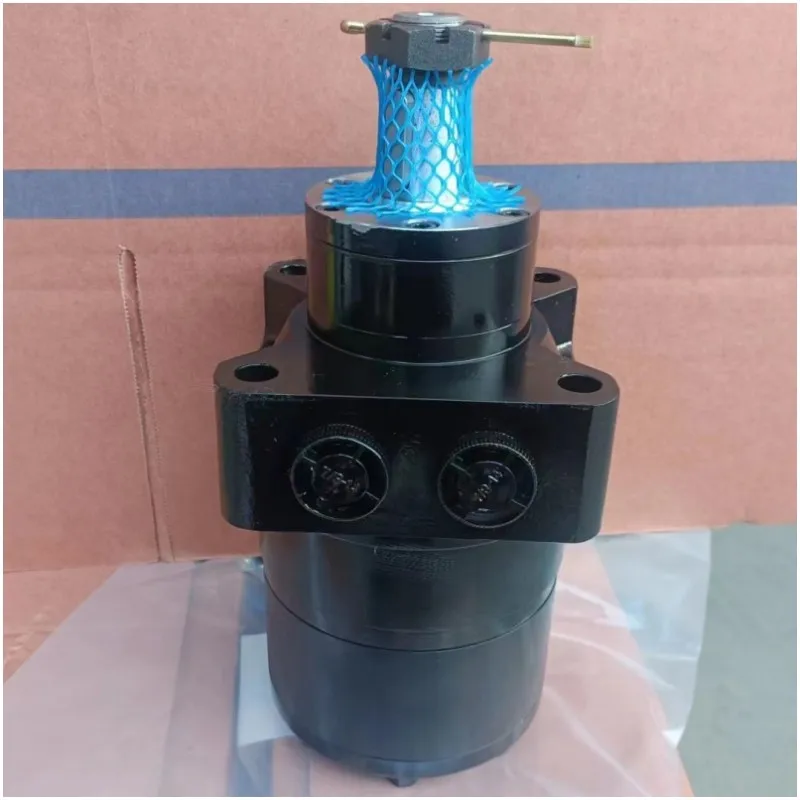

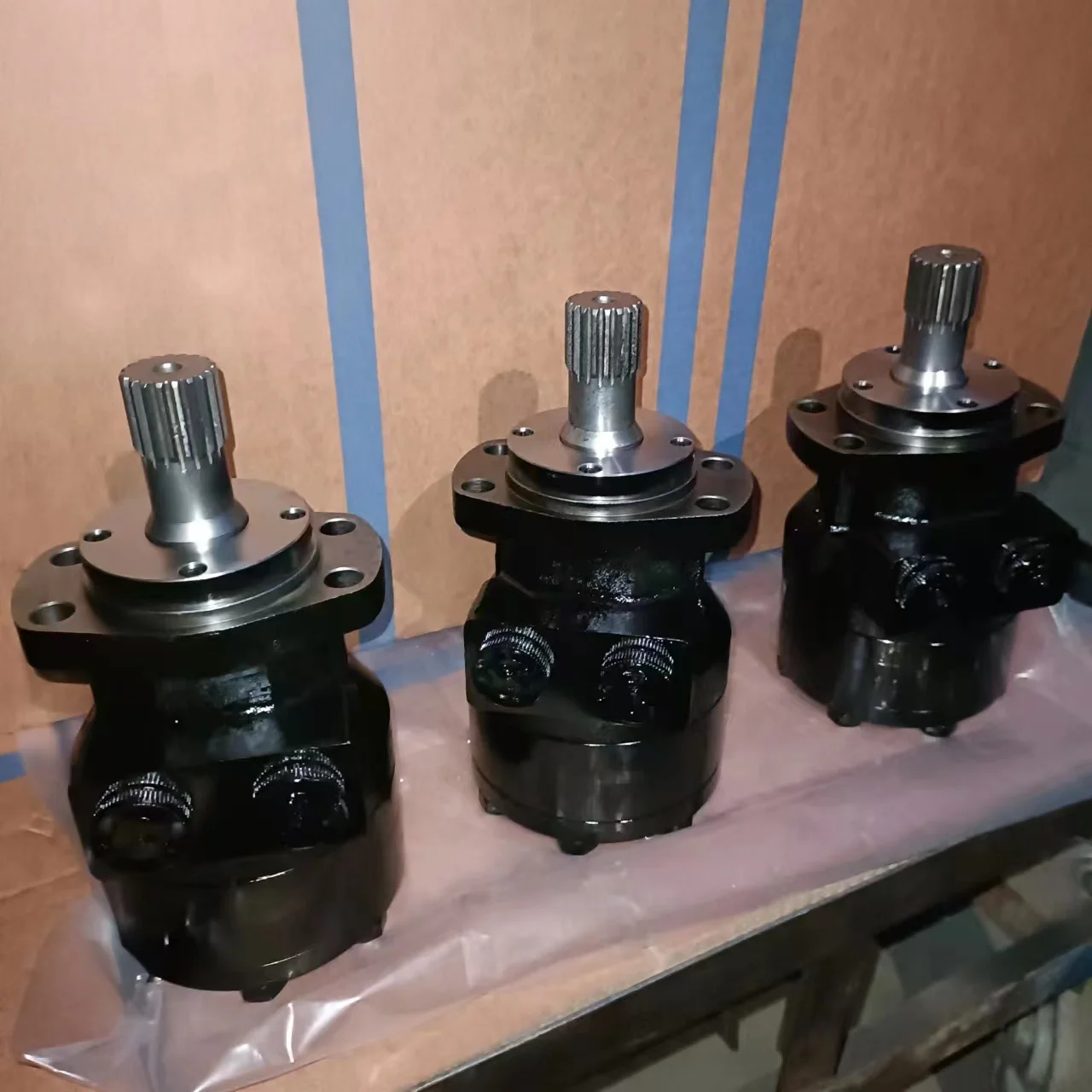

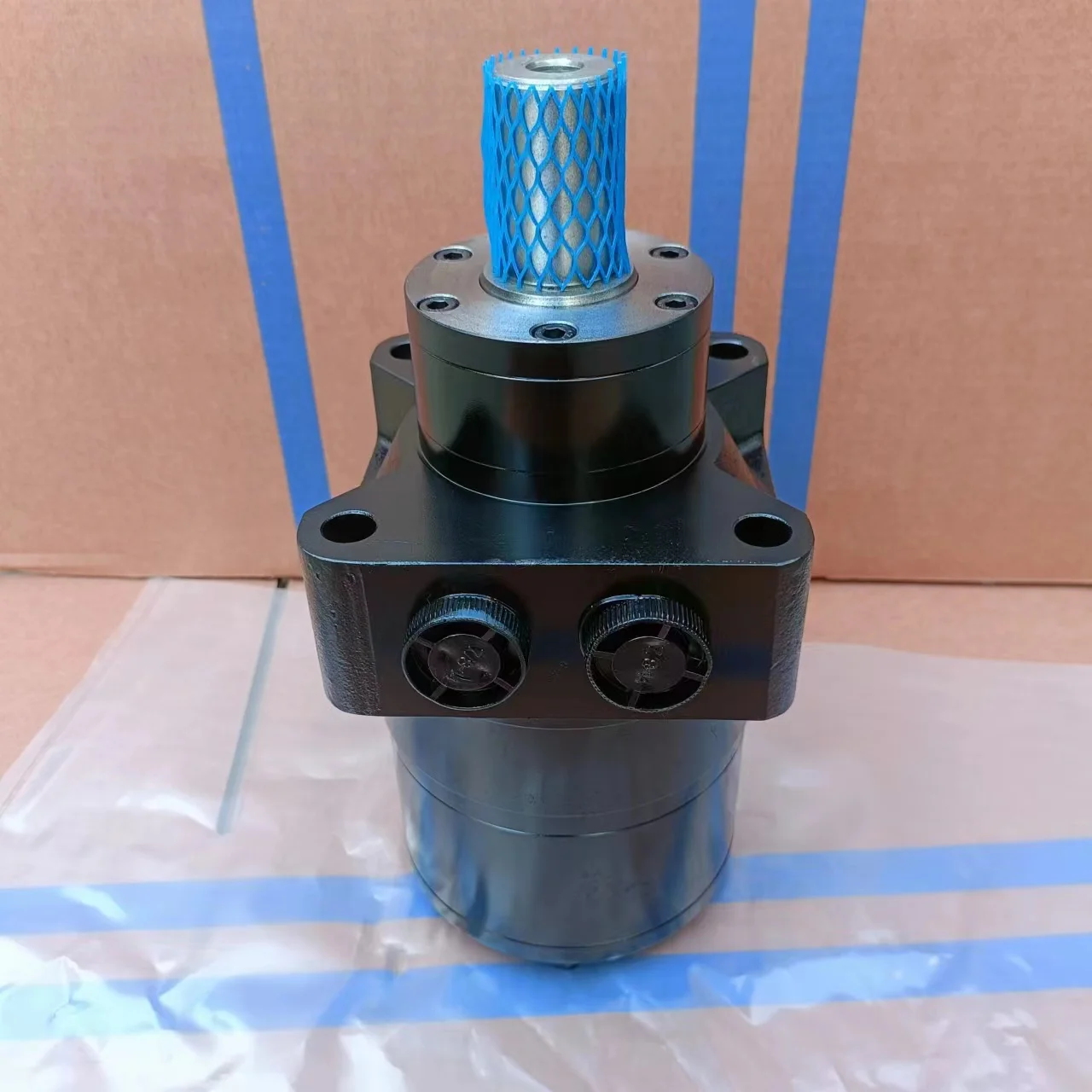

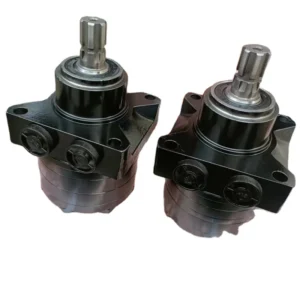

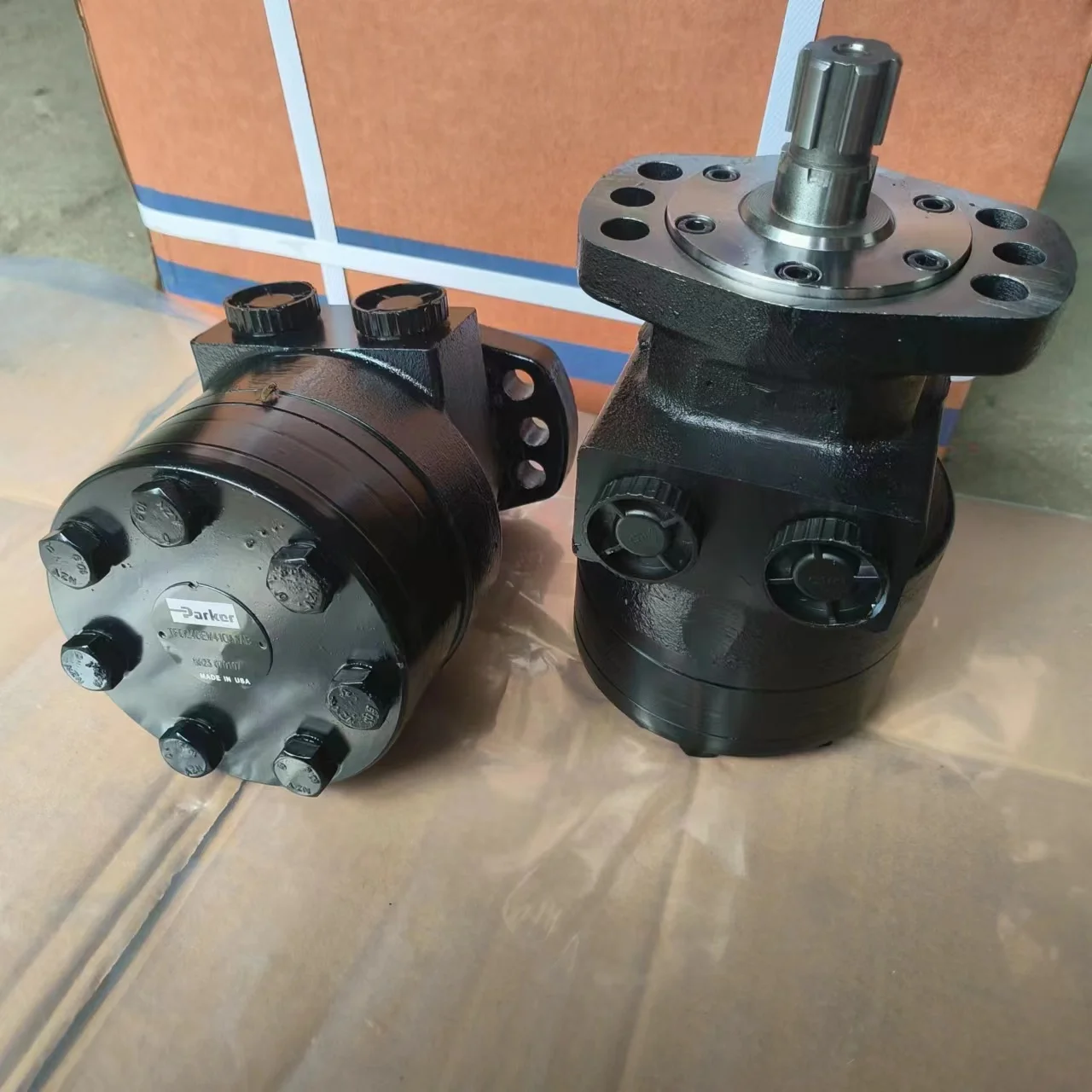

Parker TF Series Heavy-Duty LSHT Hydraulic Motors

Product Overview: The Parker TF Series Torqmotor™ is the premier power unit engineered for medium-to-heavy-duty applications. Utilizing advanced Geroler technology, the TF series is renowned for its exceptional mechanical efficiency and superior side-load capacity. This page features two precision-configured models: the compact and efficient TF0130AS280AAAA and the high-torque powerhouse TF0280MS030AAAA. These motors are ideally suited for conveyor drives, augers, industrial sweepers, winches, and agricultural propulsion systems.

Key Technical Advantages:

• Geroler Technology: The roller-vane rotor design minimizes internal friction at startup, ensuring smooth operation at ultra-low speeds and consistent torque output across the entire speed range.

• Heavy-Duty Bearing System: Oversized tapered roller bearings handle significant radial loads (side loads) directly, making them perfect for belt or chain-driven applications.

• High-Pressure Shaft Seal: Equipped with high-capacity seals that withstand back pressures up to 140 Bar (2000 PSI) continuously, simplifying hydraulic plumbing by eliminating the need for a case drain in most systems.

• Robust Power Density: Integrated within high-strength cast iron housings, these units are built to endure frequent shock loads and extreme operating environments.

• Target Applications: Sweeper brush rotation, compact winches, forestry attachments, paving machinery, industrial lifts, and material handling equipment.

Detailed Models & Parameters:

• Core Series: Parker Hannifin Torqmotor™ TF Series.

• Model Keywords: TF0130, TF0280, TF0130AS280, TF0280MS030.

• Technical Specs Decoding:

  • TF0130: 130cc/rev (7.9 in³/rev) displacement, optimized for balanced speed and torque performance.

  • TF0280: 280cc/rev (17.1 in³/rev) large displacement, providing massive startup traction and load-pulling power.

  • AS280 / MS030: Denotes specific shaft configurations (e.g., 1-1/4″ Keyed or Splined) and mounting flange standards (e.g., SAE A 2-Bolt or 4-Bolt).

• Pressure Specs: Continuous operating pressure up to 140 Bar (2000 PSI), with peak capabilities reaching 200 Bar (3000 PSI).
