Parker TE Series High-Performance LSHT Orbit Motors

Product Overview: The Parker TE Series is the premier choice for medium-duty hydraulic drives in industrial and mobile applications globally. This category focuses on precision configurations: TE0365CW690AAAB, TE0260CW690AAAC, and TE0165CW690AAAC. As the cost-effective powerhouse of the Parker spool valve family, the TE Series bridges the gap between the compact TB and the heavy-duty TF/TG series, offering enhanced bearing capacity and robust torque output.

Utilizing Parker’s patented Roller Vane technology, these motors reduce internal friction through roller-supported stator vanes, ensuring smooth Low Speed High Torque (LSHT) delivery. They are ideal for aerial work platforms, street sweeper drives, material handling conveyors, and mid-sized agricultural machinery.

Key Technical Advantages:

• Reinforced Bearing System: Equipped with larger roller bearings compared to standard light-duty motors, the TE series handles higher radial loads for direct-drive applications.

• Superior Low-Speed Smoothness: The Roller Vane design ensures low breakout pressure and consistent, pulse-free rotation even at minimal flow rates.

• High-Pressure Shaft Sealing: Premium seals manage significant back-pressure with ease, preventing leaks and reducing the need for external case drains in most systems.

• Technical Decoding:

  • TE0365 / TE0260 / TE0165: Popular displacement frames providing a wide spectrum of power options.

  • Configuration Codes: Suffixes like “AAAB/AAAC” define specific flanges, shafts, and porting for 100% accurate OEM replacement.

Detailed Specifications & Parameters:

• Core Series: Parker Hannifin TE, TB, TF, TG, TK Series.

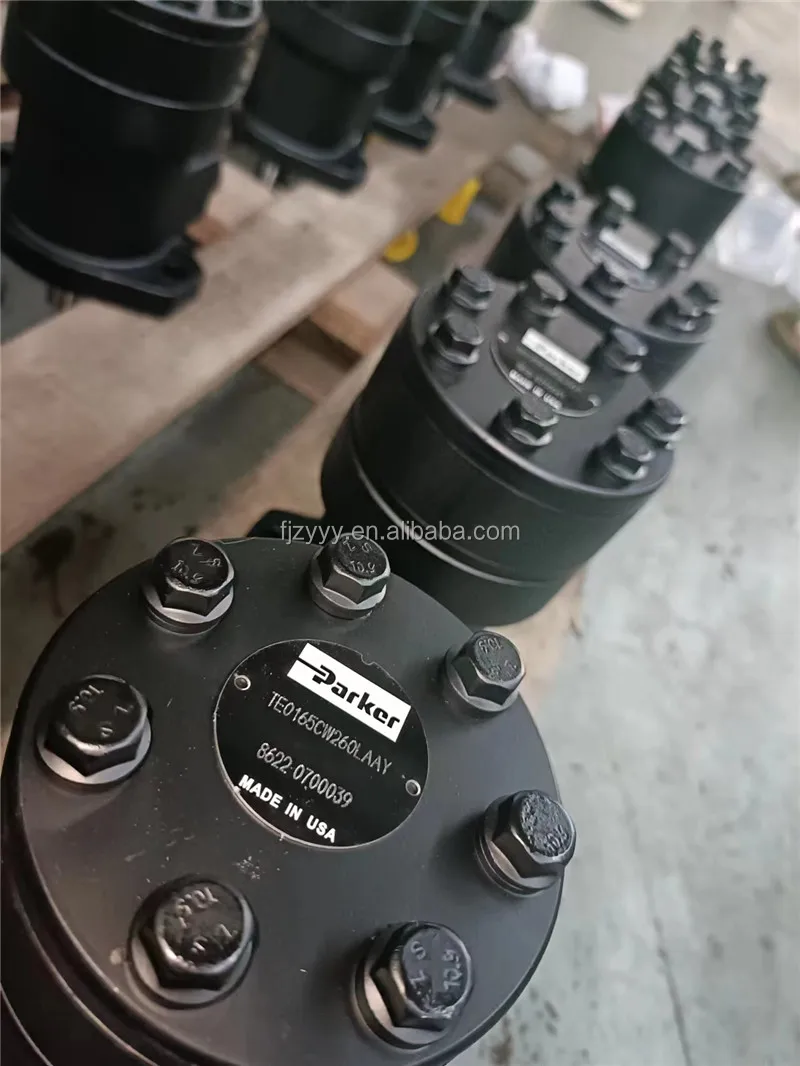

• Featured Model Matrix: TE0365CW690AAAB, TE0260CW690AAAC, TE0165CW690AAAC.

• Core Performance Specs:

  • Displacement Range: 36 cc/rev to 390 cc/rev (2.2 – 24.0 cu in/rev).

  • Rated Pressure: Continuous up to 140 Bar (2000 PSI); Intermittent peaks up to 190 Bar (2800 PSI).

  • Torque Capability: Continuous torque up to 570 Nm, with intermittent peaks exceeding 650 Nm.

  • Flow Capacity: Supports continuous flow inputs of 75 L/min (20 GPM).

  • Mounting Standards: Includes 2-Bolt Magneto (Code 690) flange with 1″ Keyed or Splined shaft options.
