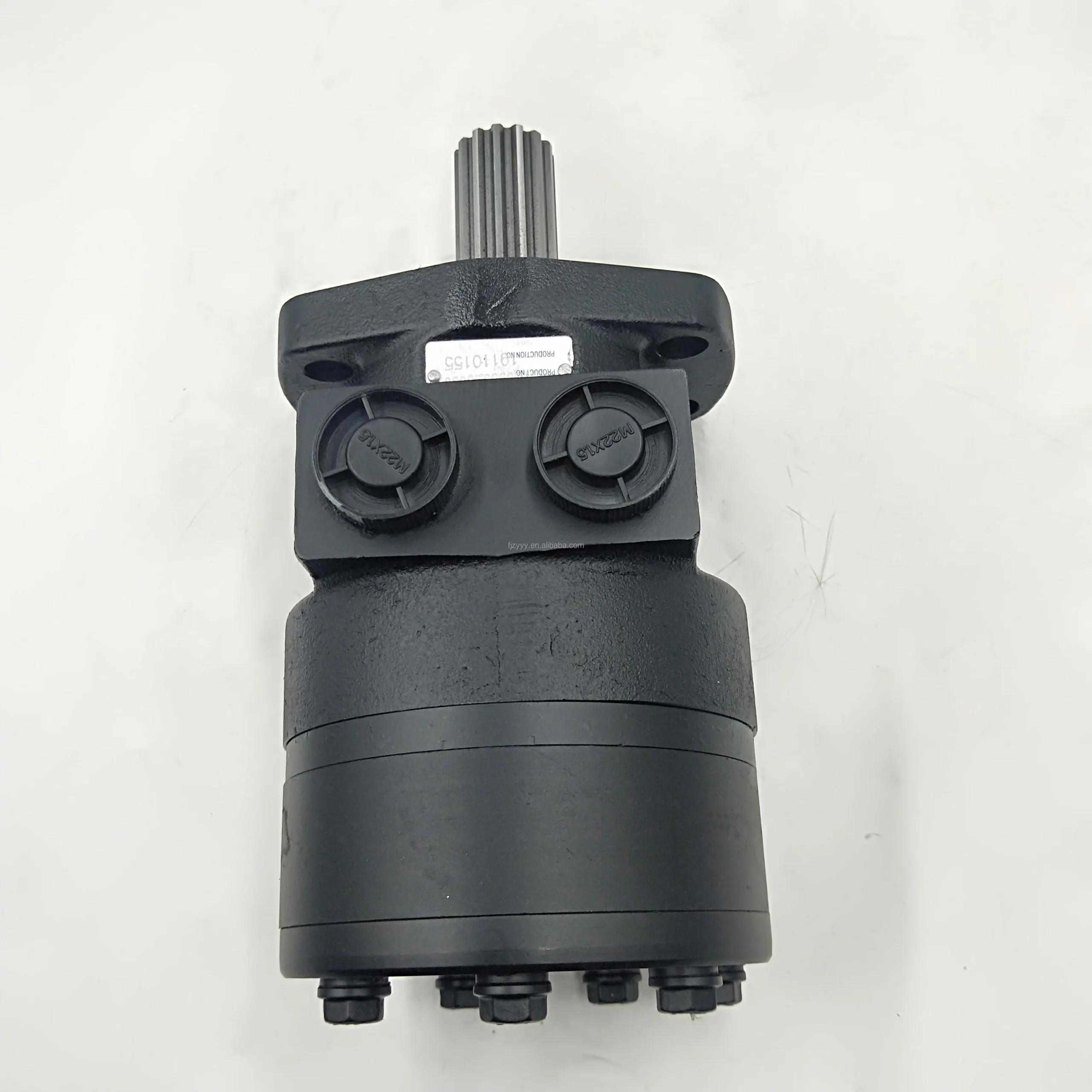

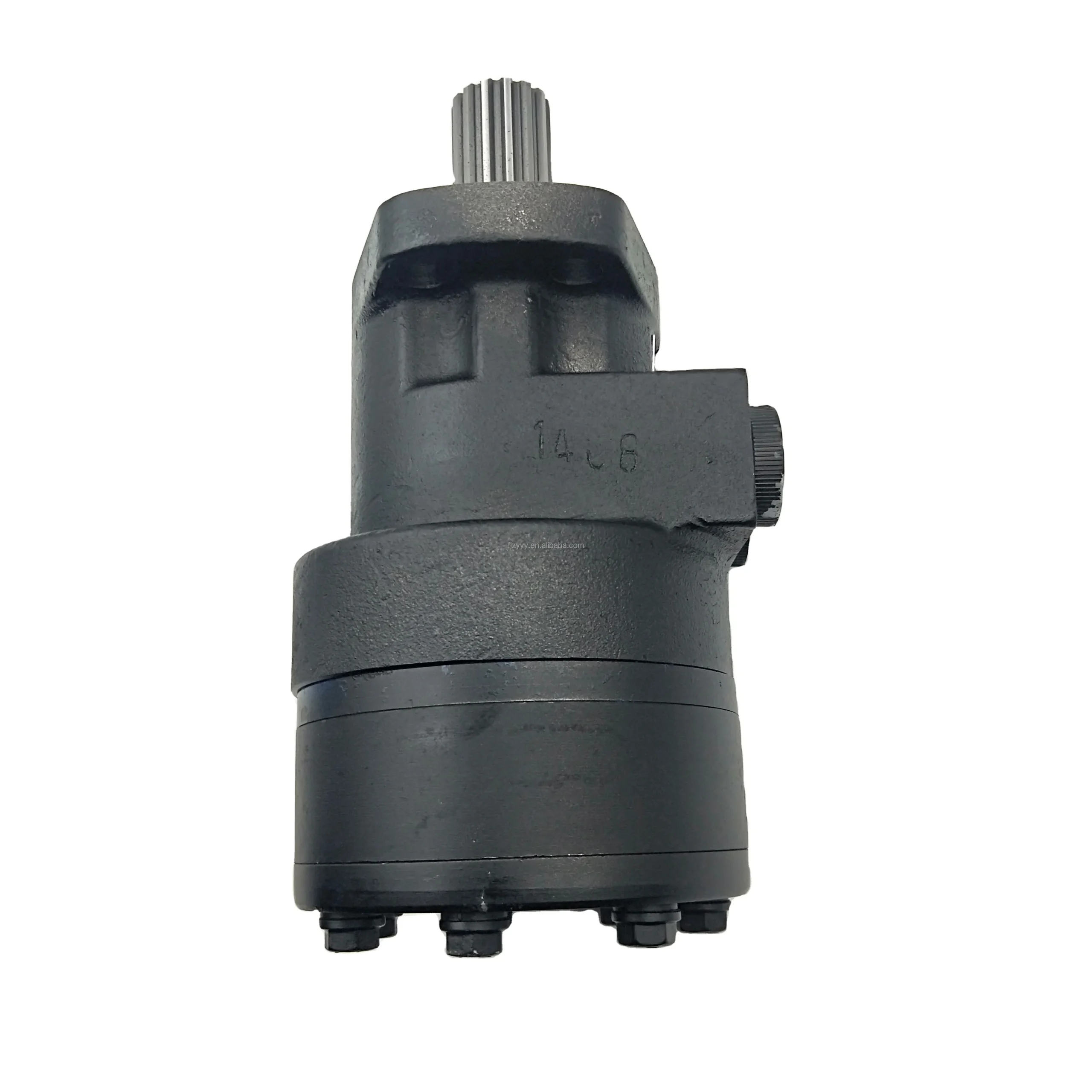

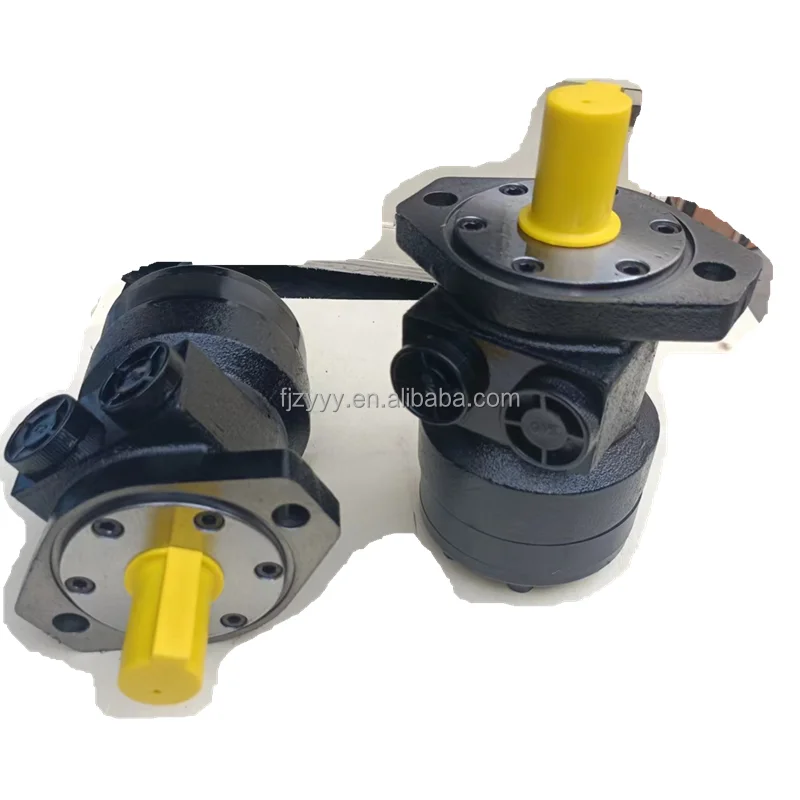

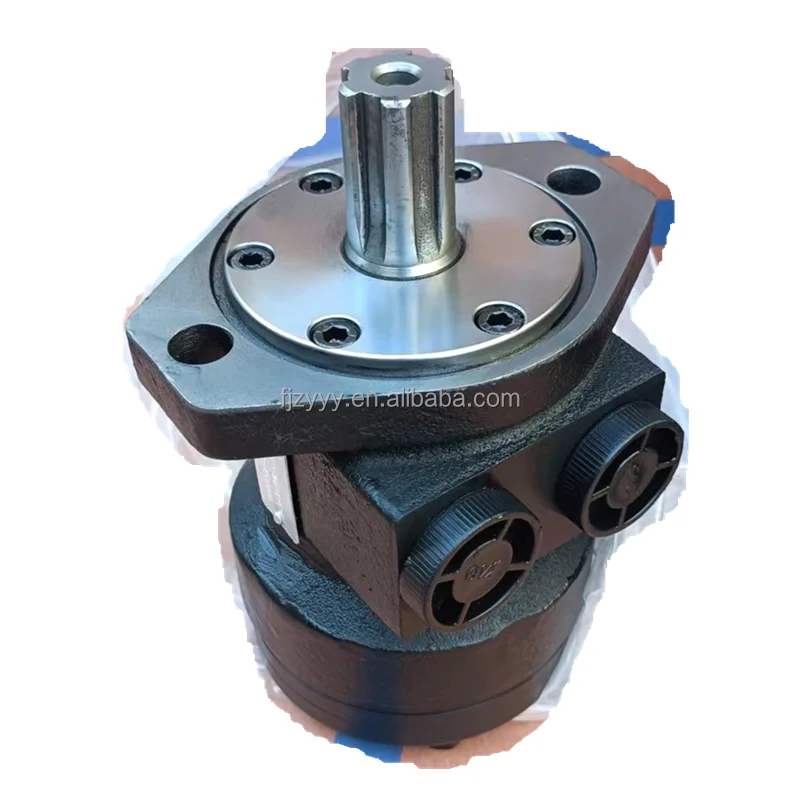

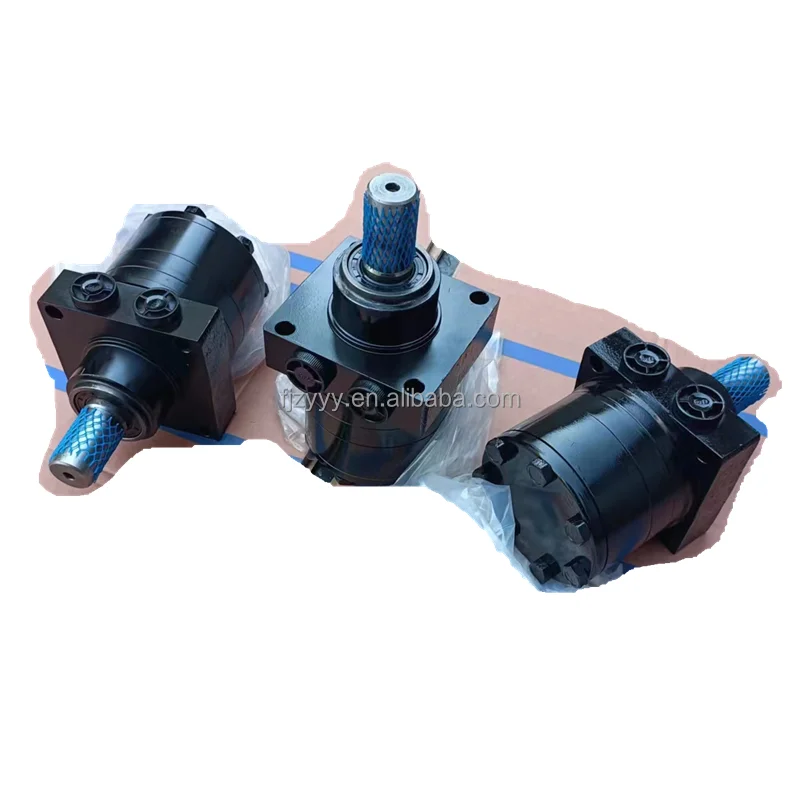

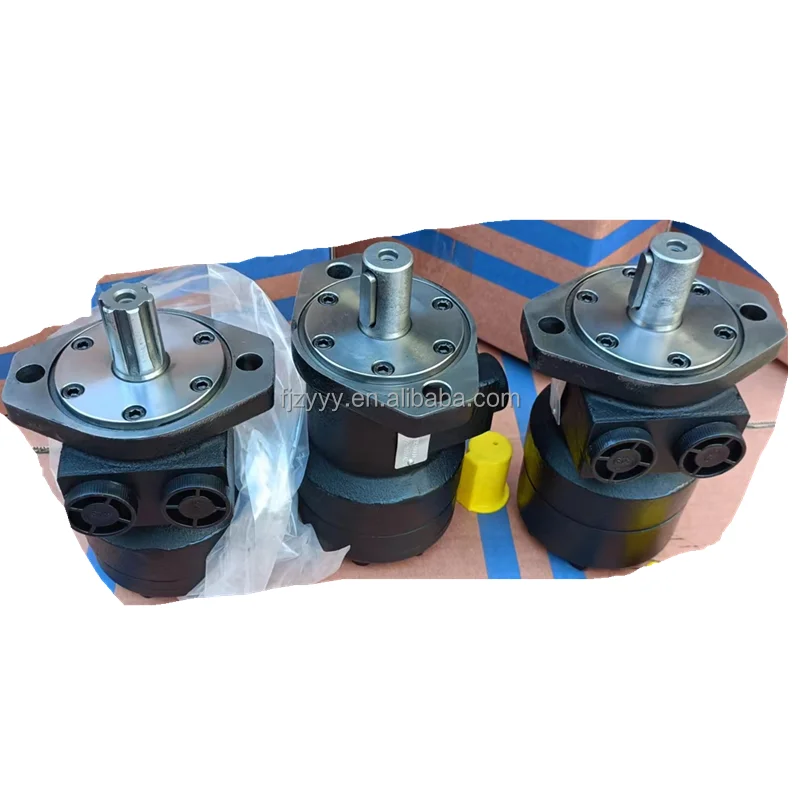

Parker TE Series High-Performance Mid-Range Orbit Hydraulic Motors

Product Overview: The Parker TE Series stands as a masterpiece of orbital drive technology, engineered to balance compact dimensions with heavy-duty durability. This series spans the full displacement spectrum, from the ultra-compact TE0036 to the high-torque TE0390. We highlight precision configurations including TE0230CN260AAAB, TE0100CW260LABA, TE0036CW410LACY, and TE0390CW260AAAA. Utilizing Parker’s patented Torque Link technology, the TE series manages frequent reversing shocks and high radial loads with ease. It is the premier choice for mower propel drives, material handling conveyors, compact sweepers, food processing equipment, and landscape machinery.

Key Technical Advantages:

• Heavy-Duty Torque Link Design: Features a high-strength alloy drive link with an optimized lubrication path to ensure minimal wear under extreme loads, significantly extending service life.

• Superior Low-Speed Smoothness: Optimized for LSHT (Low Speed High Torque) conditions, ensuring consistent torque delivery without pulsation even at minimum RPMs.

• High-Pressure Shaft Seals: Standard high-pressure seals handle significant back-pressures, typically eliminating the need for external case drain lines and simplifying hydraulic plumbing.

• Versatile Customization: Offers a vast array of flanges (SAE A, 4-bolt, or square), shaft ends (Keyed, Splined, or Tapered), and porting options for seamless drop-in compatibility.

• Technical Spec Decoding:

  • TE0036 – TE0390: Displacement identifiers (36cc to 390cc).

  • CW / CN: Relates to rotation direction, port location, and internal valve configurations.

Detailed Models & Specifications:

• Core Series: Parker TE Heavy Duty Orbit Motor.

• Featured Model Matrix:

  • TE0230CN260AAAB: Core displacement frame, the standard industrial choice balancing speed and power.

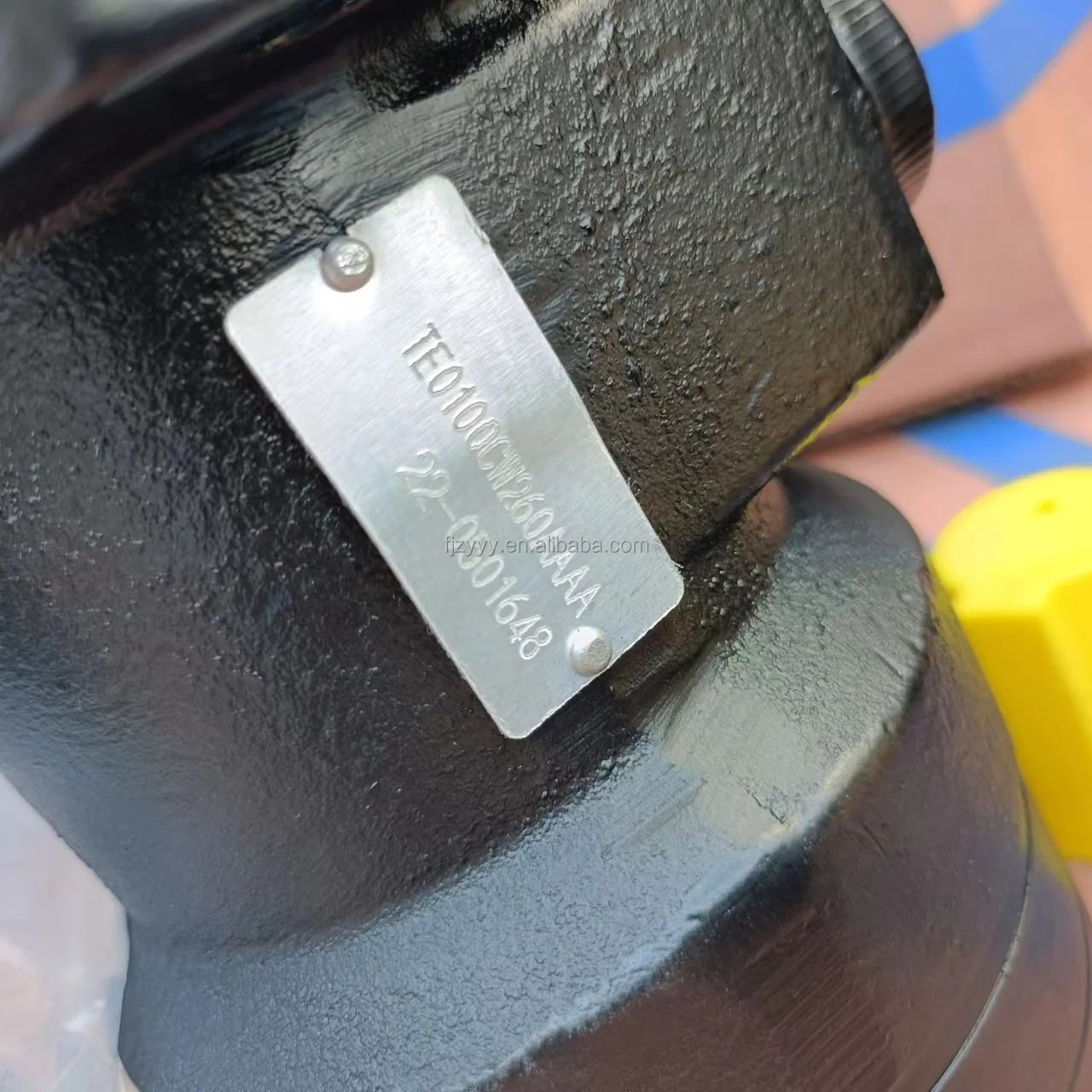

  • TE0100CW260LABA: Mid-range frame, ideal for light machinery with high-frequency cycles.

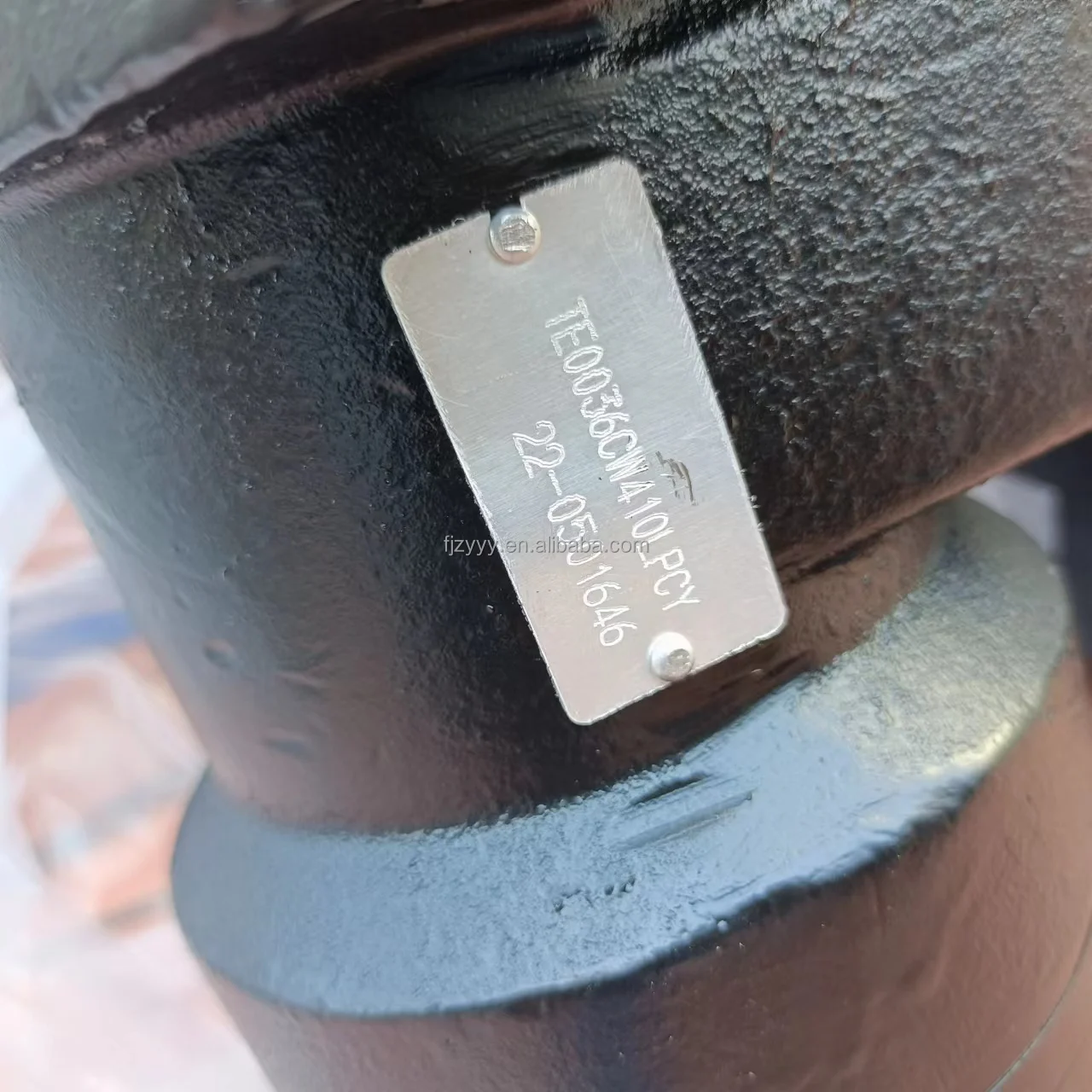

  • TE0036CW410LACY: Miniature high-speed frame for precision-controlled tasks.

  • TE0390CW260AAAA: The high-output variant of the TE series for maximum traction requirements.

• Core Performance Specs:

  • Max Operating Pressure: Continuous up to 140-190 Bar (depending on frame size).

  • Torque Capability: Continuous torque output ranging from 50 Nm to over 550 Nm.

  • Mounting Standards: Fully compliant with SAE standards and multiple metric interfaces.
