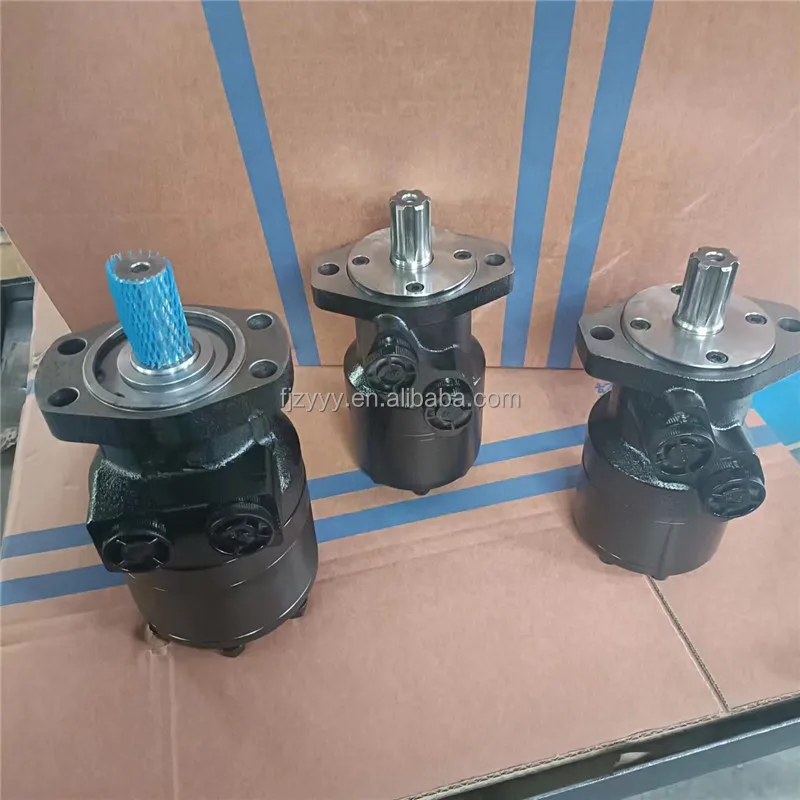

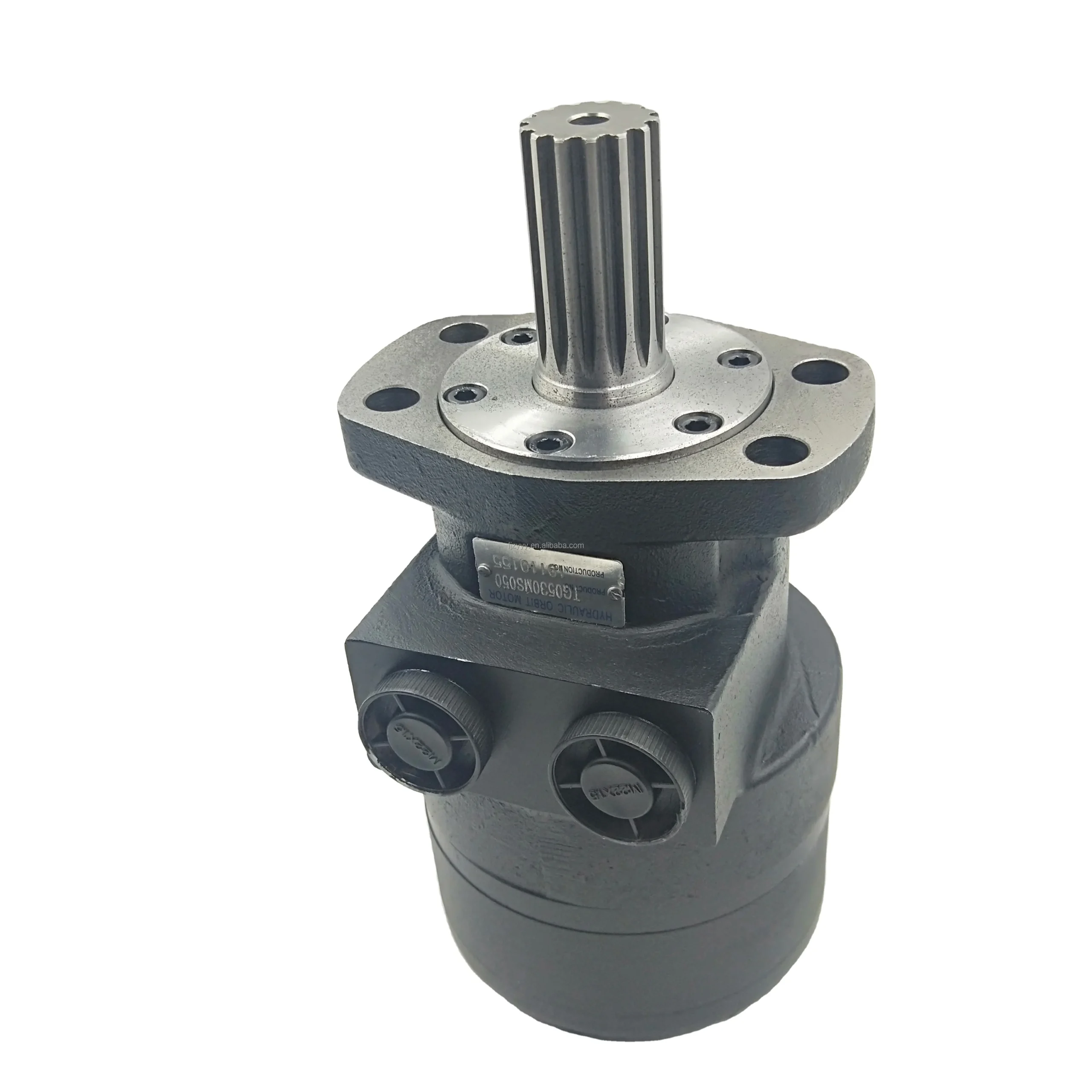

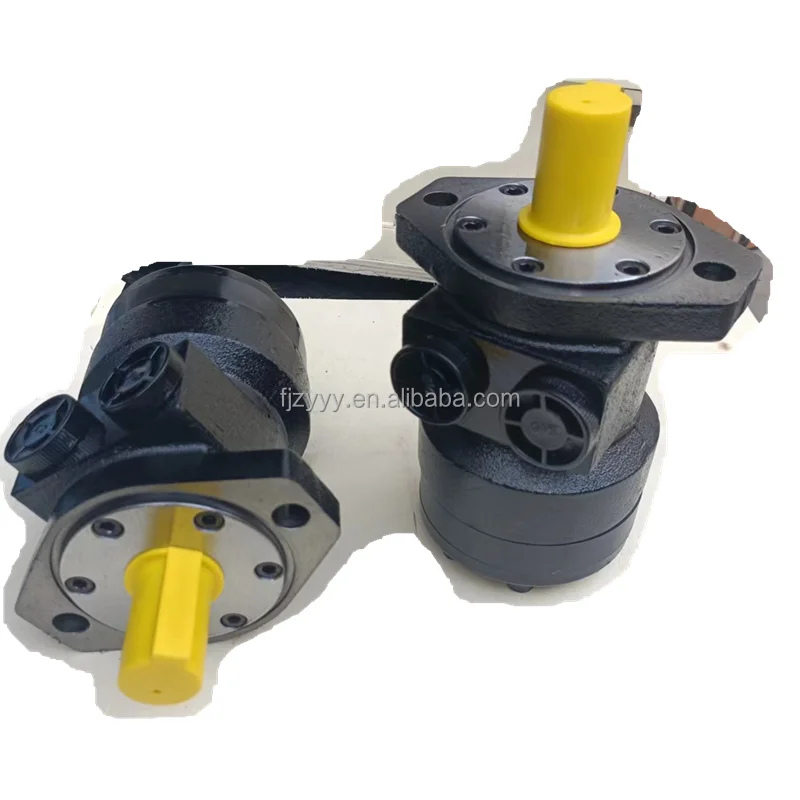

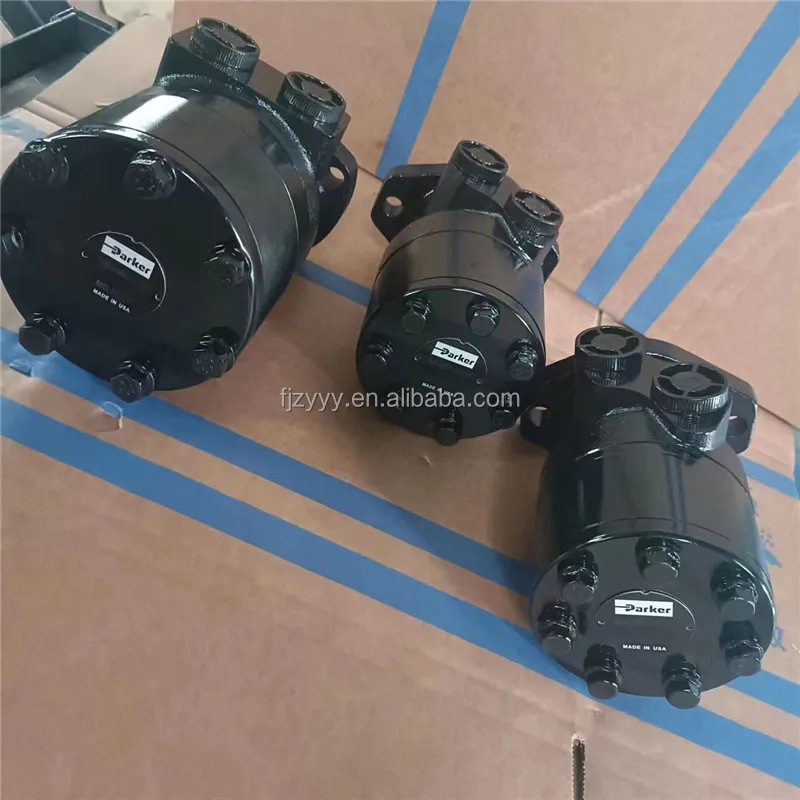

Parker TE Series High-Efficiency LSHT Hydraulic Orbit Motors

Product Overview: The Parker TE Series is the versatile powerhouse within Parker’s orbital motor family, specifically engineered for Low Speed High Torque (LSHT) requirements in medium-duty applications. This category features high-demand precision configurations: TE0080CW260LABA, TE0036CW410LPCY, TE0100CW260AAAA, and TE0165CW260LAAY.

Utilizing Parker’s patented Roller Vane technology, these motors incorporate rollers at the tips of the stator vanes to minimize internal friction and lower breakout pressure. This ensures the motor maintains smooth, pulse-free rotation even at ultra-low speeds. With a robust bearing design and superior volumetric efficiency, the TE series is the premier choice for aerial work platforms, street sweeper brushes, food processing conveyors, and agricultural propel drives.

Key Technical Advantages:

• Reinforced Bearing Layout: Equipped with larger roller bearings than the TB series, the TE series handles higher radial loads, making it ideal for direct-drive setups.

• Roller Vane Durability: The roller design extends service life and ensures high energy efficiency, maintaining consistent power delivery under continuous pressure.

• High-Pressure Shaft Sealing: Premium seals manage significant system back-pressure with ease, preventing leaks and reducing the necessity for external case drains.

• Technical Decoding:

  • TE0080 / TE0100 / TE0165: Popular displacement frames providing a wide spectrum of torque and speed options.

  • Configuration Suffixes: Suffixes like “CW260LABA” define specific mounting flanges, shaft types, and porting to guarantee a 100% physical match for OEM replacement.

Detailed Specifications & Parameters:

• Core Series: Parker Hannifin TE, TB, TF, TG Series.

• Featured Model Matrix: TE0080CW260LABA, TE0036CW410LPCY, TE0100CW260AAAA, TE0165CW260LAAY.

• Core Performance Specs:

  • Displacement Range: 36 cc/rev to 390 cc/rev (2.2 – 24.0 cu in/rev).

  • Rated Pressure: Continuous operating pressure up to 140 Bar (2000 PSI).

  • Torque Capability: Continuous torque ranging from 50 Nm up to 570 Nm.

  • Flow Capacity: Supports continuous flow inputs of 75 L/min (20 GPM).

  • Mounting Standards: Standard 2-Bolt SAE A (Code 260) flanges with 1″ Keyed or Splined shaft options.
