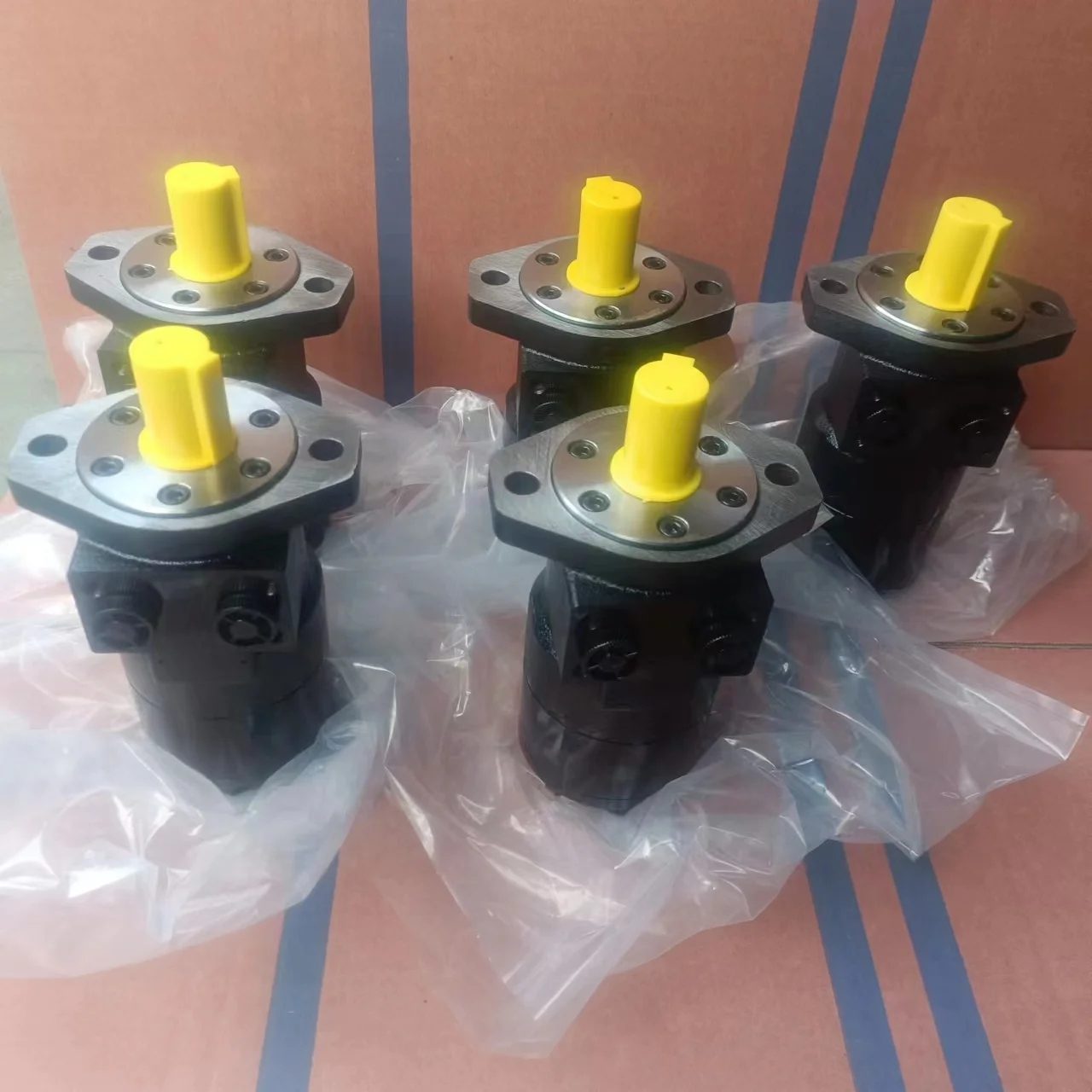

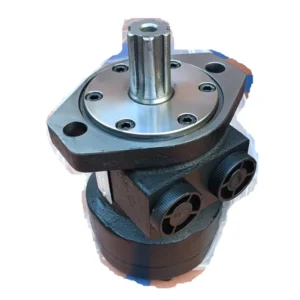

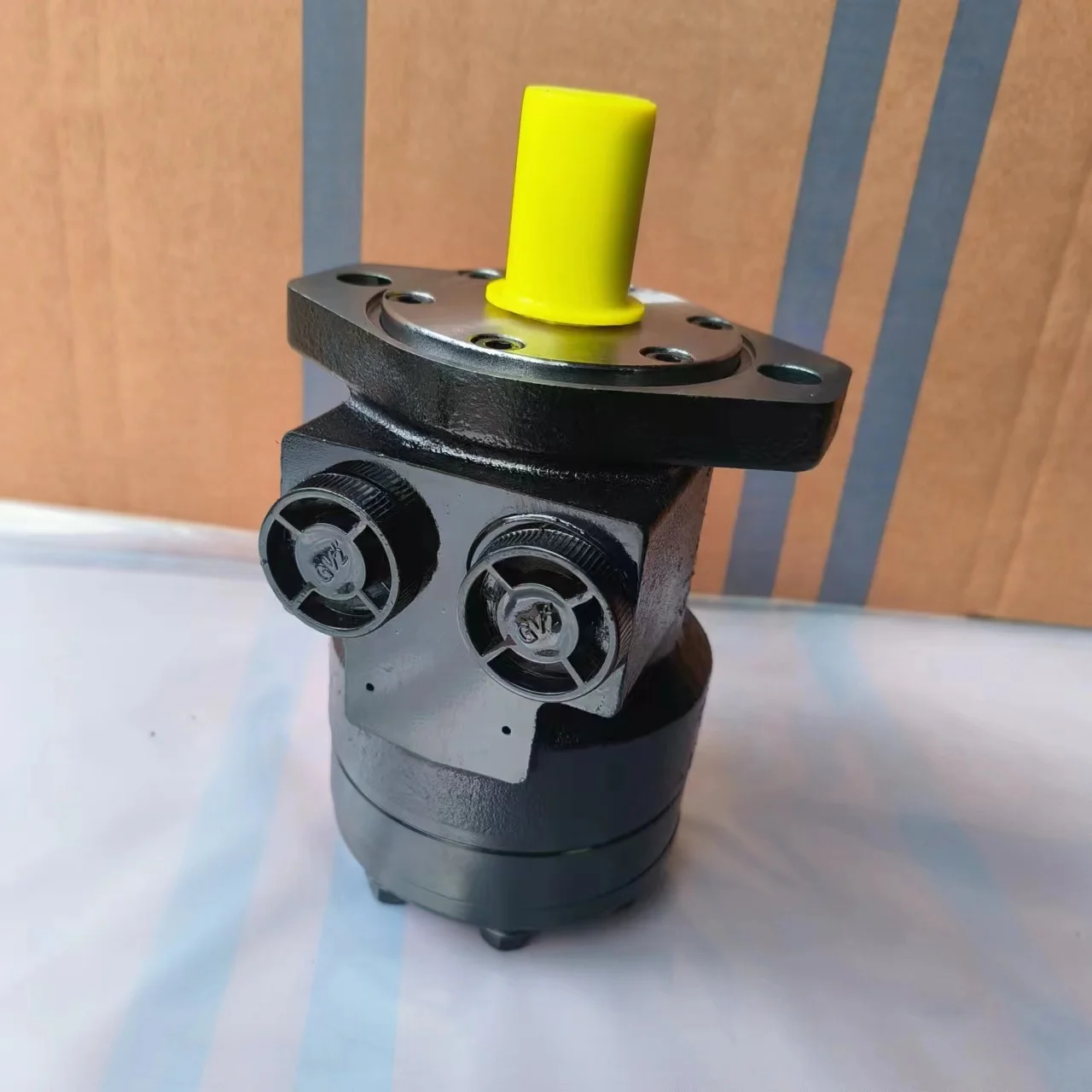

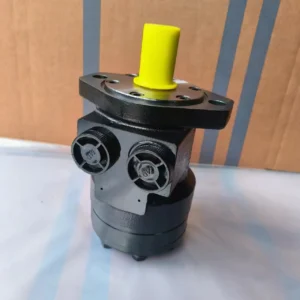

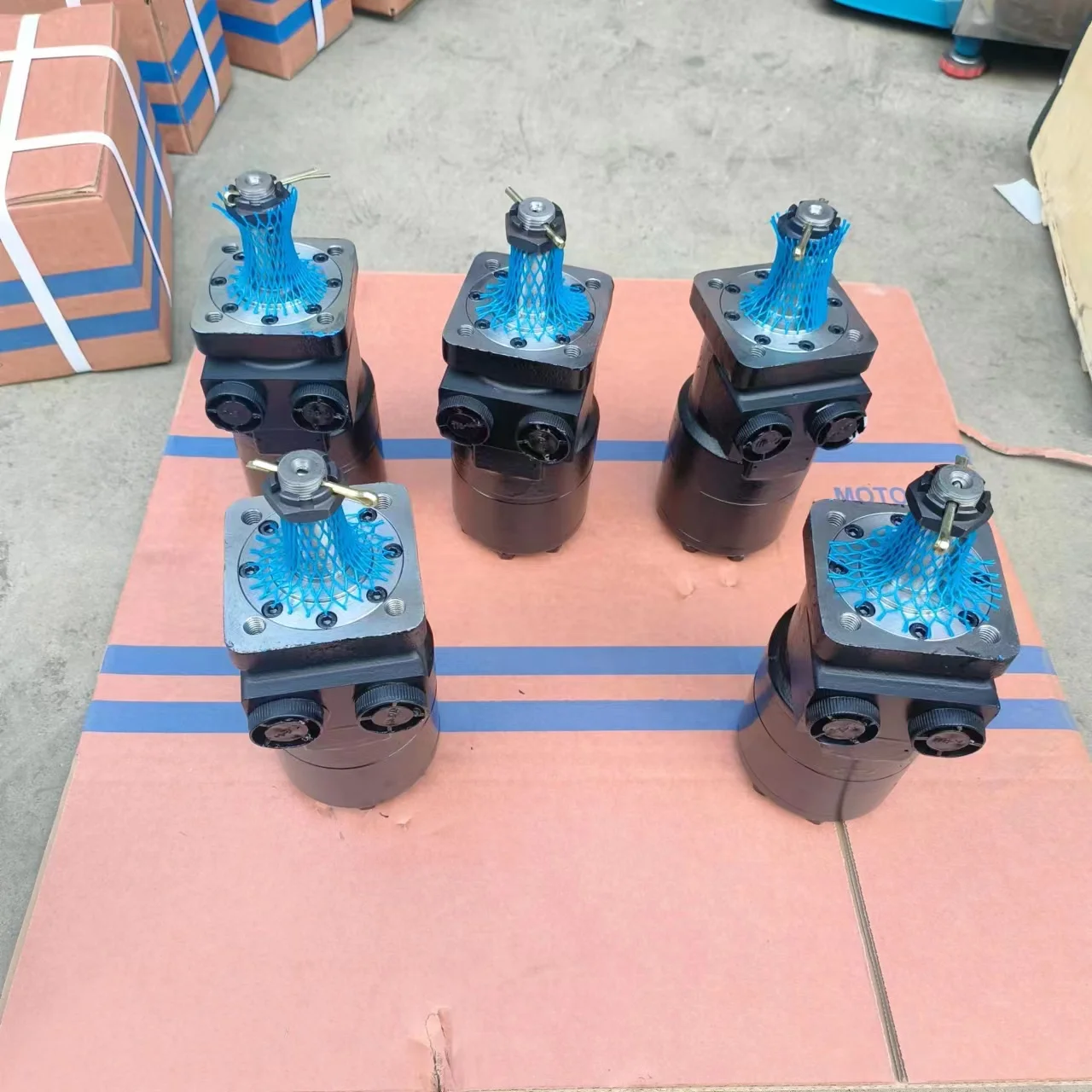

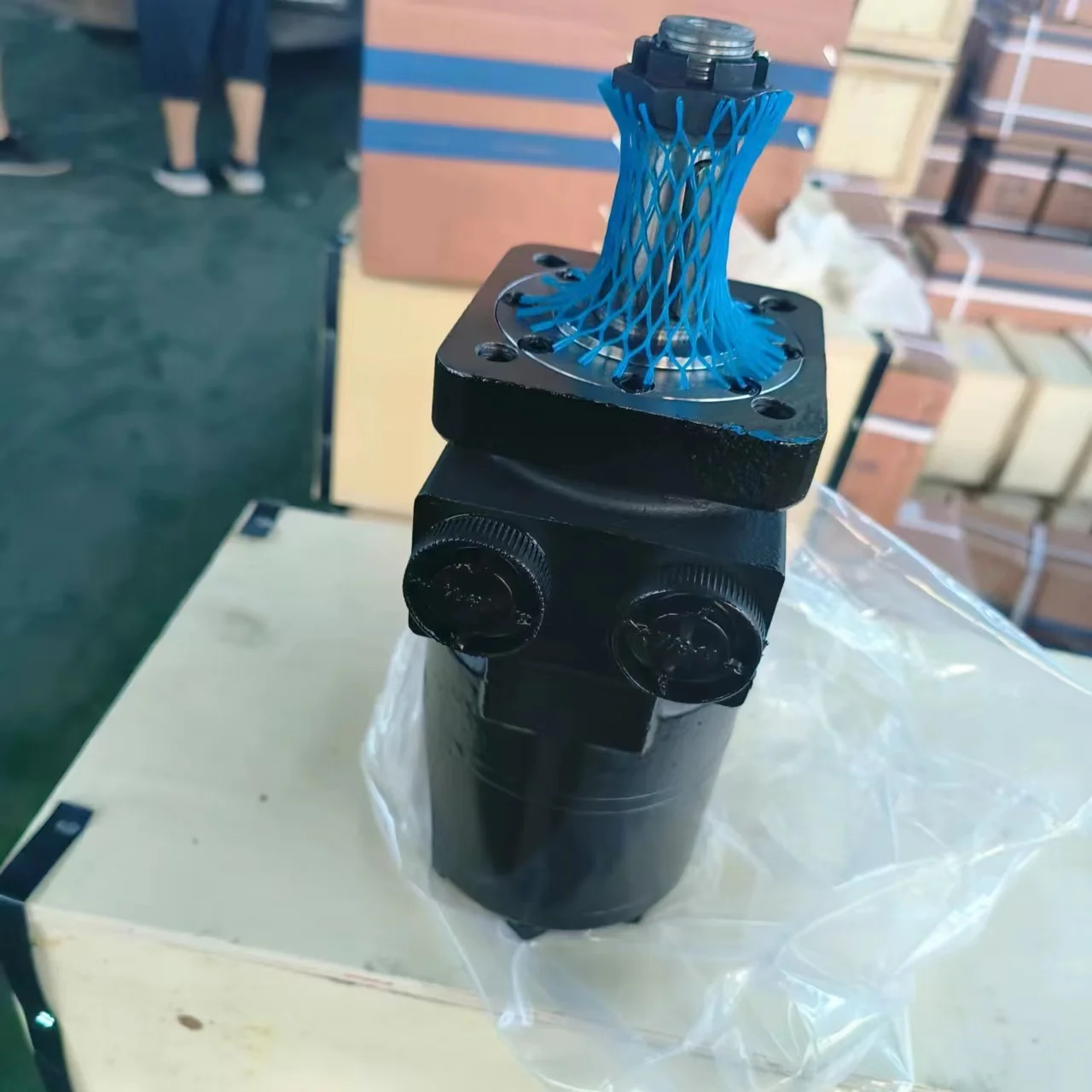

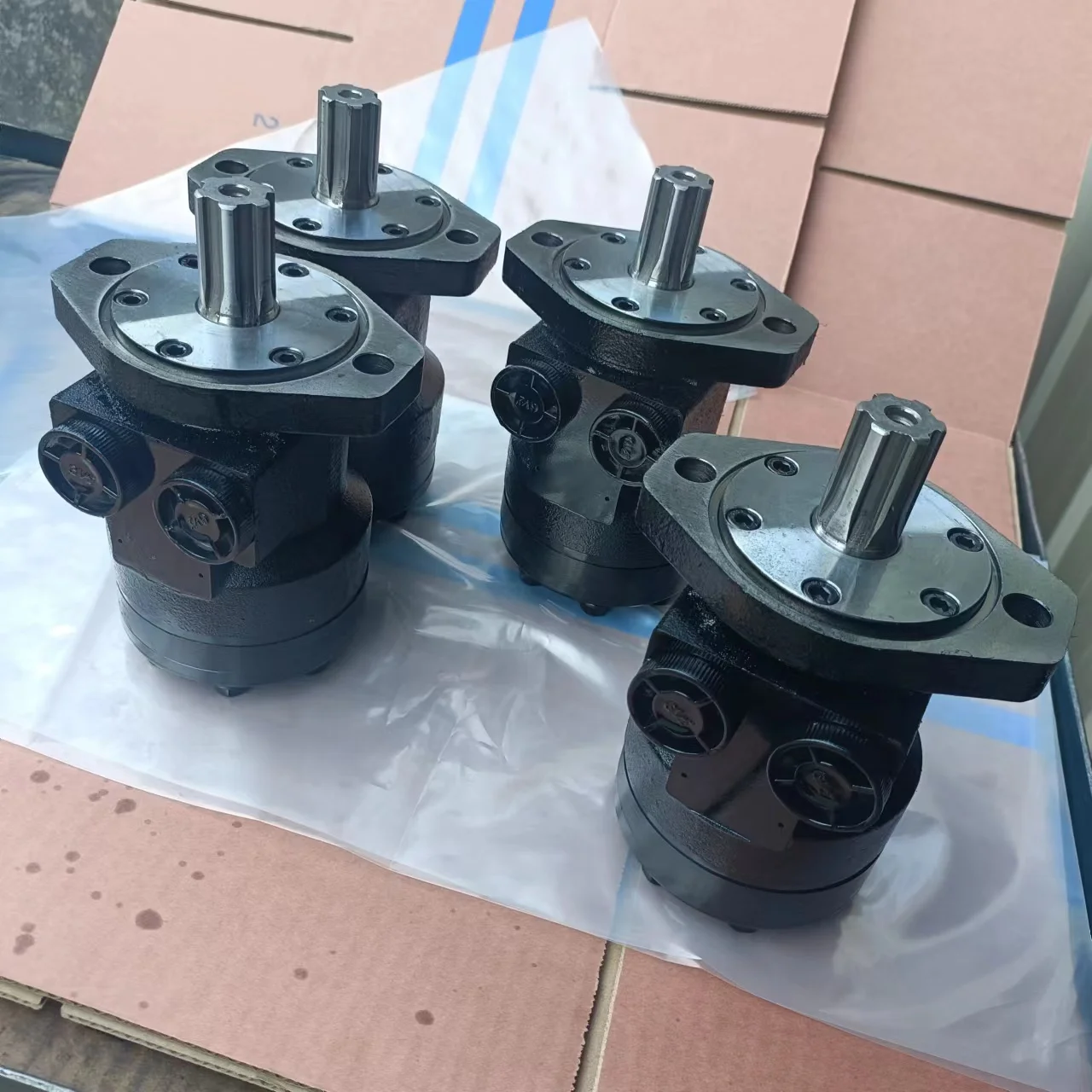

Parker TE0065 & TE0365 High-Performance LSHT Hydraulic Motors

Product Overview: The Parker TE Series (formerly Torqmotor™) is a globally recognized standard for efficient and robust orbital hydraulic motors. Engineered with advanced Geroler technology, the TE series is specifically designed for applications requiring high startup torque and superior side-load capacity within a compact footprint. This page highlights precision-configured models: TE0065CN410AAAB and TE0365CW690AAAB. Utilizing a precision distribution design, these motors excel in conveyor drives, sweeper brush rotation, agricultural seeders, food processing equipment, and compact winches.

Key Technical Advantages:

• Elite Side-Load Capacity: Engineered with high-strength, heavy-duty bearings to handle radial forces from chain or gear drives directly, reducing the need for external bearing supports.

• Geroler Technology: The roller-vane rotor design minimizes internal friction, ensuring smooth operation at ultra-low speeds and delivering up to 95% mechanical efficiency.

• High-Pressure Shaft Seal: Features high-capacity seals that withstand significant back pressure, simplifying hydraulic plumbing by eliminating the need for a case drain in most operations.

• Compact Powerhouse: Its minimal axial length allows for easy integration into restricted wheel hubs or machine enclosures, providing torque output that far exceeds its compact size.

• Target Applications: Industrial conveyor belts, sweeper attachments, woodworking machinery, and agricultural harvesting systems.

Detailed Models & Parameters:

• Core Series: Parker Hannifin Torqmotor™ TE Series.

• Model Keywords: TE0065, TE0365, TE0065CN410, TE0365CW690.

• Technical Specs Decoding:

  • TE0065 Series: Approx. 65cc/rev (4.0 in³/rev) displacement, optimized for a perfect balance between speed and compactness.

  • TE0365 Series: Approx. 365cc/rev (22.2 in³/rev) displacement, providing maximum load-pulling capability and startup torque within the series.

  • CN410 / CW690: Denotes specific shaft configurations (e.g., 1-inch Keyed shaft or 1-inch 6B Spline shaft) and standard mounting flange options (e.g., SAE A 2-bolt).

• Pressure Specs: Continuous operating pressure up to 140 Bar (2000 PSI), with peak capabilities reaching 190 Bar.
