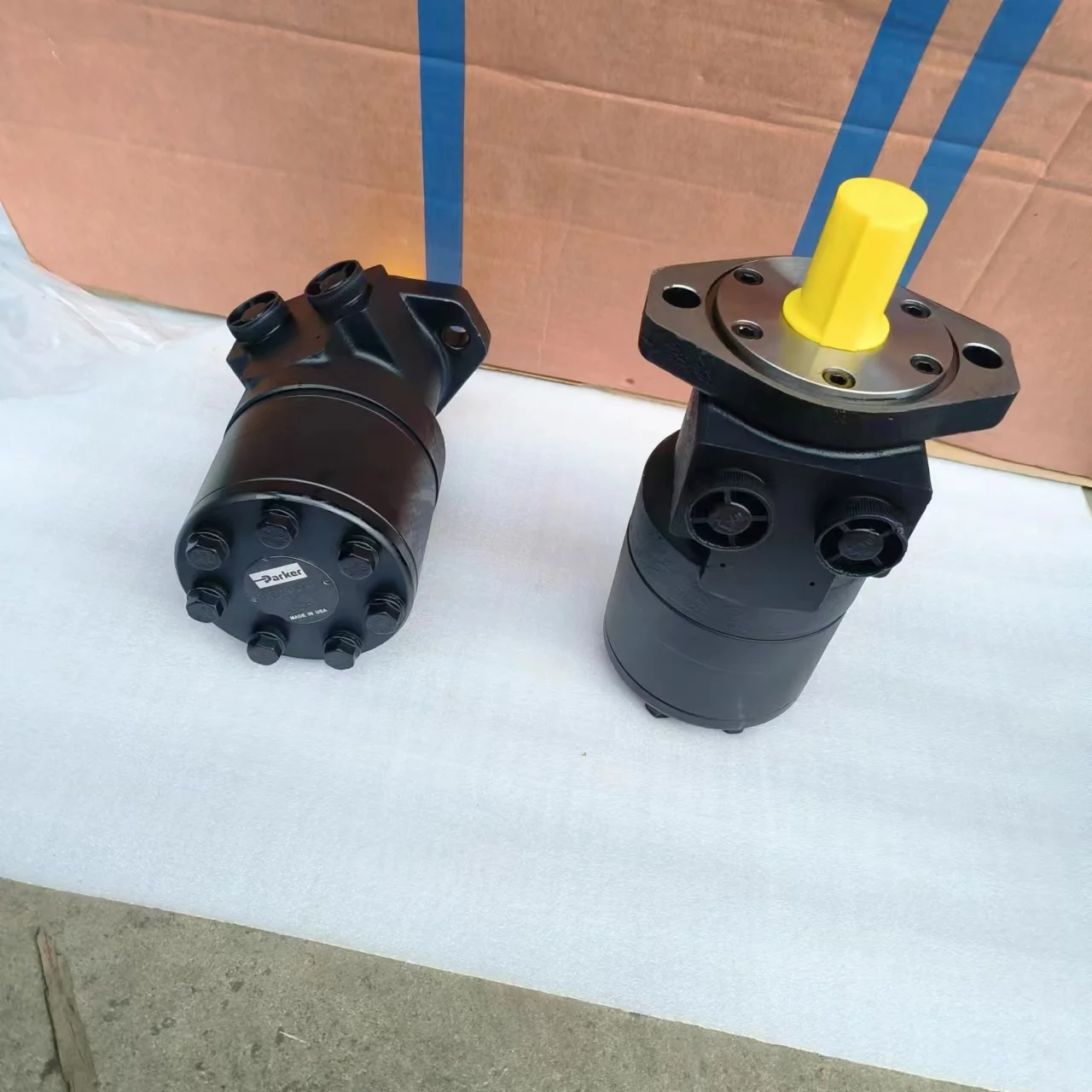

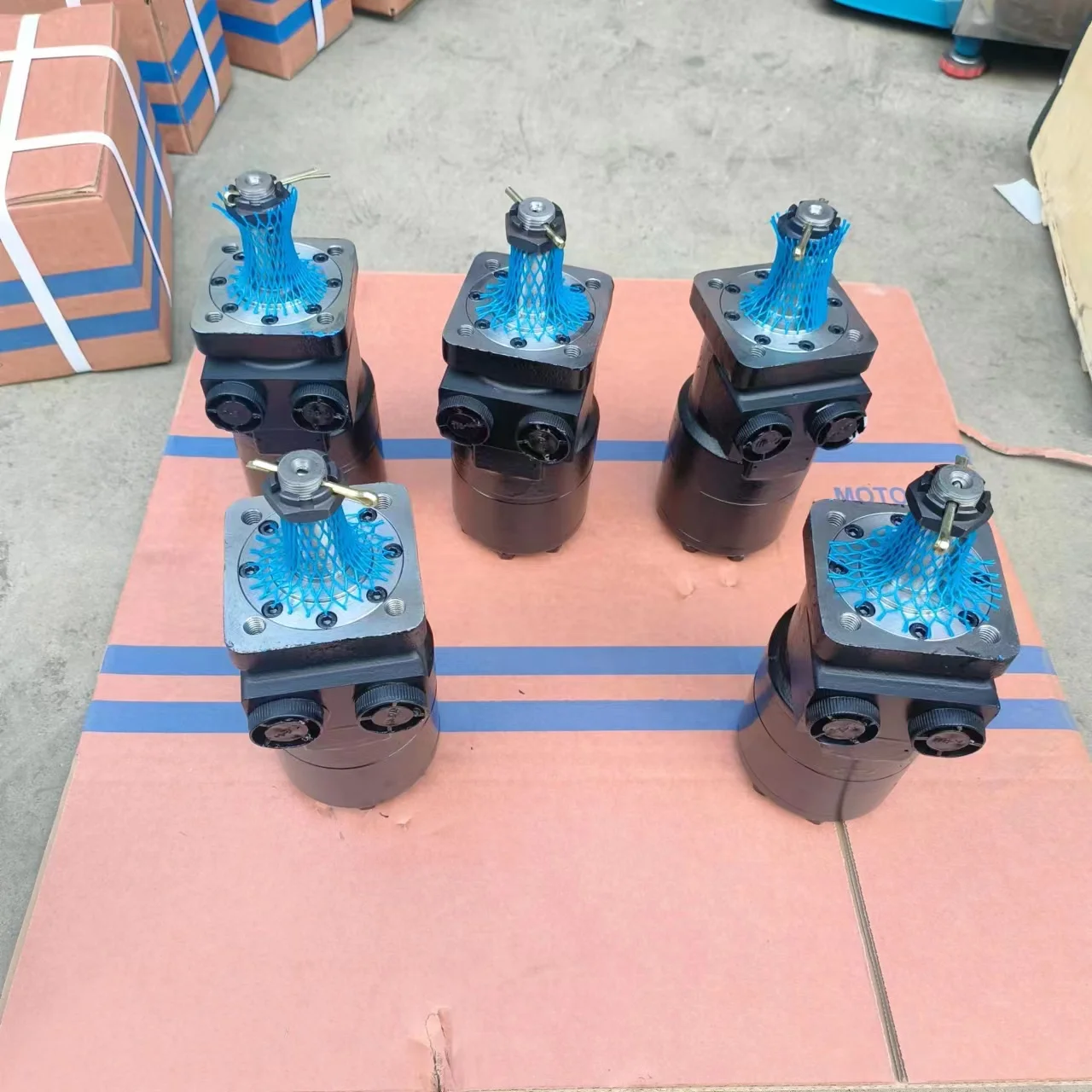

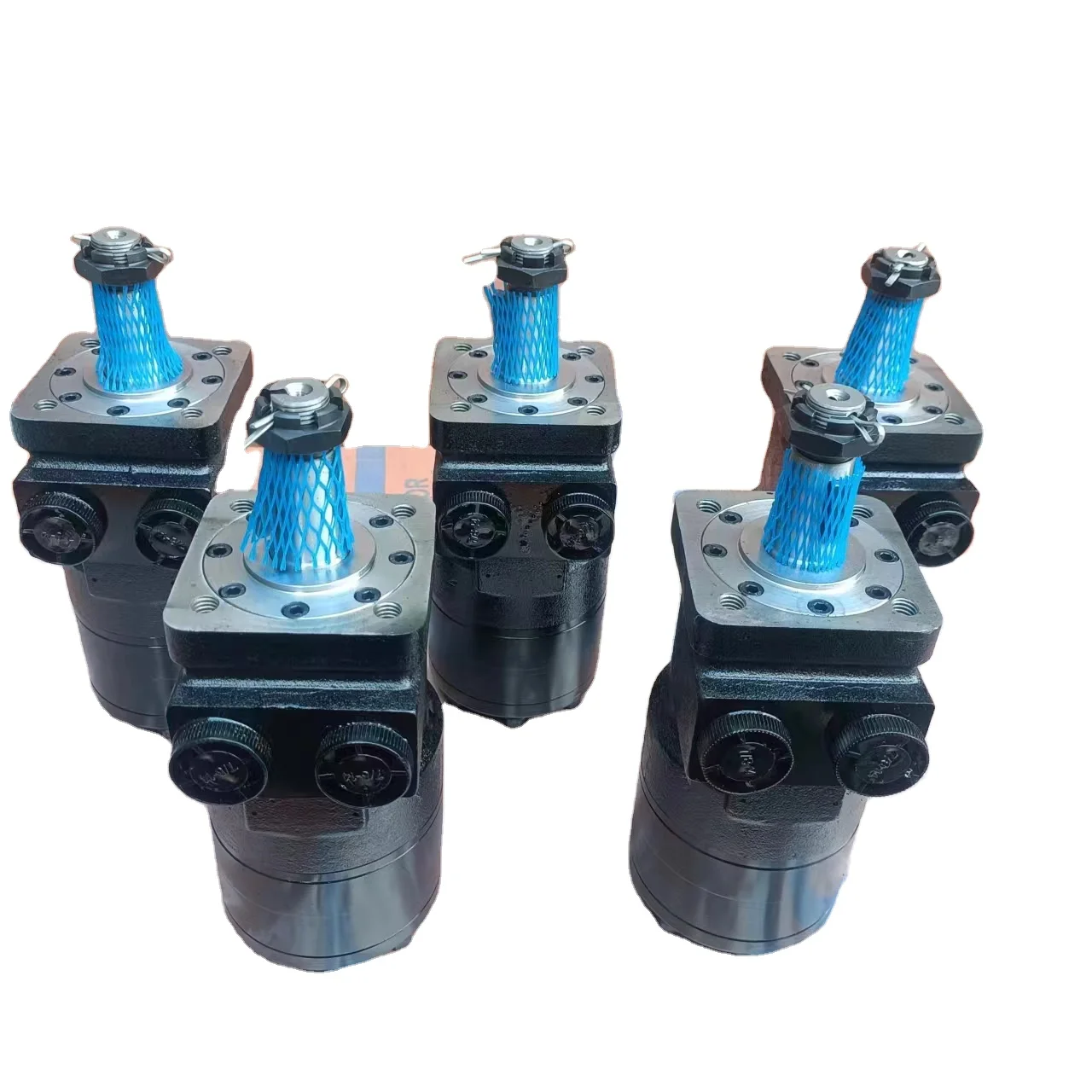

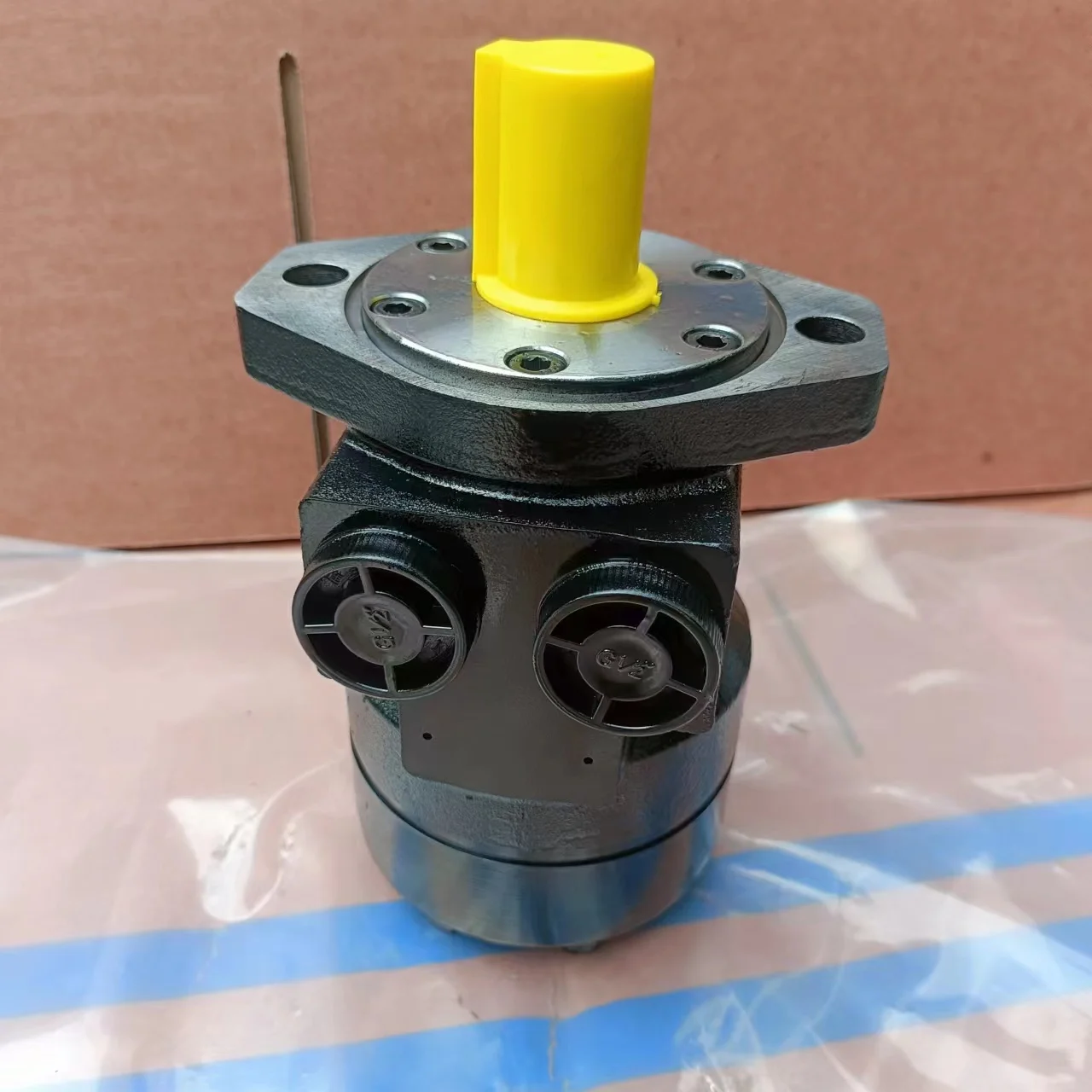

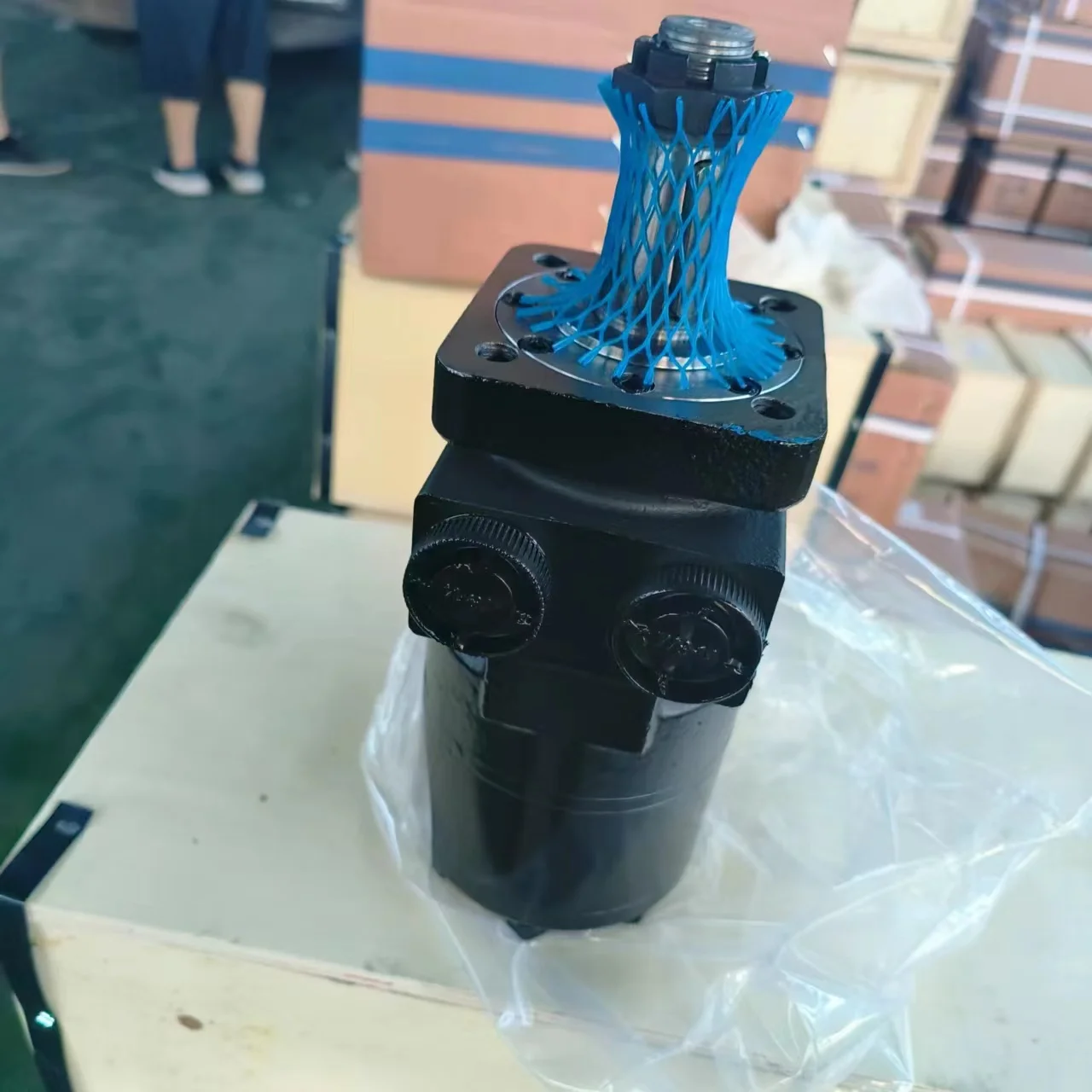

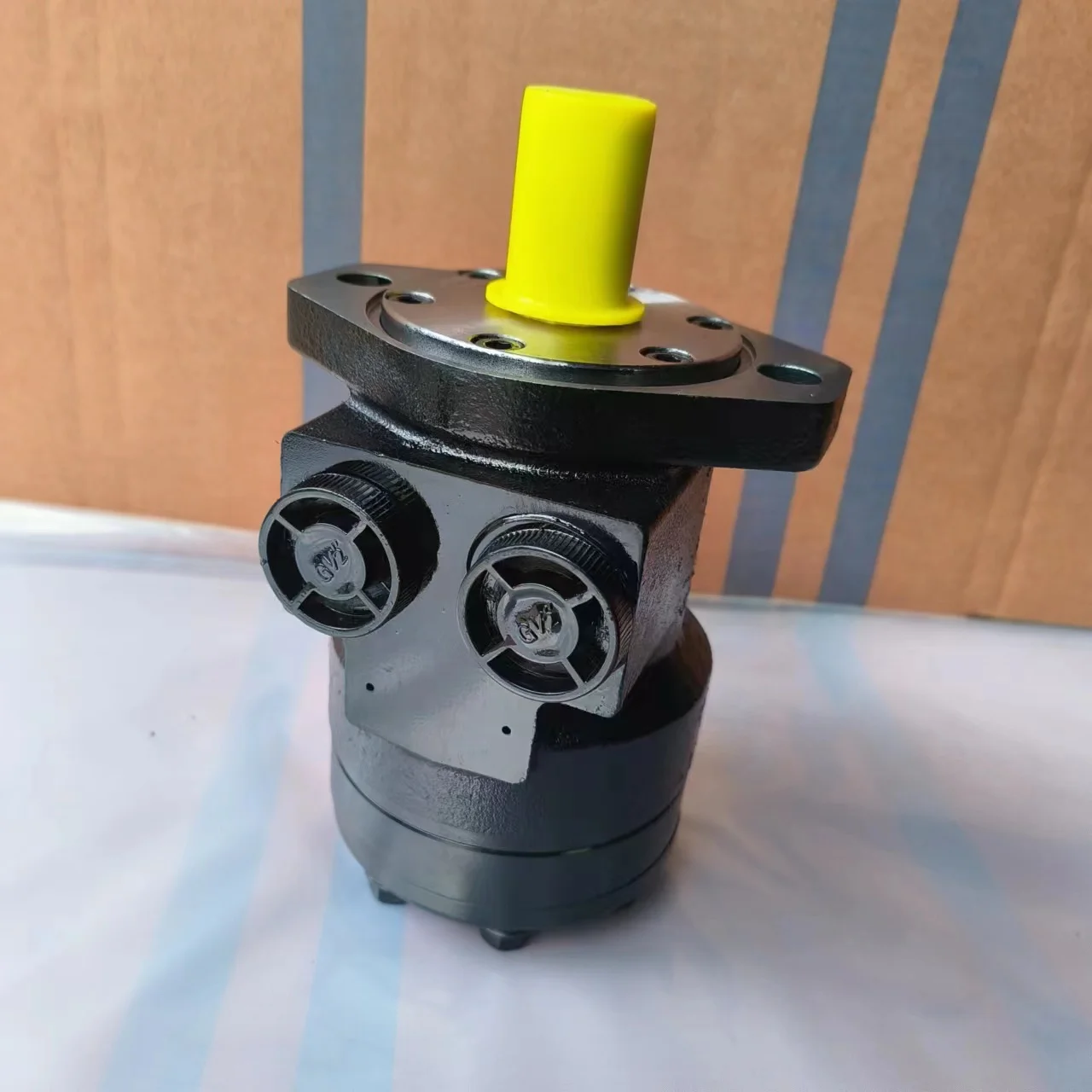

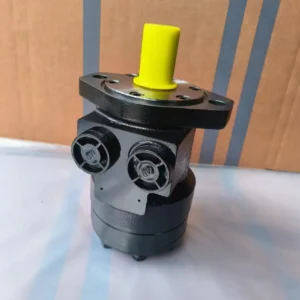

Parker TE0230 & TE0295 High-Performance LSHT Hydraulic Motors

Product Overview: The Parker TE Series (formerly Torqmotor™) is a global benchmark for reliability in heavy-duty orbital hydraulic motors. Engineered as a high-performance Low Speed High Torque (LSHT) unit utilizing advanced Geroler technology, the TE series is specifically designed for applications requiring high startup torque and superior side-load capacity. This page features precision configurations: the specialized TE0230CW260LAAY and the industry-standard TE0295CW260AAAA. Renowned for their robust construction, these motors excel in conveyor drives, sweeper brushes, winch systems, agricultural attachments, and material handling equipment.

Key Technical Advantages:

• Superior Side-Load Capacity: The TE series integrates heavy-duty bearings within its compact housing, allowing it to handle massive radial forces from chain or gear drives directly without external supports.

• Advanced Geroler Technology: The roller-vane design minimizes internal friction, ensuring maximum torque at startup and exceptionally smooth operation at ultra-low speeds with up to 95% mechanical efficiency.

• High-Pressure Shaft Seal: Equipped with high-capacity seals that withstand substantial back pressure, simplifying hydraulic plumbing by eliminating the need for a case drain in most systems.

• Compact Powerhouse: Delivers massive torque output within a minimal axial footprint, ideal for integration into wheel drives or sweeping mechanisms of compact mobile machinery.

• Target Applications: Agricultural seeders, food processing lines, compact winches, sweeper brush rotation, and industrial rotators.

Detailed Models & Parameters:

• Core Series: Parker Hannifin Torqmotor™ TE Series.

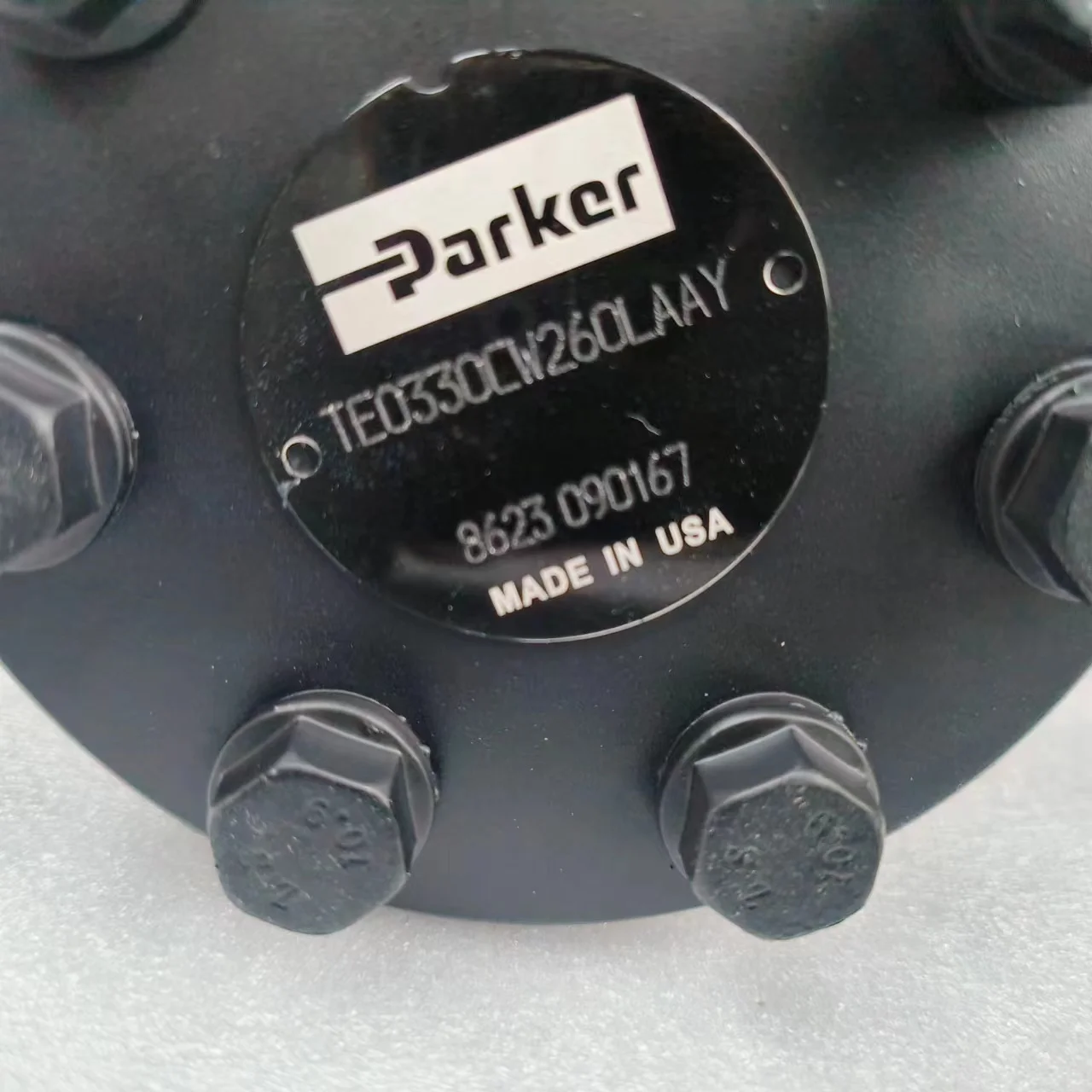

• Model Keywords: TE0230, TE0295, TE0230CW260, TE0295CW260.

• Technical Specs Decoding:

  • TE0230: Approx. 230cc/rev (14.0 in³/rev) displacement, offering a perfect balance between efficiency and torque output.

  • TE0295: Approx. 295cc/rev (18.0 in³/rev) large displacement, providing massive startup traction and low-speed stability.

  • CW260: Denotes specific shaft configurations (e.g., 1-inch 6B Spline or Keyed shaft) and standard mounting flange options.

• Pressure Specs: Continuous operating pressure up to 140 Bar (2000 PSI), with peak capabilities reaching 175 Bar.
