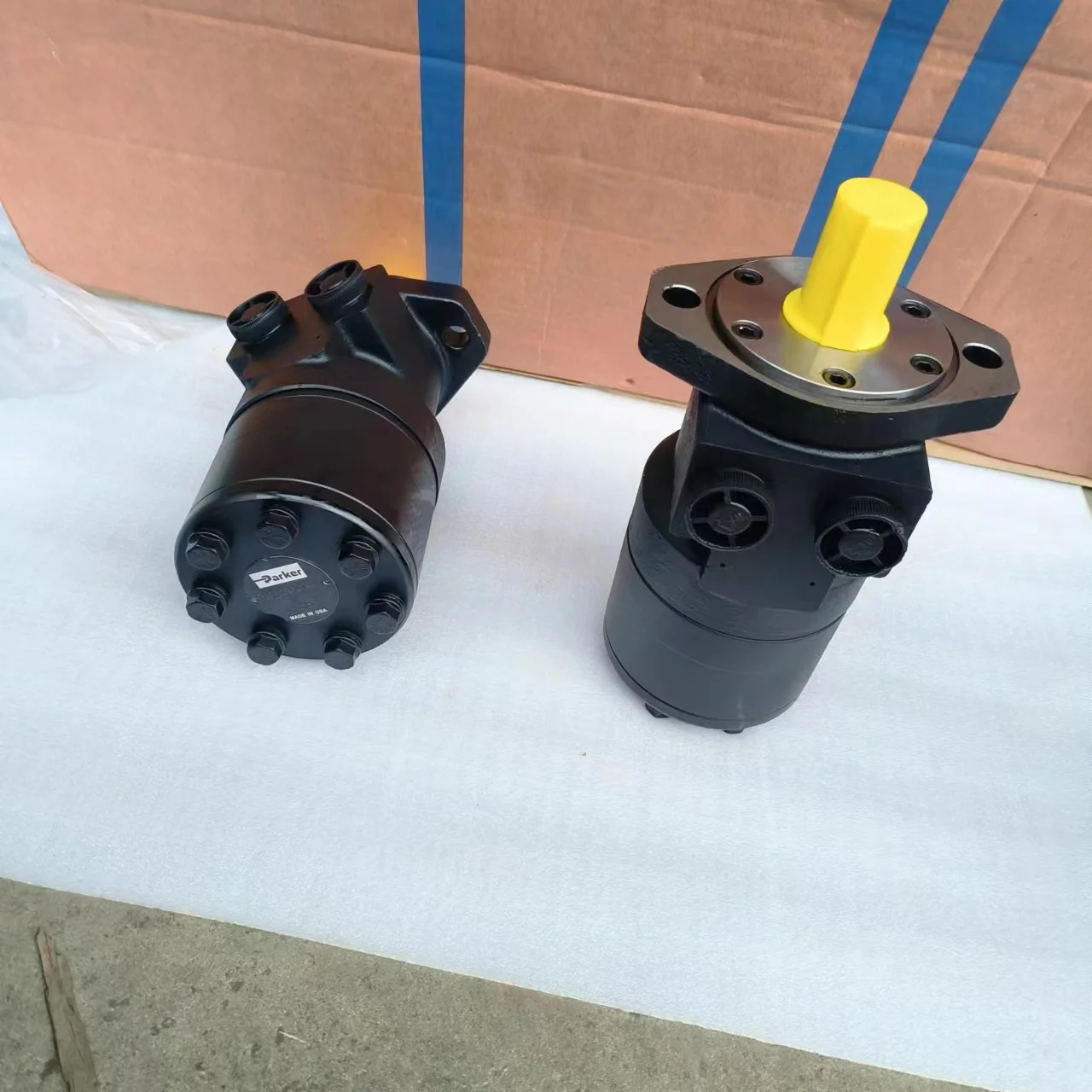

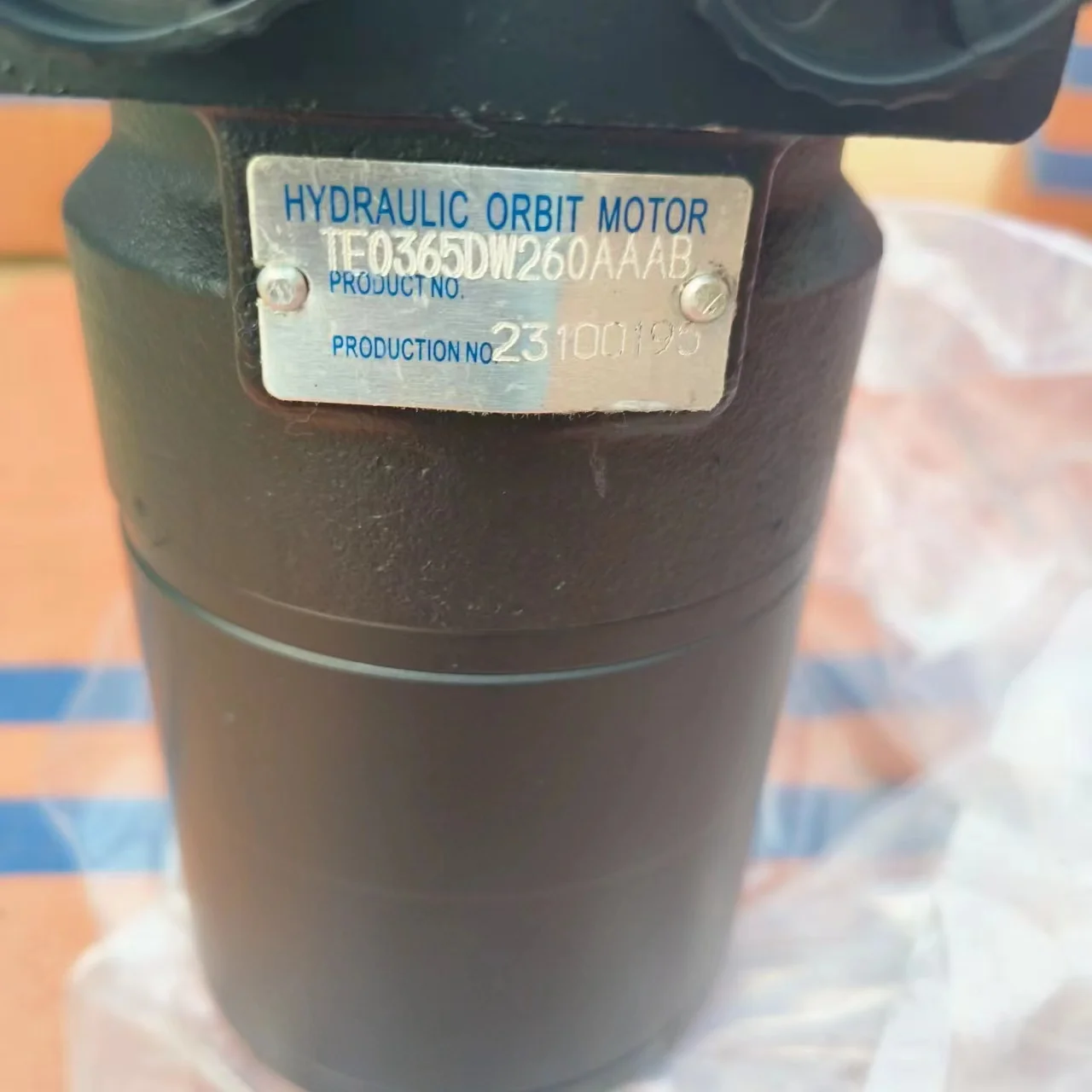

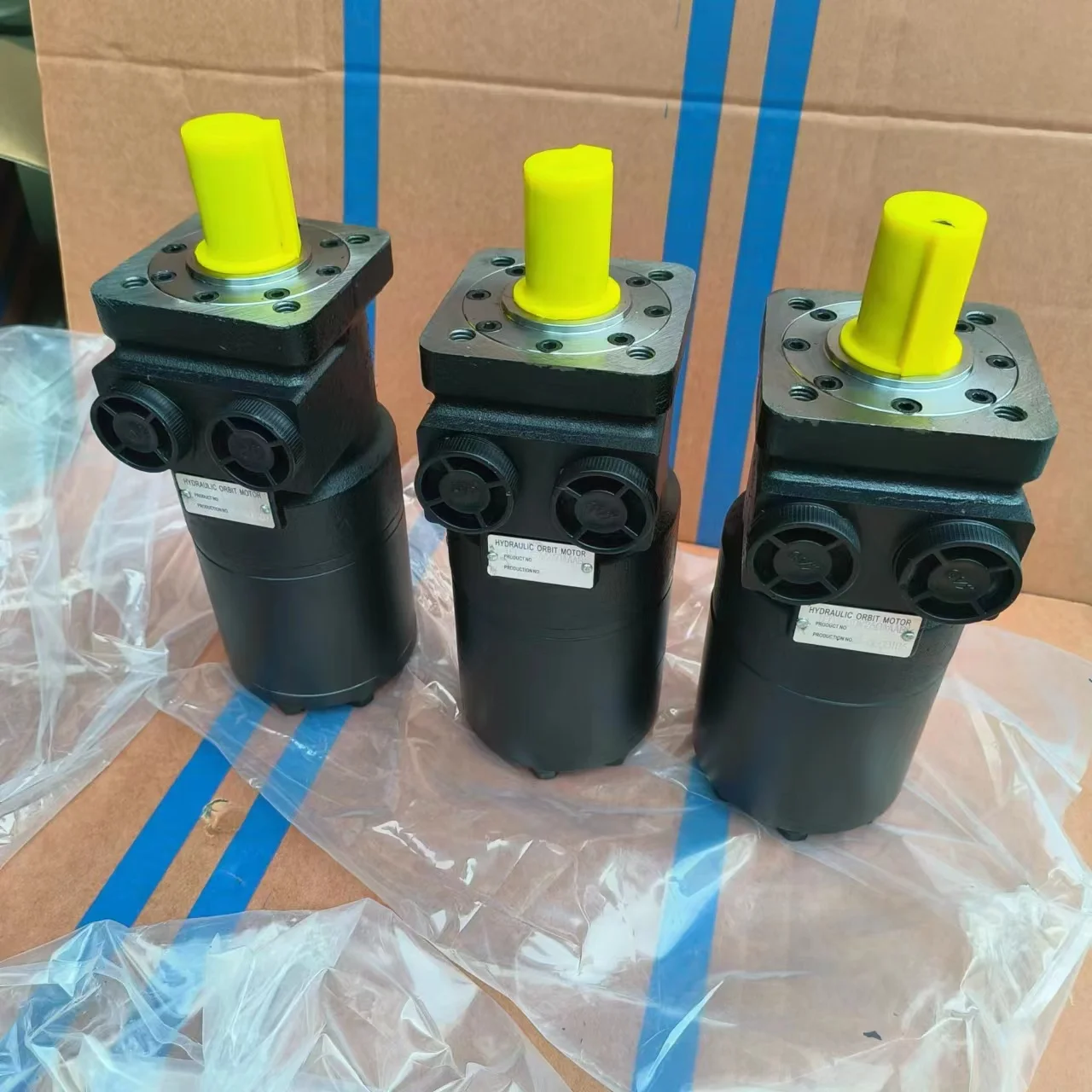

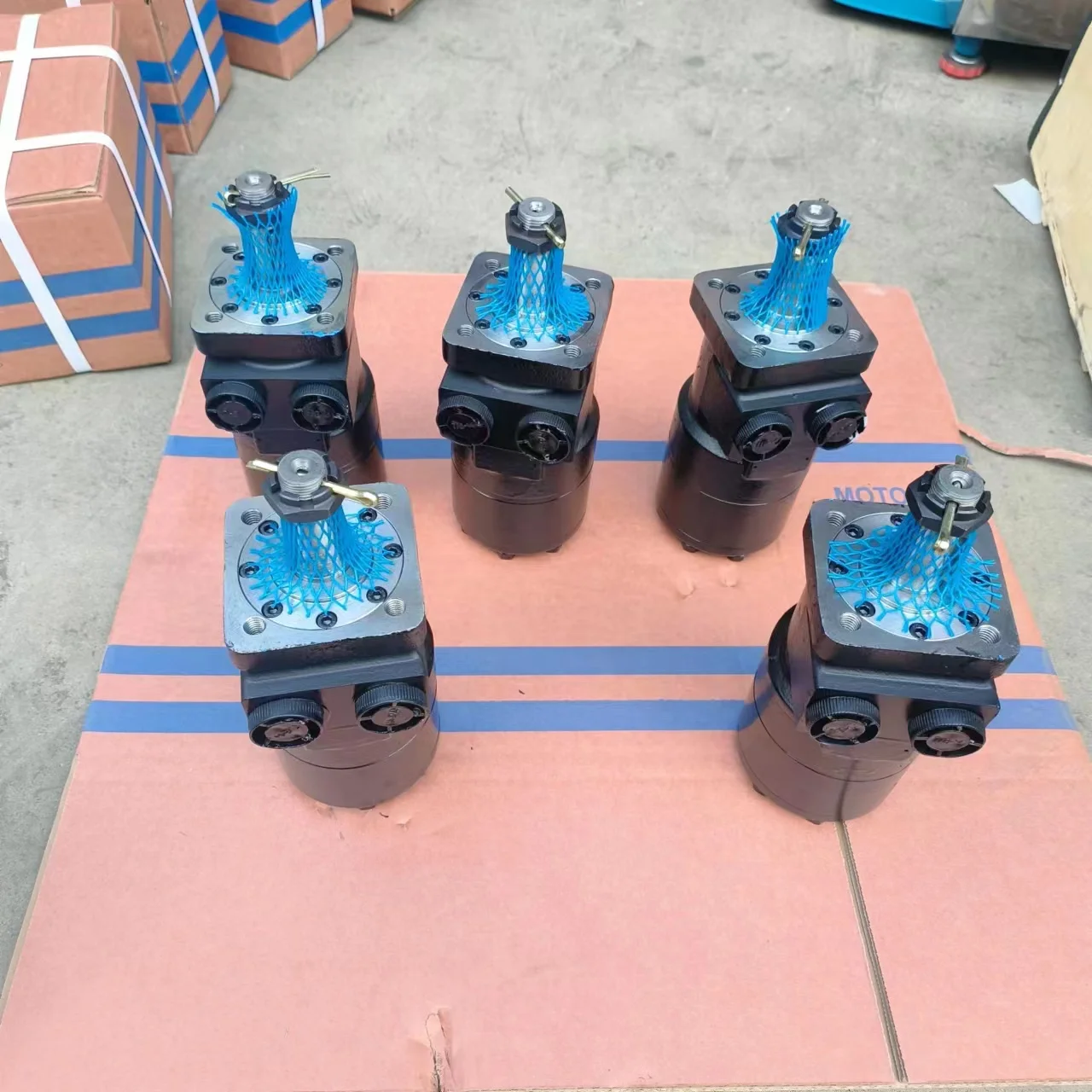

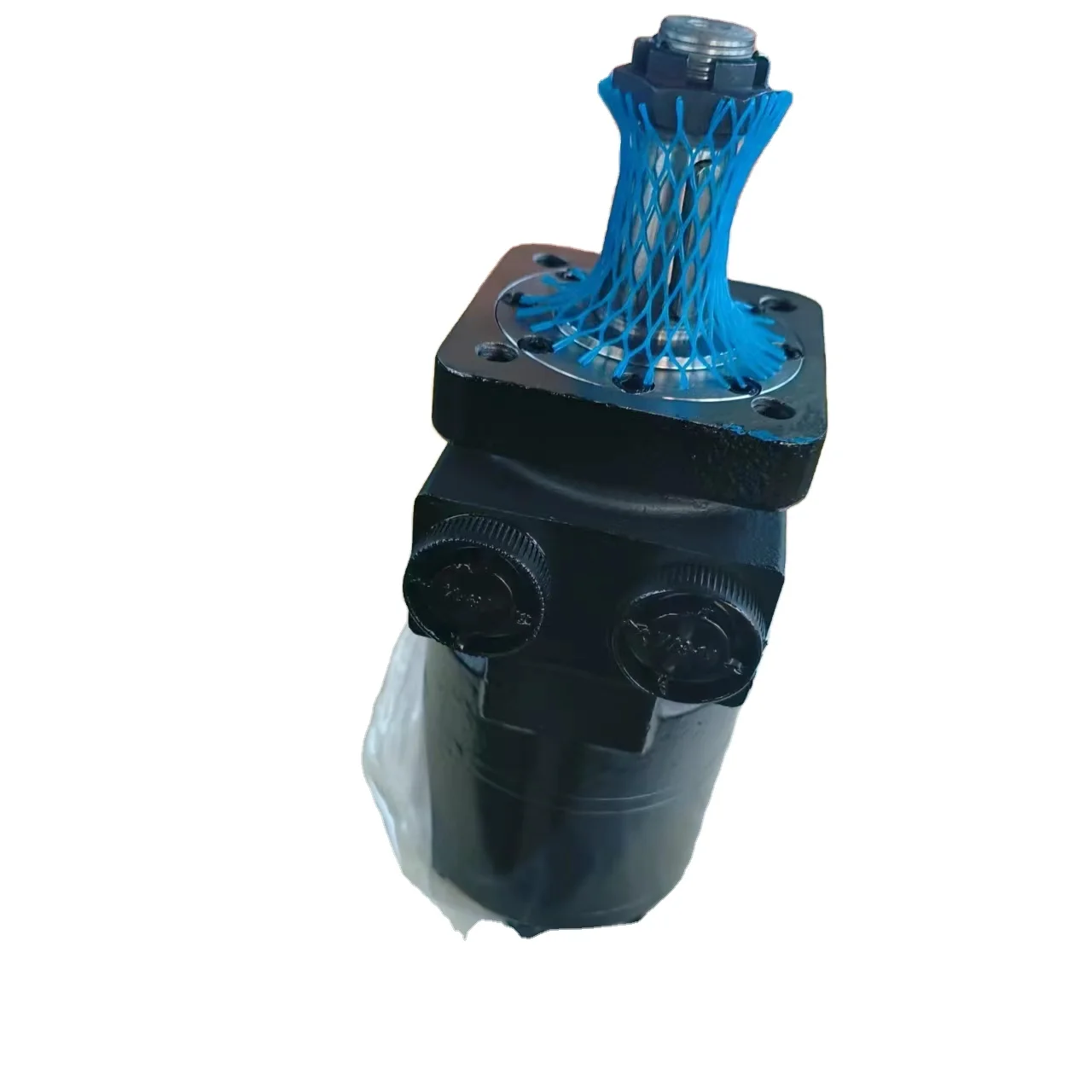

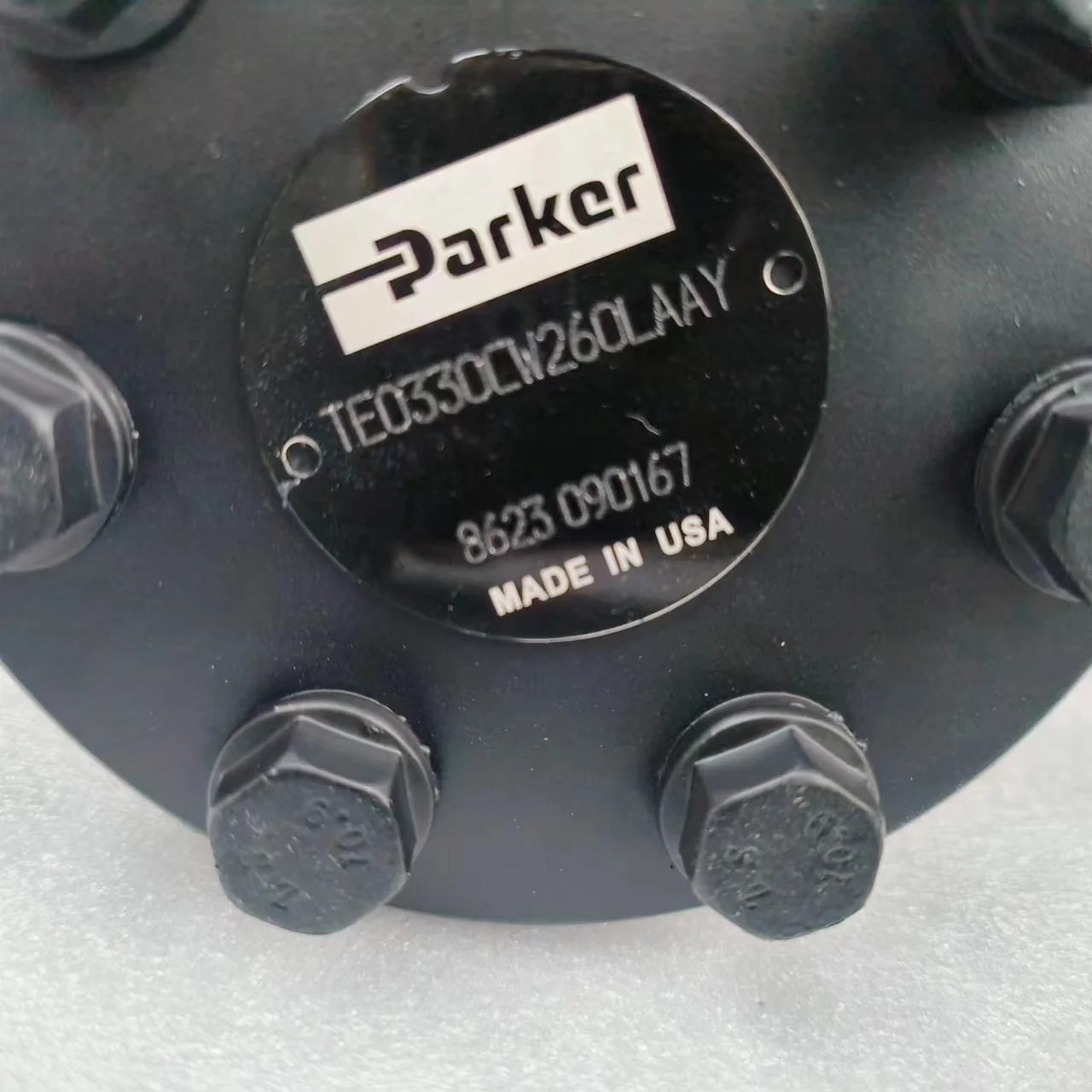

Parker TE0045 TE0365 Motor | TE0045US130BBAE | TE0365MW261AAAB | LSHT Hydraulic Motor

Parker TE Series Low Speed High Torque (LSHT) Hydraulic Motors

Product Overview: The Parker TE Series Torqmotor™ is the industry benchmark for reliability in industrial drives and mobile machinery. As a high-performance Low Speed High Torque (LSHT) orbital hydraulic motor, the TE series is specifically engineered for applications requiring smooth output and superior side-load capacity. This page features precision configurations: the compact TE0045US130BBAE (TE0045 series) and the heavy-duty TE0365MW261AAAB (TE0365 series). Utilizing advanced geroler technology, these motors excel in conveyor drives, sweeper brushes, winch systems, and agricultural attachments.

Key Technical Advantages:

• Superior Side-Load Capacity: Engineered with robust front bearings to handle radial forces from chain or gear drives directly, eliminating the need for external supports.

• Advanced Geroler Technology: Compared to standard gerotor motors, the geroler design significantly reduces internal friction, enhancing startup efficiency and ensuring smooth operation at ultra-low speeds.

• High-Pressure Shaft Seal: Features a high-capacity shaft seal that handles significant back pressure without the need for a case drain line, simplifying hydraulic plumbing.

• Durability & Resilience: The precision-machined cast iron housing is built for the long haul, maintaining performance in outdoor, humid, or dusty environments.

• Target Applications: Food processing conveyors, sweeper brush rotation, compact drilling heads, and agricultural seeders.

Detailed Models & Parameters:

• Core Series: Parker Hannifin Torqmotor™ TE Series.

• Model Keywords: TE0045, TE0365, TE0045US130, TE0365MW261.

• Technical Specs Decoding:

  • TE0045 Series: Approx. 45cc/rev displacement, optimized for higher speeds and auxiliary drive requirements.

  • TE0365 Series: Approx. 365cc/rev large displacement, delivering massive startup torque and continuous power.

  • MW261 / US130: Denotes specific shaft configurations (e.g., 1-inch 6B Spline or Keyed) and mounting flange standards (e.g., SAE A 2-bolt or 4-bolt).

• Pressure Specs: Continuous operating pressure up to 140 Bar (2000 PSI), with peak capabilities reaching 175 Bar.
