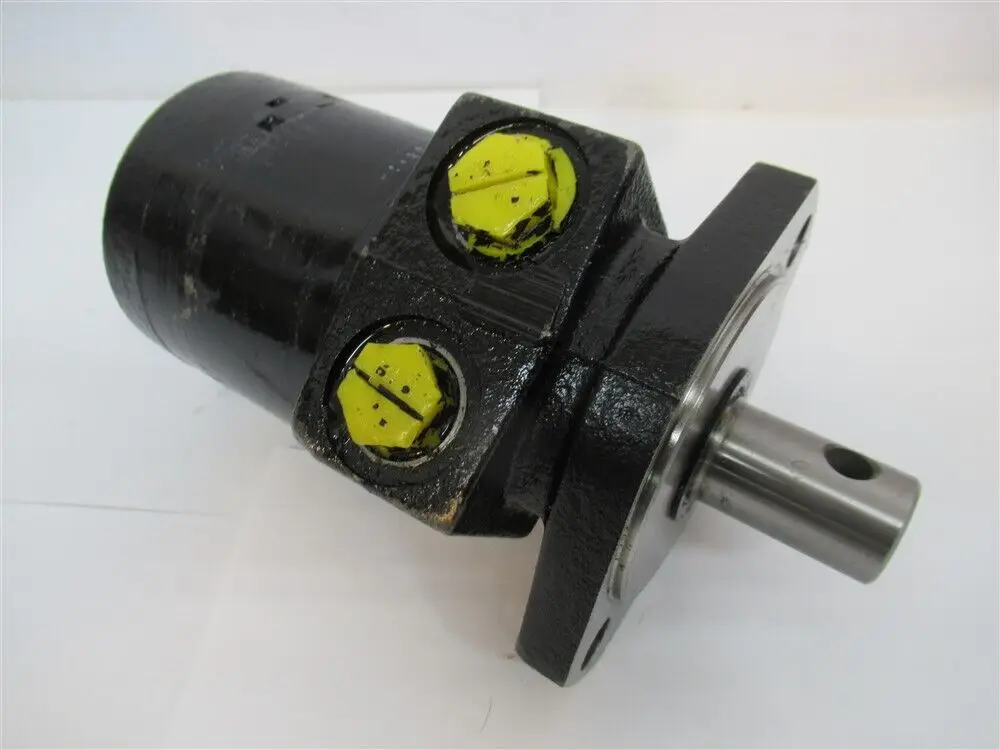

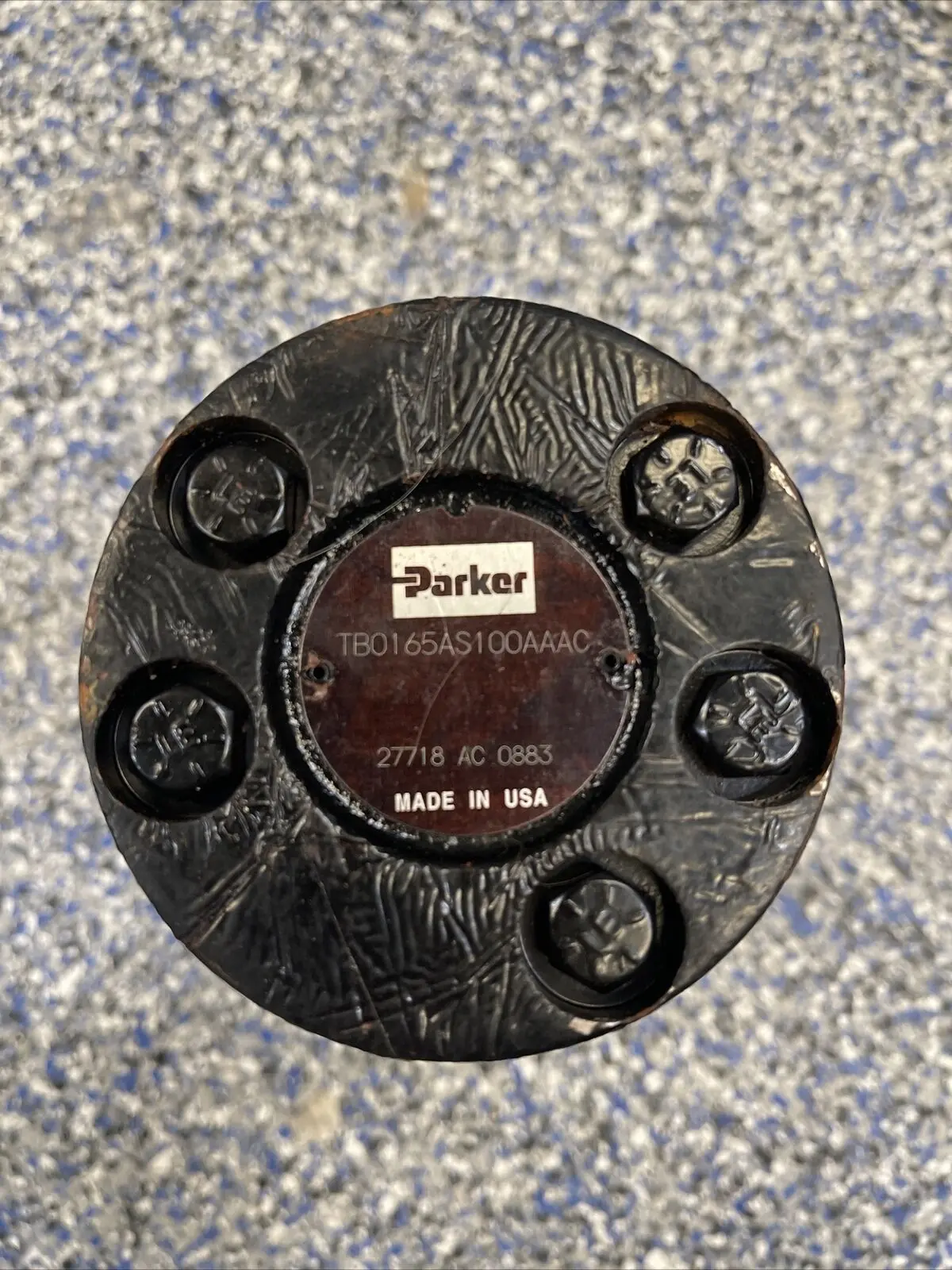

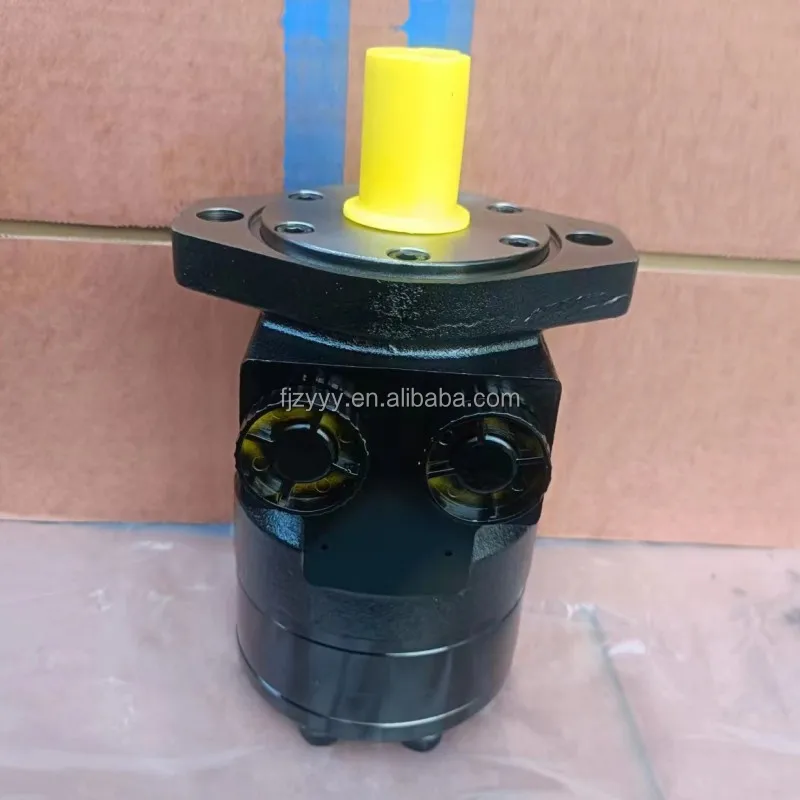

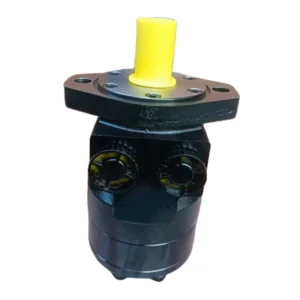

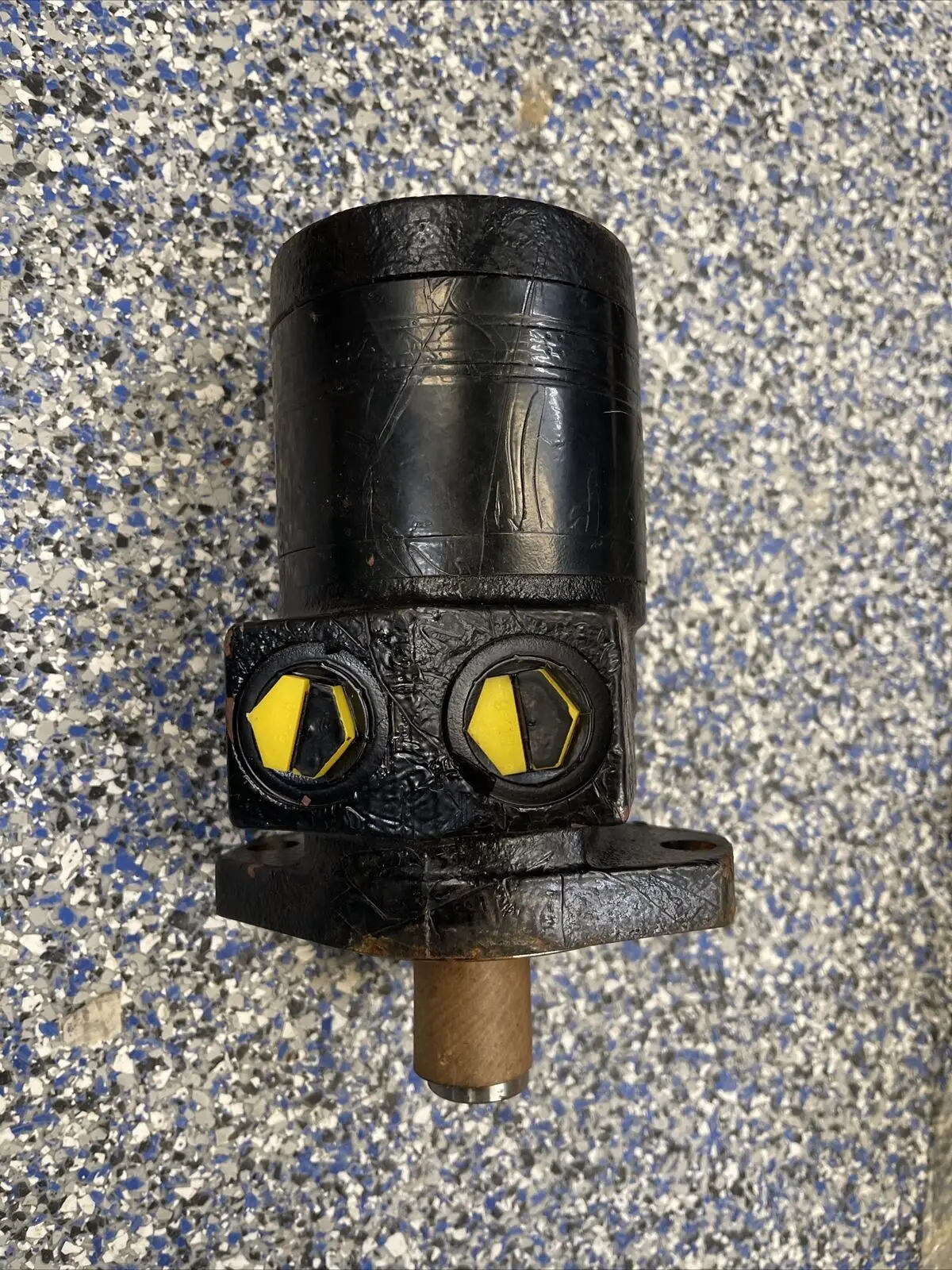

Parker TB Series Compact LSHT Hydraulic Orbit Motors

Product Overview: The Parker TB Series represents the industry benchmark for combining compactness with rugged durability in the orbital motor market. This category focuses on cornerstone configurations: TB0165AW260AAAA, TB0165AS090AAAA, TB0165AS220AAAA, and TB0230AS100AAAB. Utilizing advanced Spool Valve design paired with Parker’s patented Roller Vane technology, these motors are engineered to deliver stable, high-efficiency power within an extremely small footprint. They are the premier choice for conveyor drives, food processing machinery, light sweeper brush drives, and auxiliary hydraulic systems.

Key Technical Advantages:

• Ultra-Compact Envelope: The TB series features a minimal axial and radial profile, allowing engineers to deploy robust hydraulic power in environments where mounting space is severely restricted.

• High-Pressure Shaft Sealing: Premium seals handle significant system back-pressure with ease, eliminating the need for external case drains in most applications and simplifying plumbing.

• Roller Vane Efficiency: The roller-supported rotor set reduces internal friction and lowers breakout pressure, ensuring smooth low-speed operation and superior mechanical efficiency.

• Technical Decoding:

  • TB0165 Series: The popular 165cc displacement frame, offering versatile combinations of shafts (e.g., 1″ Keyed, Splined) and mounting flanges.

  • TB0230 Series: Provides increased torque output while maintaining a compact size, tailored for heavier light-duty driving tasks.

Detailed Specifications & Parameters:

• Core Series: Parker Hannifin TB Series (Spool Valve)

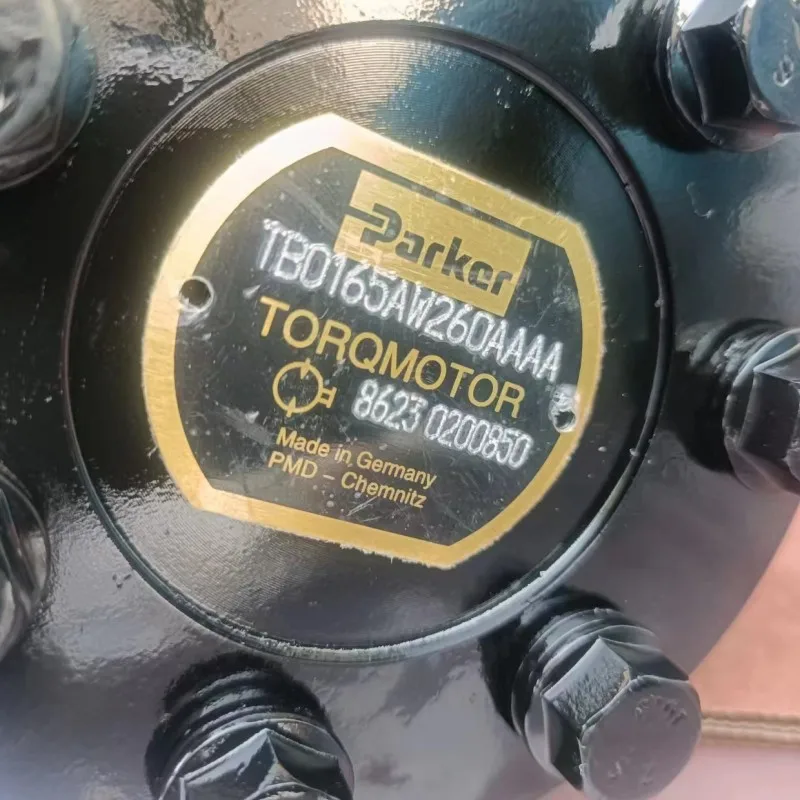

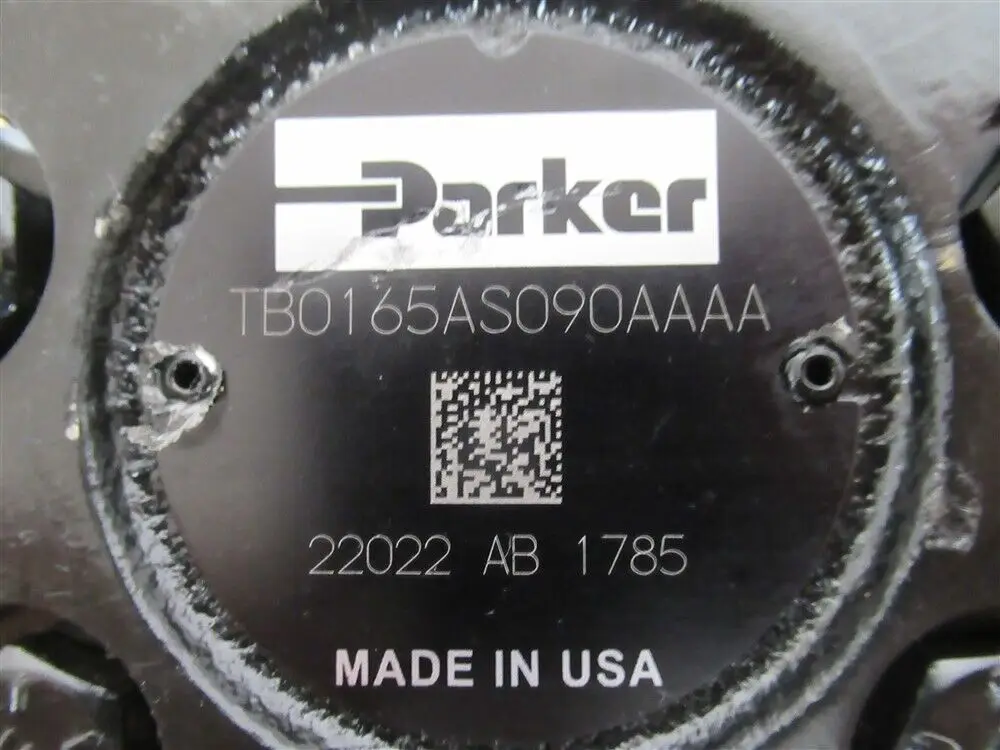

• Featured Model Matrix: TB0165AW260AAAA, TB0165AS090AAAA, TB0165AS220AAAA, TB0230AS100AAAB

• Core Performance Specs:

  • Displacement Range: 36 cc/rev to 390 cc/rev (2.2 – 24.0 cu in/rev)

  • Rated Pressure: Continuous up to 125 Bar (1800 PSI); Intermittent peaks up to 165 Bar (2400 PSI)

  • Torque Capability: Continuous torque ranging from 50 Nm up to 450 Nm

  • Flow Capacity: Supports continuous flow inputs of 55-75 L/min (15-20 GPM)

  • Mounting Standards: Standard 2-Bolt SAE A or 4-Bolt Square flanges with 1″ Keyed, Splined, or Tapered shaft options
