Parker TE & TF Series Low Speed High Torque (LSHT) Hydraulic Motors

Product Overview: The Parker TE & TF Series represents the gold standard for hydraulic power in industrial and mobile machinery. This category highlights the essential models: TF0170ZS060EEE, TE0045AM100AAAA, and the reinforced TF0170HW410BBBN. While the TE series is renowned for its compact spool valve design and self-lubricating capabilities, the TF series is engineered for severe-duty applications. Utilizing advanced Roller Stator technology and robust bearing support, the TF motors handle intense radial loads and high-pressure spikes with ease. They are the premier choice for conveyor drives, harvesters, winches, tillers, and various municipal utility vehicles.

Key Technical Advantages:

• Roller Stator Technology: The TF series features roller contacts that significantly reduce friction and enhance mechanical efficiency, providing exceptionally smooth torque even at minimal RPMs.

• Superior Radial Load Capacity: Equipped with oversized tapered roller bearings, the TF series allows for direct mounting of gears or sprockets, eliminating the need for external bearing supports.

• High-Pressure Shaft Seals: Designed to handle high back-pressures, these seals often eliminate the need for a case drain line in most applications, simplifying system plumbing.

• LSHT Optimization: Optimized for Low Speed High Torque (LSHT) performance, ensuring pulse-free operation during startup and low-speed creeping.

• Technical Spec Decoding:

  • TE Series: Compact, efficient spool valve motor.

  • TF Series: Heavy-duty disc valve motor with reinforced internals.

  • 0045 / 0170: Displacement identifiers (cc/rev).

  • ZS / AM / HW: Relates to flange specifications, shaft configurations, and specialized seal options.

Detailed Models & Specifications:

• Core Series: Parker / Ross TE & TF Series Orbital Motor.

• Featured Model Matrix:

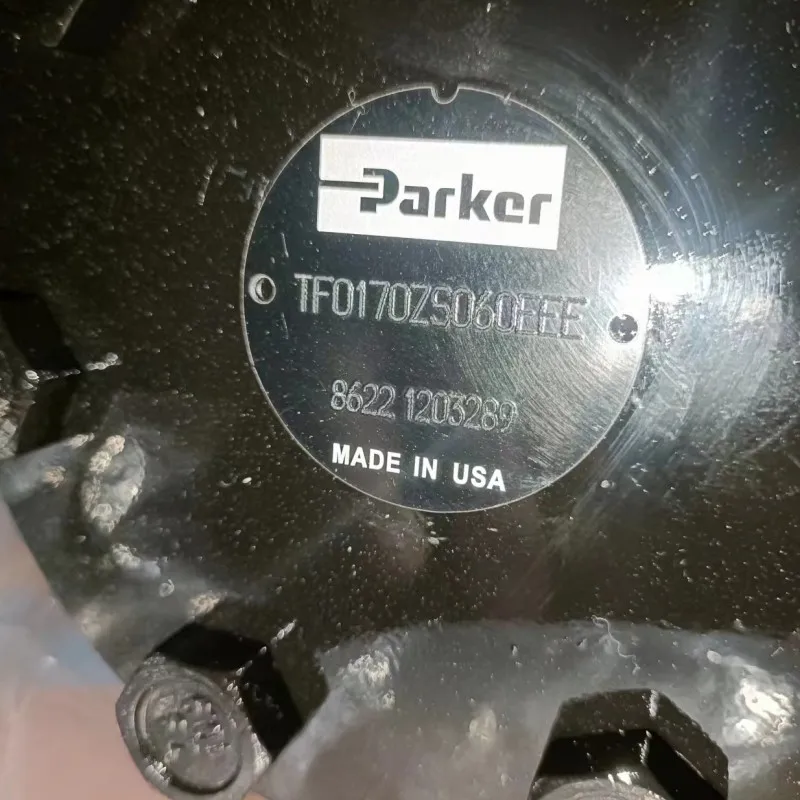

  • TF0170ZS060EEE: Standard heavy-duty TF specification for high-intensity industrial drives.

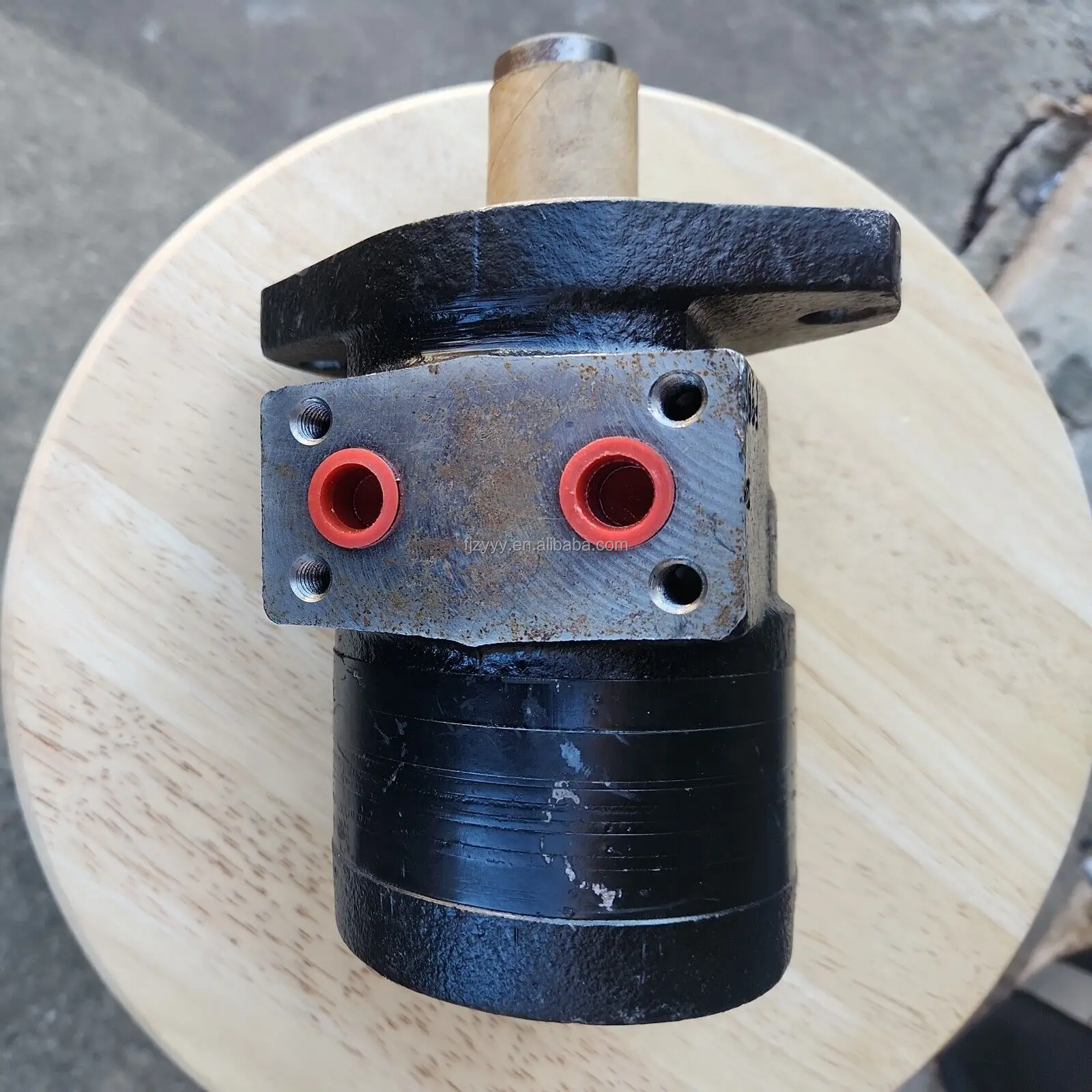

  • TE0045AM100AAAA: Compact TE frame for high-speed, high-efficiency tasks.

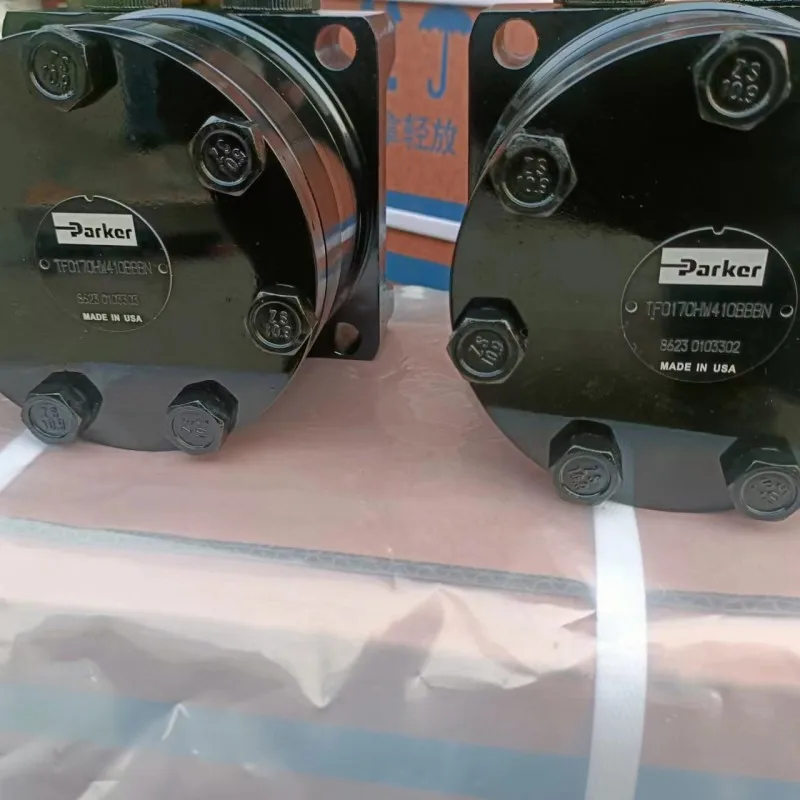

  • TF0170HW410BBBN: Specialized version with reinforced seals or coatings for harsh environments.

• Core Performance Specs:

  • Rated Pressure: Continuous up to 140 – 200 Bar (3000 PSI).

  • Torque Output: Capable of delivering 400 – 900 Nm (displacement dependent).

  • Mounting Standards: Fully compliant with SAE 2-Bolt standard interfaces.
