Parker RC Motor | 530470T3831AAAAA 530200T3831AAALP | Heavy Duty Hydraulic Motor

Parker RC Series Heavy-Duty High Torque Orbit Hydraulic Motors

Product Overview: The Parker RC Series is a heavy-duty orbital motor specifically engineered for extreme operating conditions, offering superior power density and exceptional lateral load resistance. This category highlights essential RC models: 530470T3831AAAAA, 530200T3831AAALP, 530470T3531AAALP, and 530470T3531BAAAA. Utilizing advanced Geroler® technology, RC motors minimize internal friction while ensuring smooth, high-efficiency power delivery even at low speeds and high pressures. They are the premier choice for combine harvester drives, large street sweepers, skid steer loaders, municipal utility equipment, and heavy-duty winches.

Key Technical Advantages:

• Reinforced Torque Link Design: The internal drive link is specially hardened to withstand massive torque fluctuations and frequent reversing, significantly extending fatigue life.

• Superior Radial Load Capacity: Equipped with oversized tapered roller bearings, the RC series allows for direct mounting of sprockets or wheels—eliminating the need for external bearing supports.

• High-Pressure Sealing System: Proprietary shaft seals support high back-pressure operation, often removing the requirement for a case drain line and reducing system integration costs.

• Precision Commutation: Optimized valve plate design provides excellent stability at ultra-low speeds (LSHT characteristics), effectively eliminating “cogging” or instability.

• Technical Spec Decoding:

  • 530200 / 530470: Displacement identifiers (e.g., 200cc, 470cc).

  • T3831 / T3531: Relates to flange specifications (e.g., 4-Bolt Magneto or SAE), shaft types (Keyed or Splined), and port configurations.

  • AAALP / BAAAA: Denotes specific seal compounds, coatings, or specialized industrial sequences.

Detailed Models & Specifications:

• Core Series: Parker RC Series (High Torque Orbit Motor).

• Featured Model Matrix:

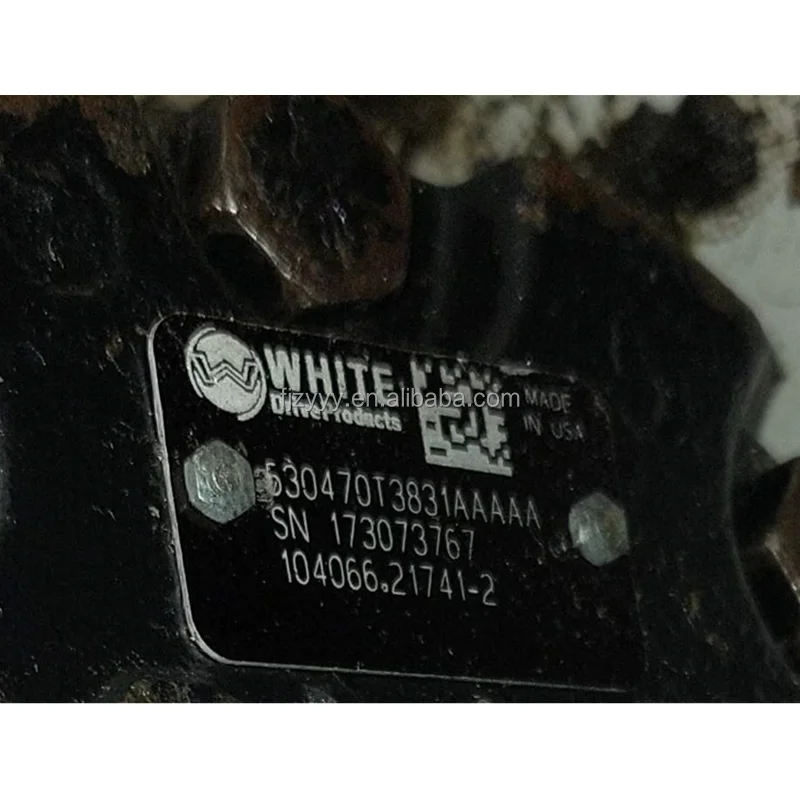

  • 530470T3831AAAAA: 470cc high-displacement frame for maximum torque requirements.

  • 530200T3831AAALP: 200cc frame, balancing speed and high-power delivery.

  • 530470T3531AAALP / 530470T3531BAAAA: Versatile mounting interfaces for diverse OEM machinery.

• Core Performance Specs:

  • Rated Pressure: Continuous up to 200-240 Bar (3000-3500 PSI).

  • Peak Torque: Capable of exceeding 1200 Nm (displacement dependent).

  • Mounting Standard: Fully compliant with standard industrial flange specifications.
