Parker PV Series Pump | PV063, PV092, PV140, PV180, PV360 | Axial Piston Variable Pump

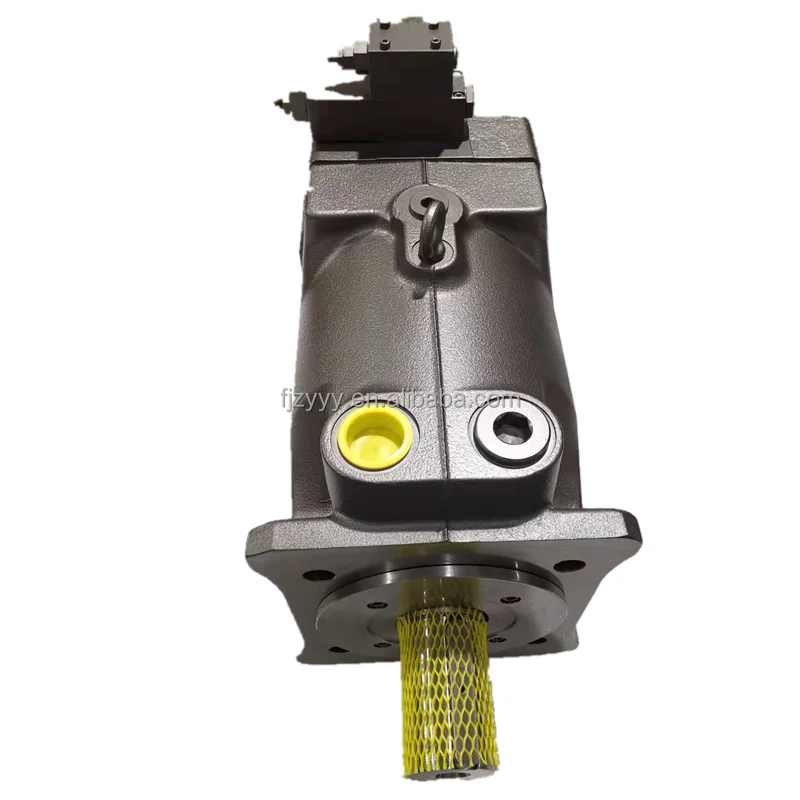

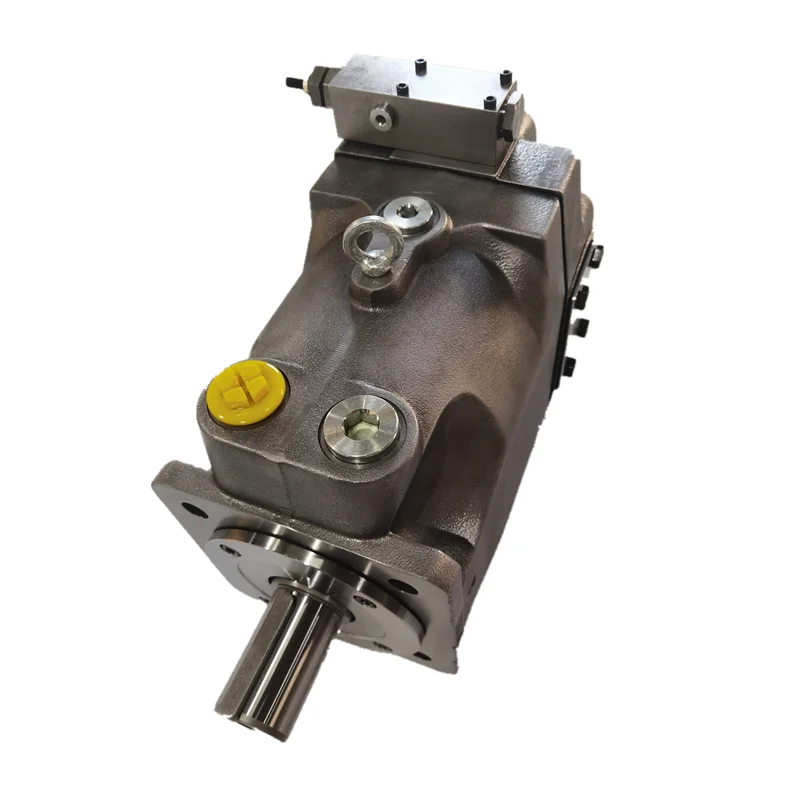

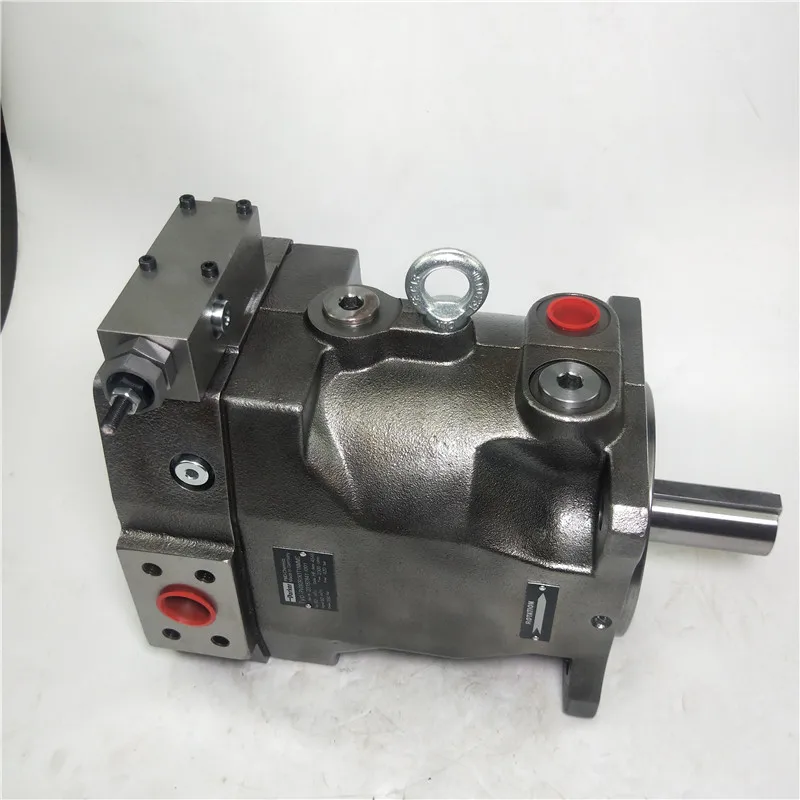

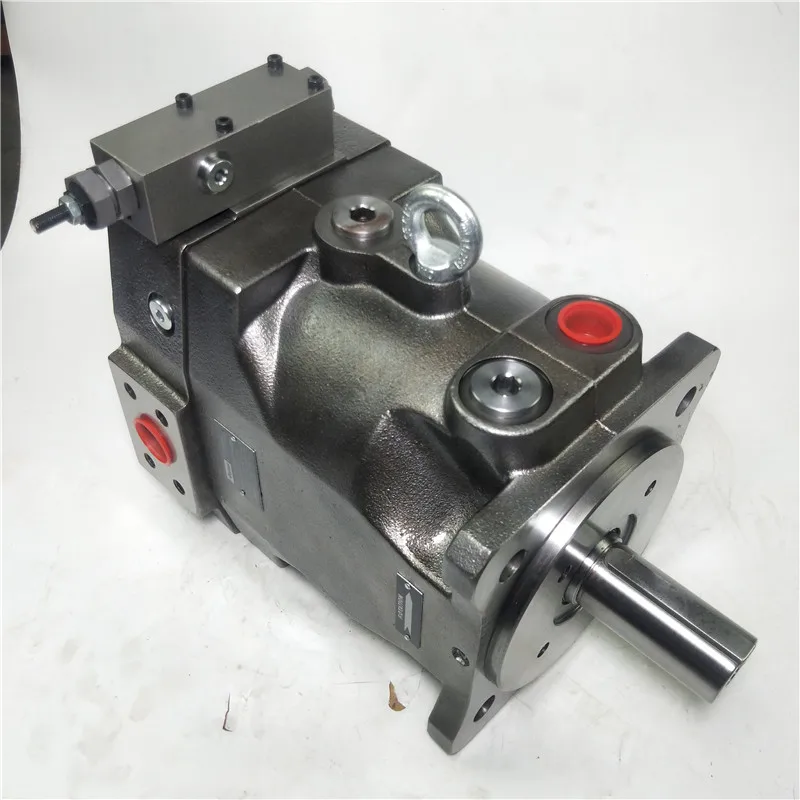

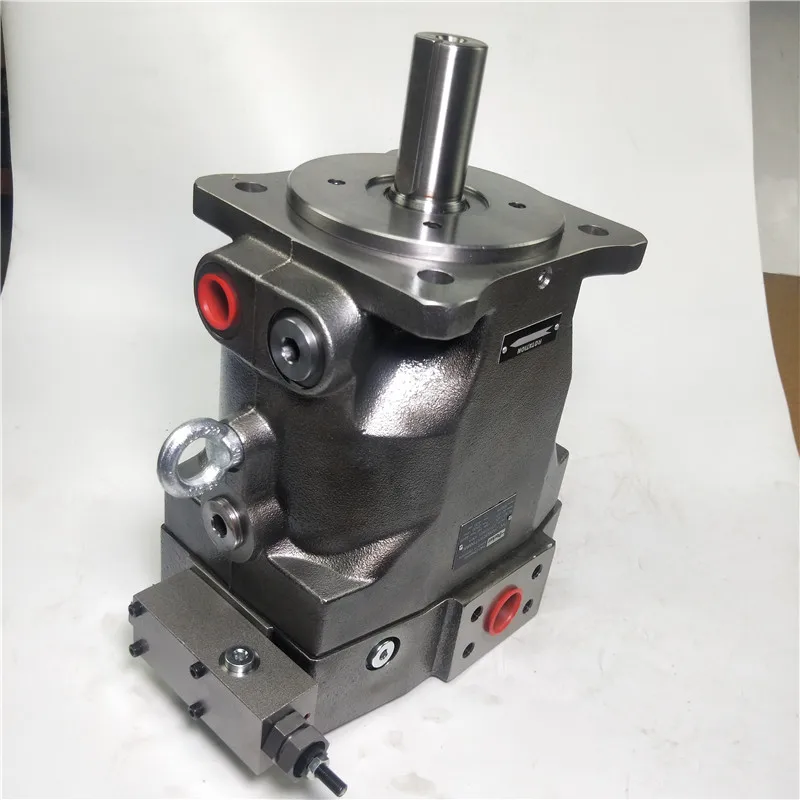

Parker PV Series High-Pressure Industrial Axial Piston Variable Pump

Product Overview: The Parker PV series is a global benchmark for high-performance industrial hydraulics. Engineered for extreme durability and precision, this series spans a versatile displacement range from the compact 20cc (PV020) to the massive 360cc (PV360) configurations. Featured models like the PV140R1K1T1NMRC and PV092R1K1T1NMRC are specifically designed to meet the most rigorous continuous-duty industrial requirements. Utilizing advanced compensator technology (such as the 1K1T pressure control), the PV series delivers exceptionally smooth and precise power output at continuous pressures up to 350 Bar, making it the premier choice for injection molding machines, metal forming presses, and heavy-duty Hydraulic Power Units (HPU).

Key Technical Advantages:

• Superior Energy Efficiency (-1K1T): Integrated with high-sensitivity pressure compensators and remote control options. The pump automatically adjusts to minimum displacement once the target pressure is reached, drastically reducing energy waste and heat generation.

• Industry-Leading Quiet Operation: Features patented valve plate damping technology that maintains ultra-low noise levels even under high-pressure conditions, enhancing the factory workspace environment.

• Ultra-High Pressure Reliability: Rated for continuous operation at 350 Bar (5075 PSI) with peak capabilities reaching 420 Bar. Equipped with heavy-duty bearings and cavitation-resistant swashplates for high reliability under peak load cycles.

• Rapid Dynamic Response: The modular compensator design allows for swift transitions between pressure and flow, meeting the strict cycle time requirements of machine tools and automated production lines.

• Precision OEM Compatibility:

  • PV020R1K1T1NMMC / PV040R1K1T1NMMC: Manufactured to exact SAE and industrial standards for flanges and shafts, ensuring seamless “plug-and-play” replacement in mainstream industrial systems.

Detailed Models & Parameters:

• Core Series: Parker PV Series.

• Representative Models: PV063, PV080, PV092, PV140, PV180, PV360.

• Specific Configuration Codes: PV020R1K1T1NMMC, PV040R1K1T1NMMC, PV140R1K1T1NMRC, PV092R1K1T1NMRC.

• Displacements: 20, 40, 63, 80, 92, 140, 180, 360 cm³/rev.

• Pressure Ratings: Rated at 350 Bar (5075 PSI); Peak cycles up to 420 Bar (6090 PSI).

• Applications: Industrial Presses, Die-Casting Machinery, Metal-Cutting Machine Tools, Marine Engineering, and Large Scale HPUs.
