Parker PV Series Pump | PV016, PV140, PV270 | Axial Piston Variable Pump | PV140R1K1T1NMMC

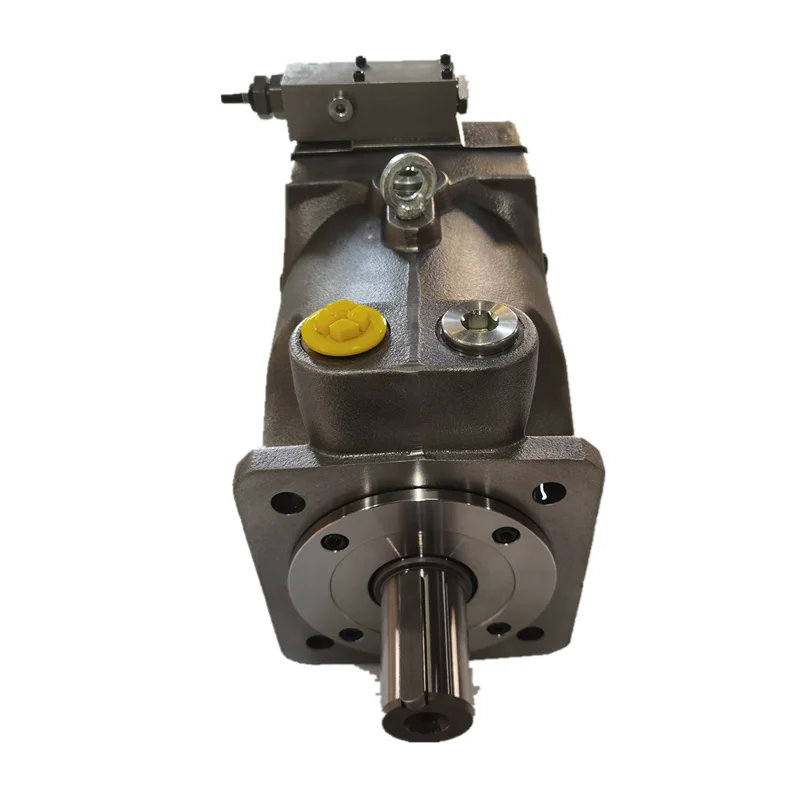

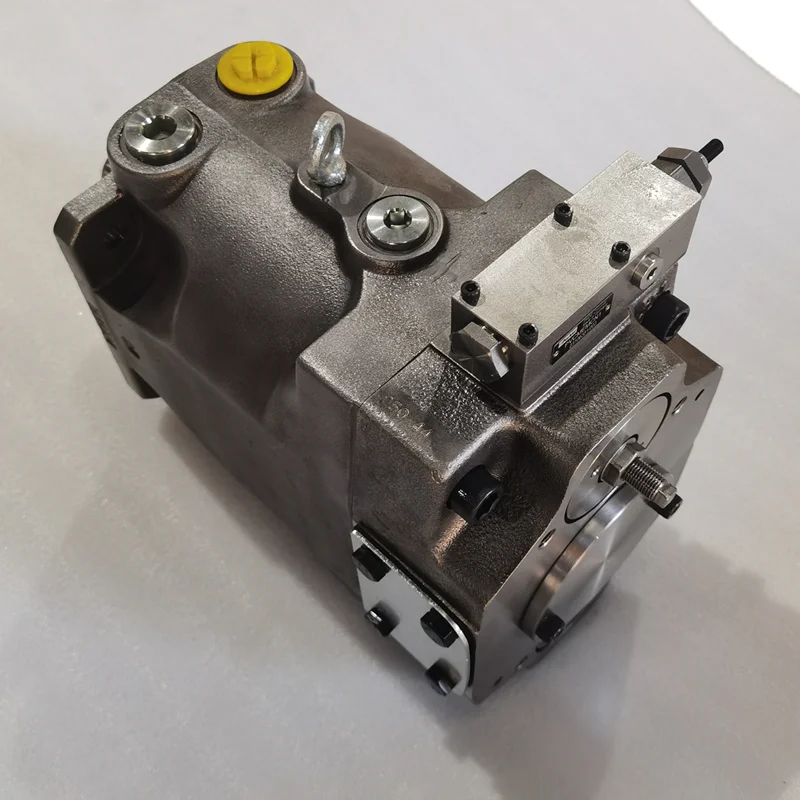

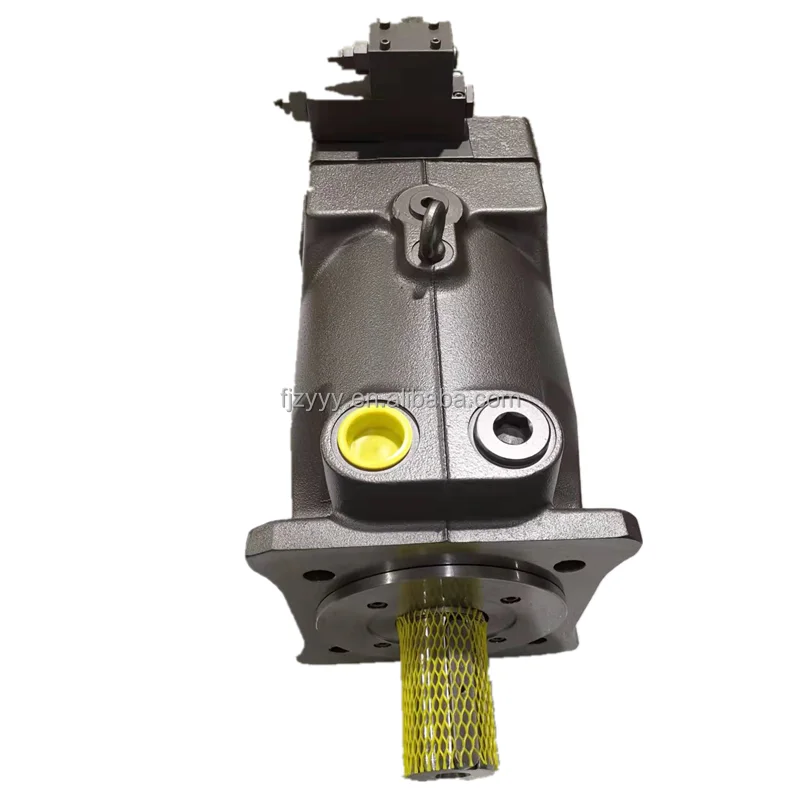

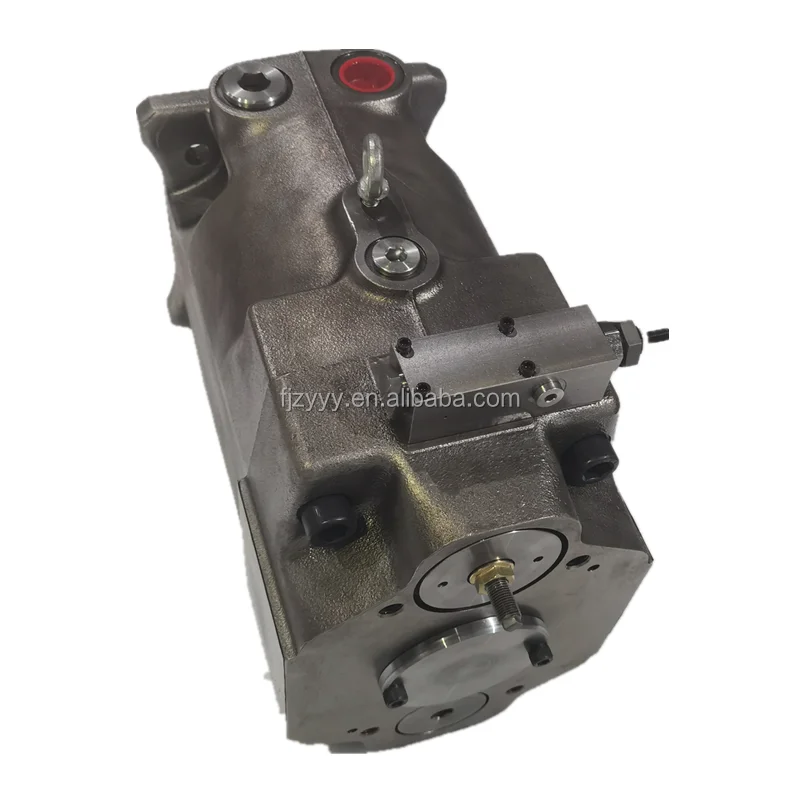

Parker PV Series Heavy-Duty Axial Piston Variable Pumps

Product Overview: The Parker PV series is globally recognized as the gold standard for heavy-duty industrial hydraulic pumps. Specifically engineered for demanding continuous operations, this series offers an extensive displacement range from the compact 16cc (PV016) up to the high-capacity 270cc (PV270). Featured models include the PV140R1K1T1NMMC and PV016R1K1T1NMMC. Renowned for their superior shock resistance, high pressure ratings, and patented lubrication technology, PV pumps are the premier power source for metal forming presses, injection molding machines, recycling balers, and large-scale industrial hydraulic power units (HPUs).

Key Technical Advantages:

• Extreme High-Pressure Performance: Rated for continuous operation at 350 Bar (5075 PSI) with peak capabilities up to 420 Bar (6090 PSI), ensuring stability under heavy duty cycles.

• Exceptionally Low Pressure Ripple: The optimized 9-piston rotating group combined with a precision valve plate design effectively dampens vibration and operational noise.

• Superior Power Density: The compact housing integrates large-displacement components, delivering immense power while maximizing installation space within hydraulic stations.

• Versatile Control Modalities: Offers standard pressure compensation, load sensing, and electronic proportional control to precisely match complex operational requirements.

• Rugged Longevity: Constructed with high-strength cast-iron housings and hardened rotating groups for ultimate contamination resistance and extended maintenance intervals.

Detailed Models & Parameters:

• Core Series: Parker PV Heavy Duty Series.

• Model Keywords: PV016, PV023, PV046, PV063, PV080, PV092, PV140, PV180, PV270.

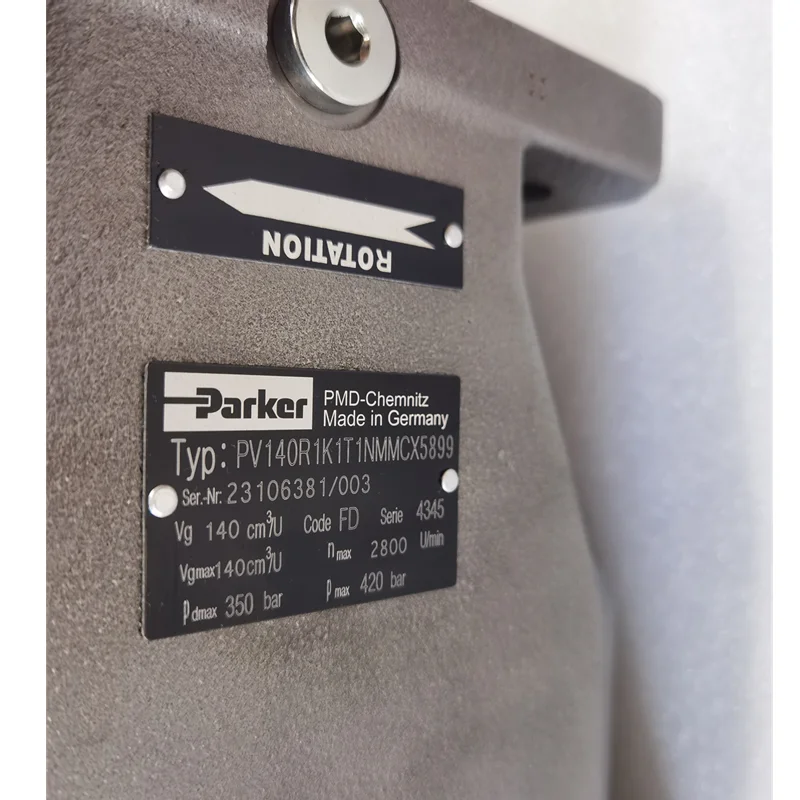

• Featured Config Codes: PV140R1K1T1NMMC, PV016R1K1T1NMMC.

• Displacements: 16 cm³/rev to 270 cm³/rev (0.98 to 16.48 in³).

• Pressure Ratings: Rated at 350 Bar (5075 PSI); Peak capability up to 420 Bar (6090 PSI).

• Rotation: R (Clockwise/CW); L (Counter-clockwise/CCW).

• Target Applications: Heavy-duty brick presses, scrap metal balers, injection molding drives, shipbuilding/port equipment, and large-scale industrial HPUs.
