Parker F11-019 Motor | F11-019-SB-XS-X-286-MUVR-00 | High Speed Bent Axis Piston Pump

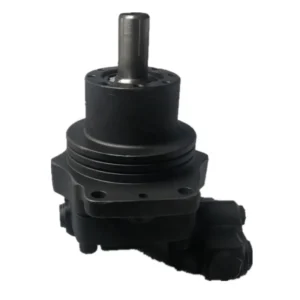

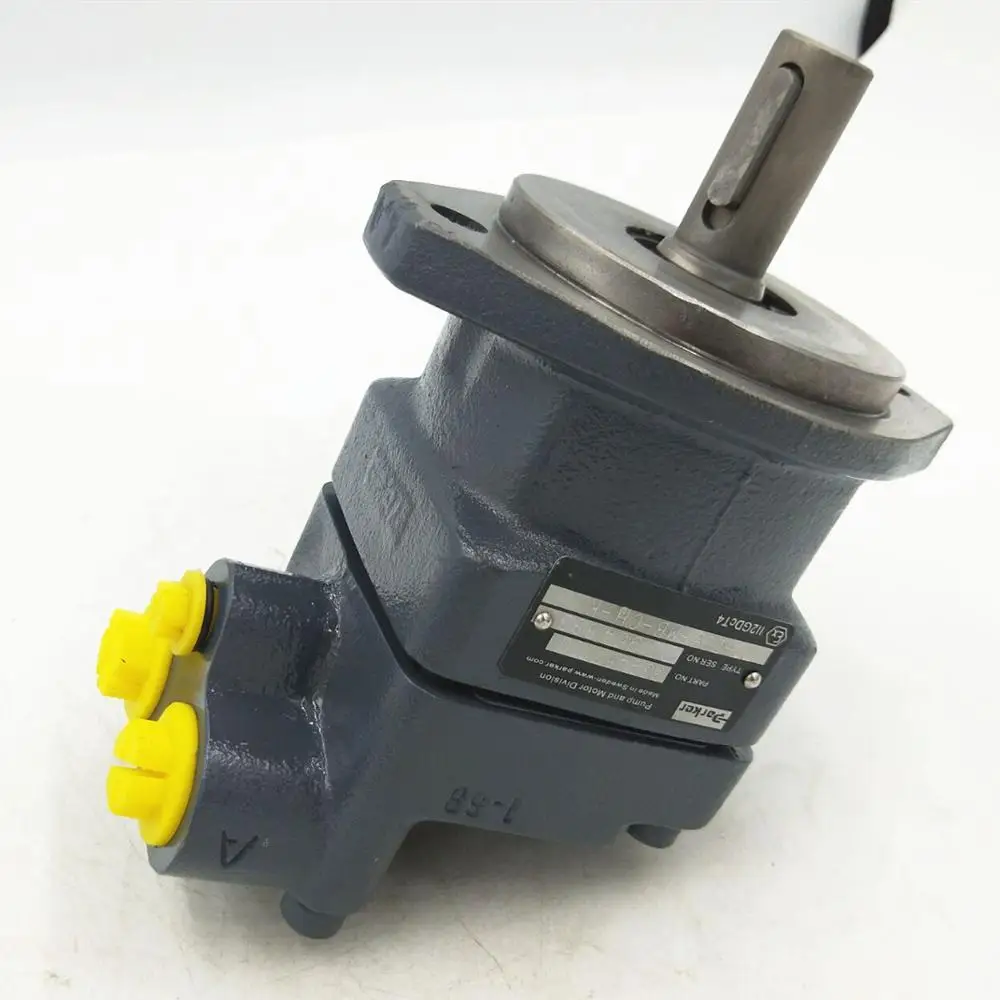

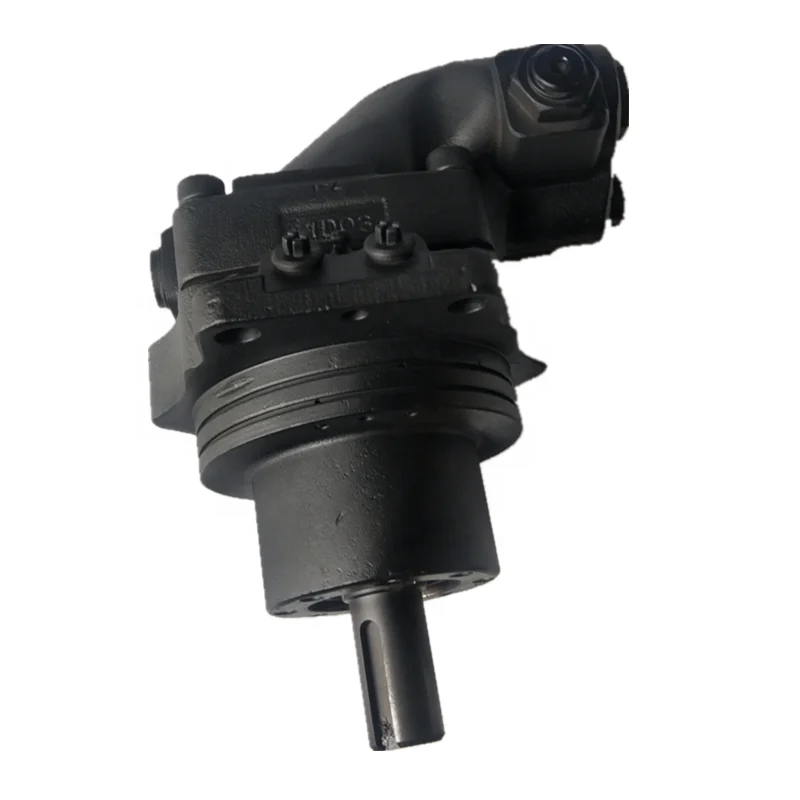

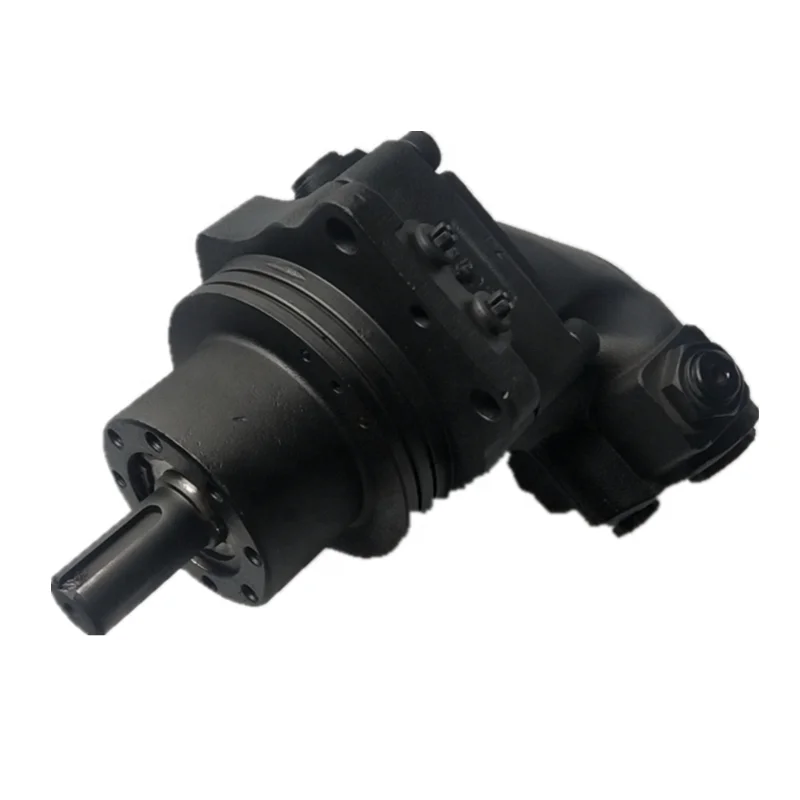

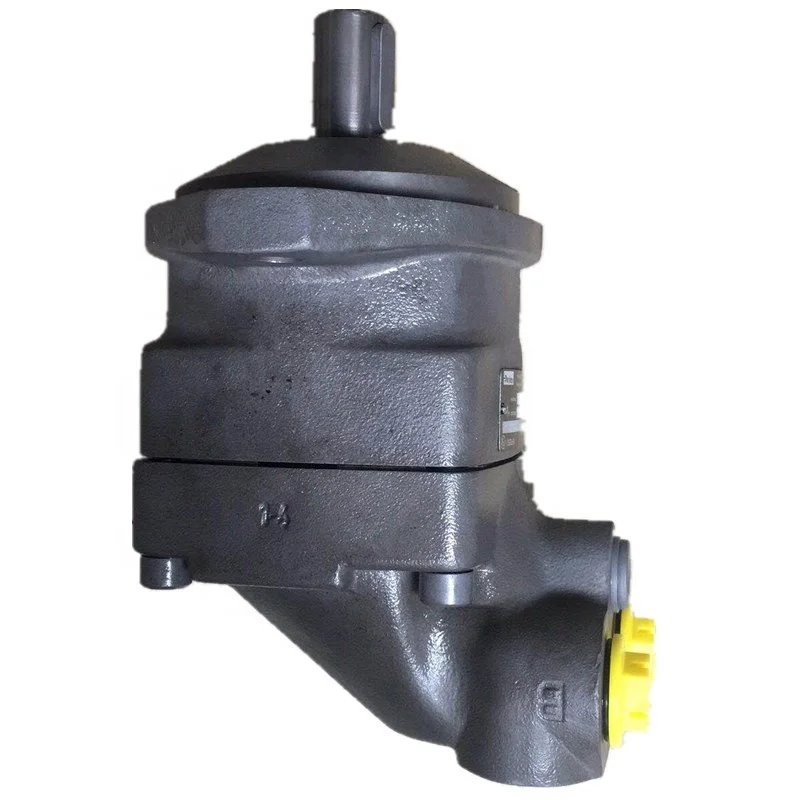

Parker F11-019-SB-XS-X-286 High-Speed Bent-Axis Piston Hydraulic Motor

Product Overview: The Parker F11-019 is a premier example of bent-axis fixed displacement technology, engineered for the most demanding environments requiring high pressure, extreme speed, and heavy-duty cycles. The specific model F11-019-SB-XS-X-286-MUVR-00 utilizes an advanced 40° angle and synchronized spherical pistons to deliver superior mechanical efficiency at ultra-high RPMs. Renowned for its exceptional power-to-weight ratio, this motor is the primary power source for forestry harvester saw drives, high-speed cooling fan circuits, professional mowing decks, and industrial High-Pressure Power Units (HPU).

Key Technical Advantages:

• Elite High-Speed Capability: The 40° bent-axis architecture allows the motor to operate at rated speeds significantly higher than standard axial motors, setting the industry standard for sawing and fan drive systems.

• SAE Standard Interface (SB): Features the SB (SAE standard) mounting configuration, ensuring seamless integration with global mobile machinery and standard SAE flanges.

• Superior Durability: Self-compensating spherical pistons minimize internal friction and heat generation, maintaining reliability under continuous pressures of 350 Bar (5000 PSI).

• Specialized Configuration: The XS-X-286 designation refers to specific shaft types, porting covers, or internal sequences tailored for high-precision industrial equipment.

• Target Applications: Forestry saw drives, radiator fan circuits, vibratory equipment, and municipal sweeper auxiliary drives.

Detailed Model & Parameters:

• Core Series: Parker Hannifin F11 Series (Fixed Displacement).

• Full Model Specification: F11-019-SB-XS-X-286-MUVR-00.

• Technical Specs Decoding:

  • 019: Size 19, with a displacement of 19.0 cm³/rev.

  • SB: SAE mounting flange and side porting orientation.

  • XS-X-286: Specialized shaft end and unique design sequence.

  • MUVR: Indicates specific high-performance seal kits and valve functionality options.

• Pressure Specs: Rated Operating Pressure of 350 Bar (5000 PSI), with peak capabilities reaching 420 Bar.
