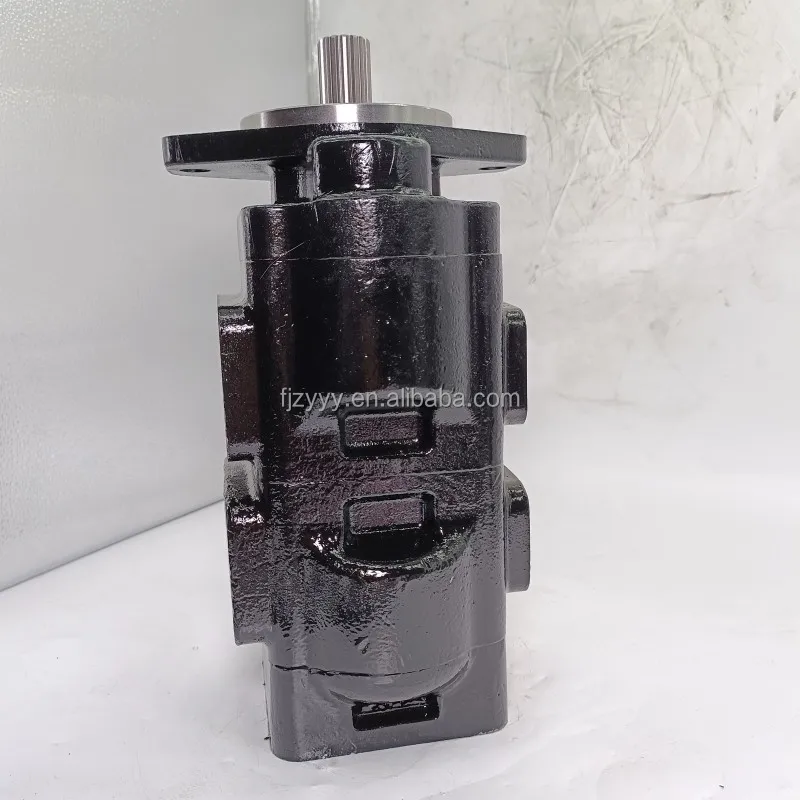

Parker PGP365 Gear Pump | 3229110185 | PGP315 PGP330 PGP365 | Cast Iron Hydraulic Pump

Parker PGP315/330/365 Series Heavy-Duty Cast Iron Hydraulic Gear Pumps

Product Overview: The Parker PGP300 Series (formerly Commercial Intertech) serves as the ultimate power core for global heavy-duty mobile machinery and mining equipment. This featured selection focuses on the precision model 3229110185 (PGP365A278FEAB17-7) while offering full support for the PGP315 and PGP330 spectrum. Engineered with full cast iron housing, these pumps are specifically designed to deliver exceptional performance under extreme pressures and high-frequency shock loads. Delivering peak reliability at pressures up to 28 MPa, the PGP365 is the premier choice for heavy-duty dump trucks, oilfield rigs, construction machinery, and material handling equipment.

Key Technical Advantages:

• Full Cast Iron Durability: The high-strength ductile iron housing offers superior fatigue resistance and high-pressure resilience compared to aluminum pumps, significantly extending service life in harsh environments.

• High Volumetric Efficiency: Features automatic axial pressure-compensated side plates to minimize internal leakage, maintaining efficiencies over 93% throughout the pump’s service life and reducing overall system heat.

• Superior Power Density: The compact design provides massive displacement output (e.g., PGP365A278), meeting the dual demands of high flow and high pressure for heavy equipment circuits.

• 100% Plug-and-Play Replacement: Strictly adheres to original Parker/Commercial OEM specifications, ensuring identical flange patterns, shaft ends (e.g., FEAB specs), and port positions for guaranteed seamless installation.

• Contamination & Heavy-Duty Bearing Design: Equipped with reinforced sliding bearings and high-strength drive shafts, providing excellent operational stability even when operating with fluids containing minor impurities.

Detailed Models & Parameters:

• Core Series: Parker Commercial PGP315, PGP330, PGP365 Series.

• Part Number: 3229110185.

• Model Keyword: PGP365A278FEAB17-7.

• Pressure Ratings: Rated at 24.1 MPa (3500 PSI) continuous; Peak at 27.5 MPa (4000 PSI).

• Construction Material: High-strength Ductile Iron.

• Target Applications: Mining truck hoist systems, oilfield workover rigs, wheel loader main pumps, and heavy-duty material handling.
