Parker PAVC Series Pump | PAVC33, PAVC38, PAVC65, PAVC100 | 210 Bar Variable Piston Pump

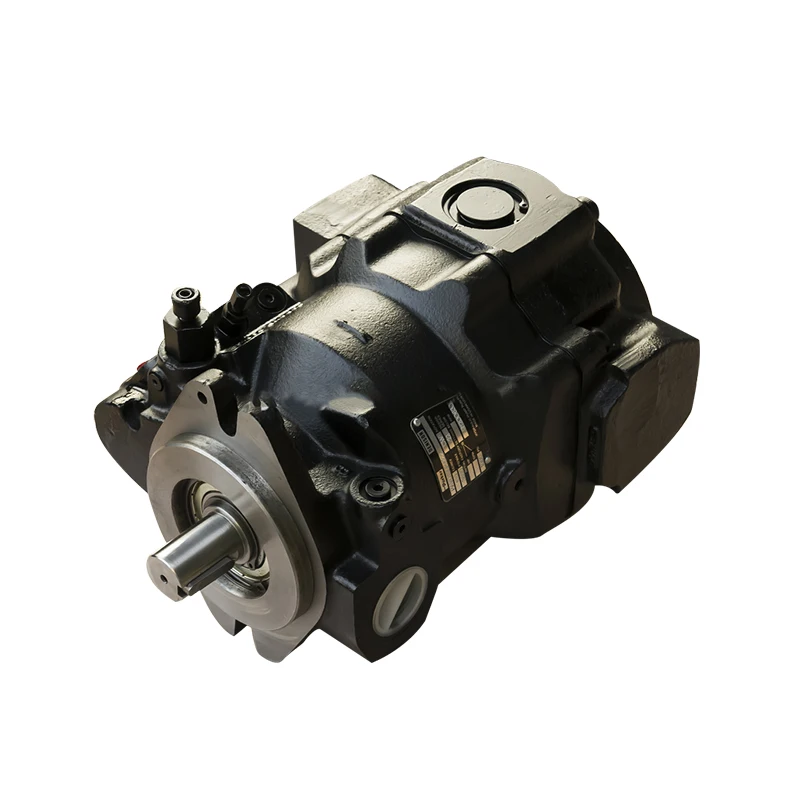

Parker PAVC Series High-Speed Axial Piston Variable Pump

Product Overview: The Parker PAVC series represents a high-efficiency range of axial piston variable pumps specifically engineered for industrial Open Circuit systems demanding high speeds and extended service life. Covering displacements from 33cc (PAVC33) up to 100cc (PAVC100), the PAVC series stands out with its unique swashplate design, providing superior self-priming capabilities that allow for high-speed operation without the need for inlet supercharging. Whether in the pressure-compensated PAVC65R213 or the remote-controlled PAVC100, this series delivers exceptional dynamic response.

Key Technical Advantages:

• Superior Self-Priming Ability: Optimized for high-speed industrial motor drives, featuring excellent suction characteristics that effectively prevent cavitation during high-flow operation.

• Heavy-Duty Industrial Pressure (3000 PSI): Rated at 210 Bar (3000 PSI) with peak cycles reaching 280 Bar, utilizing a high-strength cast-iron housing to ensure structural stability under high-cycle loading.

• Versatile Control Logic (R2, S2):

  • Pressure Compensation (R2): Models like PAVC38R213 feature fast-response pressure compensation, de-stroking automatically when preset pressure is reached to slash energy costs.

  • Remote Control & Load Sensing (S2/A2): Supports remote pressure regulation and load-sensing functionality, ensuring pump flow output is precisely synchronized with load demand.

• Robust Thru-Drive Flexibility: Superior thru-drive performance allows for tandem mounting of secondary pumps, facilitating compact power distribution layouts.

• Ease of Maintenance: Features replaceable valve plates and integrated regulator designs, significantly reducing equipment downtime for maintenance.

Detailed Models & Parameters:

• Core Series: Parker PAVC Series.

• Representative Models: PAVC332R2A24, PAVC38R213, PAVC65R213, PAVC65BR1, PAVC10032R2S22.

• Displacements: 33, 38, 65, 100 cm³/rev.

• Pressure Ratings: Rated at 210 Bar (3000 PSI); Peak cycles up to 280 Bar (4000 PSI).

• Rotation: R (Clockwise) / L (Counter-clockwise).
