Parker Hydraulic Motor | TE0080 TF0475 TG0530 TB0100 | TB TE TF TG Series

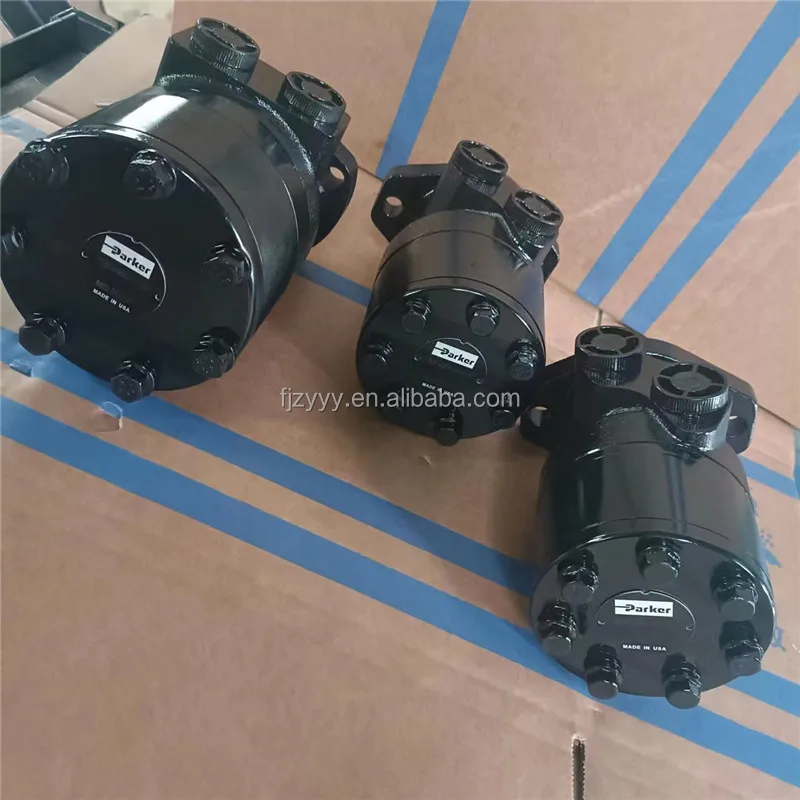

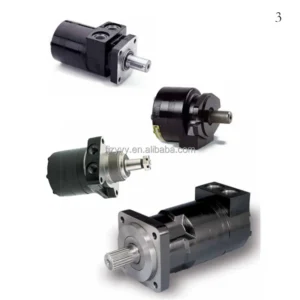

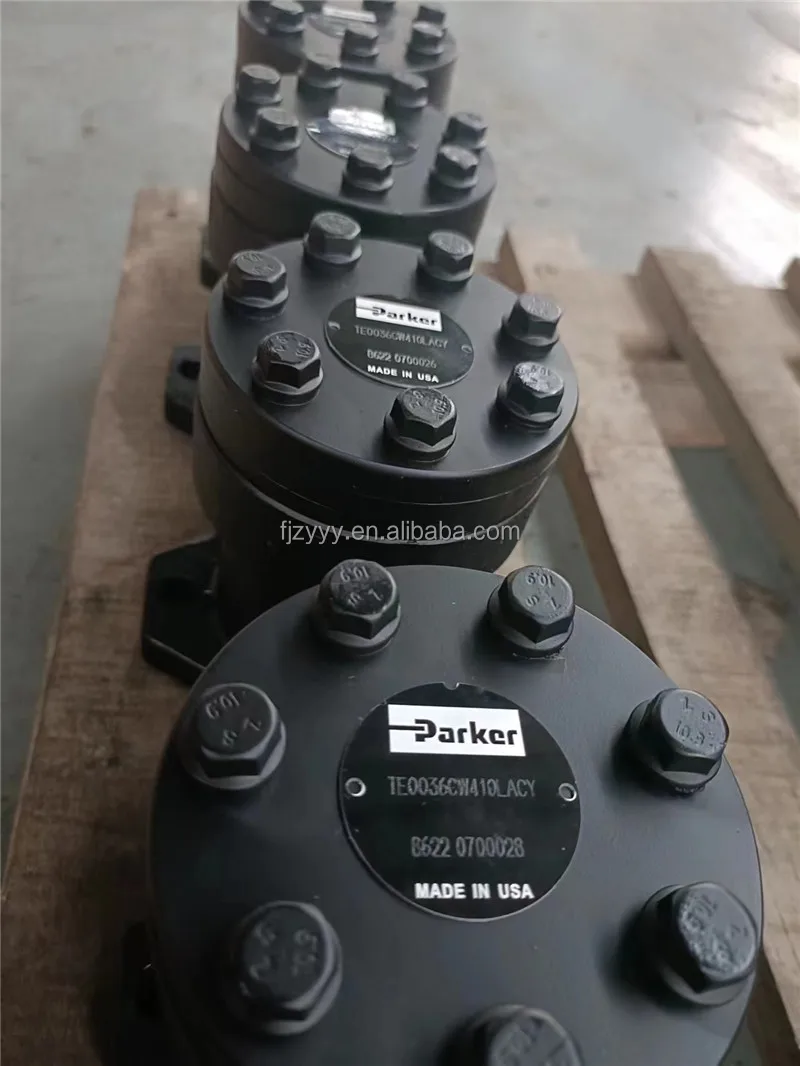

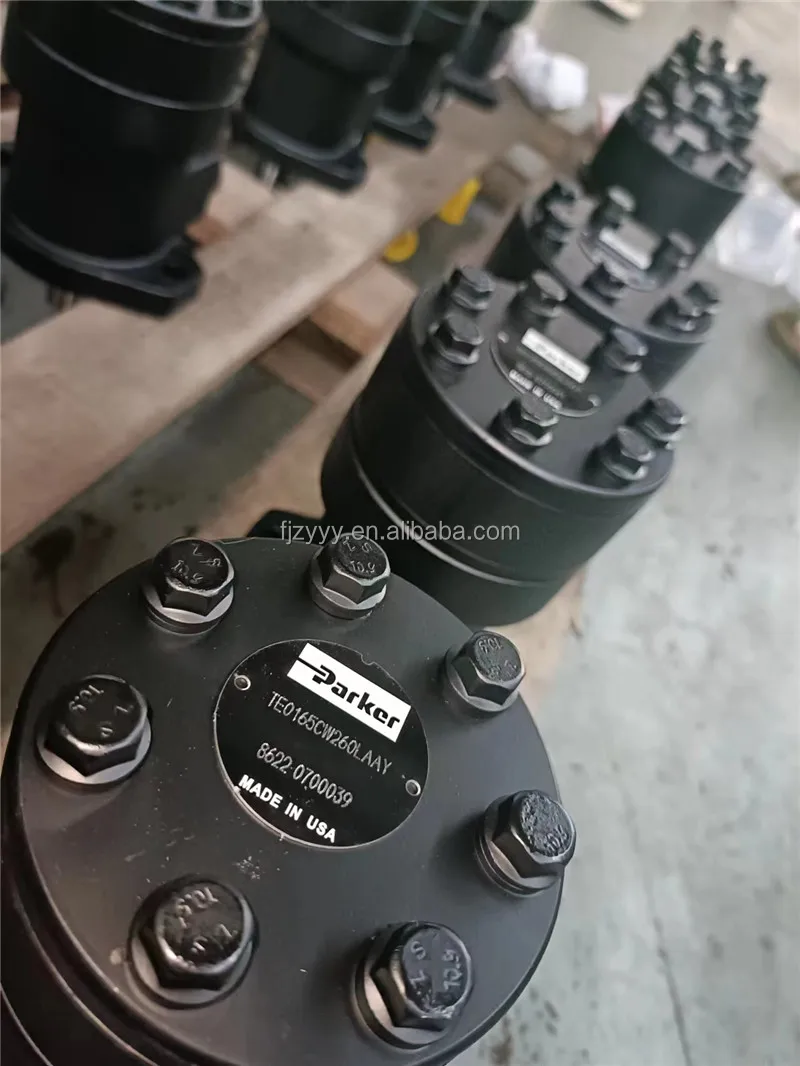

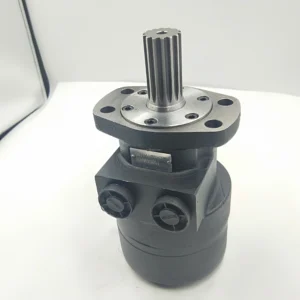

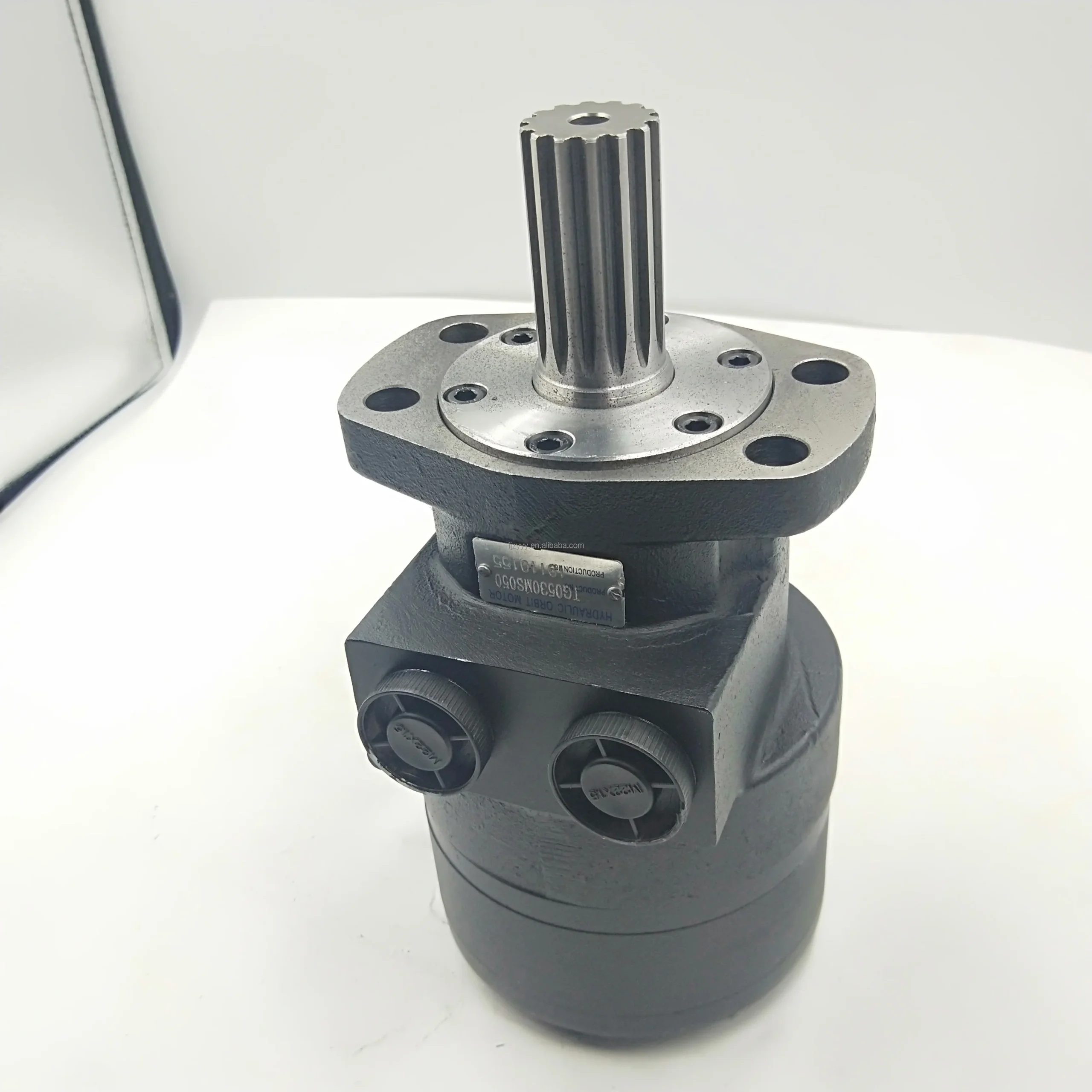

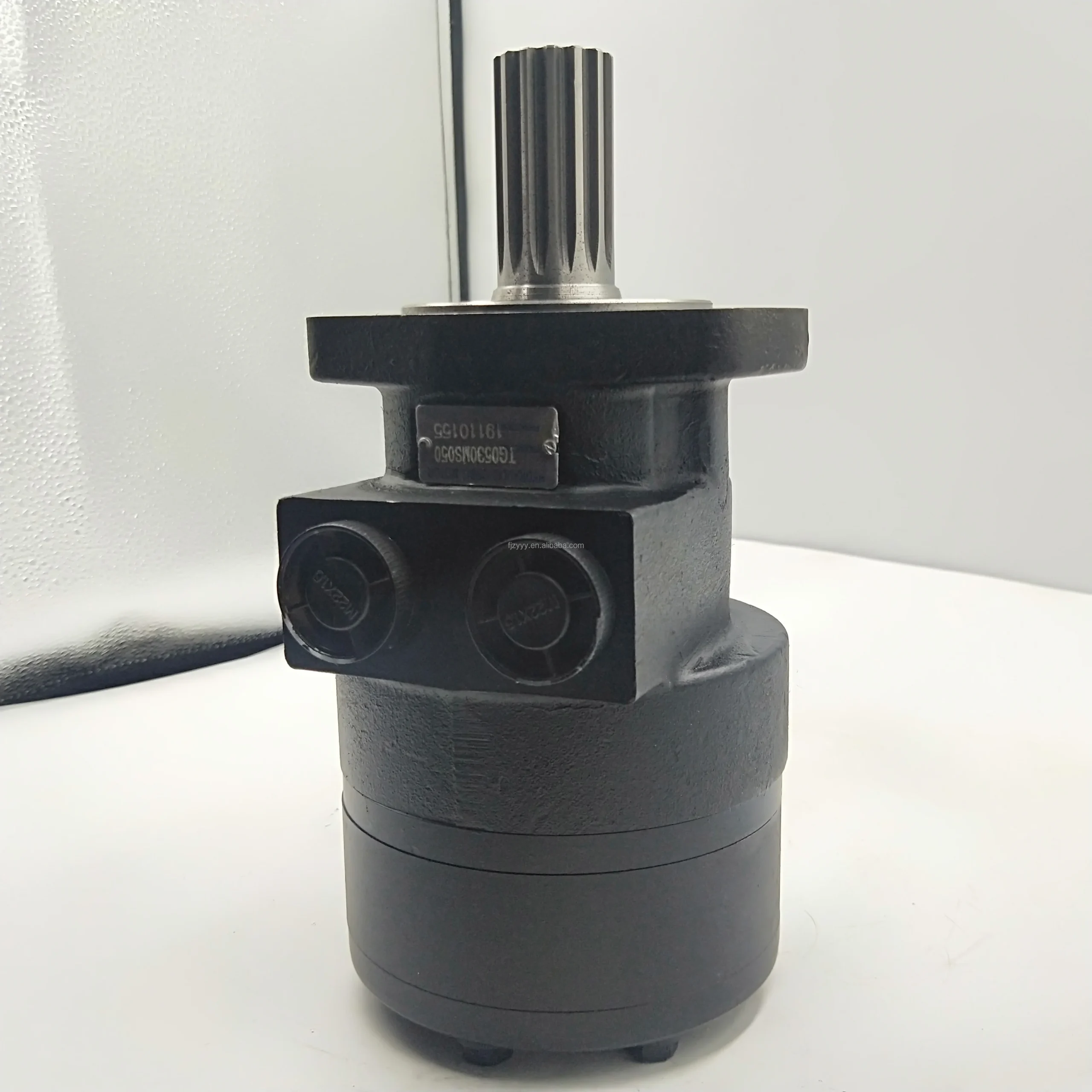

Parker TB, TE, TF, TG Series LSHT Hydraulic Orbit Motors

Product Overview: Parker (Parker Hannifin) orbital hydraulic motors are globally recognized for their superior durability and precision engineering in Low Speed High Torque (LSHT) applications. This category features the full spectrum of Parker’s lineup, ranging from the compact and light-duty TB/TE Series to the mid-to-heavy duty benchmarks TF/TG Series.

Featured precision configurations include: TE0080CW260LABA, TF0475AS030AAAP, TG0530AS030AAAA, and TB0100AP100AAAB. Utilizing Parker’s patented Roller Vane technology, these motors are engineered to deliver consistent, robust power under continuous high-pressure and variable-load duty cycles. Whether utilized in material handling, agricultural machinery, ground care equipment, or heavy-duty winch systems, Parker motors guarantee extended service life and exceptional operational smoothness.

Key Technical Advantages:

• Patented Roller Vane Technology: Internal roller supports minimize startup friction and ensure powerful, smooth torque delivery even at ultra-low speeds while reducing internal wear.

• Elite Radial Load Capacity: Especially in the TF and TG Series, oversized tapered roller bearings allow the output shaft to handle massive radial loads—ideal for direct-drive wheel setups.

• High-Pressure Shaft Sealing: Advanced sealing systems manage system back-pressure spikes with ease, reducing the necessity for external case drains and simplifying plumbing.

• Technical Application Decoding:

  • TB/TE Series: High power density in a minimal footprint, perfect for light-to-medium auxiliary drives.

  • TF/TG Series: Disc valve design providing peak volumetric efficiency for primary vehicle propel and heavy-duty industrial tasks.

Detailed Specifications & Parameters:

• Core Series: Parker Hannifin TB, TE, TF, TG Series.

• Featured Model Matrix: TE0080CW260LABA, TF0475AS030AAAP, TG0530AS030AAAA, TB0100AP100AAAB.

• Core Performance Specs:

  • Displacement Range: 36 cc/rev to 960 cc/rev (2.2 – 58.5 cu in/rev).

  • Rated Pressure: Continuous up to 200 Bar (2900 PSI); Intermittent peaks exceeding 300 Bar (4350 PSI).

  • Torque Capability: Spanning from 50 Nm up to 1490 Nm (model dependent).

  • Mounting Standards: Options include SAE A 2-Bolt, 4-Bolt Square, and Magneto flanges.

  • Shaft Options: Options include 1″ Keyed, 1-1/4″ Keyed, Splined, and Tapered shafts.
