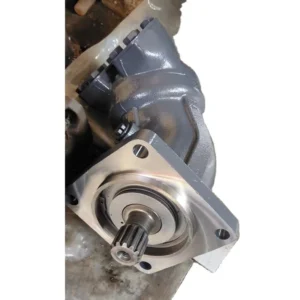

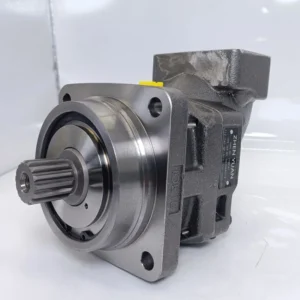

Parker F12 Series High-Displacement Bent-Axis Hydraulic Motors & Pumps

Product Overview: The Parker F12 Series is a heavy-duty, bent-axis fixed displacement piston unit designed for the most demanding industrial and mobile applications. Featuring a unique 40° bent-axis design, the F12 provides exceptional self-priming capabilities and consistent power output under extreme speeds and pressures. This selection focuses on the high-displacement core specifications: F12-152-SF-SV-T, F12-110-MF-IV-Z, and F12-080-MF-IV-D. Capable of operating at peak pressures up to 480 Bar, the F12 series is the definitive choice for heavy-duty winches, shredder drives, marine hydraulics, and high-speed cooling fan systems.

Key Technical Advantages:

• Peak Speed & Efficiency: Optimized spherical valve plates and synchronized link designs minimize friction, allowing for the highest speed ratings in its displacement class.

• Shock & Impact Resilience: Built with reinforced housings and heavy-duty tapered roller bearings to withstand severe pressure spikes and radial loads from frequent hydraulic reversals.

• Bi-Directional Versatility: Advanced bent-axis technology allows it to function as a high-torque motor or a reliable pump, offering better contamination resistance than standard plate-style designs.

• Compact Power Density: Delivers immense torque within a minimal footprint, simplifying chassis and engine compartment layouts for large machinery.

• Target Applications: Harvester saw drives, TBM (Tunnel Boring Machine) thrust systems, large industrial presses, crane main winches, and offshore drilling equipment.

Detailed Models & Parameters:

• Core Series: Parker F12 Series (High-Performance Bent-Axis).

• Model Keywords: F12-152, F12-110, F12-080, SF-SV-T, MF-IV-D, MF-IV-Z, P0.

• Technical Specs Decoding:

  • F12-152-SF-SV-T-000-0000-P0: 152cc displacement, SF side flange, SV high-end sealing package.

  • F12-110-MF-IV-Z-000-0000-P0: 110cc displacement, MF porting, IV reinforced valve plate.

  • F12-080-MF-IV-D-000-0000-P0: 80cc displacement, D-style keyed shaft for direct coupling.

• Pressure Specs: Rated operating pressure 420 Bar (6100 PSI), Peak pressure 480 Bar (7000 PSI).

• Operational Flexibility: Provides smooth rotation from ultra-low to high RPMs.
