Parker F12 Motor | F12-060, F12-080 | ISO & SAE Bent-Axis Piston Motor

Model Number

F12-060-RF-IV-K-000-000-0, F12-080-RF-IV-K-000-000-0

Inquiry

Product Description

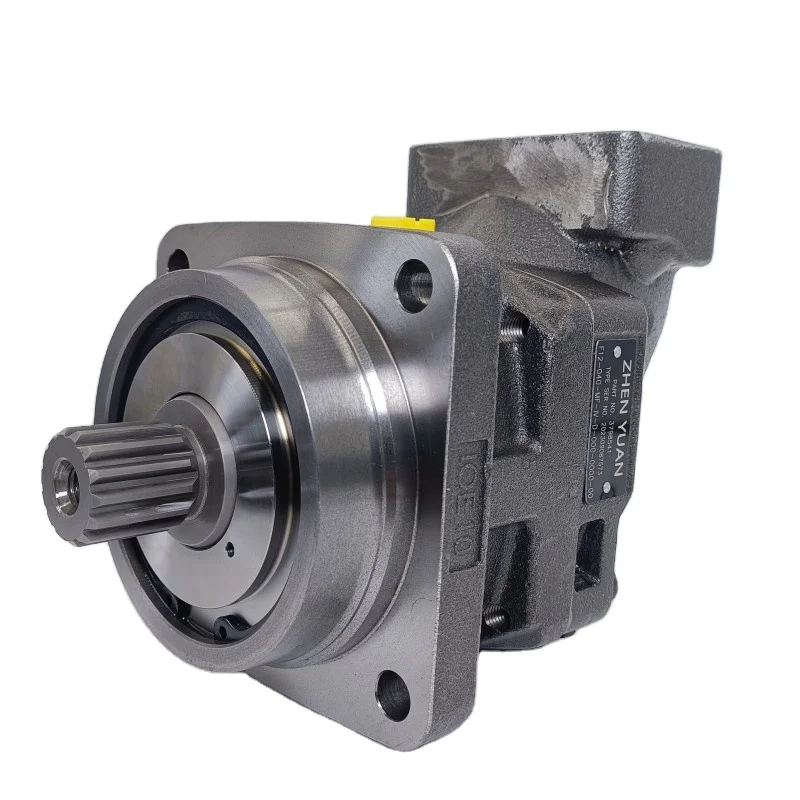

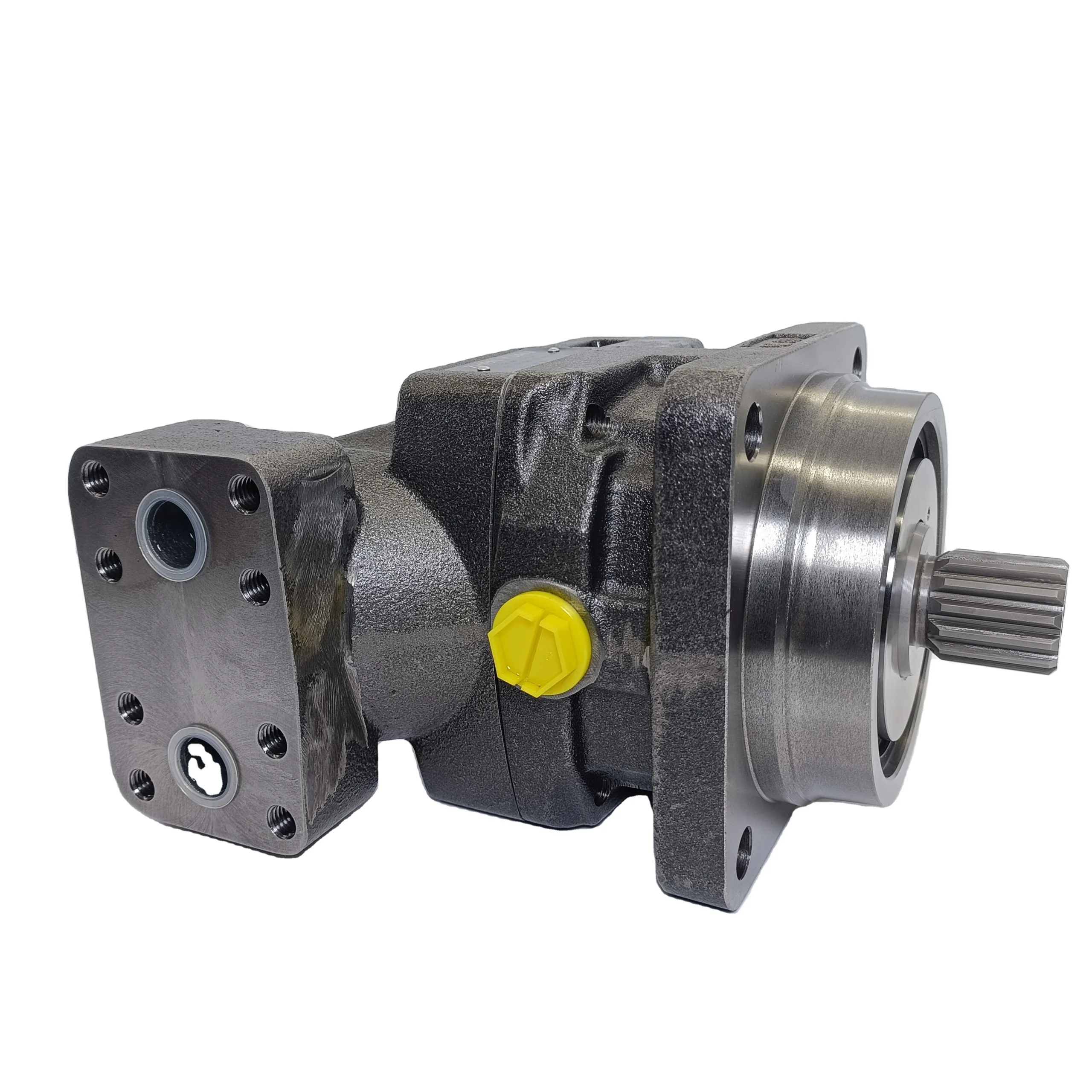

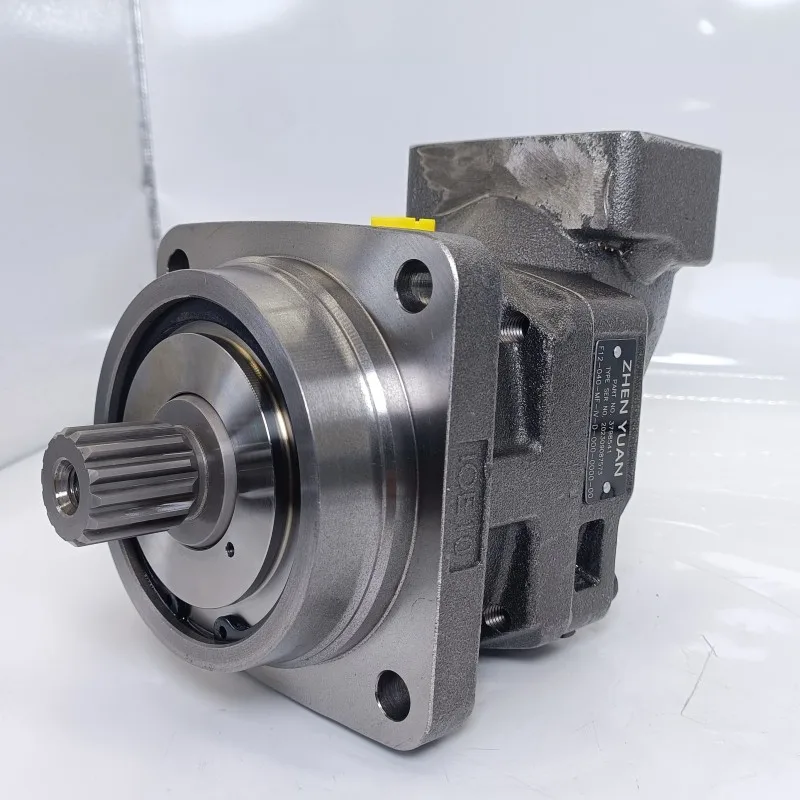

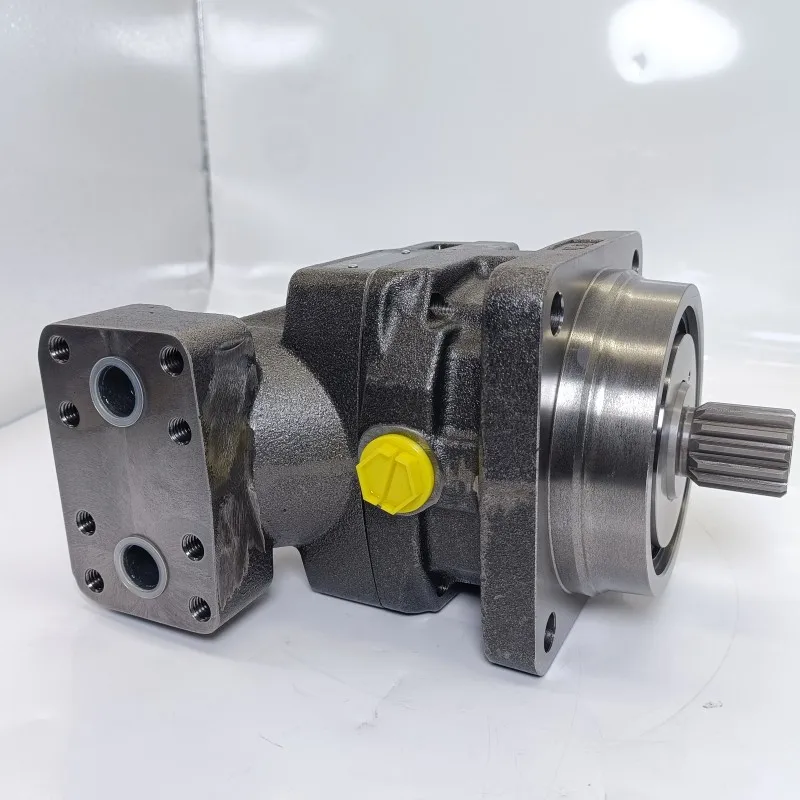

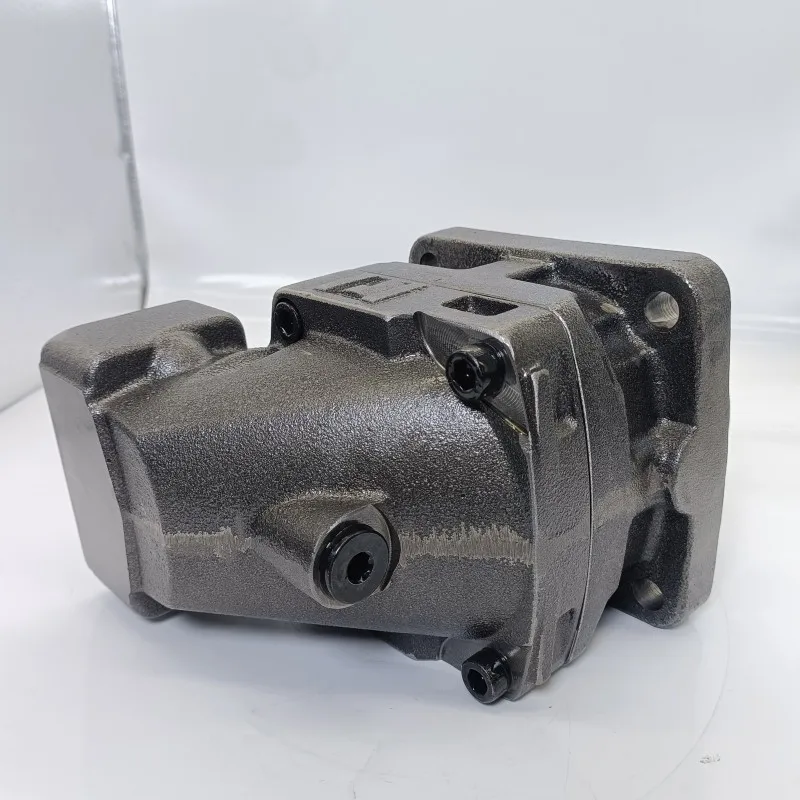

Parker F12 Series High-Pressure Bent-Axis Piston Motors

Product Overview: The Parker F12 Series represents the global standard for high-performance hydraulic drives, utilizing advanced 45° Bent-Axis technology. This series is celebrated for its exceptional power-to-weight ratio, extreme speed capabilities, and superior durability under high-pressure spikes. Featured here are the core heavy-duty specifications: F12-060-RF-IV-K (60cc ISO), F12-080-MF-CV-C (80cc), and F12-080-RF-IV-K (80cc ISO). Engineered for forestry harvester heads, mulcher drives, marine winches, and high-performance mobile machinery, the F12 series delivers consistent reliability even at continuous pressures of 420 Bar.

Key Technical Advantages:

  • Extreme Speed & Efficiency: The 45° bent-axis angle and lightweight pistons allow for unmatched mechanical efficiency and dynamic response at high rotational speeds.

  • Impact-Resistant Laminated Piston Rings: The unique ring design ensures perfect sealing during sudden pressure fluctuations or rapid directional changes, significantly extending service intervals.

  • High-Pressure Robustness: Rated for 420 Bar (6000 PSI) continuous and 480 Bar (7000 PSI) peak pressure. The robust housing design allows it to withstand severe external vibrations.

  • Global Mounting Versatility: Available in both ISO (RF/MF) and SAE standards, with options for keyed (K) or splined (C/S) shafts to ensure seamless integration with global equipment.

  • Target Applications: Disc saw drives, forestry harvesters, mulchers, concrete pump agitators, and heavy-duty winch systems.

Detailed Models & Parameters:

  • Core Series: Parker F12 Series (Fixed Displacement Bent-Axis).

  • Model Keywords: F12-060, F12-080, RF (ISO), MF (SAE/ISO), IV (ISO Valve Plate), K (Keyed Shaft), C (Splined Shaft).

  • Technical Specs Decoding:

    • F12-060-RF-IV-K: 60cc displacement, ISO mounting, featured with a keyed shaft output.

    • F12-080-MF-CV-C: 80cc displacement, MF variant, featured with a splined shaft output.

    • F12-080-RF-IV-K: 80cc displacement, ISO mounting, ideal for heavy-duty industrial drives.

  • Pressure Specs: Nominal pressure 420 Bar, Peak pressure 480 Bar.

  • Speed Capabilities: Supports continuous operation up to 3000 – 6000 RPM depending on the specific model and duty cycle.
