Parker F12 Motor | F12-090-MF-IV-Z | F12-060-MS-SV-S | Heavy Duty Bent Axis Motor
| Model Number | F12-060-MS-SV-S-000-0000-P0 |
|---|
Product Description

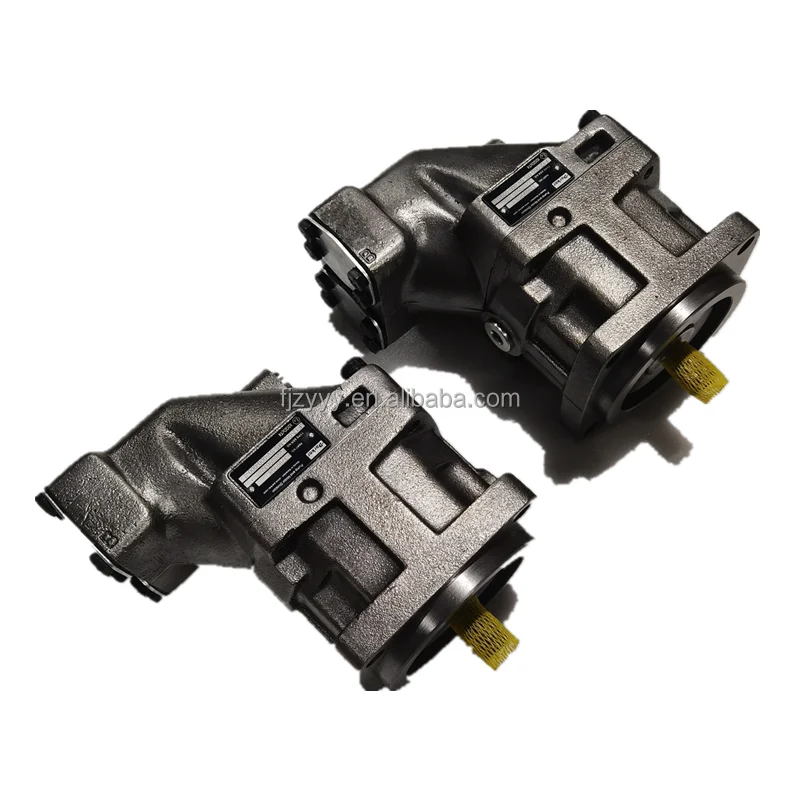

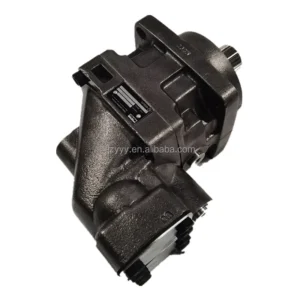

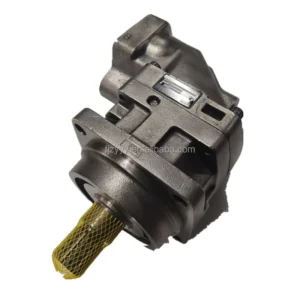

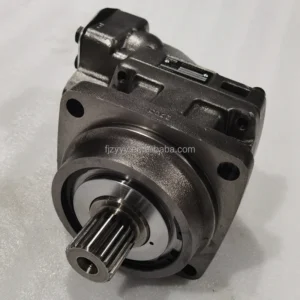

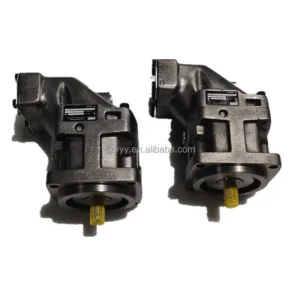

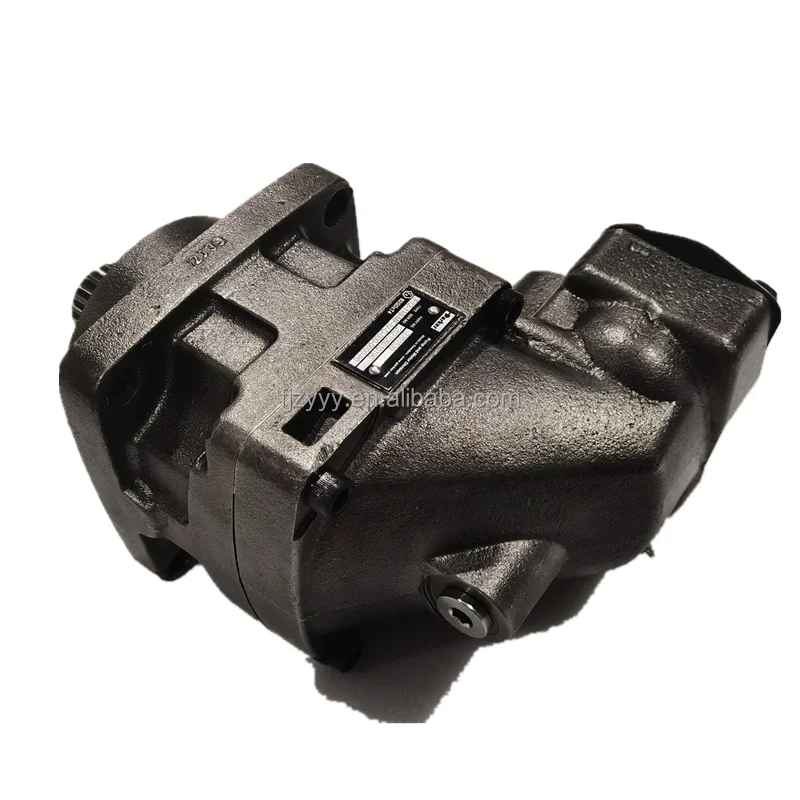

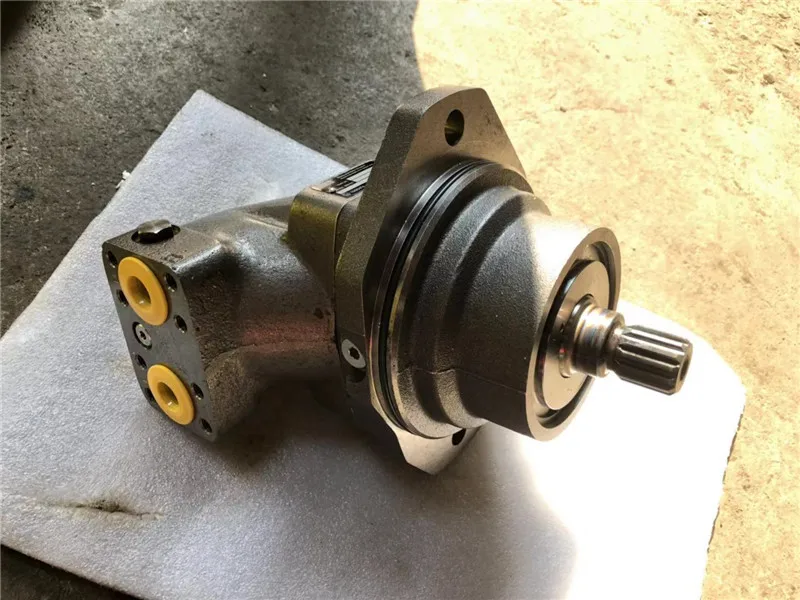

Parker F12 Series Heavy-Duty Bent-Axis Piston Hydraulic Motors
Product Overview: The Parker F12 Series is a heavy-duty, fixed displacement bent-axis motor engineered for the most demanding hydraulic environments. Featuring a signature 40° angle and reinforced internal components, the F12 series is designed to operate reliably at pressures up to 480 Bar. This page features key part numbers 3722595 and 3722587, covering displacements F12-090 (90cc) and F12-060 (60cc). Renowned for its extreme shock resistance and superior startup torque, the F12 series is the industry standard for excavator travel drives, mining winches, drilling rig power heads, shredders, and various hydrostatic transmissions.
Key Technical Advantages:
Elite Pressure Resilience: Engineered for maximum durability, supporting continuous pressures of 420 Bar (6000 PSI) and instantaneous peaks up to 480 Bar, handling violent load fluctuations effortlessly.
Superior Mechanical Efficiency: Optimized spherical piston technology minimizes friction losses, ensuring consistent and smooth torque delivery from startup to maximum RPM.
Integrated Valve Options: Configurations like SV (Safety Valve) and IV (Integrated Valve) protect the motor from overpressure spikes and prevent cavitation during rapid deceleration.
Modular Configuration: Available in multiple mounting formats including MF (ISO standard) and MS (SAE standard), with shaft options like Z (Splined), K (Keyed), and S (High-strength Splined).
Target Applications: Heavy-duty winches and windlasses, mobile equipment travel drives, industrial mixers, TBM auxiliary power, and forestry harvesters.
Detailed Models & Parameters:
Core Series: Parker Hannifin F12 Series (Heavy Duty).
Key Part Numbers: 3722595, 3722587.
Technical Specs Decoding:
F12-090-MF-IV-Z-000-0000-P0: 90cc displacement, ISO cartridge mounting, with integrated valve and Z-splined shaft.
F12-060-MS-SV-S-000-0000-P0: 60cc displacement, SAE mounting, with integrated safety valve and S-type high-strength splined shaft.
F12-060-MF-IV-K-00: 60cc displacement, ISO flange interface, configured with a parallel keyed shaft.
Pressure Specs: Rated Operating Pressure of 420 Bar (6000 PSI), with peak capabilities reaching 480 Bar.
