Parker F12 Motor | F12-040-LF-IV-K | F12-080-LF-IH-K | Heavy Duty Bent Axis Piston Motor
| Model Number | F12-030-MF-IV-D-000-0000-00, F12-040-MF-IV-K-000-0000-00, F12-060-MS-SV-S-000-000-0, F12-080-MS-SV-U-000-000-0, F12-110-MS-SV-S-000-000-0, F12-125-MS-SV-S-000-000-0 |
|---|
Product Description

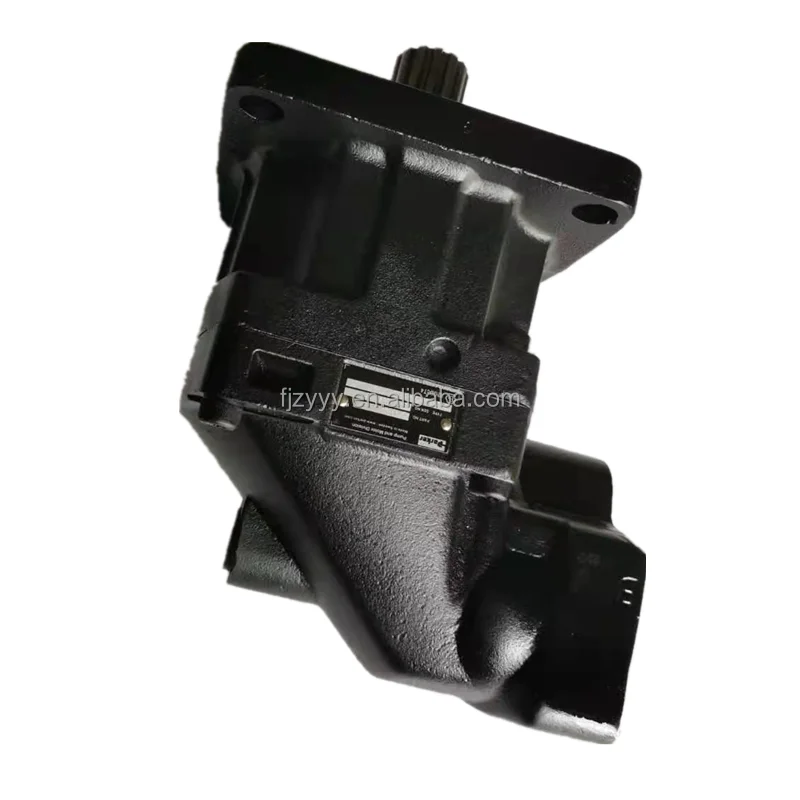

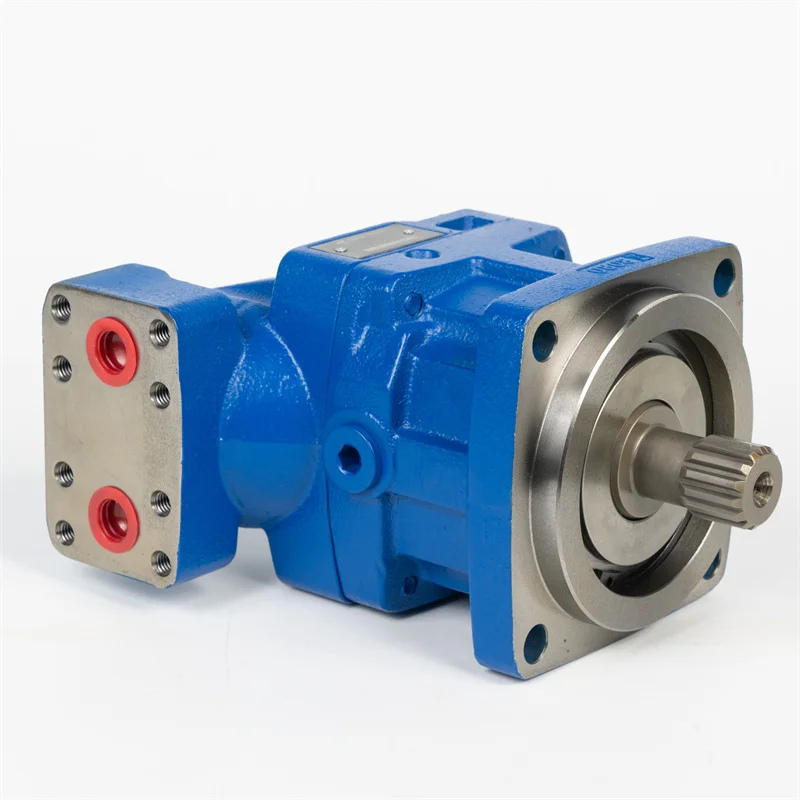

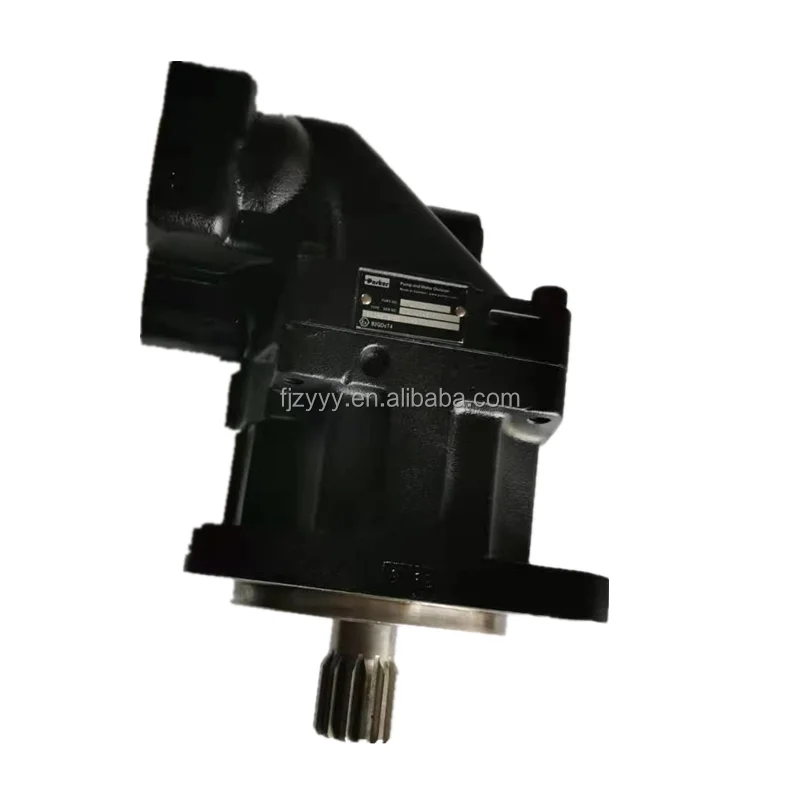

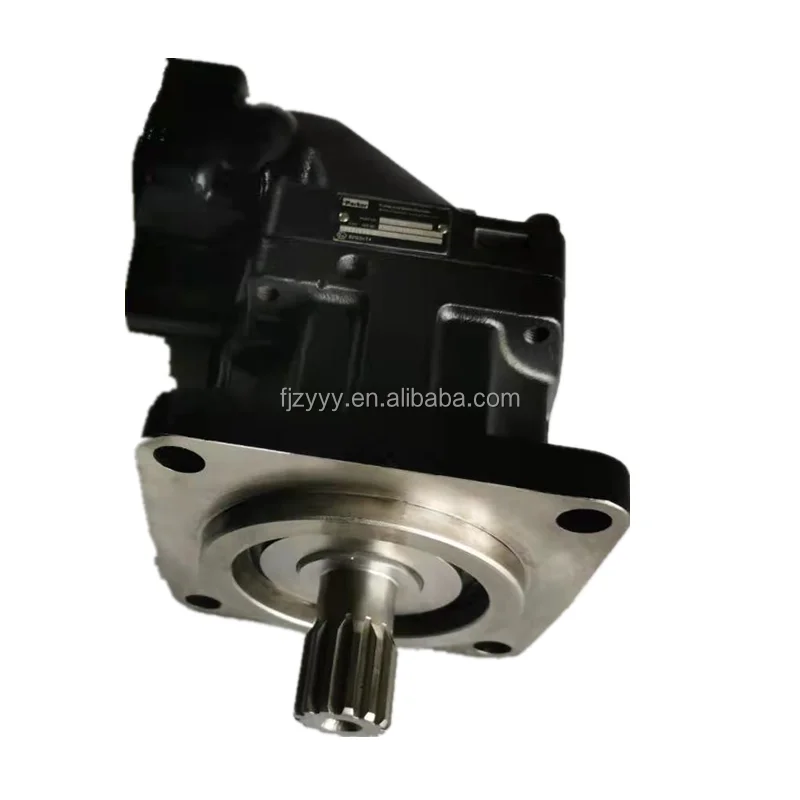

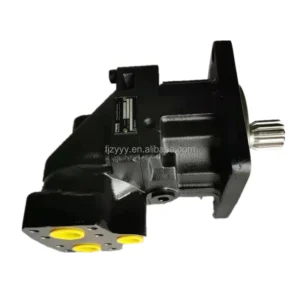

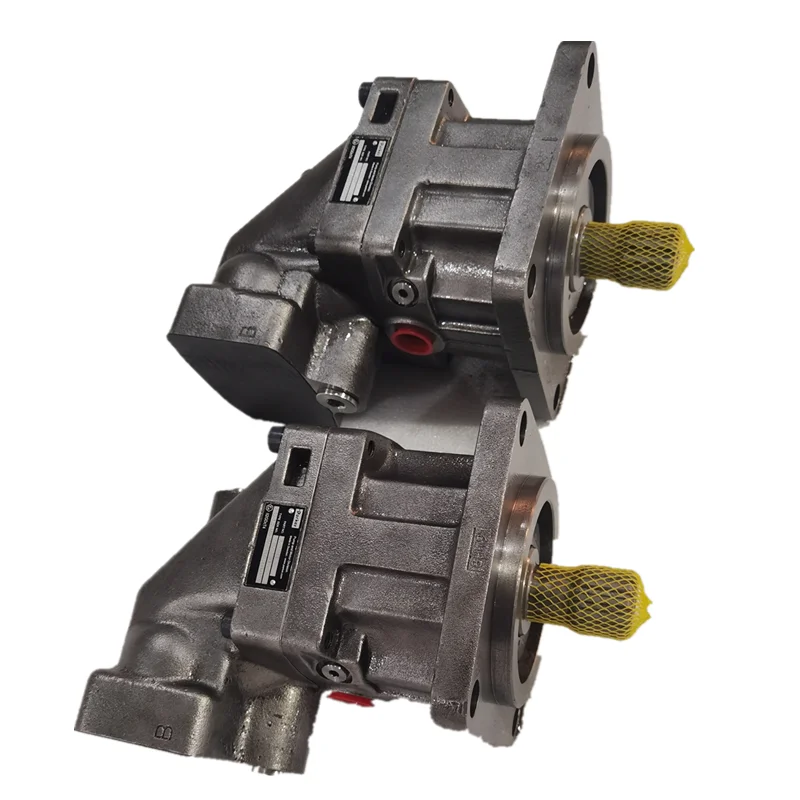

Parker F12 Series Heavy-Duty Bent-Axis Piston Hydraulic Motors
Product Overview: The Parker F12 Series represents the industry’s premier bent-axis fixed displacement motors, engineered to deliver exceptional power density for the most demanding hydraulic environments. Featuring a patented 40° angle design and synchronized spherical pistons, the F12 series handles extreme operating pressures within a compact footprint. This page highlights high-precision LF (Cartridge Flange) models: F12-040-LF-IV-K, F12-080-LF-IH-K, and F12-040-LF-IH-K. These motors are the preferred drive solution for heavy-duty winches, tracked vehicle travel drives, mining rig power heads, and hydrostatic closed-loop circuits.
Key Technical Advantages:
Extreme Pressure Resilience: The highly reinforced construction supports a continuous operating pressure of 420 Bar (6000 PSI) and handles instantaneous peaks up to 480 Bar.
LF Cartridge Design: Optimized for seamless integration into gearboxes where space is limited, providing a more compact installation and reducing overall machine dimensions.
Integrated Valve Functionality: * IV (Integrated Valve) / IH (Integrated Porting): Provides efficient flushing and makeup functionality, ensuring the motor remains cool during extended operations in closed-loop systems.
Superior Startup Torque: Optimized spherical piston technology ensures high torque delivery even at low startup speeds, ideal for lifting and heavy traction drives.
Target Applications: Heavy-duty winches, construction machinery track drives, TBM auxiliary power, mining drilling rigs, and heavy forestry harvesters.
Detailed Models & Parameters:
Core Series: Parker Hannifin F12 Series (Heavy Duty).
Technical Specs Decoding:
F12-040-LF-IV-K-000-000-0: 40cc displacement, Cartridge Flange, featuring integrated valve and K (Keyed) shaft.
F12-080-LF-IH-K-000-000-0: 80cc displacement, Cartridge Flange, featuring integrated porting block and keyed shaft.
F12-040-LF-IH-K-000-000-0: 40cc displacement, specialized IH configuration for high-frequency reversal.
Performance Indicators: * Pressure Rating: 420 Bar Continuous / 480 Bar Peak.
Displacement: 40.3 cm³/rev (040), 80.4 cm³/rev (080).
F12-030-MF-IV-D-000-0000-00
F12-040-MF-IV-K-000
F12-060-MS-SV-S-000-000-0
F12-080-MS-SV-U-000-000-0
F12-110-MS-SV-S-000-000-0
F12-125-MS-SV-S-000-000-0
F12-152-MF-SV-S-000-000-0
F12-250-QF-SV-F-000-000-0
F12-080-MS-SV-U-000-000-0
F12-110-MS-SV-S-000-000-0
F12-125-MS-SV-S-000-000-0
F12-152-MF-SV-S-000-000-0
F12-250-QF-SV-F-000-000-0
