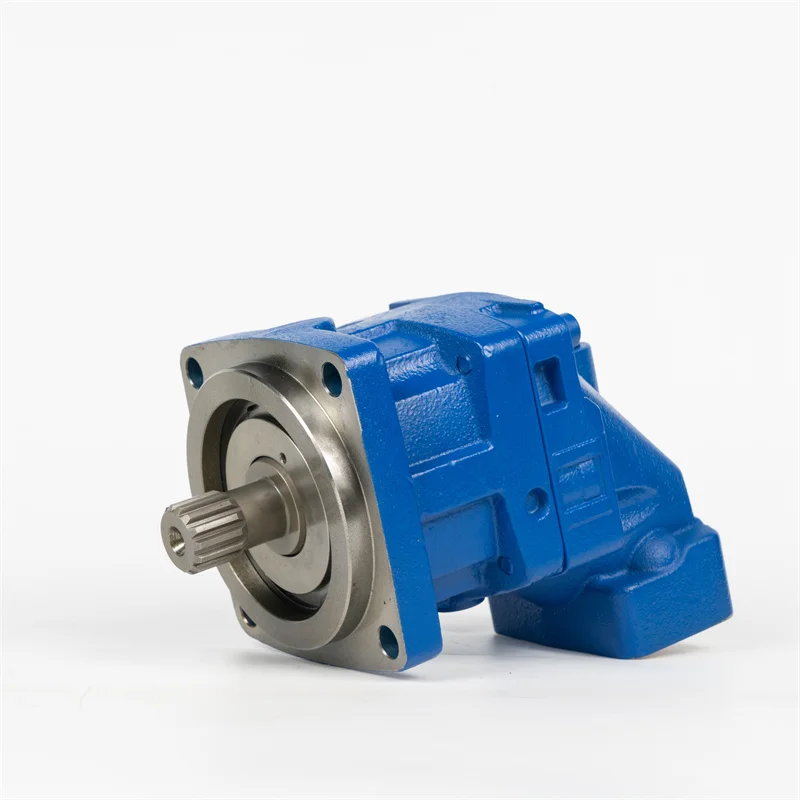

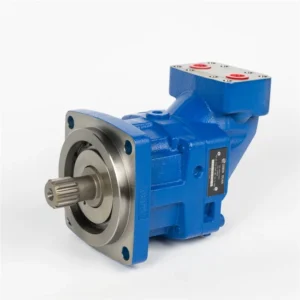

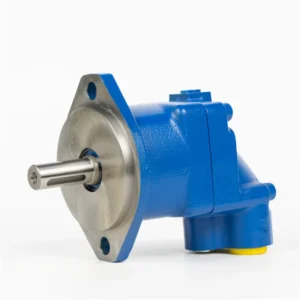

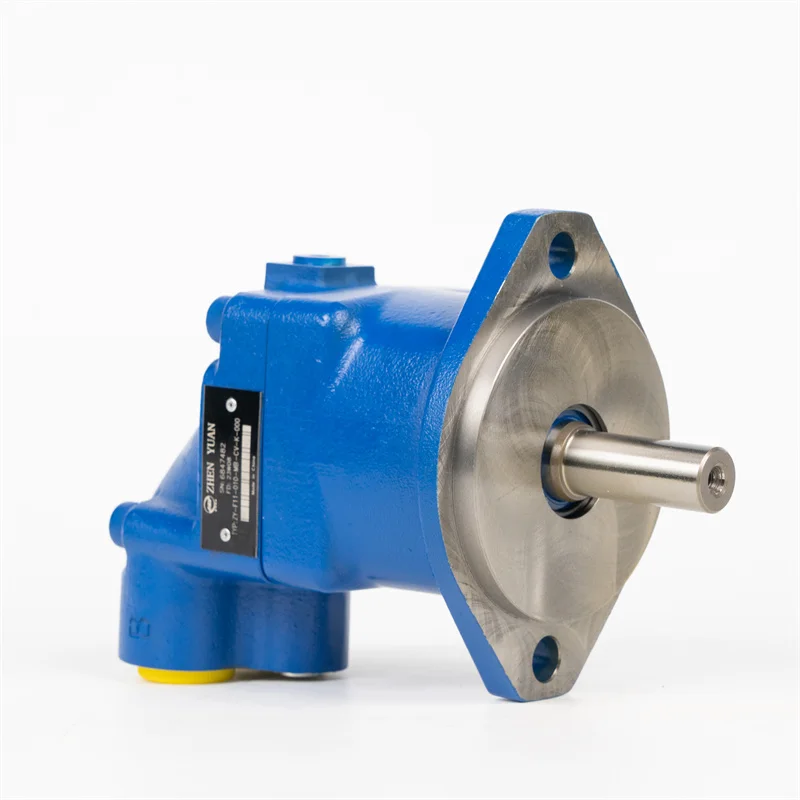

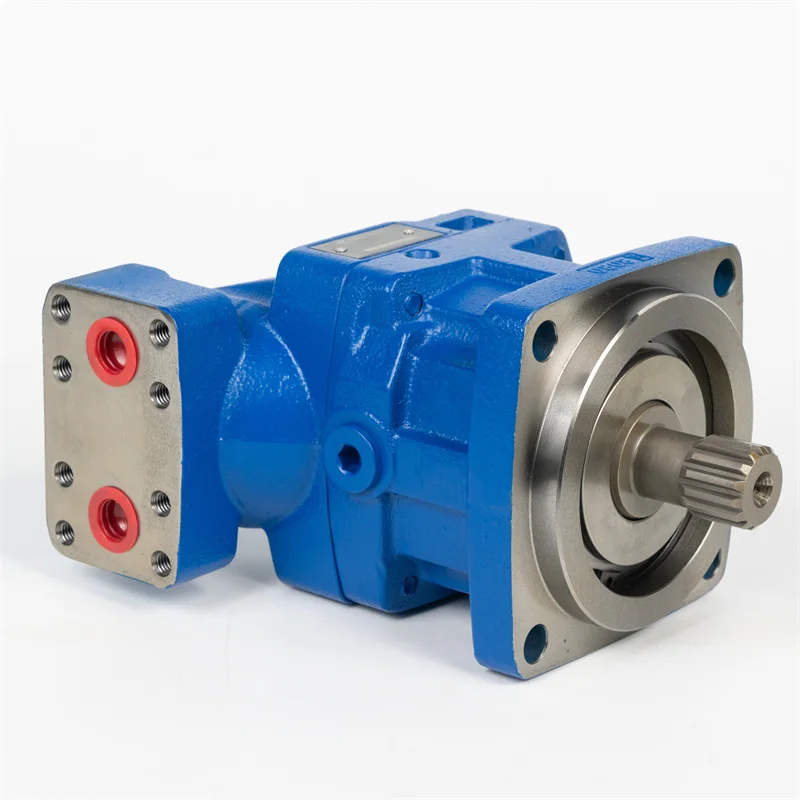

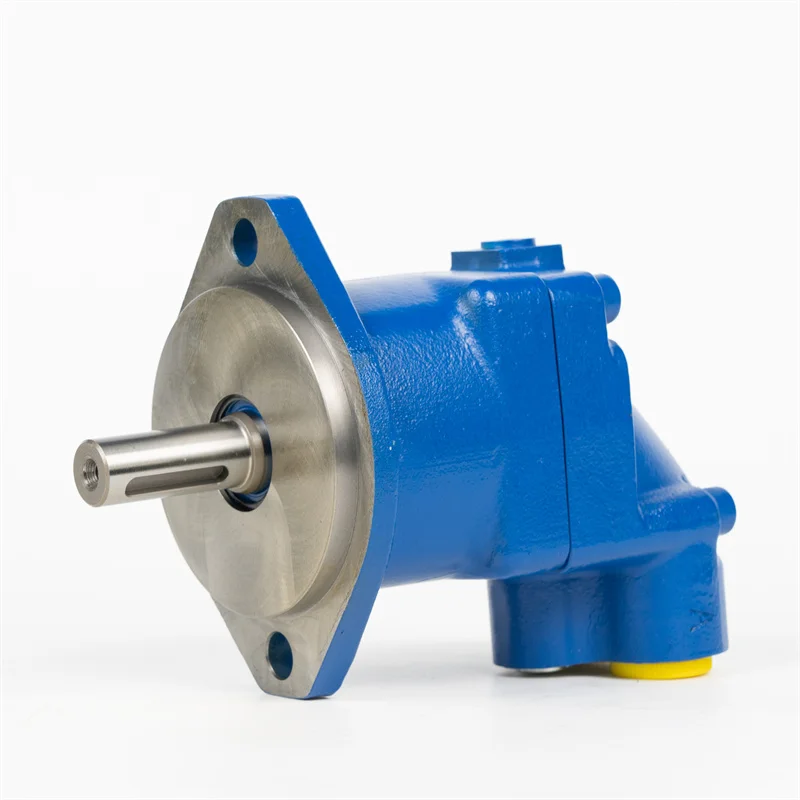

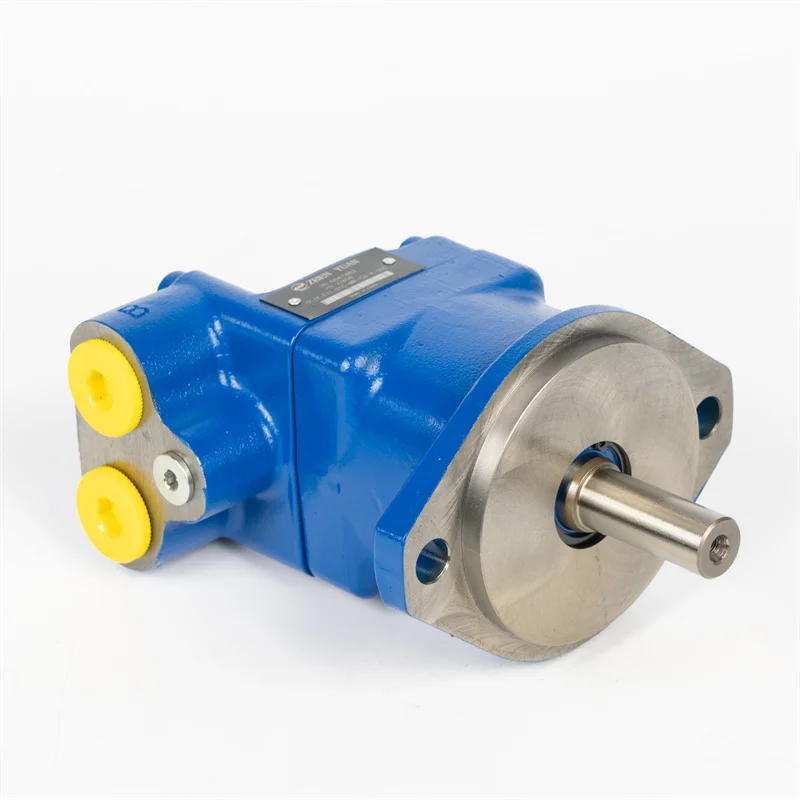

Parker F12 Series High-Pressure Bent Axis Hydraulic Motors

Product Overview: The Parker F12 Series is synonymous with elite performance and durability in the hydraulic drive industry. Featuring a robust Bent-Axis piston design, the F12 is engineered for extreme duty cycles characterized by high pressure, high speeds, and frequent reversals. This featured selection includes three precision configurations: F12-080-MS-SV-S-000-0000-P0, F12-090-MS-SV-S-000-0000-P0, and the compact F12-040-MS-SV-T-000-0000-P0. Utilizing unique spherical pistons, the F12 motor excels in forestry saw drives, mower propulsion, shredders, and demanding PTO (Power Take-Off) applications.

Key Technical Advantages:

• Bent-Axis Elite Performance: Compared to swash-plate designs, the bent-axis architecture allows for higher self-priming speeds and lower mechanical drag, ideal for rapid-start and high-RPM operations.

• Superior Shock Resistance: Equipped with heavy-duty spherical pistons and a unified rotor group, the F12 withstands sudden pressure spikes and severe operational vibrations.

• High-Pressure Continuous Duty: Rated for 420 Bar (6000 PSI) continuous operation with peak capabilities reaching 480 Bar, ensuring reliable power under maximum load.

• Environmental Resilience: Features high-performance sealing (the SV code denotes Viton seals), capable of enduring high temperatures and various hydraulic fluids while excluding external contaminants.

• Ultra-Compact Footprint: The F12 series offers an industry-leading power-to-weight ratio, allowing for easy integration into space-constrained power units or attachment heads.

• Target Applications: Forestry harvester saw heads, heavy-duty flail mowers, industrial mixers, construction machinery auxiliary drives, and marine winches.

Detailed Models & Parameters:

• Core Series: Parker Hannifin F12 High Pressure Series.

• Model Keywords: F12-080, F12-090, F12-040, MS-SV-S, MS-SV-T.

• Technical Specs Decoding:

  • F12-080 / 090 / 040: Denotes displacements of 80cc, 90cc, and 40cc per revolution respectively.

  • MS-SV: Refers to specific high-speed internal configurations and Viton high-temperature seals.

  • S / T Shafts: Represents specific shaft extensions (e.g., DIN splined or keyed shafts).

• Performance Specs: Maximum continuous speeds ranging from 3,000 to 6,000 RPM (displacement dependent), with mechanical efficiency exceeding 95%.
