Parker F12 Series Motor | F12-030, F12-060, F12-080 | Bent-Axis Piston Motor
| Model Number | F12-060-LF-IV-K-000-0000-P0, F12-080-LF-IV-K-000-0000-P0 |
|---|
Product Description

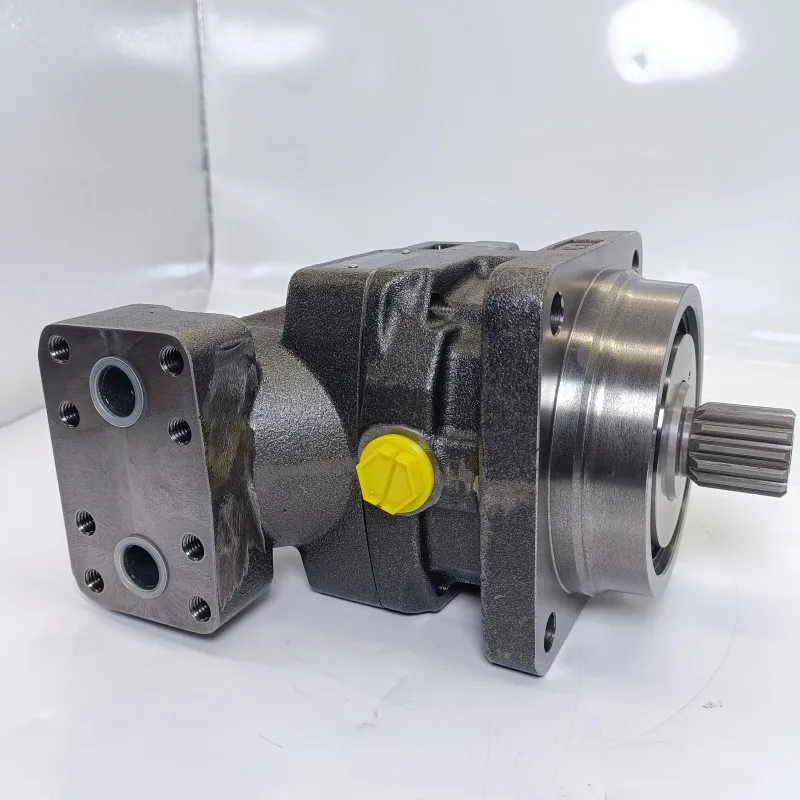

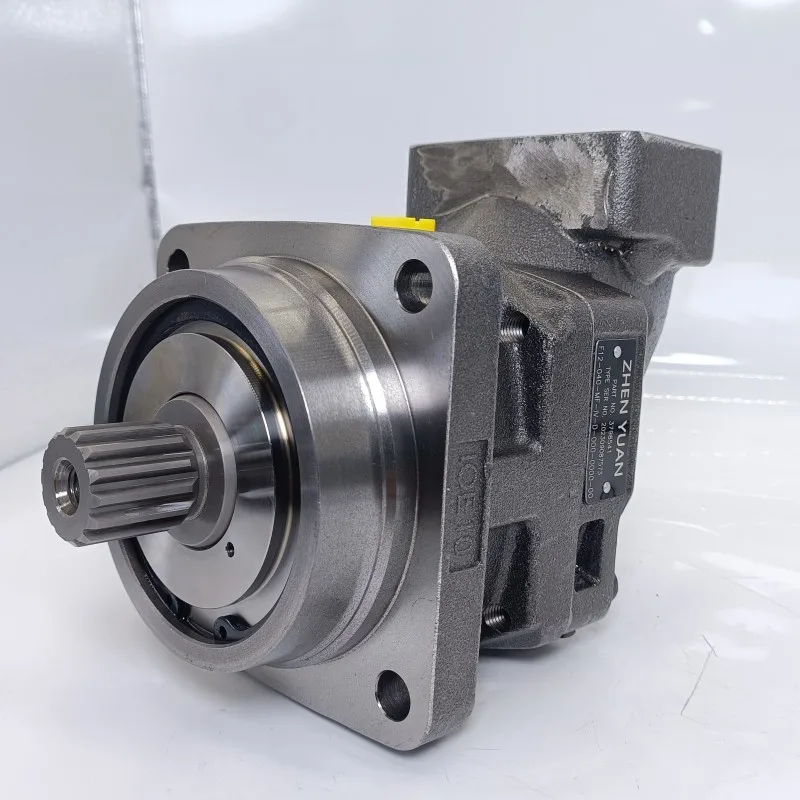

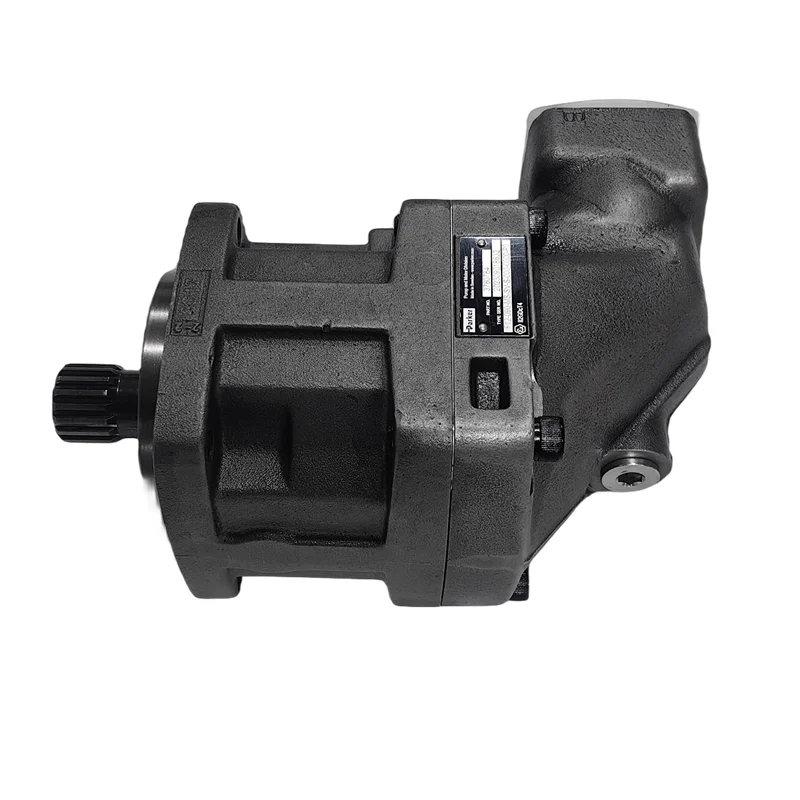

Parker F12 Series High-Performance Bent-Axis Piston Motors
Product Overview: The Parker F12 Series is a bent-axis, fixed displacement piston motor specifically engineered for the most demanding operating conditions. Featuring a unique 40° bent-axis design, the F12 series combines a compact envelope with outstanding reliability at high speeds and extreme pressures. This featured selection includes core high-performance models: F12-030-LS-SV-S, F12-060-LF-IV-K, and F12-080-LF-IV-K. Capable of operating at peak pressures up to 480 Bar, the F12 series is the definitive choice for saw drives, winch systems, mowing equipment, and high-performance fan drives.
Key Technical Advantages:
Superior Speed Capability: Precision-balanced rotating groups allow for exceptionally high-speed operation, perfect for drive systems requiring rapid response.
Extreme Pressure & Shock Resilience: Rated for 420 Bar (6100 PSI) continuous and 480 Bar (7000 PSI) peak pressure, engineered to handle severe pressure spikes.
Exceptional Mechanical Efficiency: The 40° bent-axis angle minimizes friction loss, significantly increasing power density while reducing heat generation.
Robust Bearing Construction: Equipped with reinforced heavy-duty bearings capable of handling significant radial and axial forces, extending service life in harsh environments.
Target Applications: Timber harvesting saw drives, high-speed fan systems, construction machinery winches, agricultural implement drives, and closed-circuit systems.
Detailed Models & Parameters:
Core Series: Parker F12 Series (Bent-Axis Design).
Model Keywords: F12-030, F12-060, F12-080, LS-SV, LF-IV, P0.
Technical Specs Decoding:
F12-030-LS-SV-S-000-0000-P0: 30cc displacement, LS shaft specification with SV sealing configuration.
F12-060-LF-IV-K-000-0000-P0: 60cc displacement, LF mounting flange, and IV valve plate configuration.
F12-080-LF-IV-K-000-0000-P0: 80cc displacement, providing higher torque output and extreme pressure resilience.
Pressure Specs: Rated operating pressure 420 Bar, Peak pressure 480 Bar.
Displacement Range: Offering a versatile spectrum from 30 cm³/rev to 80 cm³/rev.
