Parker F12 Hydraulic Motor | F12-030, F12-060, F12-080, F12-110, F12-150 | 480 Bar

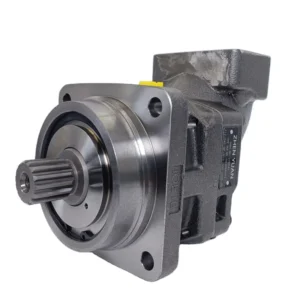

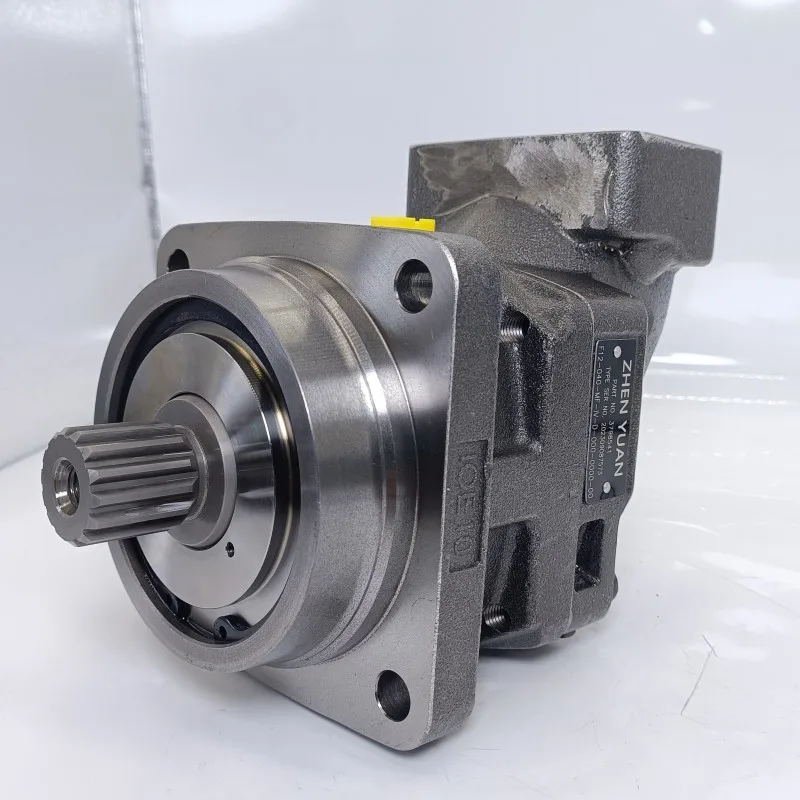

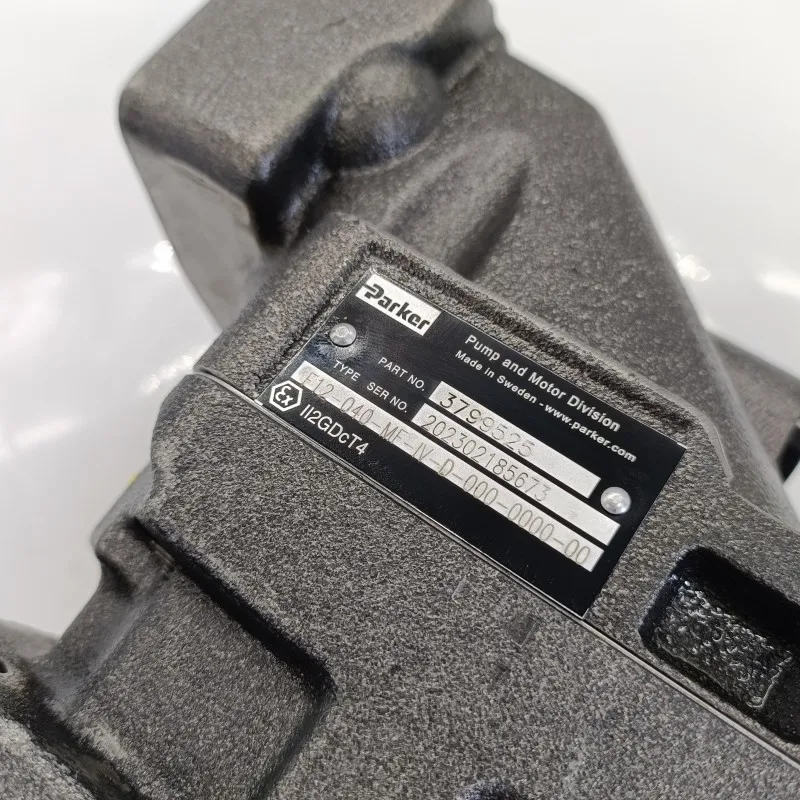

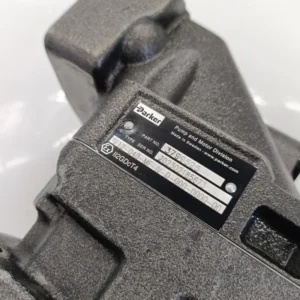

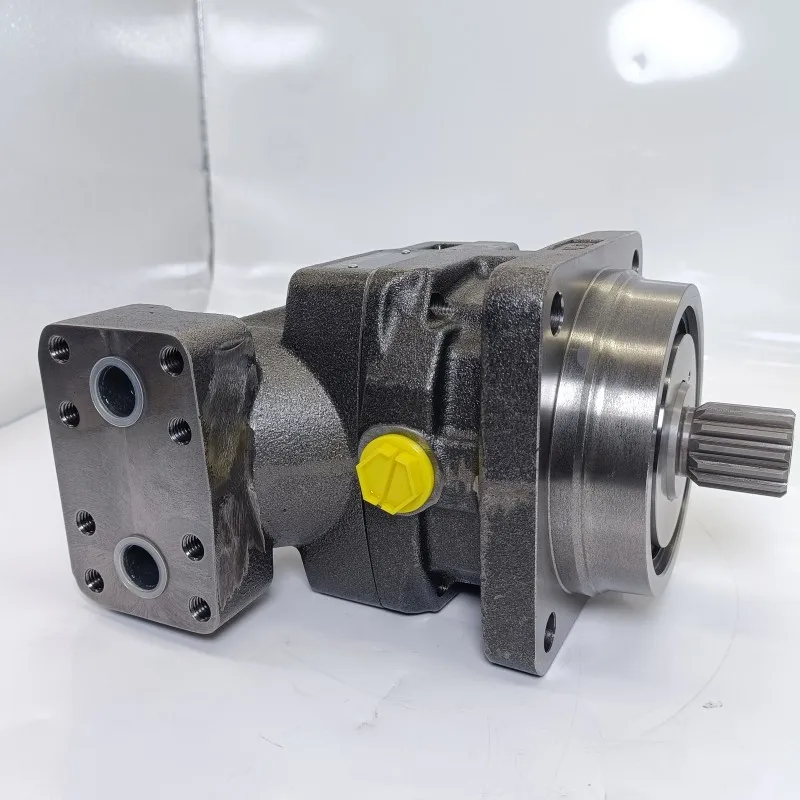

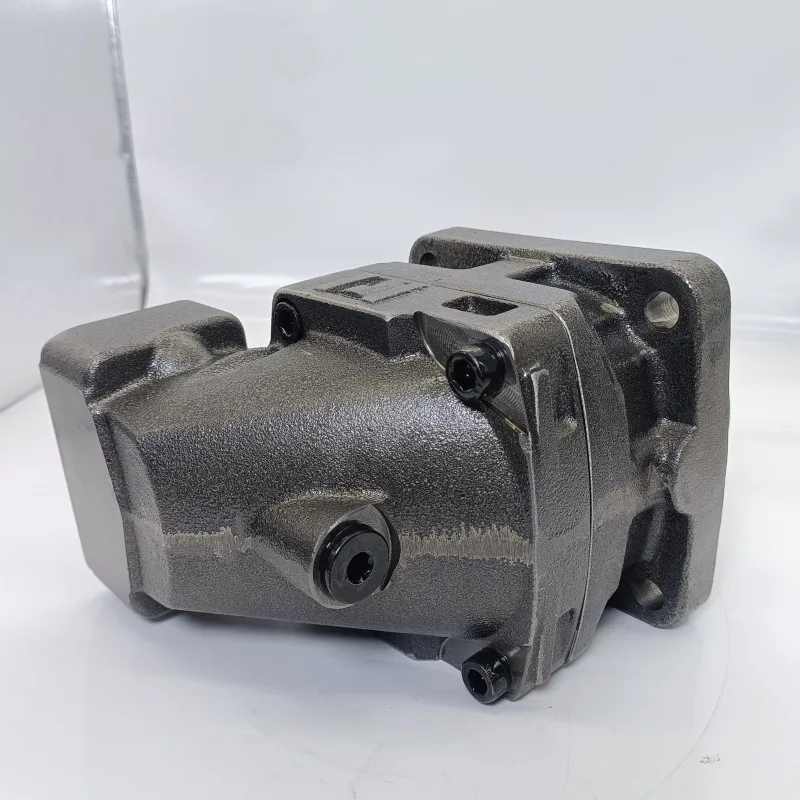

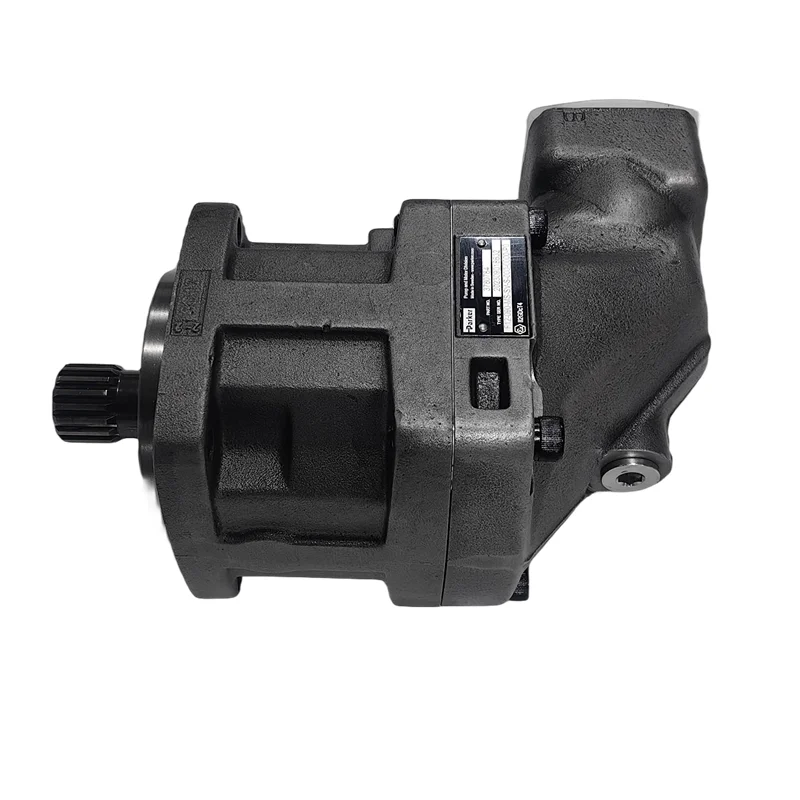

Parker F12 Series High-Pressure Bent-Axis Hydraulic Motors

Product Overview: The Parker F12 Series is an advanced Bent-Axis fixed displacement hydraulic motor, representing the gold standard in global heavy-duty hydrostatic drive technology. Renowned for its exceptional efficiency, compact footprint, and extreme reliability, the F12 series is extensively utilized in mobile travel drives, crane winch systems, saw drives, and both open/closed circuit applications. This selection covers the full range of core specifications, including F12-030, F12-060, F12-080, F12-090, F12-110, and F12-150. Utilizing a unique 40° bent-axis geometry, the F12 series delivers consistent power output even at peak pressures up to 480 Bar.

Key Technical Advantages:

• Superior Operational Efficiency: The bent-axis design, combined with low-friction rotating parts, ensures outstanding volumetric and mechanical efficiency across the entire speed range.

• High Speed & Shock Resistance: Rated for continuous pressures of 350-420 Bar and peak pressures up to 480 Bar. Its robust bearing architecture is built to withstand high-frequency shock loads in harsh environments.

• Excellent Startup Torque: Precision-engineered valve plates ensure smooth low-speed operation, providing strong and stable torque even during initial startup under heavy loads.

• Compact & Lightweight Construction: Compared to swashplate motors of equivalent power, the bent-axis design significantly saves space in wheel drives or winch drums.

• Versatile Configurations: Available with multiple shaft options (Splined/Keyed) and seal configurations to ensure compatibility with various rigorous outdoor conditions.

Detailed Models & Parameters:

• Core Series: Parker F12 Series (Fixed Displacement Bent-Axis).

• Model Keywords: F12-030, F12-060, F12-080, F12-090, F12-110, F12-150.

• Technical Specs Decoding:

  • F12-060-MF-CV-C-000-000-0: Standard motor configuration, MF (Motor Fixed).

  • F12-060-M-IV-K-000-000-F: Specialized industrial/mobile configuration.

  • MS-SV-S / MF-CV-C: Identifiers for shaft types (ISO/SAE), rotation, and valve plate types.

• Pressure Metrics: Continuous pressure up to 420 Bar (6000 PSI), Peak pressure 480 Bar (7000 PSI).

• Displacement Range: Covering 30 cm³/rev to 150 cm³/rev.
