Parker F12 Motor | F12-060 F12-080 F12-110 F12-125 F12-152 F12-250 | Heavy Duty Piston Motor
| Model Number | F12-030-MF-IV-D-000-0000-00, F12-040-MF-IV-K-000-0000-00, F12-060-MS-SV-S-000-000-0, F12-080-MS-SV-U-000-000-0, F12-110-MS-SV-S-000-000-0, F12-125-MS-SV-S-000-000-0 |
|---|
Product Description

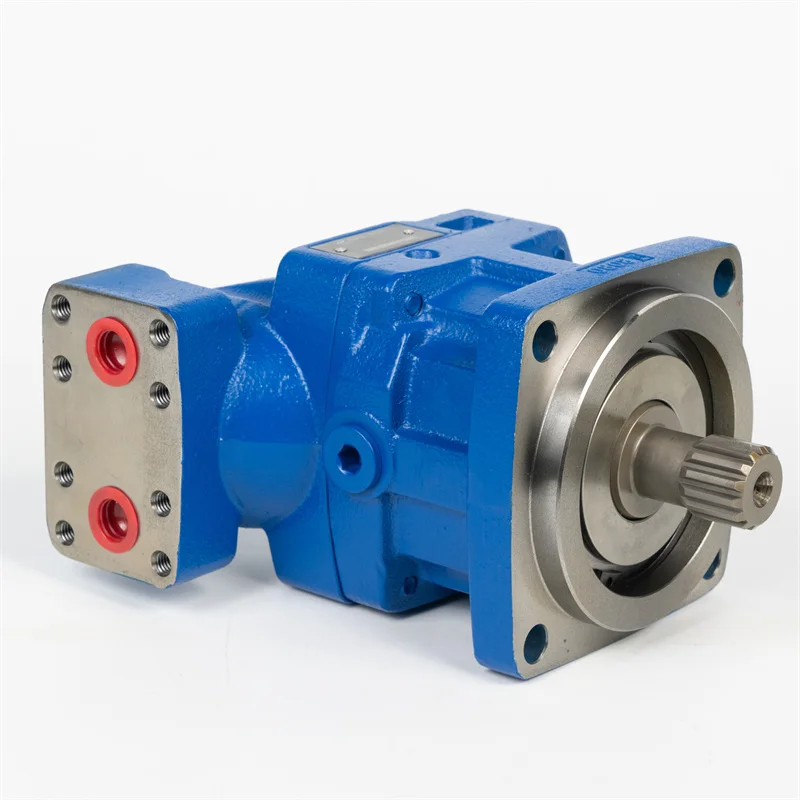

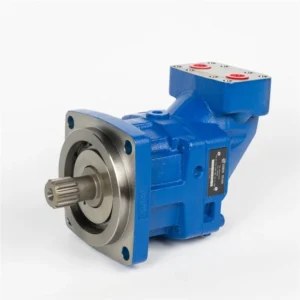

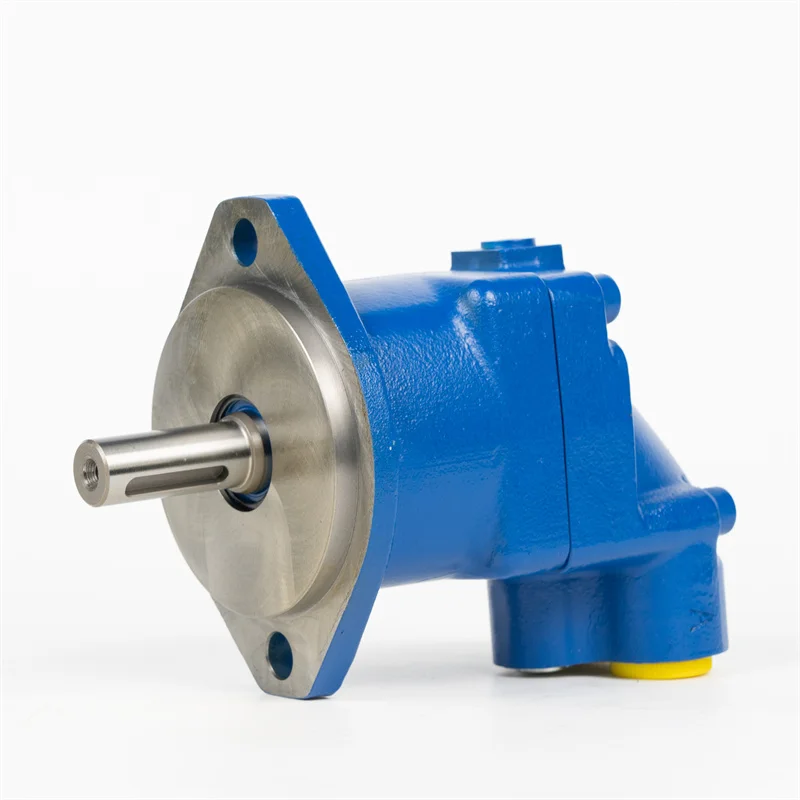

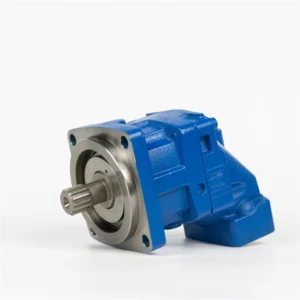

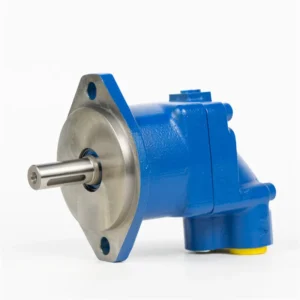

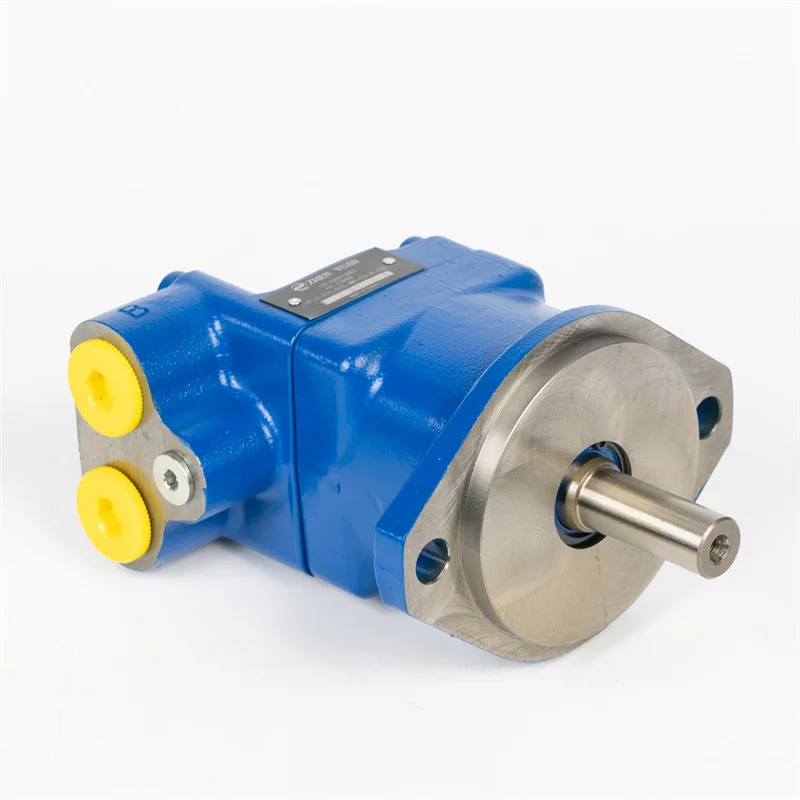

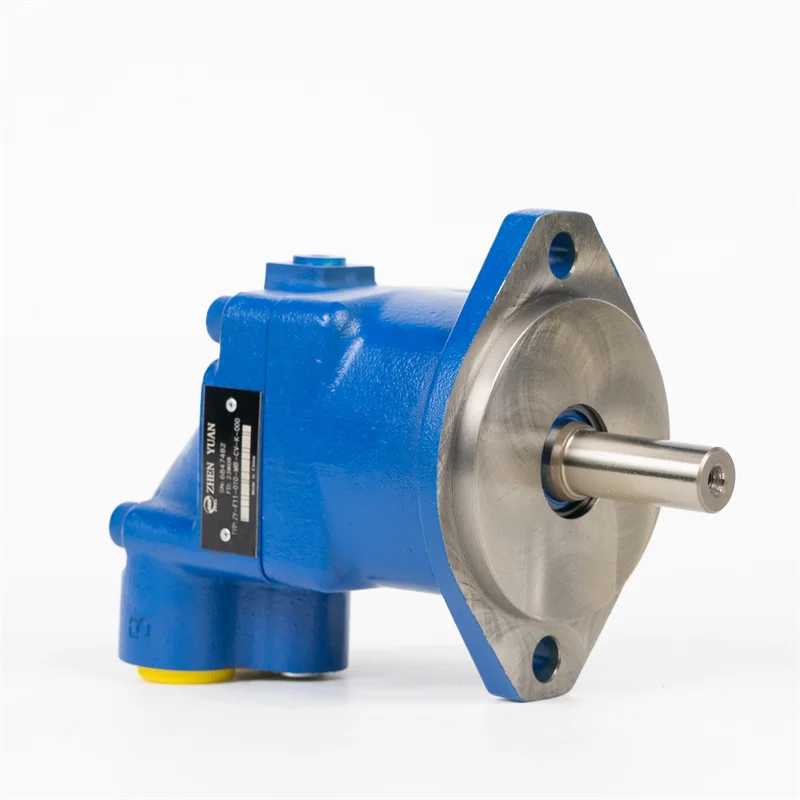

Parker F12 Series Heavy-Duty Bent-Axis Piston Motors (60cc – 250cc)
Product Overview: The Parker F12 Series represents the industry’s premier bent-axis fixed displacement motors, engineered for high-performance heavy-duty applications. Utilizing a robust frame and patented 40° technology, the F12 series excels in the large displacement segments—including F12-110, F12-125, F12-152, and F12-250—with unmatched reliability. Featuring integrated SV (Safety Valve) options, these motors are the preferred drive solution for heavy-duty winches, mining rig power heads, large mobile equipment travel drives, and hydrostatic closed-loop circuits.
Key Technical Advantages:
Extreme Pressure Resilience: The highly reinforced construction supports a continuous operating pressure of 420 Bar (6000 PSI) and handles instantaneous peaks up to 480 Bar.
Integrated SV Safety Valve: The built-in safety valve absorbs pressure spikes, shielding the motor from instantaneous overload damage and ensuring safety during heavy load start-stop cycles.
Superior Startup Torque: Optimized spherical piston technology ensures high torque delivery even at low startup speeds, ideal for lifting and heavy traction drives.
Global Mounting Standards: Available in MS (SAE standard) and MF (ISO Cartridge/Flange) interfaces, compatible with major heavy equipment worldwide.
Target Applications: Heavy-duty winches and windlasses, construction machinery track drives, mining drilling rigs, TBM auxiliary power, and heavy forestry harvesters.
Detailed Models & Parameters:
Core Series: Parker Hannifin F12 Series (Heavy Duty).
Model Keywords:
F12-060 / F12-080-MS-SV-U: Medium-duty robust units for compact high-load drives.
F12-110 / F12-125-MS-SV-S: High-power drive cores with SAE interfaces and S (Splined) shafts.
F12-152-MF-SV-S-000-000-0: 152cc displacement, ISO standard, optimized for ultra-high power density.
F12-250: The series’ largest displacement for extreme torque requirements.
Technical Specifications:
Pressure Rating: 420 Bar Continuous / 480 Bar Peak.
Displacement Range: 59.8 cm³/rev (060) to 250 cm³/rev (250).
F12-030-MF-IV-D-000-0000-00
F12-040-MF-IV-K-000
F12-060-MS-SV-S-000-000-0
F12-080-MS-SV-U-000-000-0
F12-110-MS-SV-S-000-000-0
F12-125-MS-SV-S-000-000-0
F12-152-MF-SV-S-000-000-0
F12-250-QF-SV-F-000-000-0
F12-080-MS-SV-U-000-000-0
F12-110-MS-SV-S-000-000-0
F12-125-MS-SV-S-000-000-0
F12-152-MF-SV-S-000-000-0
F12-250-QF-SV-F-000-000-0
