Parker F12-060 Motor | F12-060-MF-IV-D, F12-060-MS-SV-S, F12-060-MF-IV-K

Model Number

F12-030-MF-IV-D-000-0000-00, F12-040-MF-IV-K-000-0000-00, F12-060-MS-SV-S-000-000-0, F12-080-MS-SV-U-000-000-0, F12-110-MS-SV-S-000-000-0, F12-125-MS-SV-S-000-000-0

Inquiry

Product Description

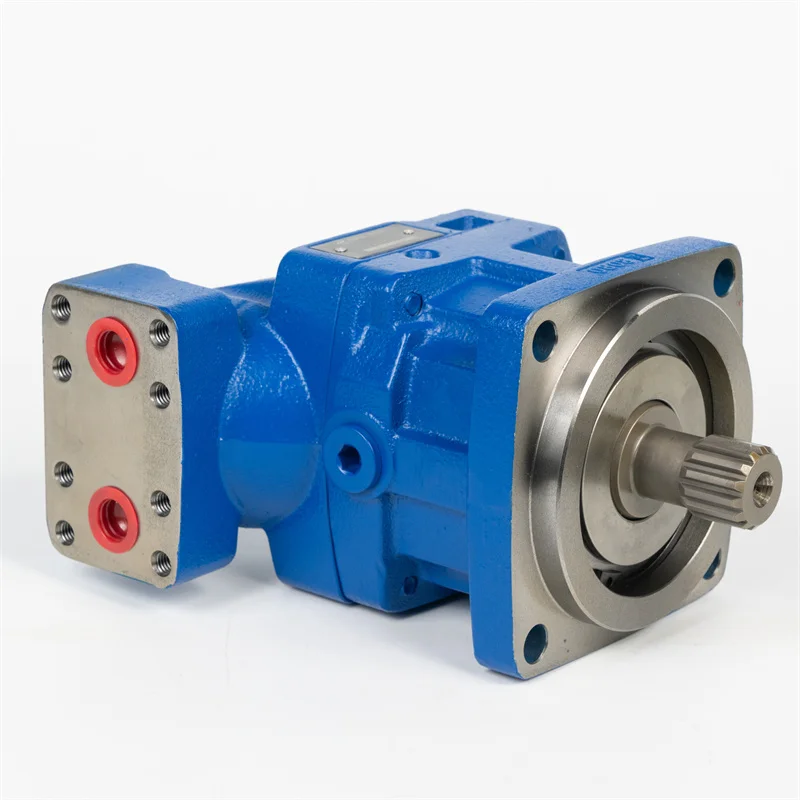

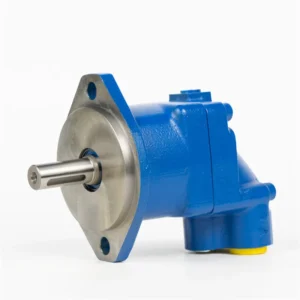

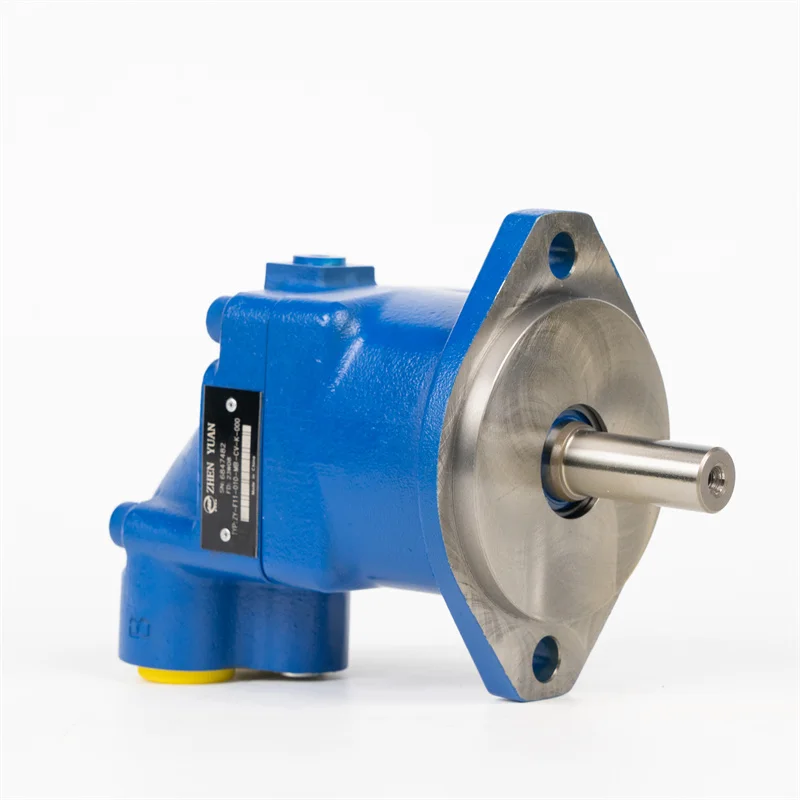

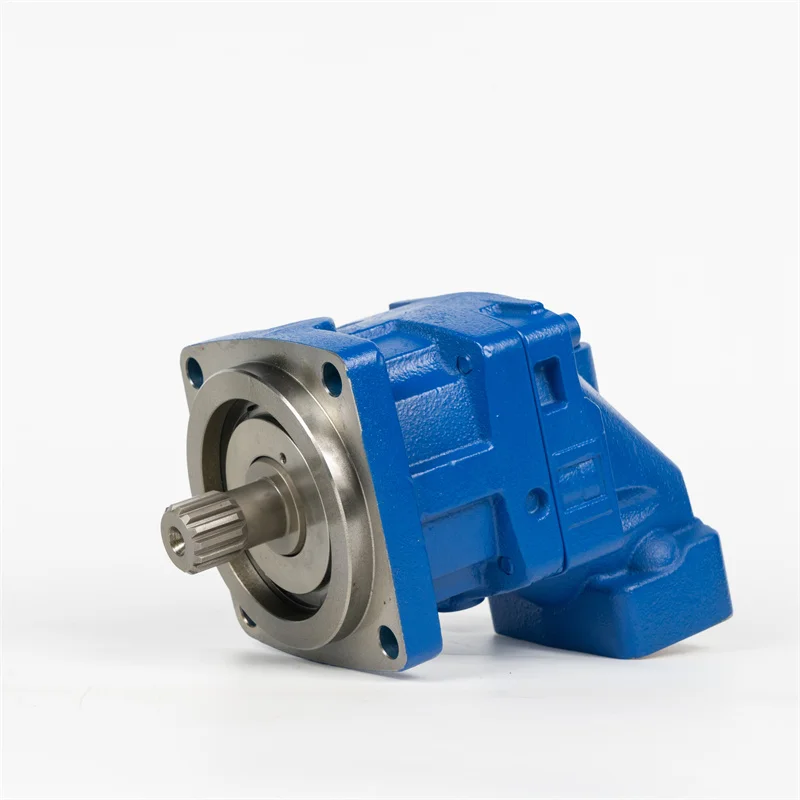

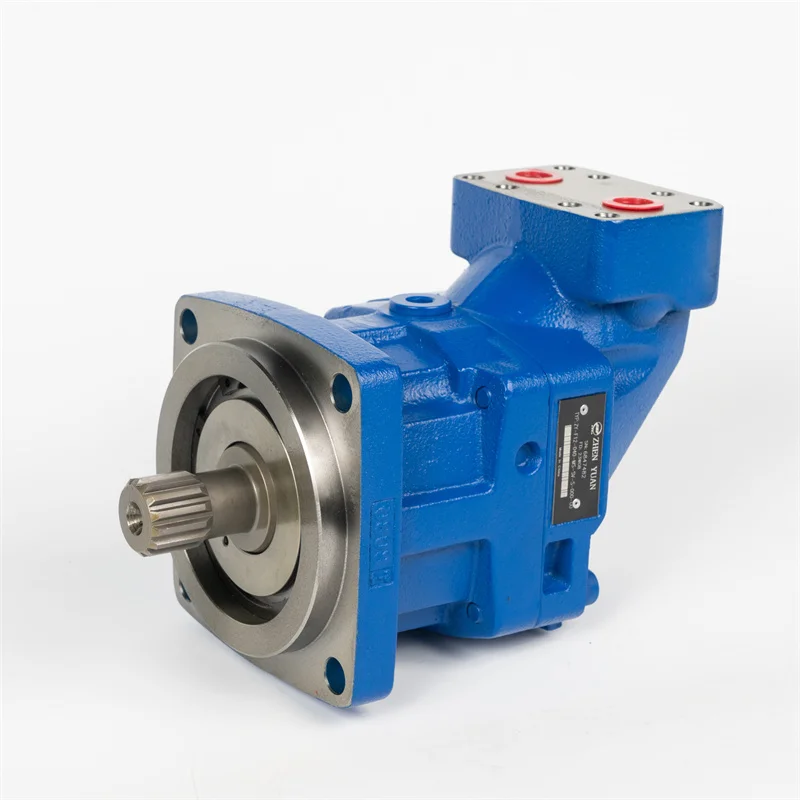

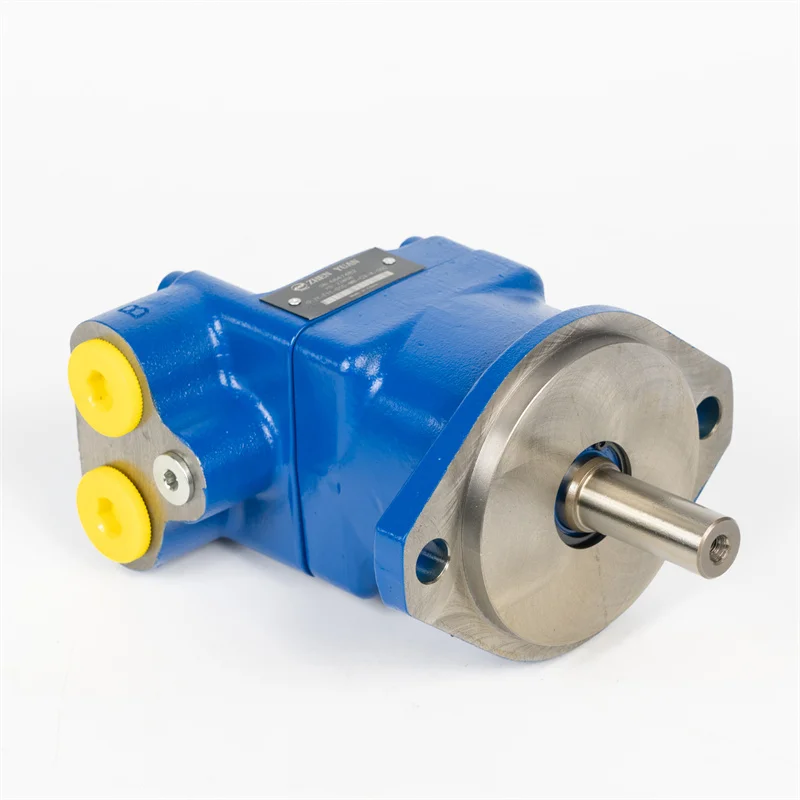

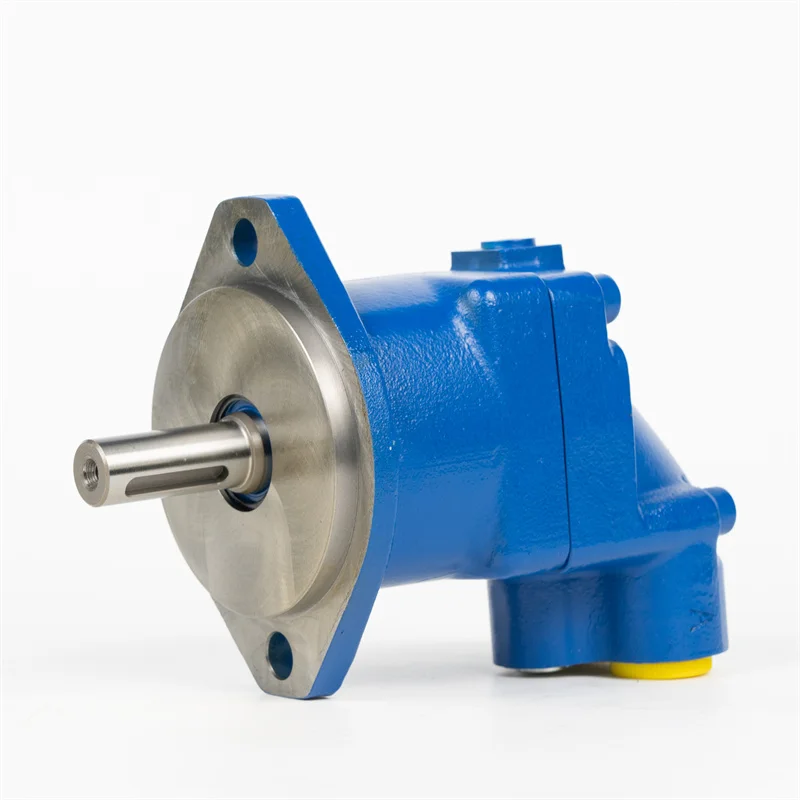

Parker F12-060 Series High-Pressure Bent-Axis Fixed Displacement Motors

Product Overview: The Parker F12-060 Series is a globally recognized benchmark for premium hydraulic power. As a definitive Bent-Axis fixed displacement motor, the F12-060 is engineered specifically for grueling environments requiring extreme rotational speeds, high operating pressures, and frequent shock loads. This selection highlights three mainstream configurations: F12-060-MF-IV-D (ISO Standard), F12-060-MS-SV-S (SAE Standard), and F12-060-MF-IV-K (Keyed shaft version). With its unique 40° bent-axis design, the F12-060 is widely utilized in forestry saw drives, snow blowers, crane winches, hydraulic shredders, and high-performance mobile propulsion systems.

Key Technical Advantages:

  • Peak Pressure Resilience: Rated for continuous operation at 420 Bar (6000 PSI) with intermittent peak pressures reaching 480 Bar, ensuring stability under instant overloads.

  • Exceptional Speed Range: Optimized piston ring and valve plate architecture ensures high volumetric efficiency even at ultra-high RPMs.

  • Thermal Shock Resistance: Equipped with specialized seals and bearing systems designed to withstand rapid temperature fluctuations, ideal for extreme climates.

  • Global Mounting Specs: Available in IV (ISO) and SV (SAE) standards, allowing seamless integration with international machinery fleets.

  • Superior Power Density: Delivers massive torque output within a compact envelope, significantly reducing overall machine weight and installation space.

  • Target Applications: Timber harvester heads, hydraulic shears, marine winches, railway vehicle drives, and industrial mixers.

Detailed Models & Parameters:

  • Core Series: Parker Hannifin F12 Series (60cc Frame).

  • Model Keywords: F12-060-MF-IV-D, F12-060-MS-SV-S, F12-060-MF-IV-K, 000-000-0.

  • Technical Specs Decoding:

    • MF / MS: Distinguishes between fixed displacement motor types and specific series variants.

    • IV / SV: Refers to ISO Mounting Flange and SAE Mounting Flange interfaces.

    • D / S / K: Represents various drive shaft configurations (e.g., involute splined or keyed shafts).

  • Pressure Specs: Nominal Pressure 420 Bar (42 MPa), Peak Pressure 480 Bar (7000 PSI).

  • Displacement: 60 cm³/rev (3.66 in³/rev).
