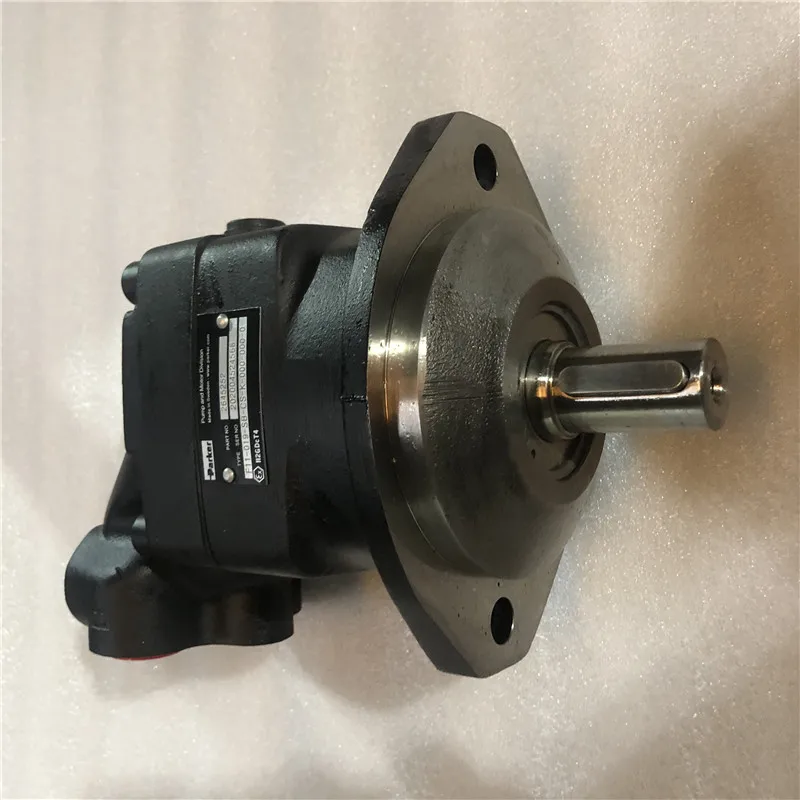

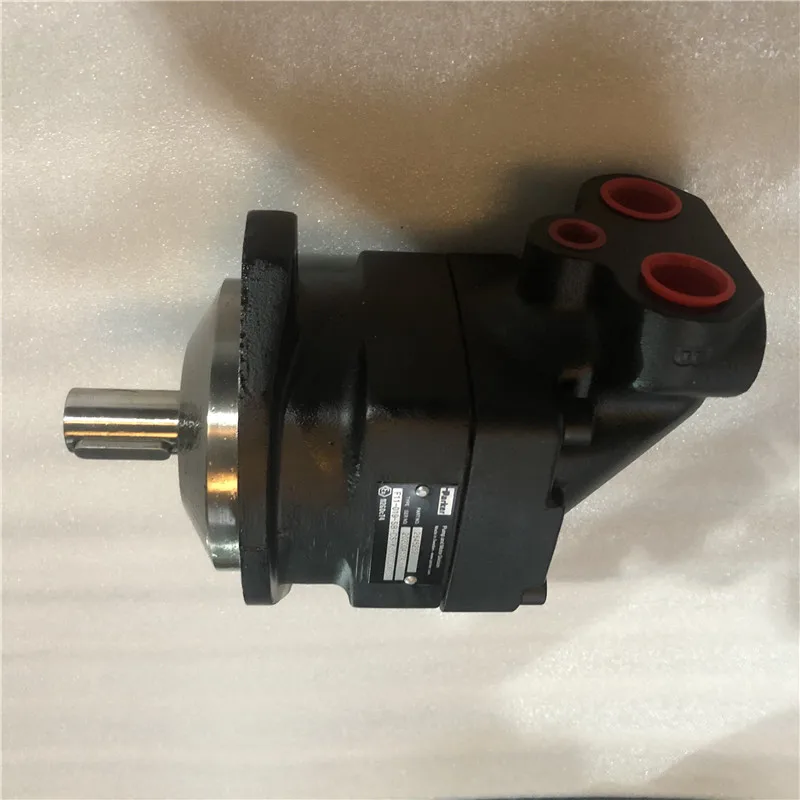

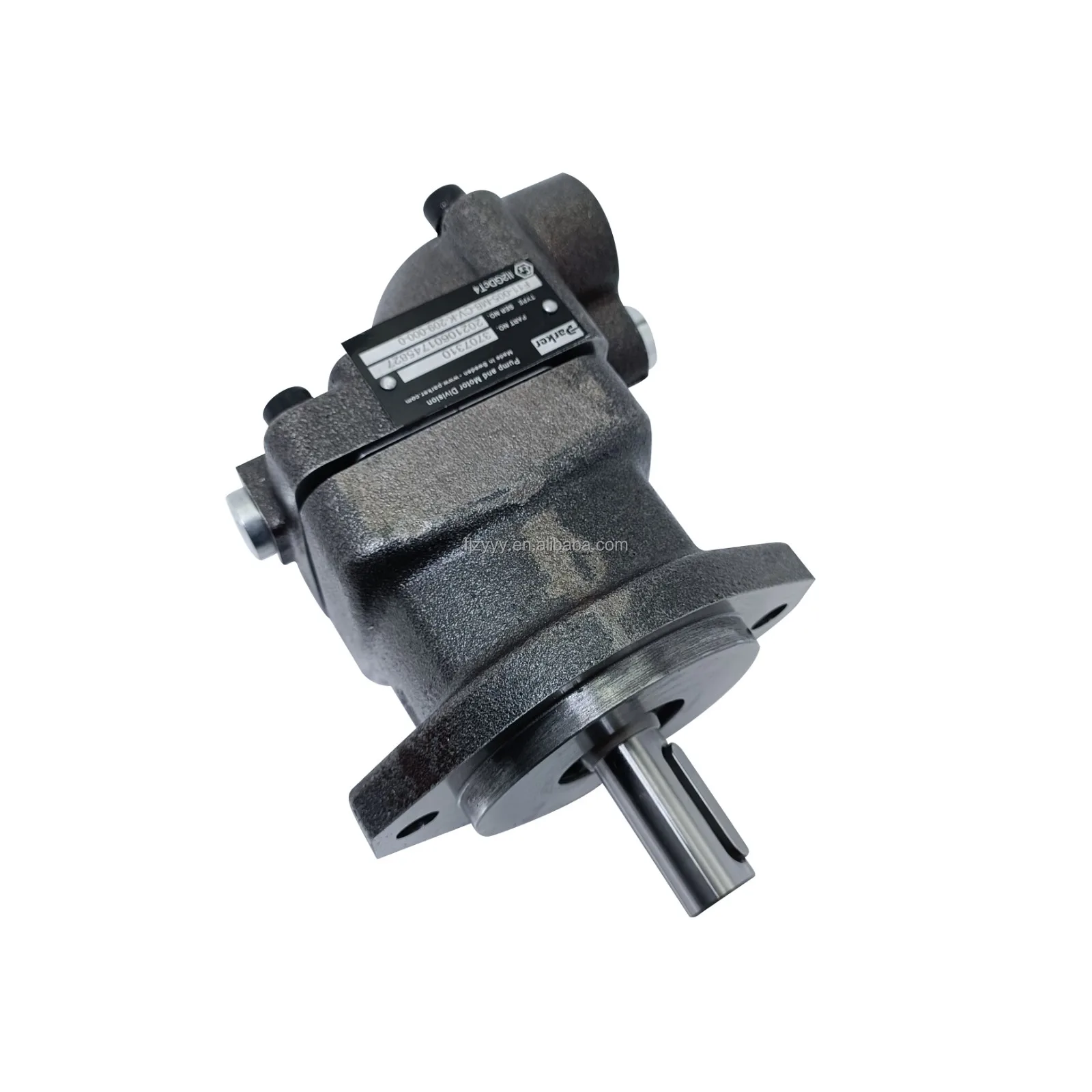

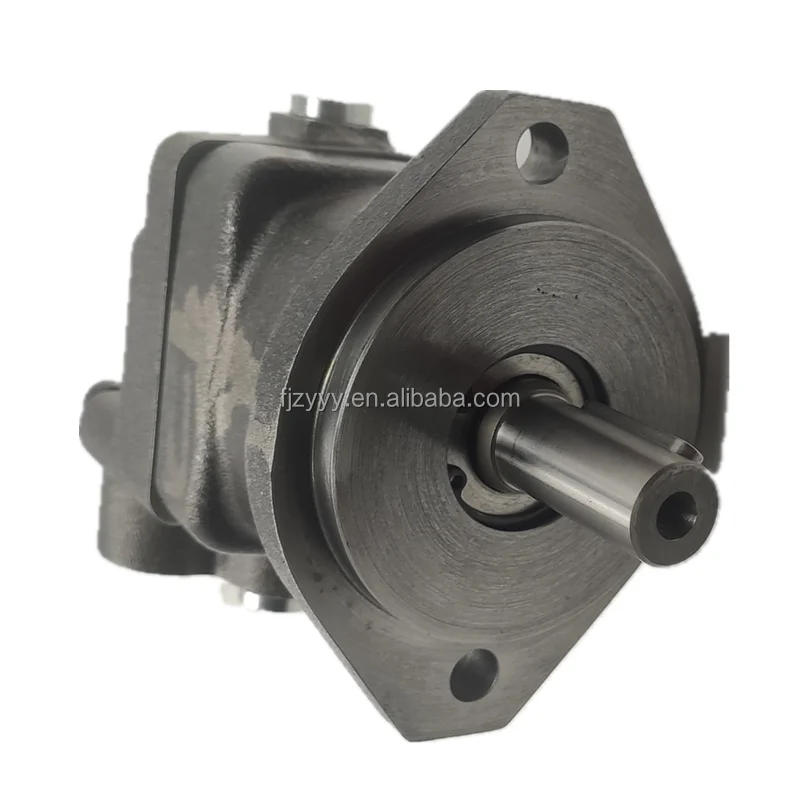

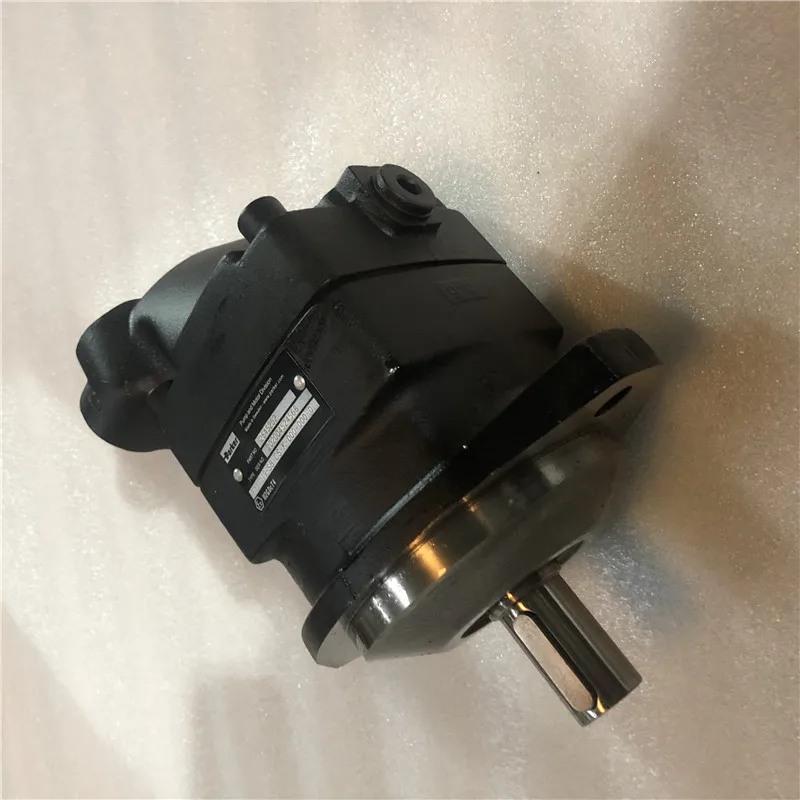

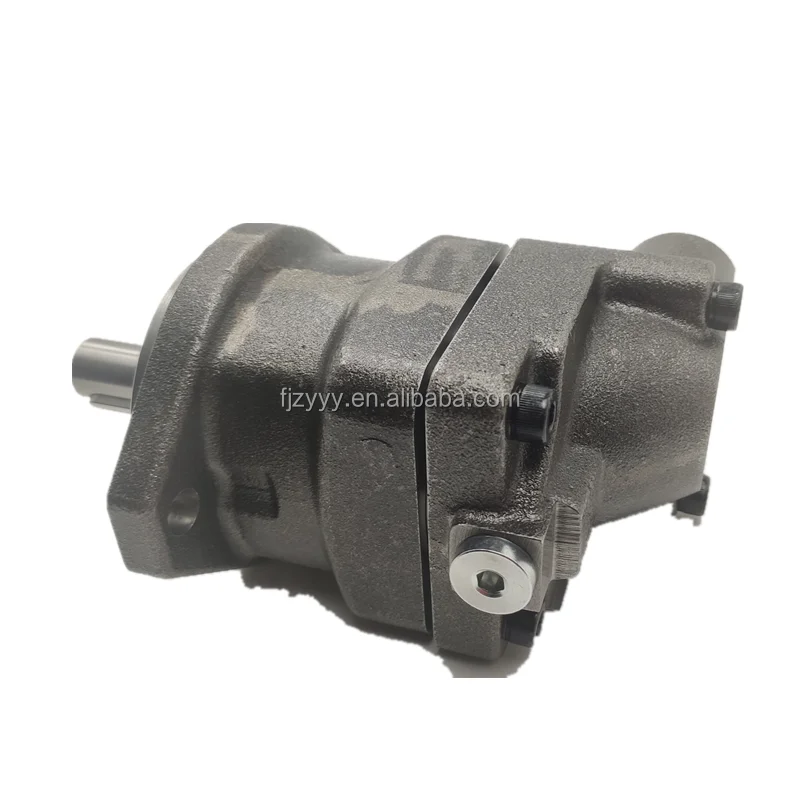

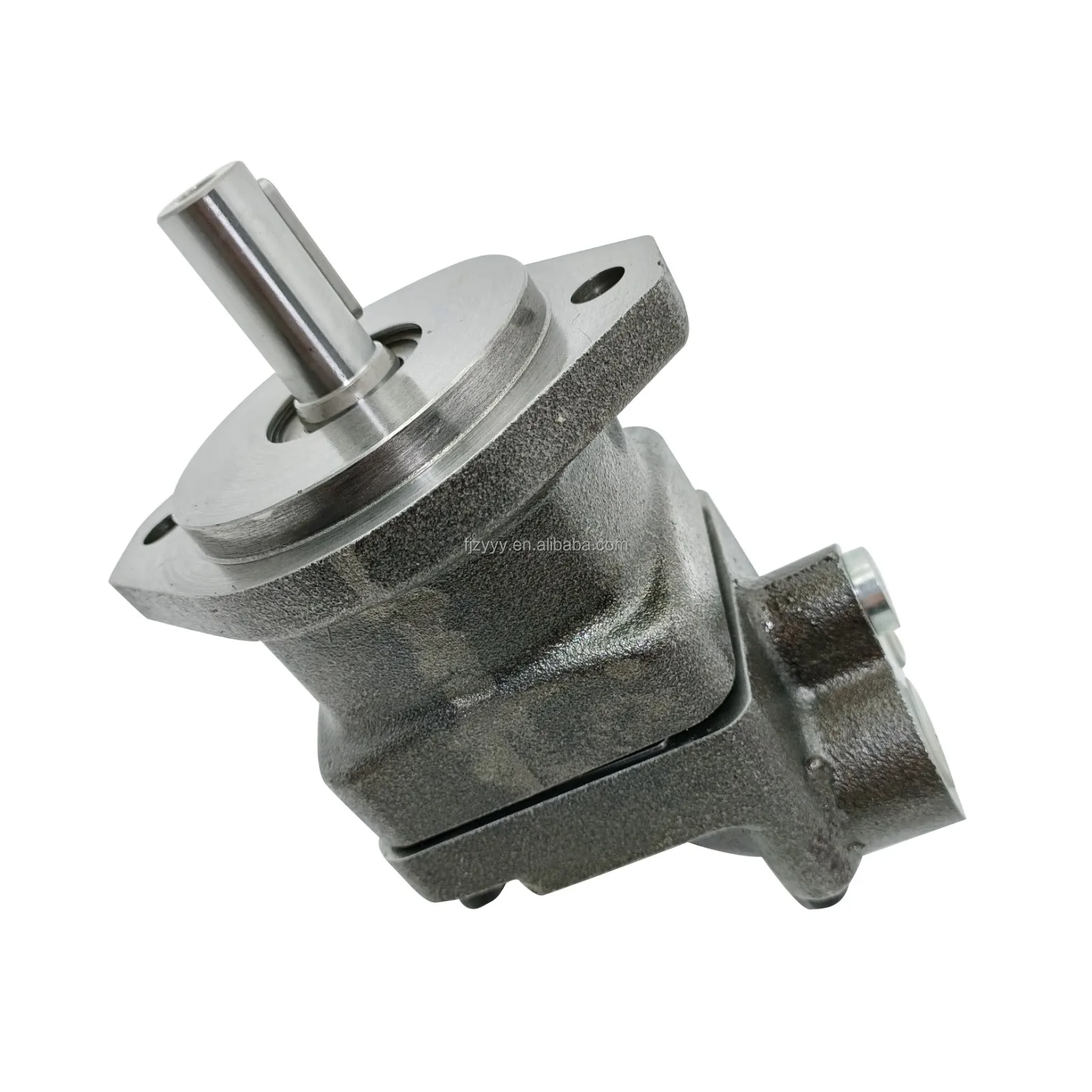

Parker F11 Series High-Speed Bent Axis Fixed Piston Motors

Product Overview: The Parker F11 Series is a premier bent-axis, fixed displacement unit that sets the industry benchmark for high-speed reliability, powered by Parker’s patented Spherical Piston technology. Engineered to withstand extreme instantaneous acceleration and frequent load shocks, the F11 is the ultimate choice for high-cycle applications. This category covers the full spectrum from compact models F11-005 and F11-010 to the heavy-duty F11-019 and F11-150. These motors are the definitive power source for forestry harvesters (saw drives), mowers, snow blowers, material handling equipment, and high-performance industrial fan systems.

Key Technical Advantages:

• Elite Speed Performance: The spherical piston combined with a 40° bent-axis design allows the F11 to handle ultra-high speeds exceeding 10,000 RPM while maintaining minimal power loss.

• Superior Starting Torque: Optimized internal balancing ensures powerful and smooth torque delivery from zero RPM.

• Shock & Acceleration Resilience: The robust synchronization link provides exceptional durability in harsh environments, such as forestry sawing, where rapid starts and stops are mandatory.

• Compact & Easy Integration: The fixed displacement design supports various mounting standards like HU and RB, fitting perfectly into constrained mechanical spaces.

• Target Applications: Forestry harvester saw head motors, street sweeper brush drives, auxiliary hydraulic systems, and high-reliability marine transmissions.

Detailed Models & Parameters:

• Core Series: Parker F11 Series (Fixed Displacement).

• Technical Spec Decoding:

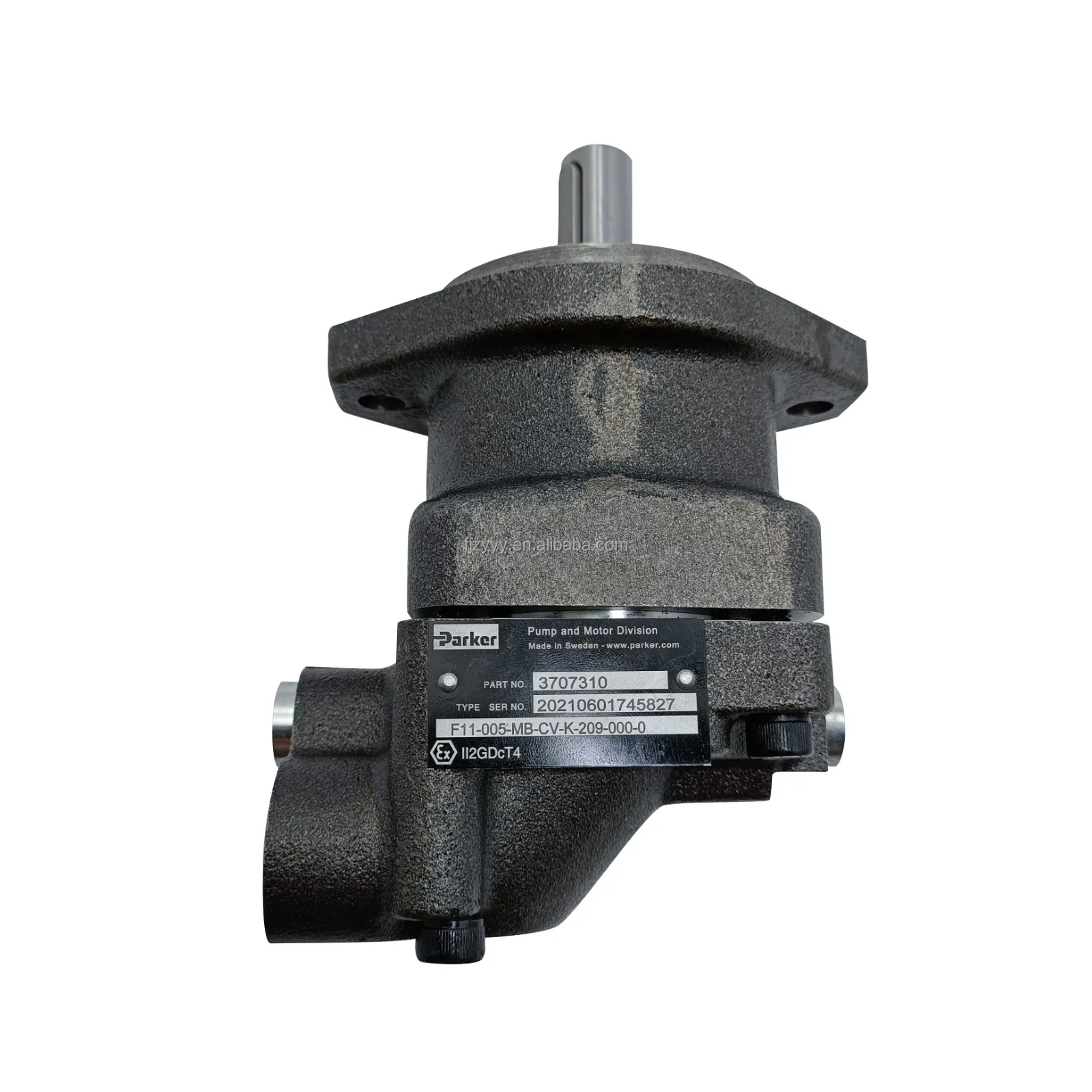

  • F11-005-HU-CV-K-000-0: Size 005, HU-type mounting flange, CV port configuration, and standard K-shaft.

  • F11-019-RB-CN-K-000-0000-00: Size 019, RB-reinforced mounting, CN porting, customized for heavy-duty industrial environments.

• Full Spectrum Sizes: F11-005, F11-006, F11-010, F11-012, F11-014, F11-019, F11-150.

• Core Performance Specs:

  • Peak Pressure: 420 Bar (6100 PSI).

  • Efficiency: Overall efficiency up to 95%.
